Optical Performance
Image Resolution: 640×480
Aiming Light: Red LED, 625nm Wavelength
Illumination Light: White LED, 6500K
Decoding Accuracy: 1D: 5mil Code 39; 2D: 7mil QR Code
Scanning Performance
Field of View: Horizontal 42°, Vertical 31°
Angle Tolerance: Pitch ±60°, Skew ±65°, Roll 360°
Print Contrast: ≥25%

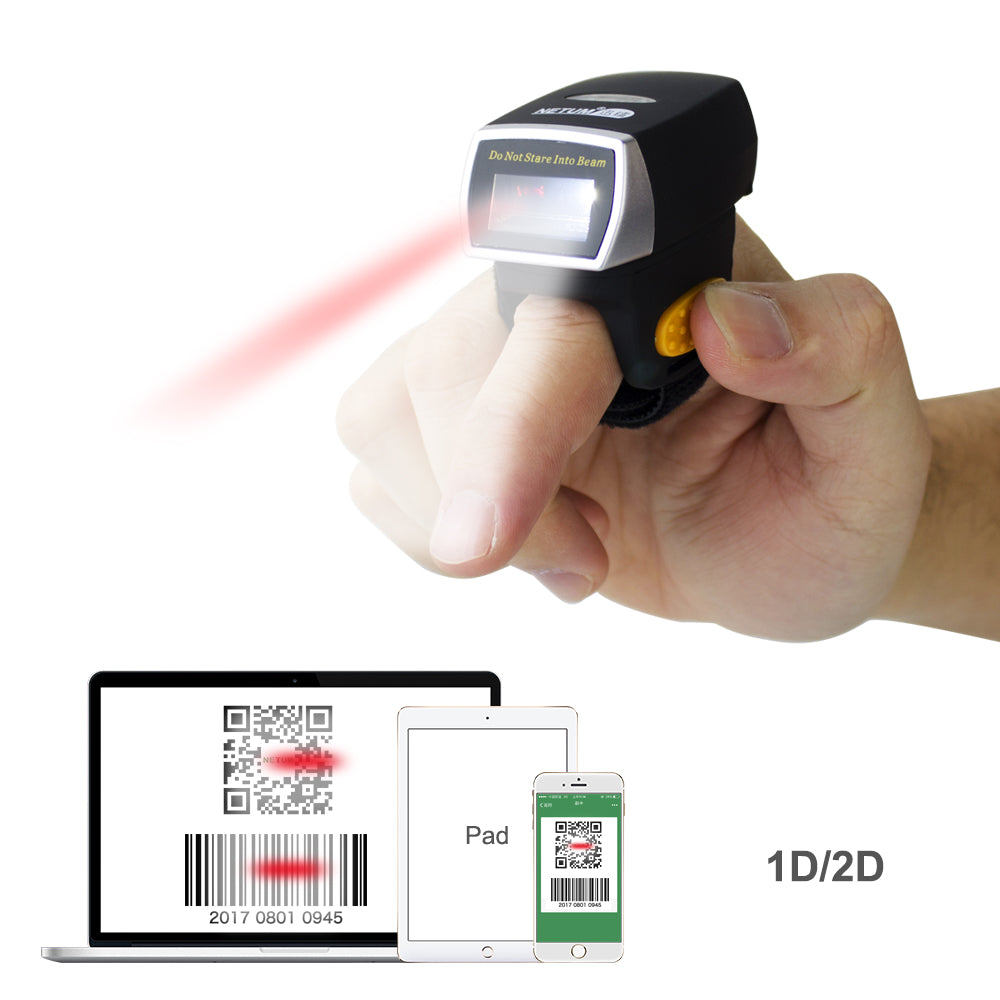

Supported 1D Codes: UPC-A/E, EAN13/8, Code128, Code39, Code93, Codabar, ITF25 and more
Supported 2D Codes: QR Code, Micro QR, Data Matrix, PDF417, Aztec, Maxicode, Hanxin
Depth of Field: Code128 4-10cm, QR Code 2.5-25cm, PDF417 3.5-22cm, EAN13 4.5-27cm, Data Matrix 2.5-9.5cm
Wireless Parameters

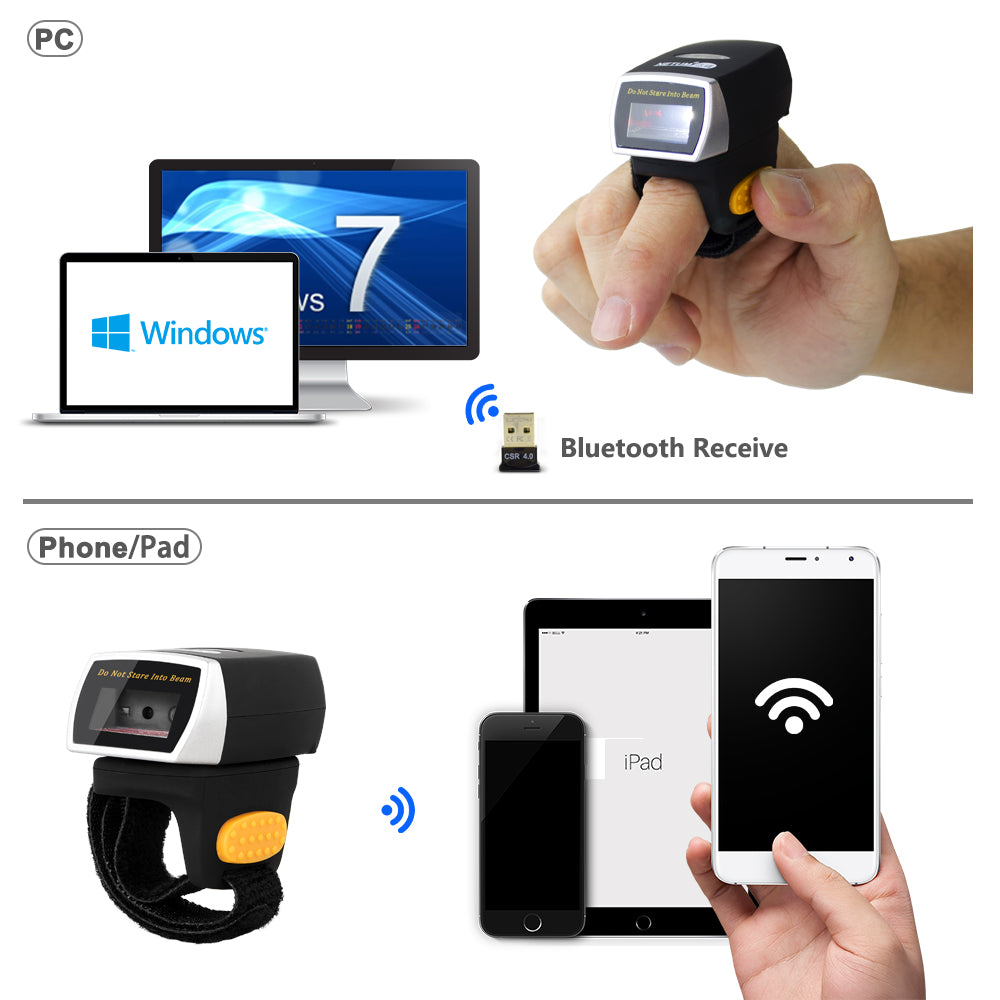

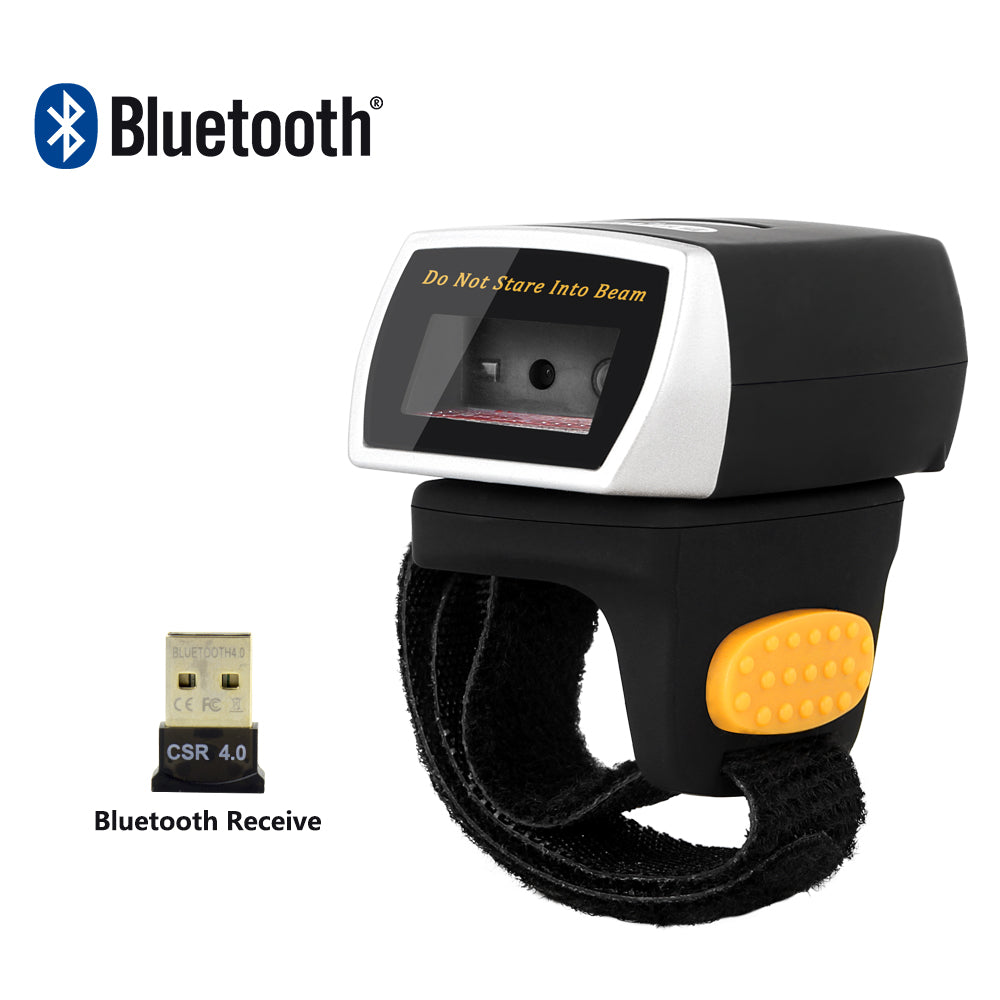

Transmission Mode: 2.4G Wireless, Bluetooth 4.2, USB Wired
2.4G Wireless Range: ≤65m (Line of Sight)
Bluetooth Range: ≤20m (Line of Sight)
Effective Transmission Distance: Up to 35m
Power System

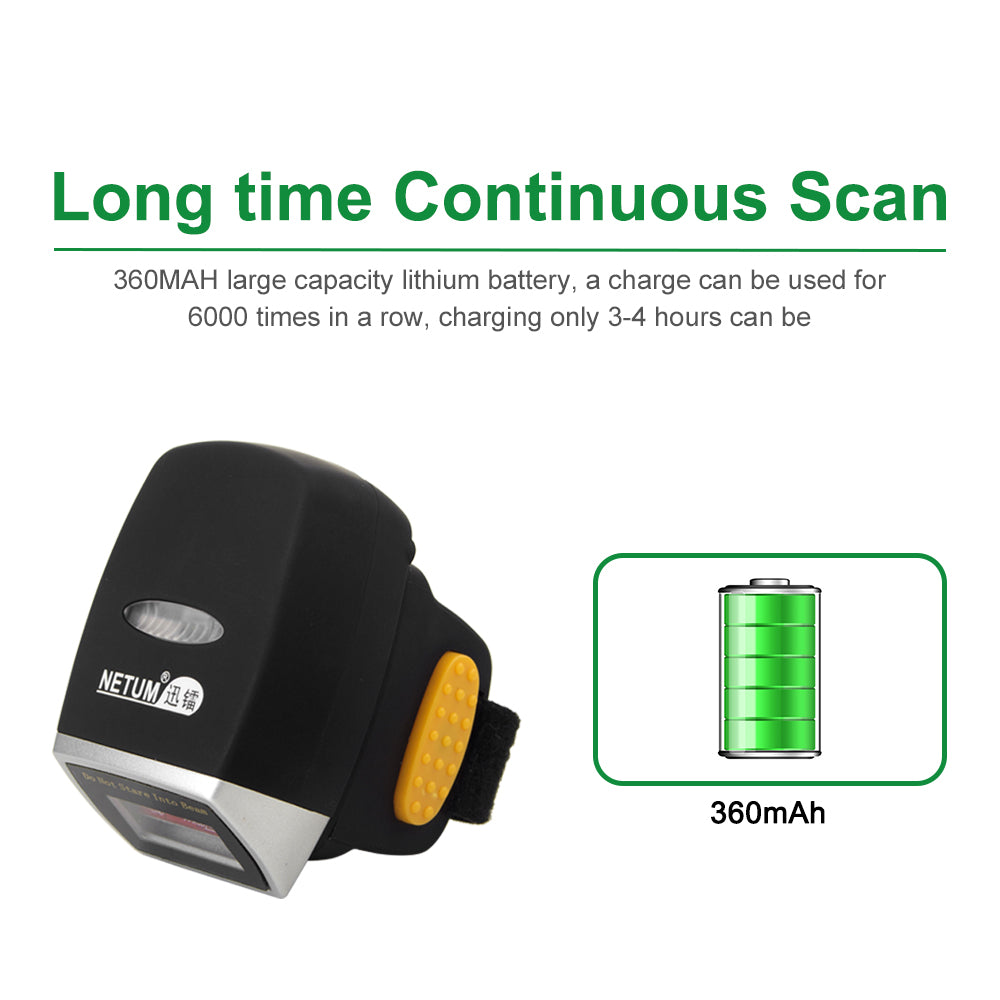

Battery Capacity: 360mAh
Charging Time: 2-3 Hours
Endurance Performance: 15 Days Continuous Working Standby
Standby Mechanism: Auto standby after 3 minutes of inactivity
Working Current: 215mA @ 3.3VDC
Standby Current: ≤0.6μA
Physical Parameters

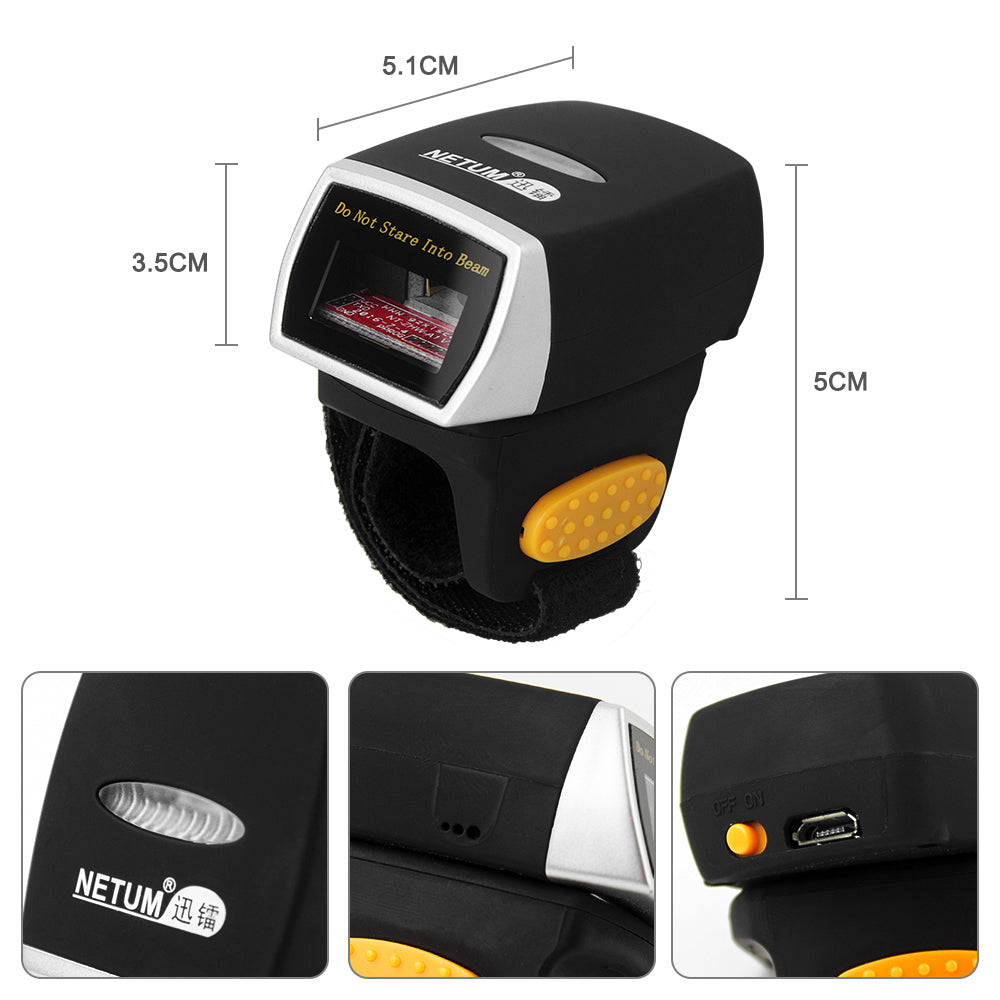

Dimension: 50 x 44 x 38mm
Weight: ≈50g
Material: ABS
Color: Black + Blue
Cable Length: 1.2m
Working Environment
Operating Temperature: -20℃ to 50℃
Storage Temperature: -30℃ to 70℃
Storage Humidity: 5% - 90%
Ambient Light Resistance: Up to 107,639 Lux, supports direct sunlight operation
