Support one to one or one to many transmitting
Support Open web page directly for scanning QR with URL
Support Scanned data uploaded to network server while the network server can be a cloud server or a local area network.
Support MQTT、HTTP/HTTPS、TCP/IP(Socket) protocol (for development)

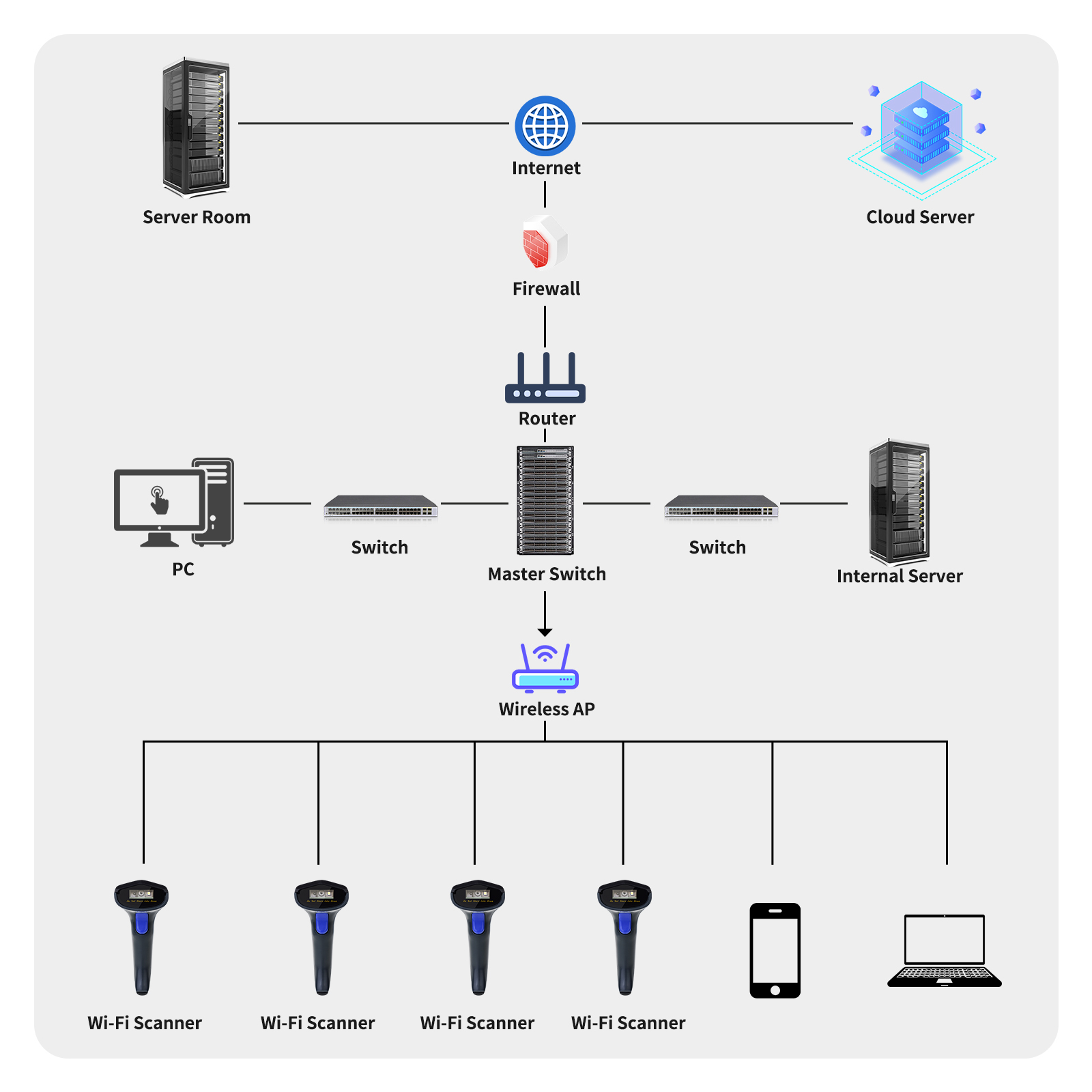

Wireless Network Mode -NETUM W8 WIFI can connect with Wi-Fi TCP, UDP and other network protocols, able to transfer Internet MQTT/HTTP protocol, Support the cloud server data transmission.

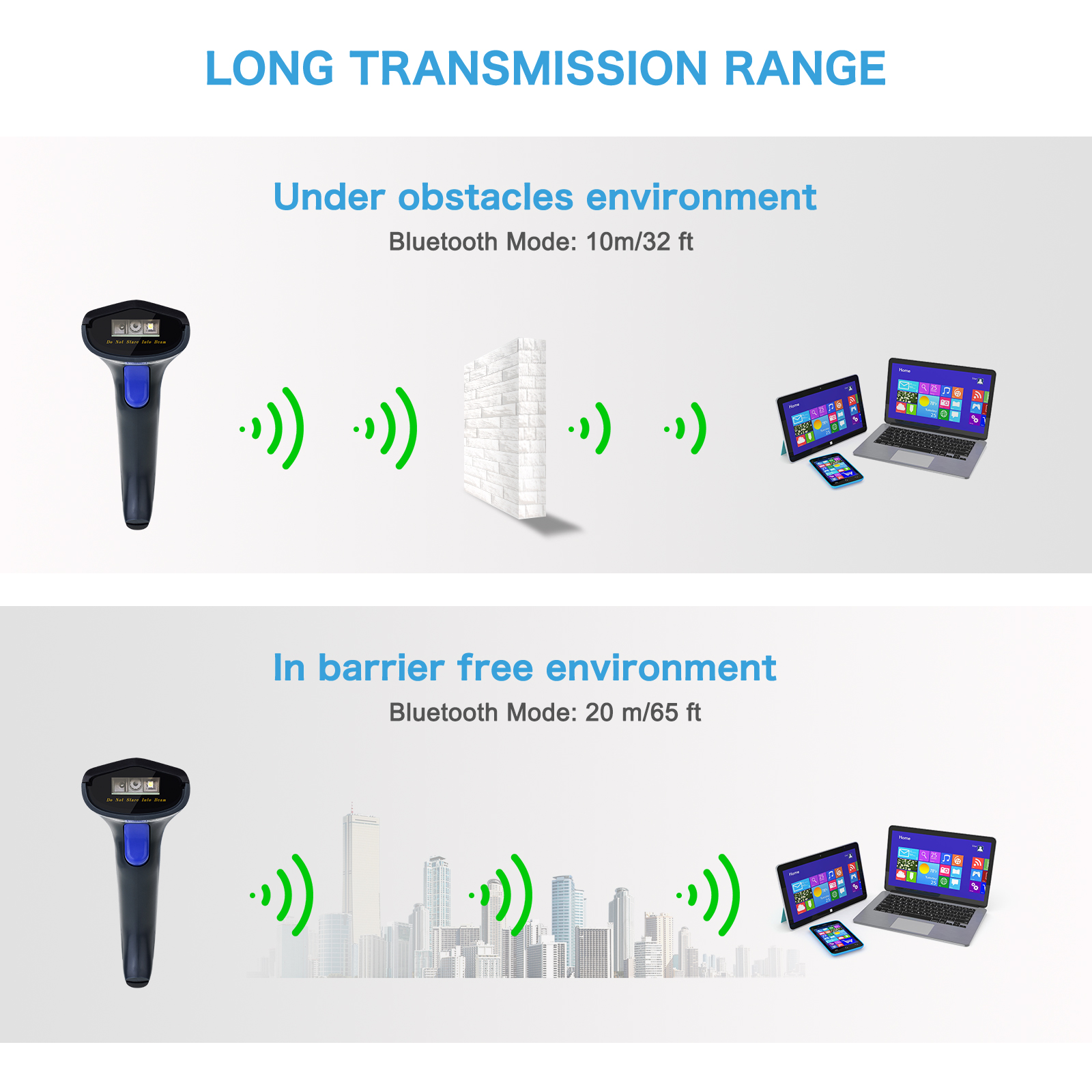

Bluetooth Mode - can be directly applied to Android, iOS, Windows, Mac OS system equipment, Support HID, BLE and SPP (secondary development) modes data transmission.

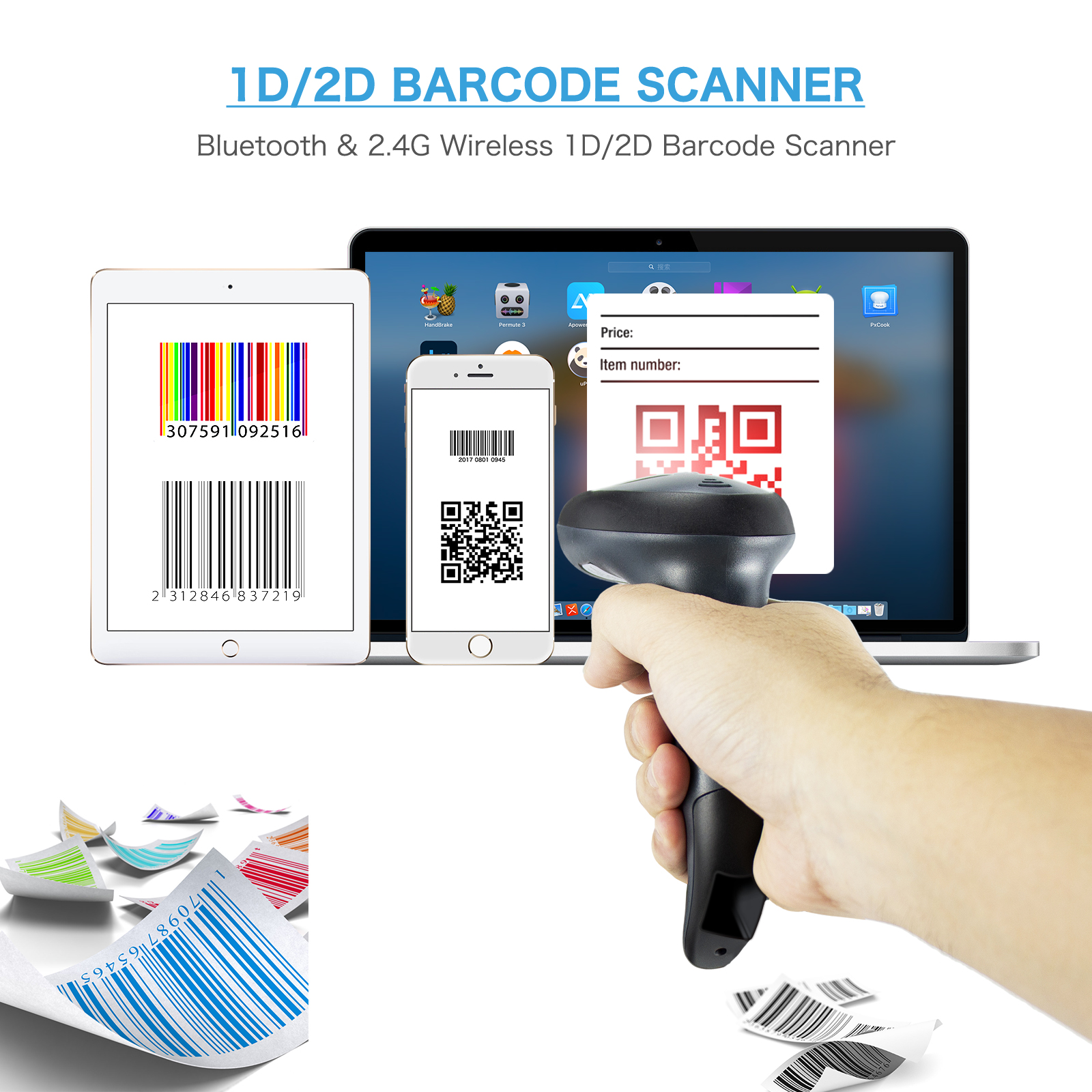

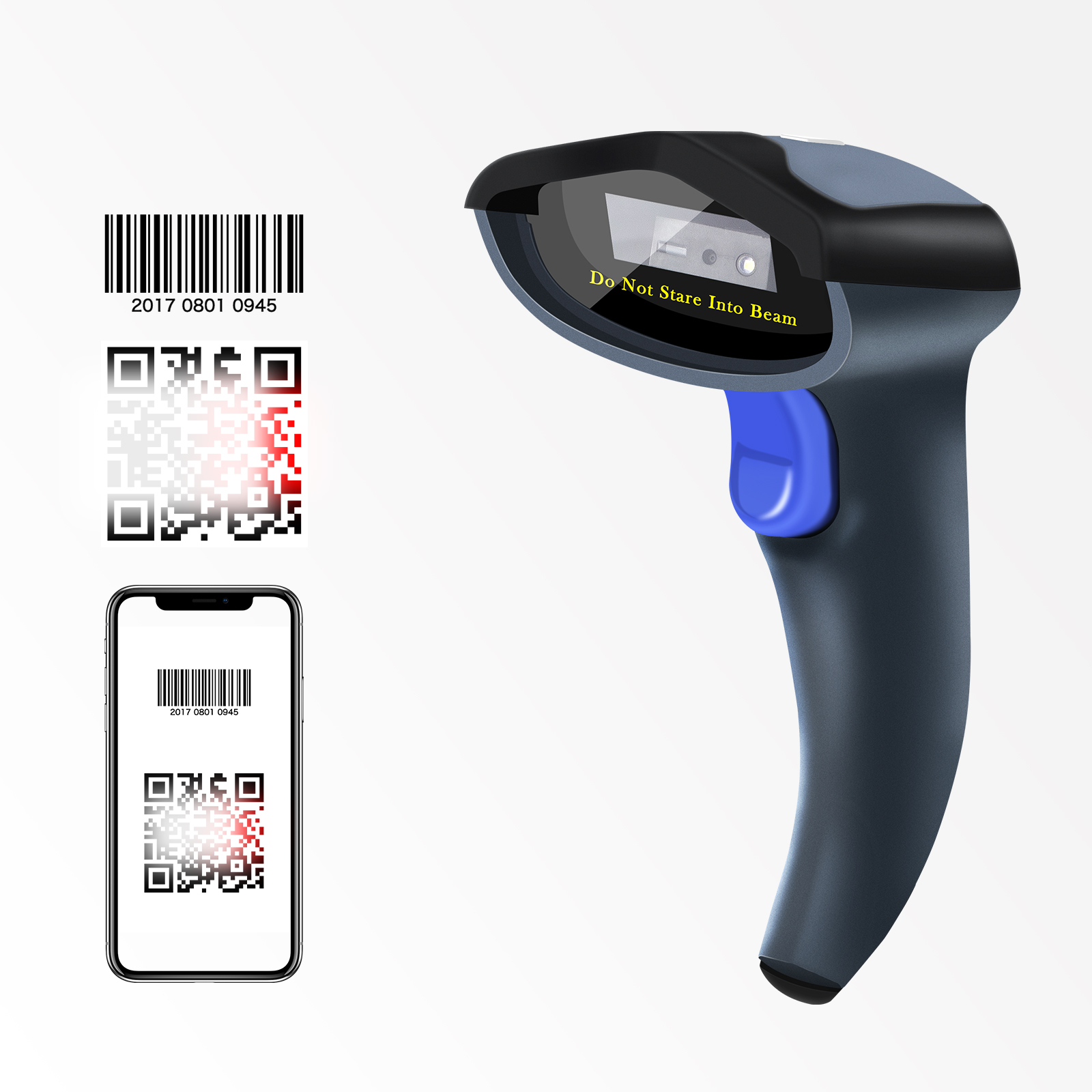

Strong Decoding Ability: Support main 1D, 2D bar code scanning, such as QR code, Data Matrix, PDF 417 , FedEx, USPS, VIN. Scanning the bar code on different medias, not only printed barcodes, but also barcodes from the screen.
User-Friendly with Charging Cradle: This NETUM W8 WIFI wireless scanner has a cradle accessory, providing power at any time, make sure full day working. When it is out of range reading in Auto Mode, the scanned data will be saved into the NETUM W8 WIFI memory buffer automatically and transmit to the host when back to the wireless coverage.

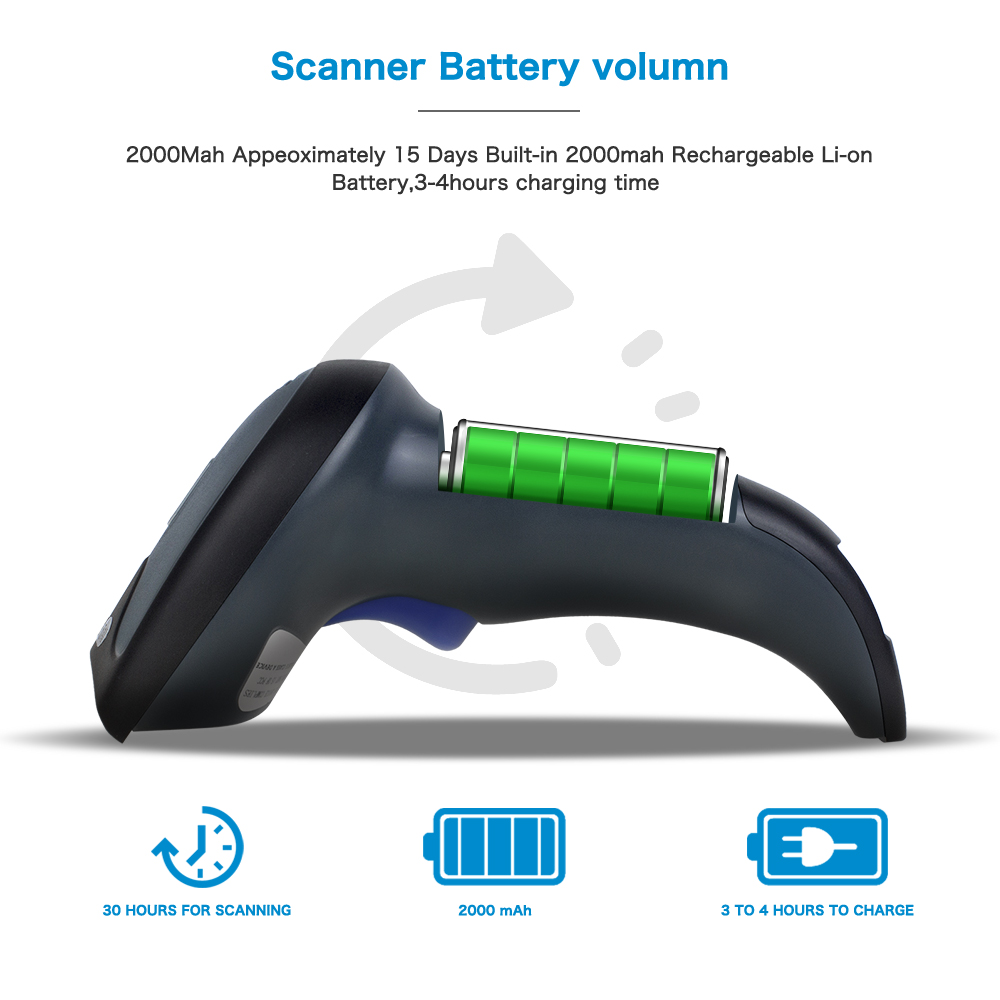

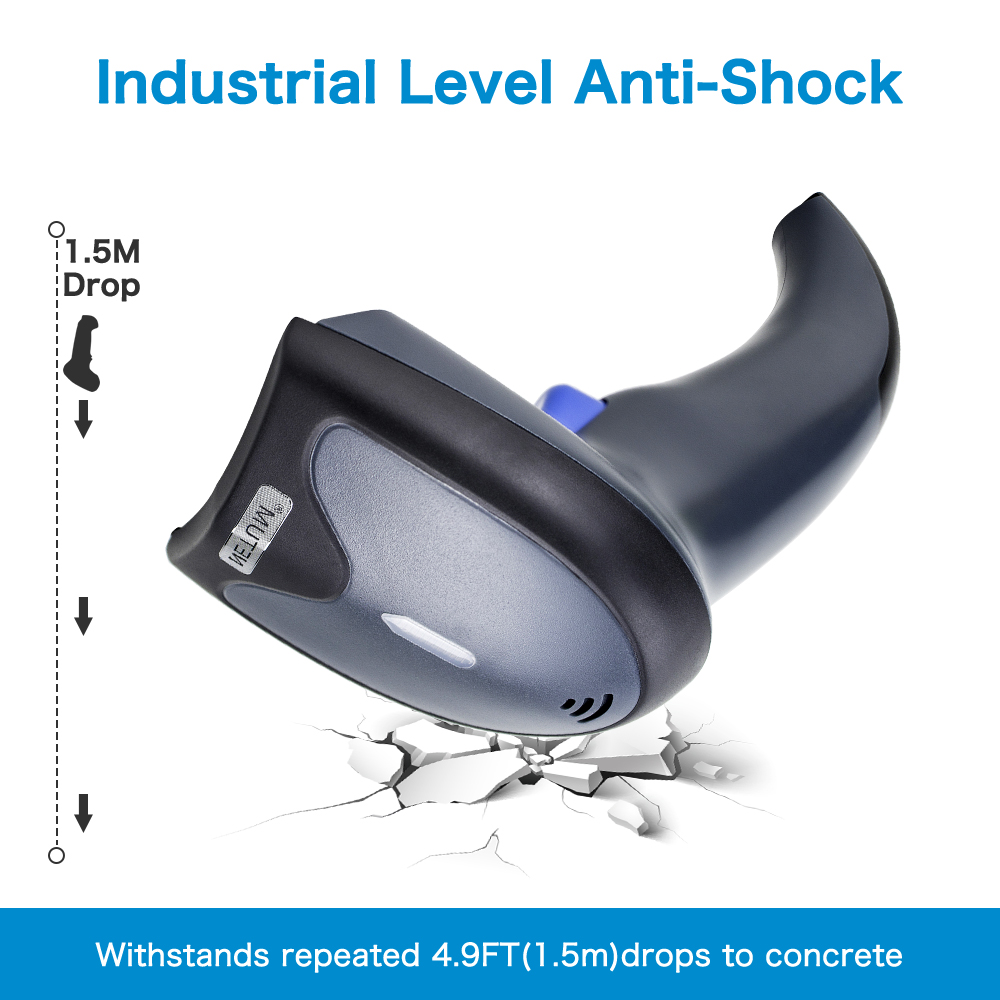

Compact but durable: Built for all day use, the NETUM W8 WIFI has a long life battery life up to 40 hours per battery charge. NETUM W8 WIFI incorporated with rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for best reliability. This scanner can be used in the most practical way depending on the scanning task in various solutions in retail, warehousing, manufacturing, logistics.
Version : V4.2
Frequency : 2.412 - 2.484 GHz
802.11 b/g/n 1x1, 2.4GHz
Frequency : 2.412 ~ 2.484GHz
Transmit Power(2.4GHZ): +20.5 dBm(11 b), 18 dBm(11 n)
Supported 1D Symbologies
UPC / EAN ( UPCA / UPCE / EAN-8 / EAN-13, ISBN ( Bookland ), Code 39 , Code 32 ( Italian Pharmacode ), Code 128, Code 93, Codabar, Interleaved 2 of 5,Standard 2 of 5,lndustrial 2 of 5, Matrix 2 of 5 ( Japanese ), Code 11, Telepen, Pharmacode, Chinese post code, MSI Plessey, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen.
Supported 2D Symbologies
QR Code, Micro QR Code Data Matrix MaxiCode, Aztec, PDF417, MicroPDF417, PostNet, PLANET, Australia, Royal Post, CODABLOC F Composite Codes (CC-A, CC-B, CC-C)
System Requirements:
Mobile device: iOS, Android
PC device: Windows 10/8.1/8/7/Vista/XP/CE, Mac OS X, Linux
