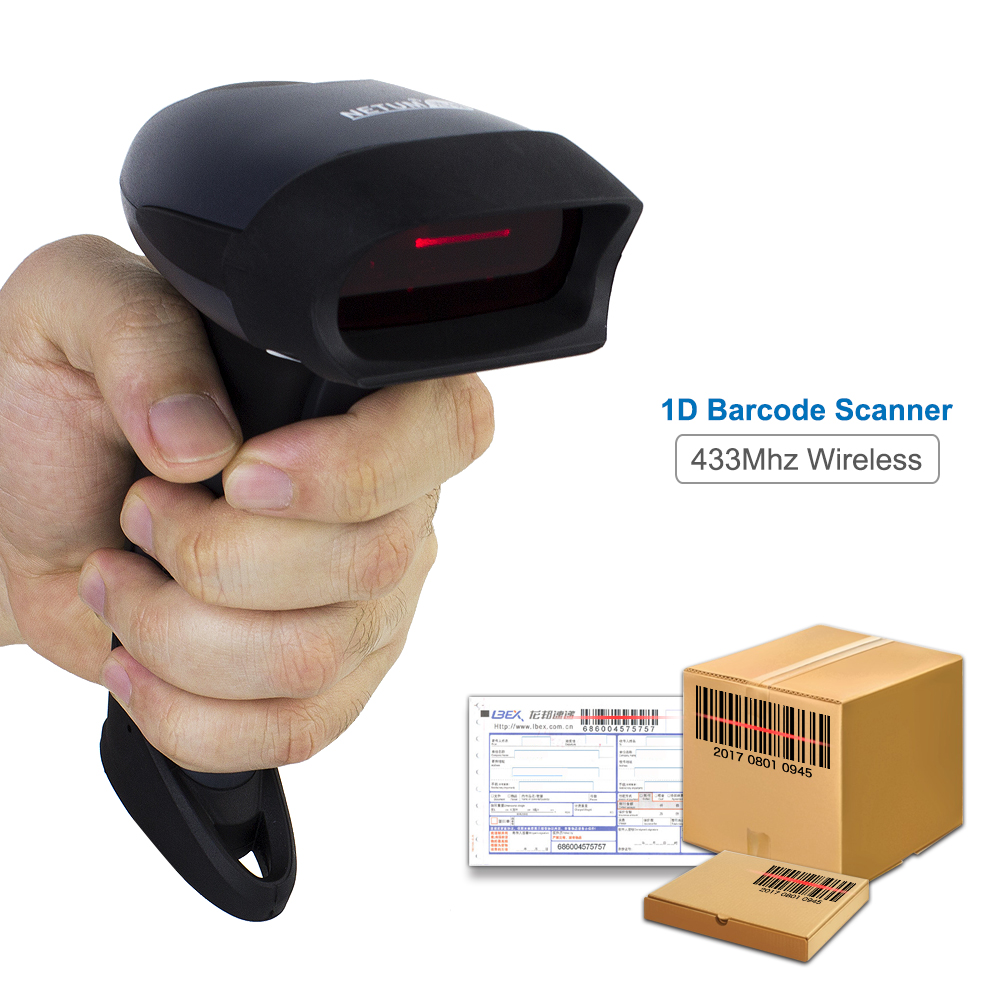

NT-M20 1D CCD Wireless Handheld Barcode Scanner - Product Features
High-Performance Scanning Capabilities
The NT-M20 scanner boasts exceptional decoding performance with an impressive scanning speed of 300 scans per second, making it one of the fastest in its class. Its intelligent AGC (Automatic Gain Control) technology ensures accurate and reliable barcode reading across various surfaces and conditions. The device features a user-friendly barcode setting mode that allows for quick customization to meet specific operational requirements, ensuring seamless integration into different work environments.
Extended Wireless Operation & Robust Connectivity
With an outstanding wireless communication range of 300-500 meters, this scanner provides exceptional mobility for large-scale operations in warehouses, manufacturing plants, and retail environments. The device utilizes advanced wireless USB technology for stable data transmission and features completely independent intellectual property, guaranteeing secure and reliable performance. Its long-range capability eliminates the need for constant repositioning of base stations or computers.
Durable Industrial-Grade Construction
Engineered for demanding work environments, the NT-M20 features a full shockproof design that withstands repeated drops from up to 2 meters. The ergonomic housing provides superior impact resistance while maintaining comfortable handling during extended use. The high-quality membrane keys offer a comfortable tactile response and are rated for 5 million presses, ensuring longevity even under intensive daily operation.
Global Compatibility & Smart Features
Designed for international use, the scanner supports keyboard languages from 20 different countries/regions, making it ideal for multinational operations. The combination of its rugged construction, high-speed performance, and extended wireless range makes the NT-M20 perfect for inventory management, logistics tracking, and retail applications. Its reliable performance and durable design significantly reduce maintenance needs while improving operational efficiency across various industries.
Product Description
l M2 Wireless Laser 1D Scanner
1 | Performance | |
1.1 | Image Sensor: | Laser |
1.2 | Lighting type | Visible laser diode, wavelength 630-650 nm |
1.3 | Lighting source: | 265 LUX (130nm) |
2 | Environmental | |
2.1 | Environmental Temperature: | 23° C |
2.2 | Ambient Lighting: | 0-100,000 lx |
2.3 | Operating Temperature: | 0°C-60°C |
2.4 | Storage Temperature: | -40°C-80°C |
2.5 | Storage Humidity: | 5%-90% |
3 | Electrical | |
3.1 | Working Current: | （3.3V~4.2V）±5% |
3.2 | Maximum Current: | 65mA |
3.3 | Working Current: | Standby: 10mA Scanning: 65mA |
4 | Wireless Parameters | |

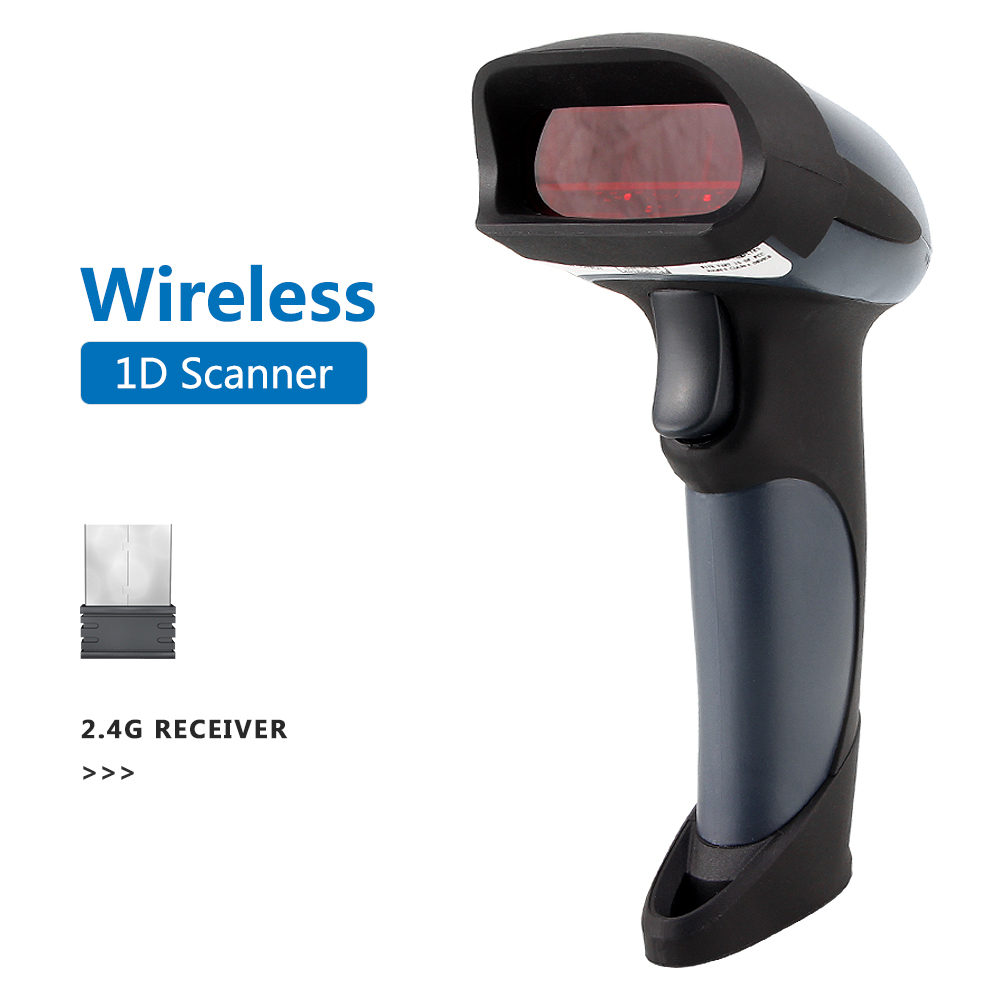

4.1 | Transmission: | 2.4G wireless receiver + wired |
4.1 | Communication Range: | 100m (line-of-sight) |

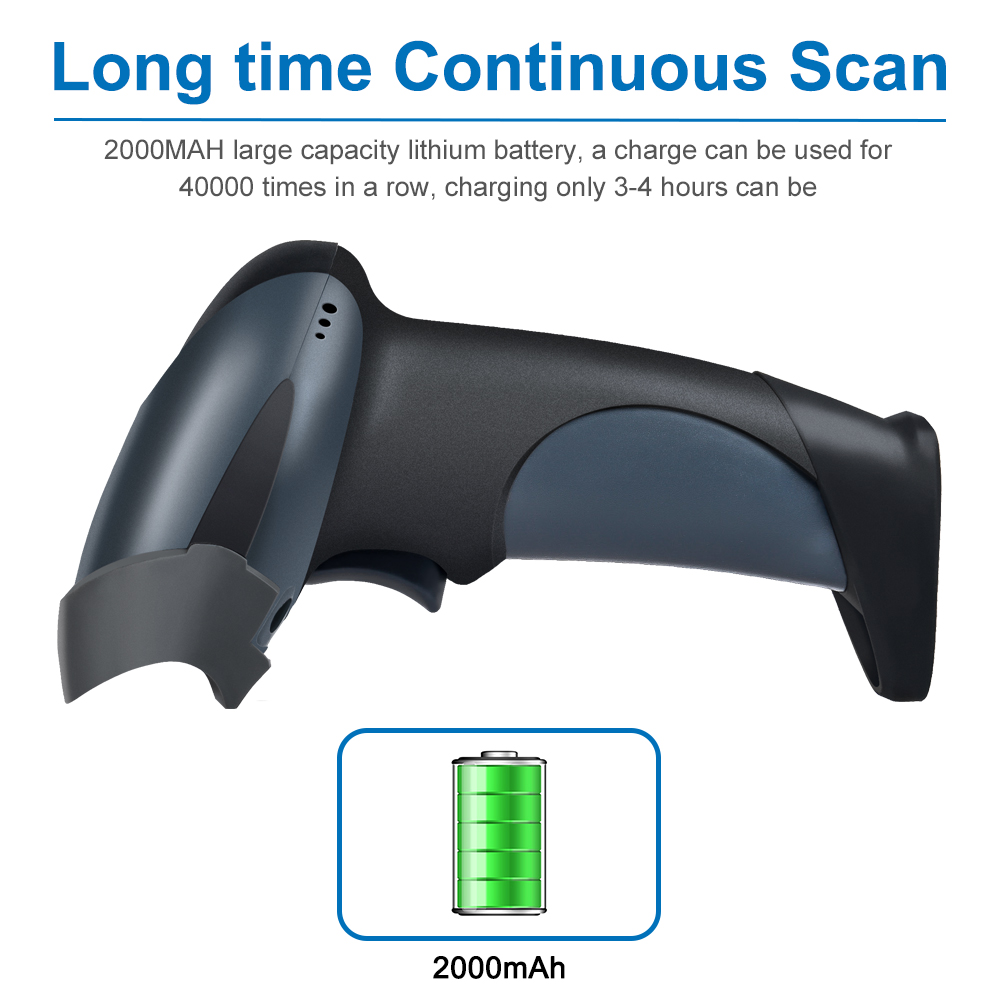

4.2 | Battery Capacity: | 2000mAh |
4.3 | Charging Time: | 4-5 hours |
4.4 | Standby Mode: | Activates after 3 minutes |
4.5 | Charging Input: | 5V 2A |
5 | Decoding Capability | |
5.1 | Field of View: | 34° (V) × 46° (H) |
5.2 | Scanning Angle: | ±65°, ±60° |
5.3 | Scanning Depth | (1mil=0.0254mm) 5mil：40-105mm 10mil：10-250mm 15mil：23-380mm 20mil：35-490mm 30mil：30-650mm |
5.4 | Supported Symbologies: | Code 39, Full ASCII, Code bar, Industrial 2 of 5, Interleave 2 of 5, Code 93, Code 128, Code 32, Standard Code 39, EAN 128, MSI, EAN 8&13, UPCA&E, Plessey, DataBar14, TELEPE |
5.5 | Scan Speed: | 150 scans/sec |
5.6 | Minimum Resolution: | ≥5mil |
5.7 | Print Contrast: | ≥35% |
6 | Physical Specifications | |
6.1 | Dimensions (L×W×H): | 165 × 65 × 90 mm |
6.2 | Weight | ≈166g |
6.3 | Color: | Black |
6.4 | Cable Length: | 1.2m |
6.5 | Housing Material: | ABS+TPU |
6.6 | Alert Modes: | Buzzer, LED indicator |
6.7 | Scanning Modes: | Manual trigger, auto-continuous scan |
6.8 | Interface: | USB |
7 | Safety & Compliance | |
7.1 | Laser Safety: | EN60825-1 Class 1 (Eye-safe) |
7.3 | Shockproof： | Withstands 2m free-fall |
7.4 | Relative certification： | CE, RoHS, FCC |
