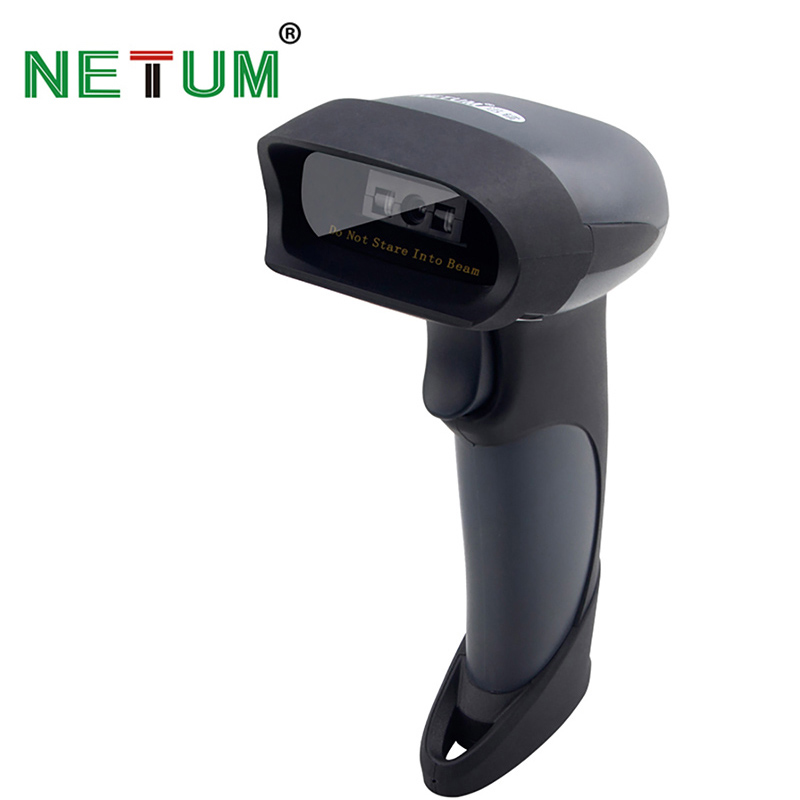

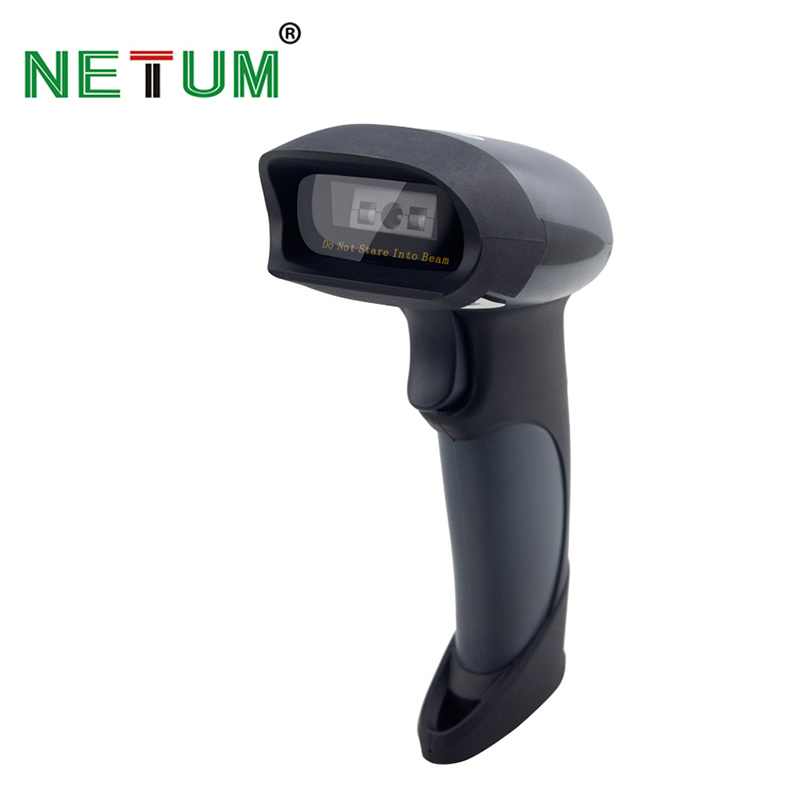

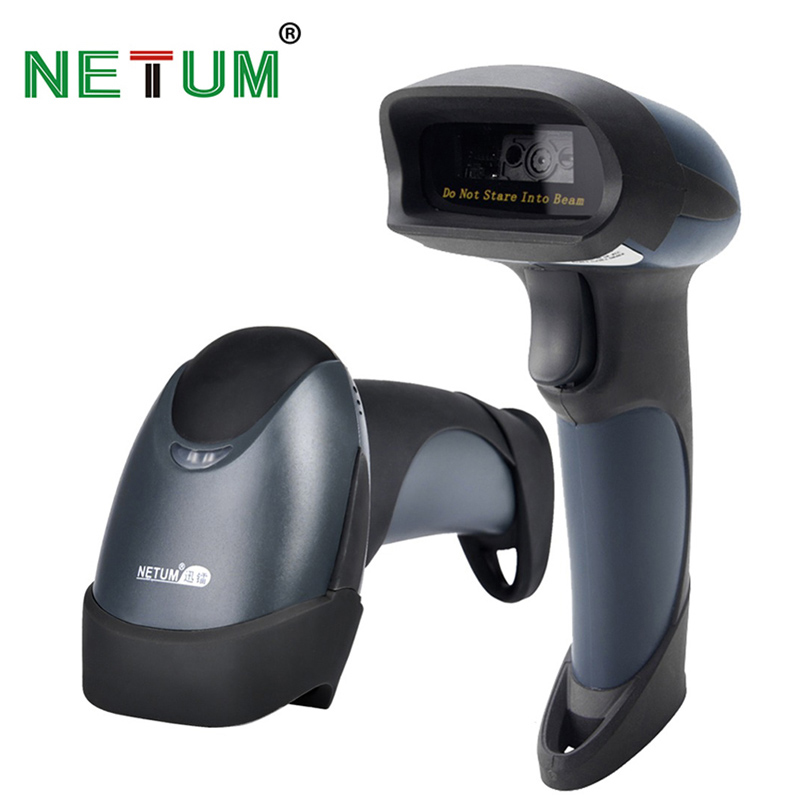

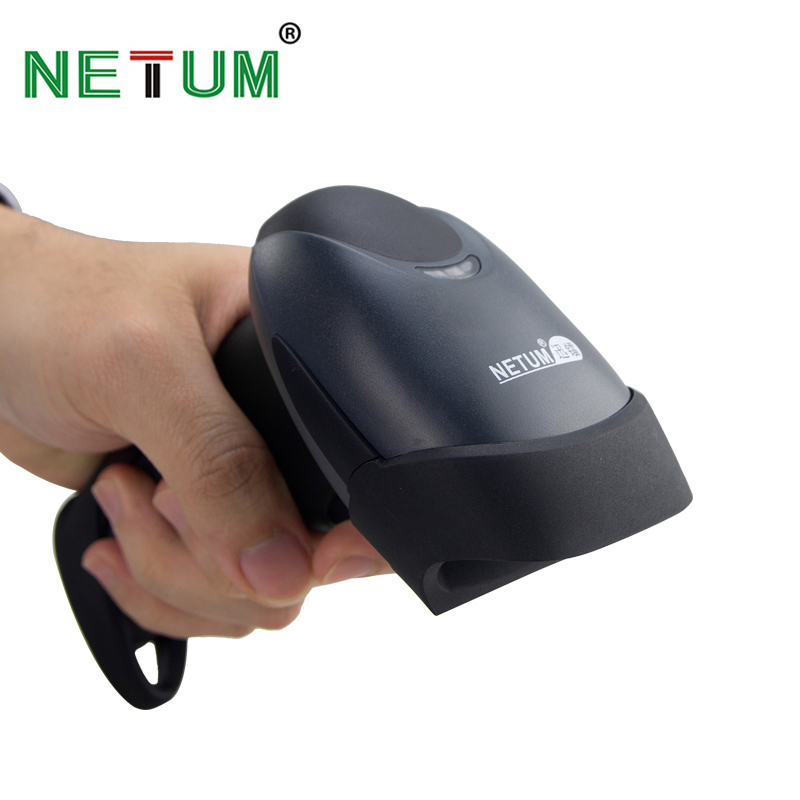

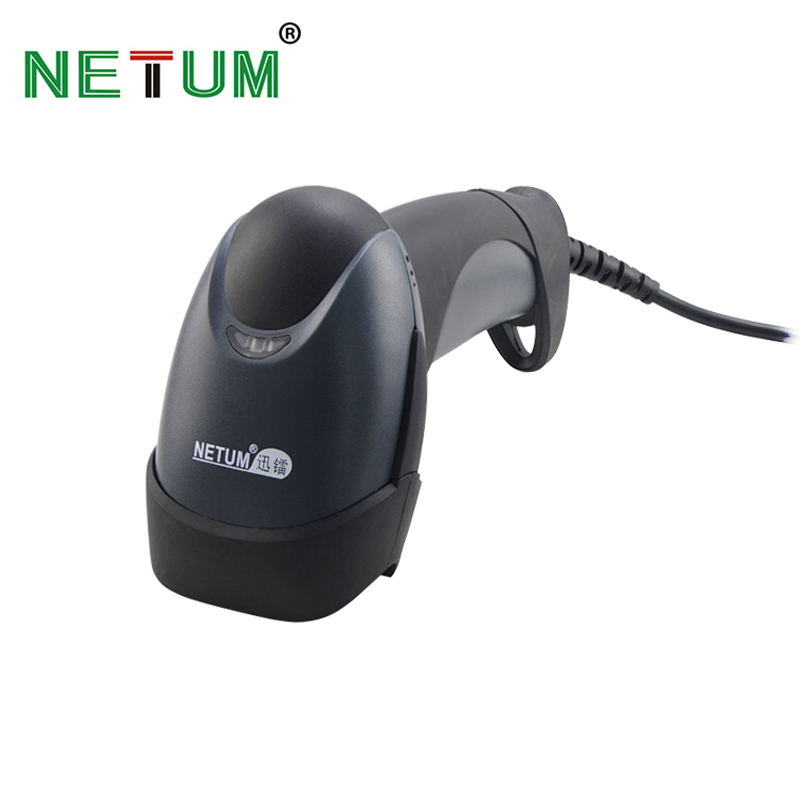

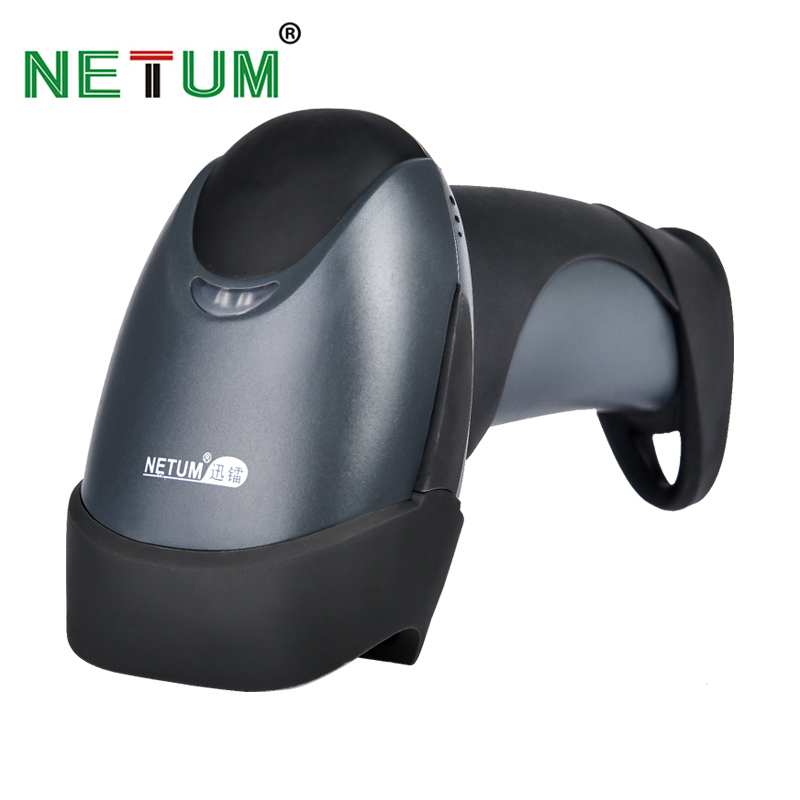

NT-M5 2D Wired Barcode Scanner - Comprehensive Specifications
1. Advanced Scanning Technology
Equipped with high-performance CMOS imaging technology, the NT-M5 delivers exceptional scanning capabilities with a remarkable 200 scans per second speed and precise 0.1mm resolution. The scanner features a wide 34° vertical and 46° horizontal field of view, supporting omnidirectional scanning with 360° rotation capability (±65° pitch and ±60° yaw). Its superior 32-bit color depth ensures accurate decoding of barcodes with as low as 35% print contrast.
2. Extensive Barcode Compatibility
This versatile scanner supports comprehensive barcode formats including:
1D codes: UPC/EAN series, Code 39/93/128, Codabar, Plessey, MSI, and specialized formats like Pharmacode and GS1 DataBar
2D codes: PDF417 (including Micro PDF417), Data Matrix, QR Code (including Micro QR), Aztec, and MaxiCode
The advanced decoding algorithm reliably reads damaged, distorted, or poorly printed barcodes across various surfaces.
3. Robust Connectivity Options
Designed for seamless integration, the NT-M5 offers multiple interface choices:
• USB 2.0 (plug-and-play)
• RS232 serial port
• PS/2 keyboard wedge
• COM port for legacy systems
The scanner maintains stable operation at 5V DC (±10%) with 350mA current consumption, ensuring compatibility with various host devices.
4. Industrial-Grade Durability
Built for demanding environments, the scanner features:
Heavy-duty construction for long-term reliability
Compact yet rugged housing for daily industrial use
Wide operating temperature range
Compliance with international EMC standards
Ideal for retail POS, warehouse logistics, manufacturing, and healthcare applications, the NT-M5 combines high-speed performance with exceptional durability for mission-critical scanning operations.
Feature |
|
|
|
Light Resource | CMOS |
CPU | 32 bit high resolution |
Supported Symboligies | 2D: PDF417、QR Code (QR1/2, Micro)、Data Matrix (ECC200, ECC000, 050, 080, 100, 140)、Chinese Sensible Code 1D : Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, |
Precision | ≥ 5 mil (0.10mm) |
Decode error rate | Less than 1/8 million |
Depth of scan field | Code 39 40mm~165mm(5mil) Ean-13 50mm~365mm(13mil) Data Matrix 35mm~115mm(10mil) QR Code 35mm-145mm (15mil) PDF 417 45mm-115mm(6.67mil)
|
Print Contrast Signal | ≥ 25° |
scan angle | Yaw(Skew)55° & Pitch55° |
Mechanical / Electrical | |
|
|
Working Voltage | 5VDC±5% |
Current | Maximum current :260mA |
Environment |
|
Operating temperature | 0°C~+50°C |
Storage temperature | -20°C~+70°C |
Humidity | 5%-95% |
