l T101 Document Scanner
Model: | T101 |
Appearance: | Folding, material plastic |
Base Size: | 450*450mm |

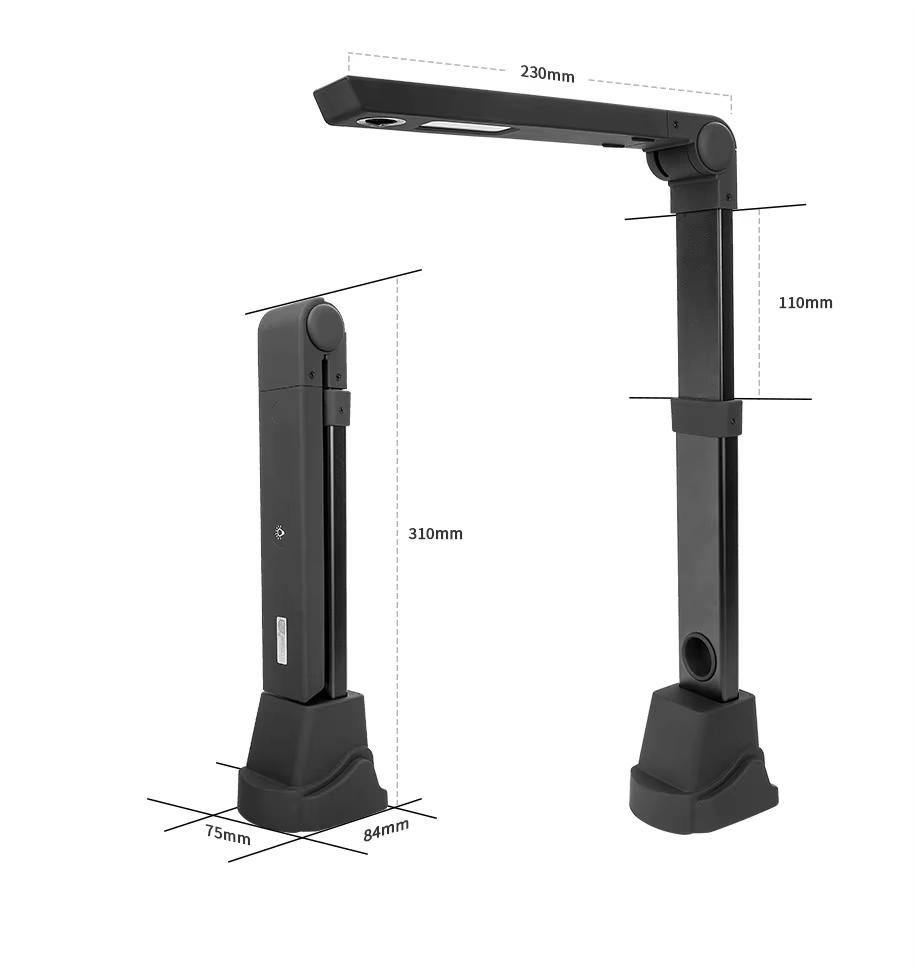

Scanner: | Folded: 75*75*244mm; unfolded: 218*75*244mm Stretched: 250*75*310mm; unstretched: 250*75*420mm |
Net/Gross Weight: | 0.8KG/1.04KG |
Product Lens: | 13 million pixels |
Shooting Range: | A3/A4 documents, business cards, ID cards, etc., can be cropped and photographed |
Lens Structure: | Vertical 180 degrees (stretchable, non-adjustable) |
Resolution: | ≥3840*2880(≥13 million pixels) |
OCR: | (OCR)&Word /Excel /Pdf /TXT /CSV |
Mirophone: | No |
Image Format: | BMP /Jpeg /Gif /Png /Tif/PDF |
Video Format: | Avi |
Shooting Lens: | Automatic focus |
Sensor: | CMOS |
Color Digits: | 24 bits |
Image Adjustment: | Brightness adjustment, exposure adjustment, saturation adjustment, sharpness adjustment, color selection, gain control, etc. |
Product Features: | Remake and archive, e-book control, signature production (stamp tool), front and back merging, barcode recognition, QR code recognition, OCR text recognition, automatic correction, DV video recording, whiteboard display function, video function, etc. |
Exposure/White Balance: | Auto |
Light Source: | Natural light+LED light |
Interface: | USB2.0, does not require an external power supply |
Operating Voltage: | 4.75V - 5.25V |
Battery Type: | USB 5V |
Working Current: | 490mA |
Surroundings: | -30°C to +80°C (storage)/-20°C to +50°C (working) |
Application System: | Suitable for WindowsXP SP2/SP3, Windows Vista, Windows7 operating system and above (minimum requirements: P4/equivalent CPU, 512M memory, 80G hard disk; higher recommended) |
