Prduct Description

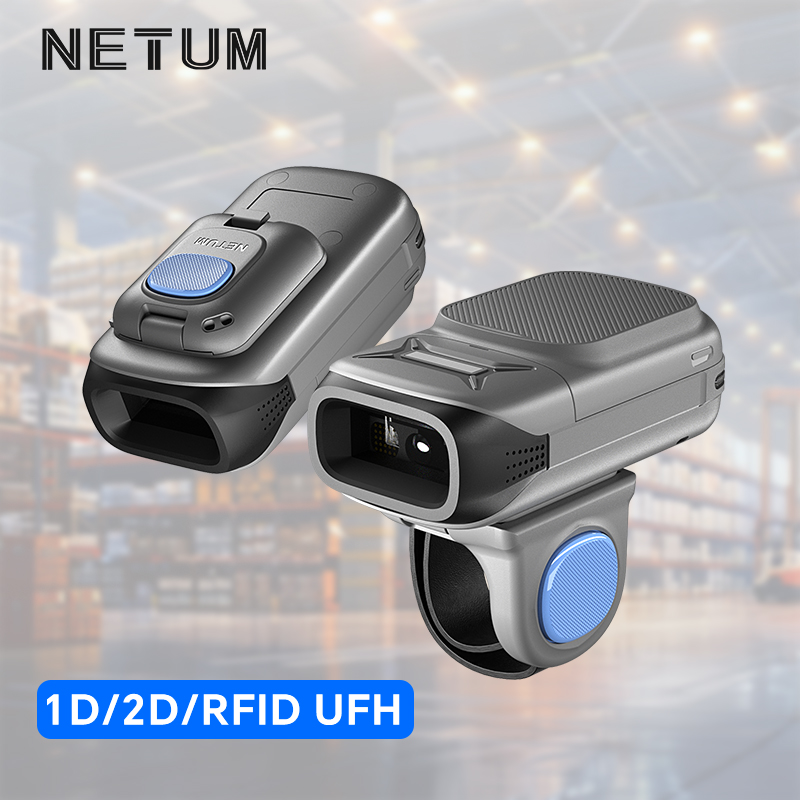

The RF5520U is NETUM's latest and first-of-its-kind portable scanner featuring ring + handheld oeration, supporting both barcode (1D/2D) and RFID UHF scanning.
Durable Construction: Combines a high-strength soft TPR shell with a hard ABS casing, ensuring wear resistance and impact protection. Built to withstand harsh industrial environments like warehouses and logistics, delivering stable performance even with long-term use.
Compact & Portable: Lightweight and ergonomic, it offers effortless wear (as a ring) or handheld operation, making it ideal for mobile workflows.
Industrial Design: Bold lines + matte texture— professional industrial styling that suits production environments while optimizing comfort through ergonomic design for both grip and wear.
Product Features
Dual-mode scanning, seamless scene switching: supports ring-type and handheld scanning, flexible switching, meets the needs of fast scanning in different scenarios, and improves operational efficiency
All types of data collection, covering industry needs: supports one-dimensional code and two-dimensional code fast identification, integrated RFID UHF tag scanning, suitable for logistics traceability (barcode) + asset inventory (RFID) and other scenarios, one device for multiple uses, reducing equipment investment.
Technical collaboration: RFID (batch) + barcode (single product/precision) covers "macro-micro" data collection

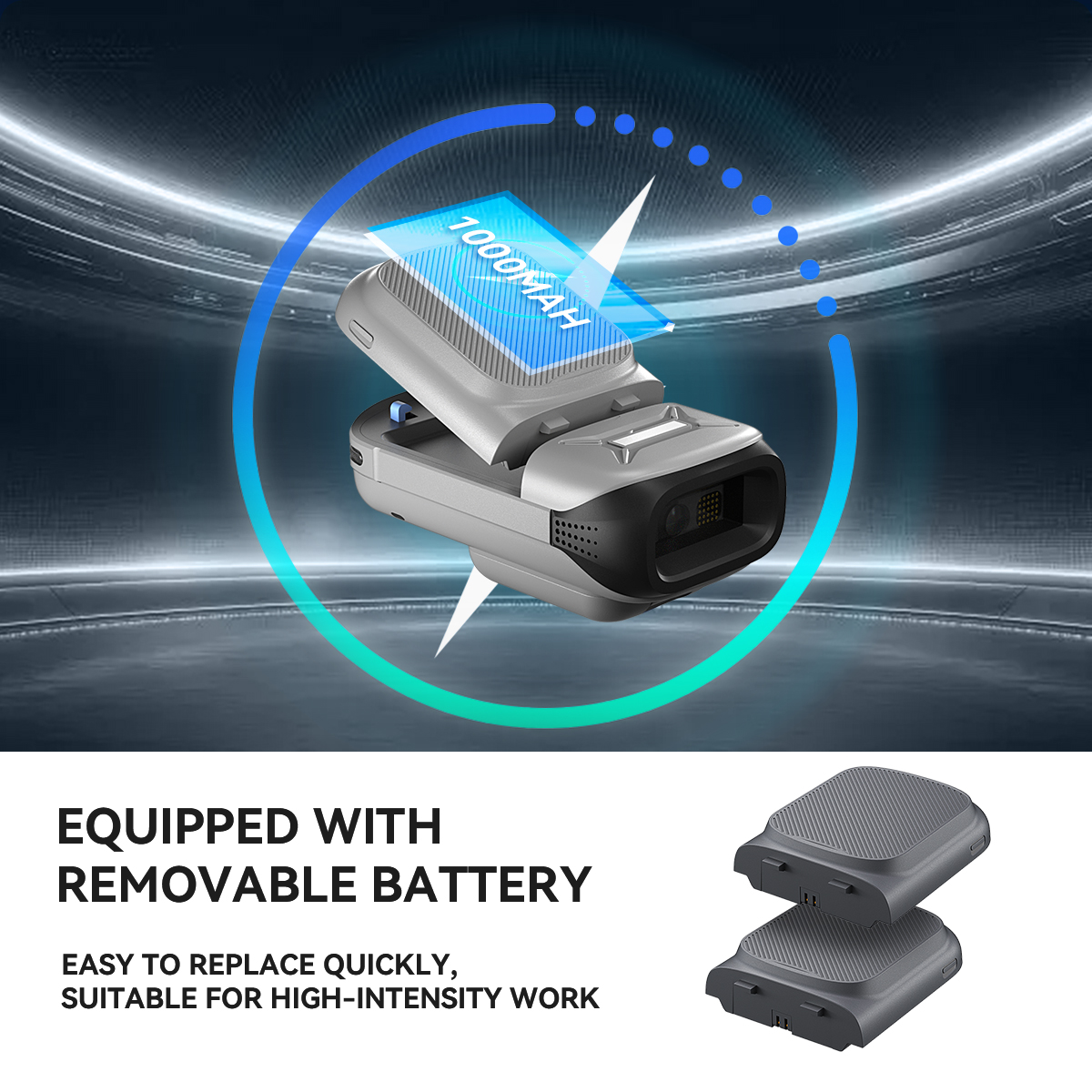

Equipped with removable battery: The battery is removable design, easy to replace quickly, to ensure the continuous operation of the equipment, reduce downtime, suitable for high-intensity working environment.
RFID

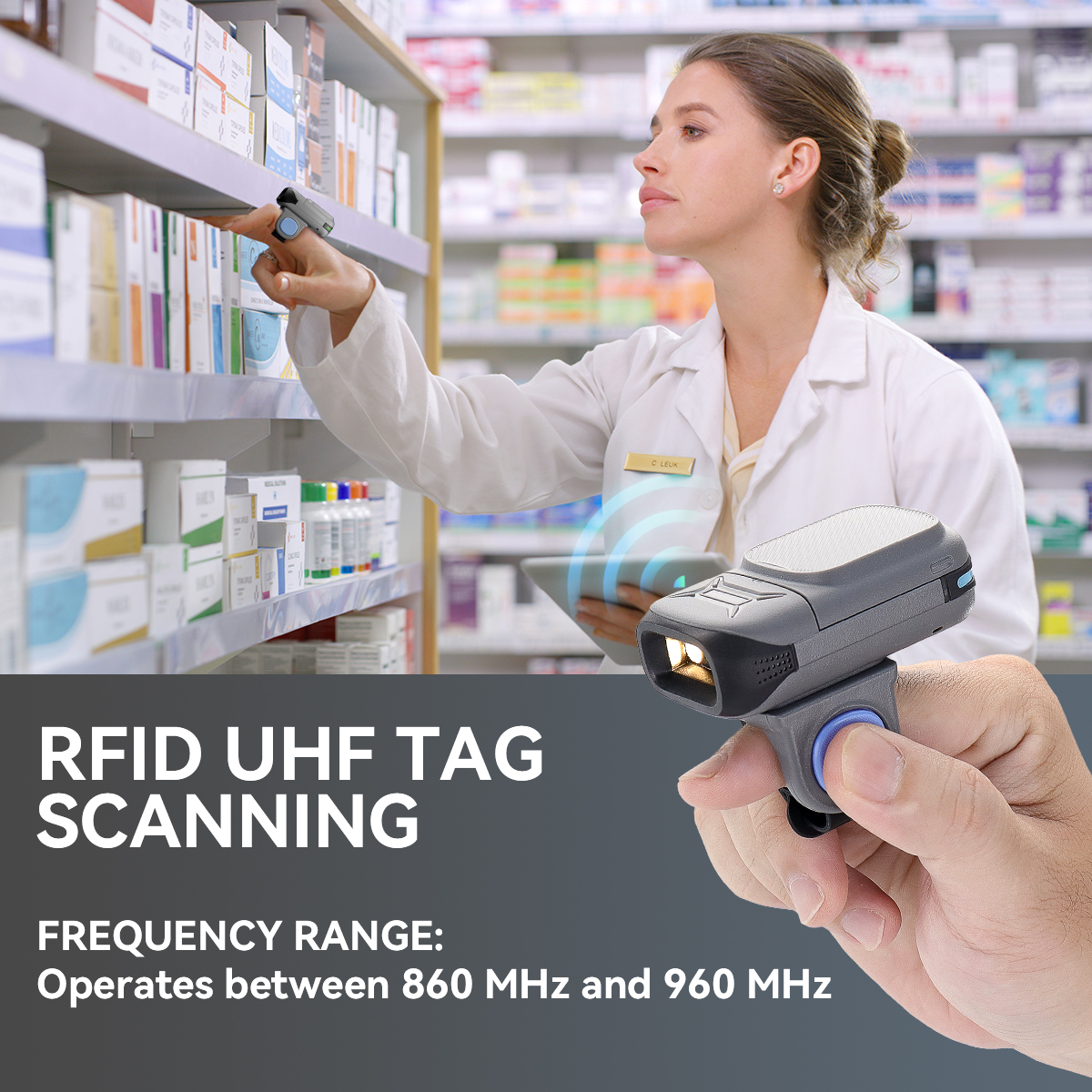

Ø Frequency band:：Works at 860 MHz - 960 MHz.
Ø Supported tags:：ISO/IEC 18000-6C （EPC Class 1 Gen 2 ）
Ø Supported output data: EPC, (TID, user data)
Logistics and supply chain management: Quickly read cargo information and improve efficiency. Retail: Inventory management and automatic checkout system.
Smart transportation: Vehicle identification and electronic toll collection system. Asset tracking: Monitor and manage the flow of equipment and assets.
Medical industry: Patient and drug tracking to improve safety.
Industrial automation: Real-time monitoring of production line and equipment status.
Animal identification: Animal identification and tracking, feeding management, vaccination records.
| Scanning Performance | |
| Scanning Engine | CMOS |
| Imager Sensor | 1280x960 |
| Illumination | White LED |
| Aiming | Green LED |
| Minimum Resolution | 1D≥3mil 2D≥5mil |
| Field of View | H: 44.5° |
| V: 33.5° | |
| Symbologies | 2D: PDF417, MicroPDF417, Code 128 Emulation, QR Code, MicroQR, Data Matrix, Maxicode, Aztec |
| 1D: Code128 (UCC/EAN-128, GS1-128, ISBT 128), UPC/EAN (UPC-A, UPC-E, EAN-8/JAN-8, EAN-13/JAN-13, ISBN, ISSB EAN), Code39, Code32, Code93, Code11, Interleaved 2 of 5 (ITF), Discrete 2 of 5 (DTF), Codabar (NW-7) MSI, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, Inverse 1D, Postal Codes, GS1 DataBar, Composite, US Postnet, UK Postal, Japan Postal, Australia Post, OCR(ID) | |
| Depth of Field | 5mil Code 39: 61mm - 241mm |
| 5mil Code 128: 71mm - 229mm | |
| 6.67mil PDF 417: 61mm - 203mm | |
| 10mil DataMatrix: 74mm - 216mm | |
| 15mil QR Code: 30mm - 292mm | |
| 20mil QR Code: 30mm - 356mm | |
| Contrast | ≥25% |
| Wireless Parameters | |
| Transmission | Bluetooth (4.2) |
| Bluetooth Range | 30m (Visibility Range) |
| Battery Capacity | 1000mAh |
| Charging Time | ≈5h |
| Standby Time | 3 min |
| Charging Input | 5V 2A |
| Electrical Parameters | |
| Operating Voltage | DC 5V±5% |
| Operating Current | 310mA |
| Standby Current | 0.6μA |
| Physical Parameters | |

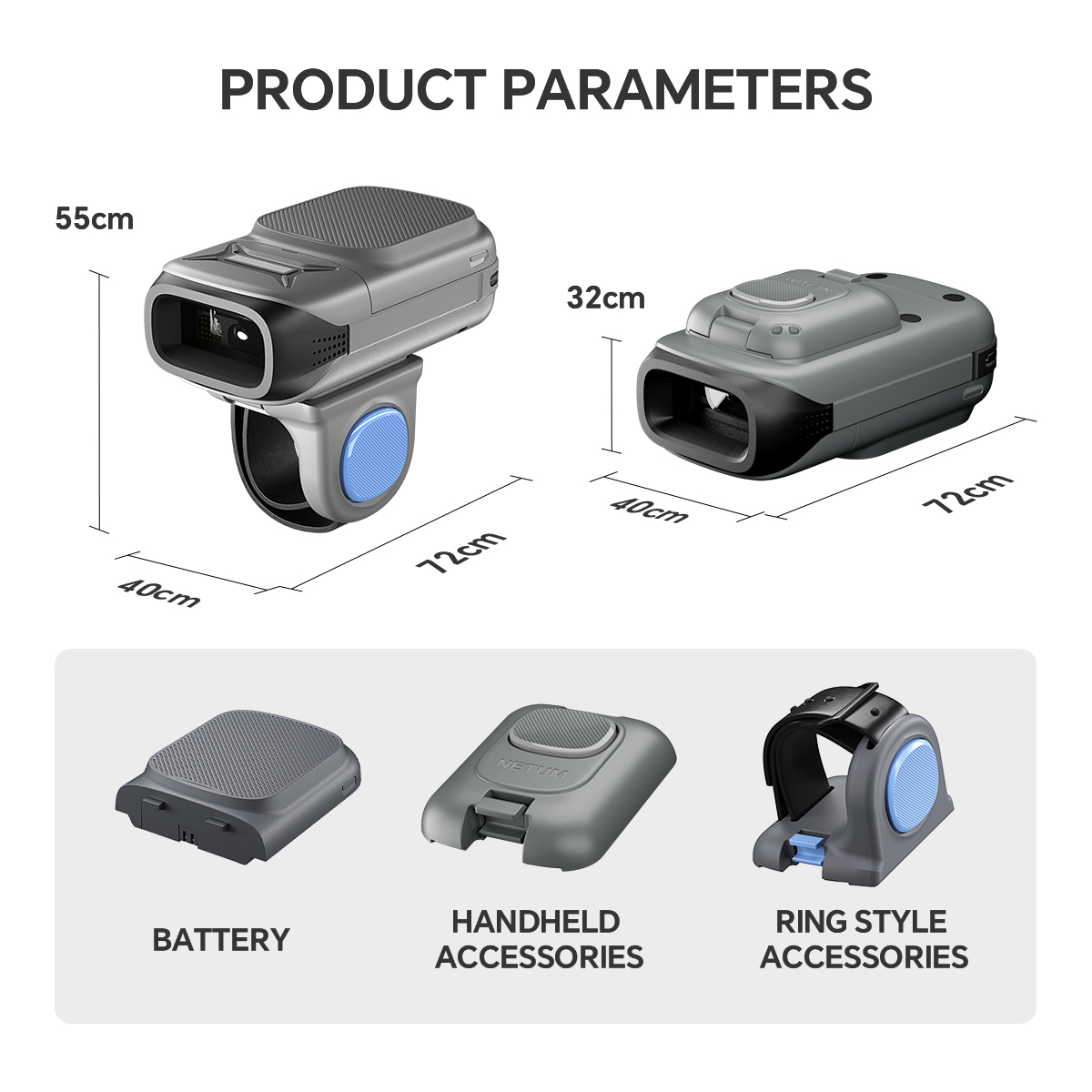

| Size | 72 x 40 x 55mm |
| Weight | ≈72g |
| Color | Gray, Black |
| Cable Length | 1.2m |
| Material | ABS+TPR+PC |
| Interface | USB-Type-C |
| Operating Environment | |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 70℃ |
| Relative Humidity | 5% to 90% (non-condensable state) |
| Ambient Light Resistance | 107,639Lux Max |
