Product Description
RF9520X is the first dual-mode portable scanner for ring + handheld use newly launched by NETUM.
Durable material: It adopts two different materials of high-strength soft rubber TPR and hard rubber ABS shell design, which is wear-resistant and impact-resistant, and can withstand complex industrial environments such as warehouses and logistics, and has stable performance in long-term use.
Compact and portable: It is small in size, light in weight, and easy to wear. Whether it is worn by a ring or handheld operation, it can be easily carried and is suitable for mobile operations.
Industrial design style: tough lines + matte texture, professional industrial design not only conforms to the aesthetics of production scenes, but also optimizes the grip and wearing comfort through ergonomics.
Product Features
Dual-mode scanning, seamless scene switching: supports ring-type and handheld scanning, flexible switching, meets the needs of fast scanning in different scenes, and improves operational efficiency
RF9520X has a built-in 2688 x 1520 four-megapixel C-MOS sensor with excellent scanning recognition.
Long-distance barcode engine: large aperture lens and targeted image processing algorithm, showing strong competitiveness in the field of long-distance barcode scanning.

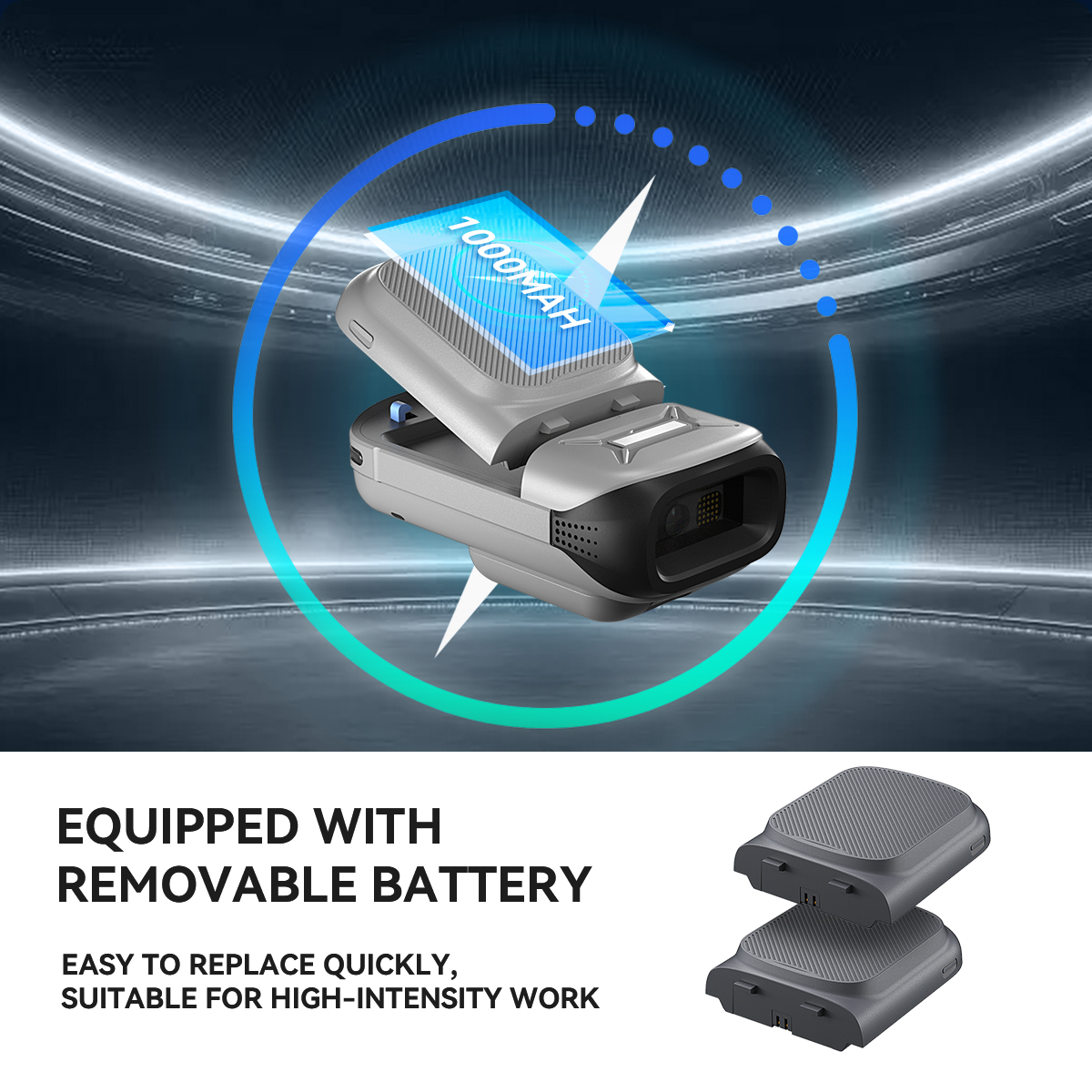

RF552 is compatible with removable batteries: battery-type removable design, easy to replace quickly, ensure continuous operation of the equipment, reduce downtime, suitable for high-intensity working environment.
| Scanning Performance | |
| Scanning Engine | CMOS |
| Imager Sensor | 2688x1520 |
| Illumination | White LED |
| Aiming | Green LED 520nm |
| Minimum Resolution | 1D≥3mil 2D≥5mil |
| Scan Angle | Pitch: 360° |
| Roll: ±60° | |
| Skew: ±60° | |
| Field of View | H: 46° |
| V: 35° | |
| Symbologies | 2D: PDF417, MicroPDF417, Datamatrix, QR Code, Micro QR Code, Aztec, Composite, TLC-39, MaxiCode, Dotcode; Grid Matrix Postal: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), Mailmark |
| 1D: All major 1D, Digimarc | |
| Depth of Field | 3mil Code 39: 69mm (close range) - 411mm (long range) |
| 5mil Code 39: 64mm(close range) - 676mm (long range) | |
| 5mil PDF417: 71mm(close range) - 498mm (long range) | |
| 6.7mil PDF417: 66mm(close range) - 650mm (long range) | |
| 10mil DataMatrix: 56mm(close range) - 688mm (long range) | |
| 15mil Code 128: 182mm(close range) - 1829mm (long range) | |
| Contrast | ≥30% |
| Wireless Parameters | |
| Transmission | Bluetooth (4.2) |
| Bluetooth Range | 30m (Visibility Range) |
| Battery Capacity | 1000mAh |
| Charging Time | ≈5h |
| Standby Time | 3 min |
| Charging Input | 5V 2A |
| Electrical Parameters | |
| Operating Voltage | DC 5V±5% |
| Operating Current | 310mA |
| Standby Current | 0.6μA |
| Physical Parameters | |

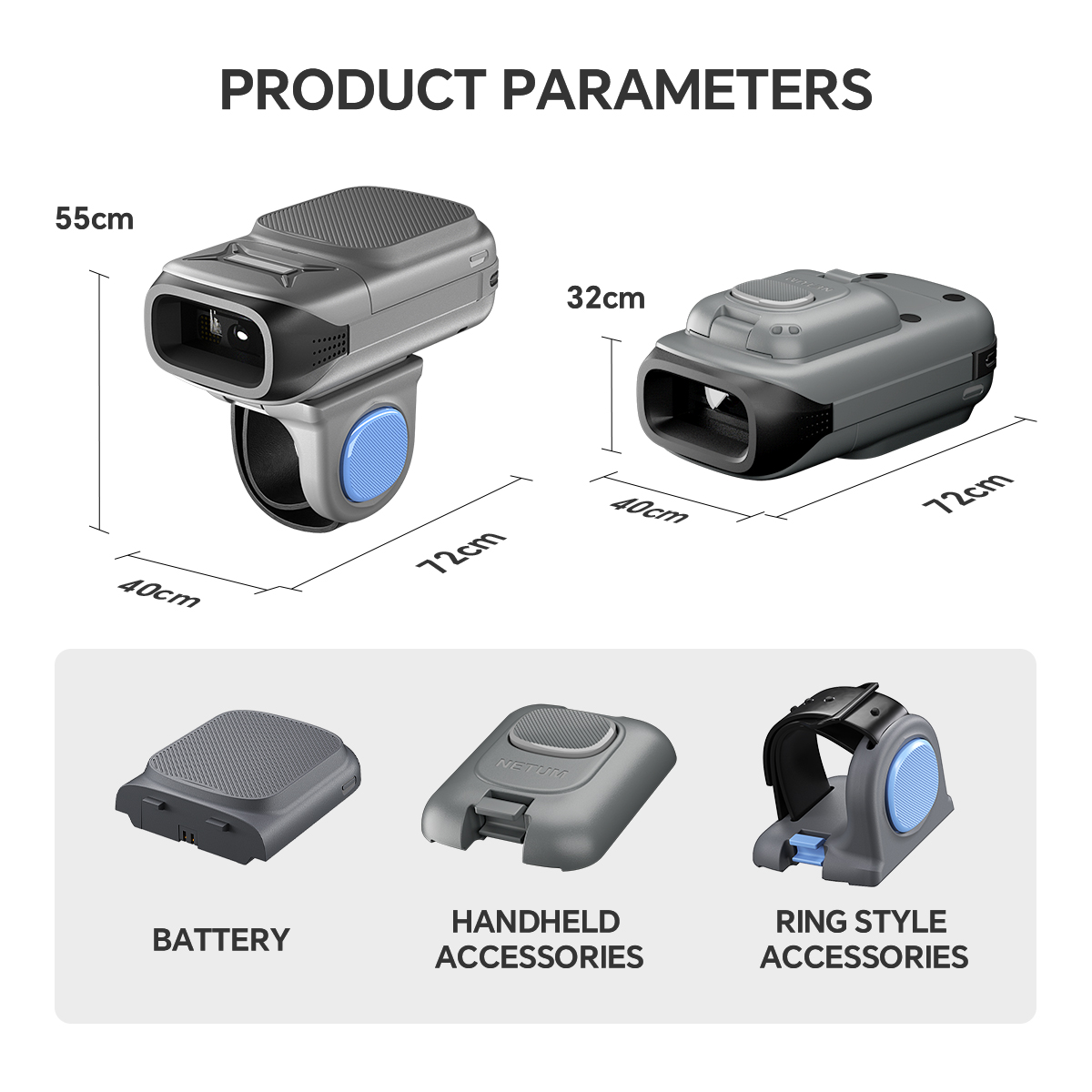

| Size | 72 x 40 x 55mm |
| Weight | ≈72g |
| Color | Gray, Black |
| Cable Length | 1.2m |
| Material | ABS+TPR+PC |
| Interface | USB-Type-C |
| Operating Environment | |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 70℃ |
| Relative Humidity | 5% to 90% (non-condensable state) |
| Ambient Light Resistance | 107,639Lux Max |
