NETUM DS‑8100 Wireless 2D Barcode & HF RFID Scanner

Name: NETUM DS‑8100 Wireless 2D Barcode & HF RFID Scanner
Brand: Netum
Availability: OutOfStock

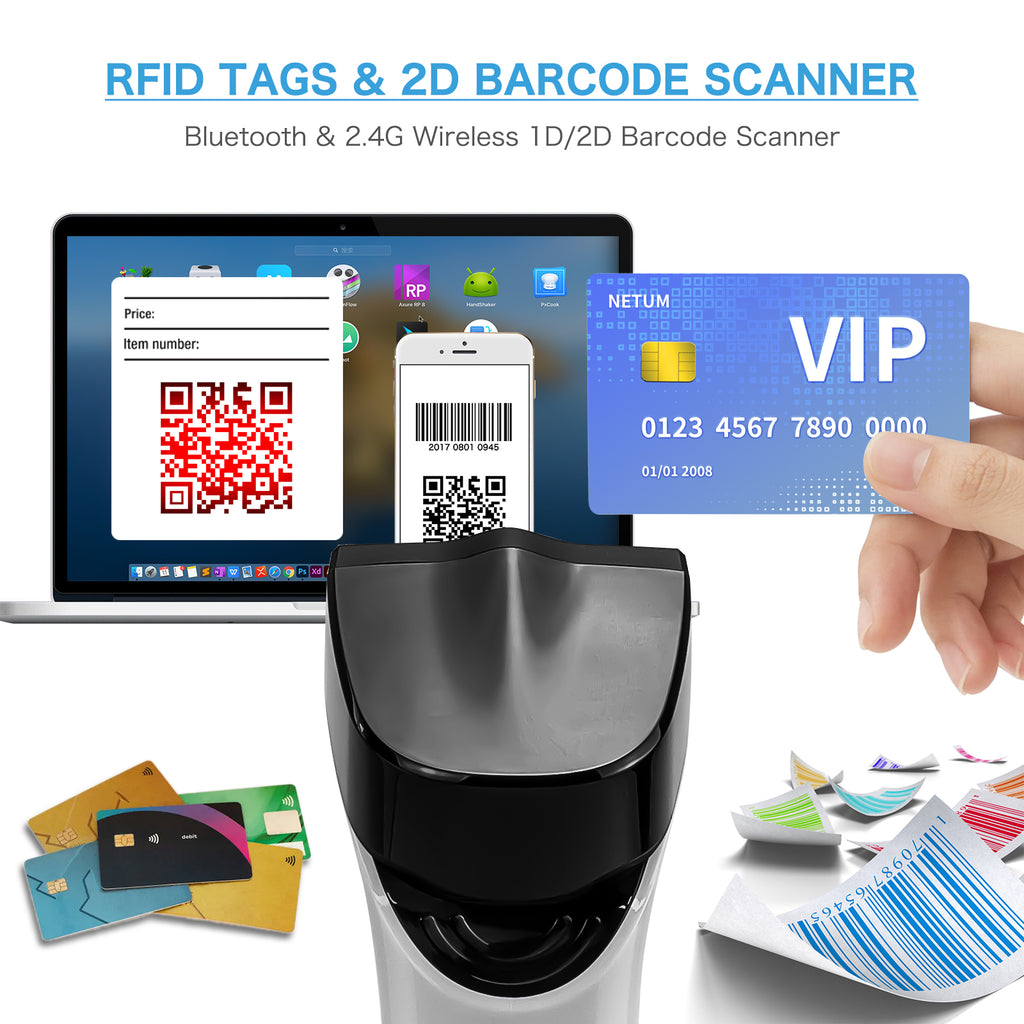

Dual‑Function Barcode + HF RFID Reading: Unique integrated design, supports 1D/2D barcode decoding +13.56MHz HF RFID read‑write, compatible with ISO14443A/B, ISO15693, Mifare, Sony FeliCa for card, tag and identity recognition.

Triple‑Mode Connectivity: 2.4G Wireless + Bluetooth + USB Wired, 60‑meter 2.4G open visual range, 10‑meter Bluetooth visual distance, flexible access for mobile terminals, PC and business systems.

Global Exposure CMOS Decoding Performance: 640×480 Global Exposure CMOS, precision 1D≥4mil,2D≥6.8mil, print contrast ≥20%, stable reading for paper and screen barcodes.

IP54 Protective Grade & Rugged Structure: IP54 dust‑water resistance, 1‑meter free‑fall shock resistance, adapts complex on‑site collection environment.

2000mAh Rechargeable Battery & Multi‑Feedback: 2000mAh battery, charging time 5‑7 hours; buzzer, LED indicator, vibration triple prompt for diverse working noise environments.

Product Overview

NETUM DS8100 Hybrid RFID Imager is the future of the data capture industry. Under programmatic control, the reader seamlessly supports the widest variety of HF RFID tags and bar code labels, as well as standard and most proprietary card formats; suitable for hospitality, retail, and logistic industry settings via Bluetooth low-energy connection. Compatible with Windows, Mac OS, iOS and Android. the DS8100 makes RFID and bar code reading simple.

With the DS8100 Series, you can give shoppers the checkout experience they expect — short lines, a speedy transaction and attentive service. A one-of-a-kind hybrid design provides maximum flexibility, offering both handheld and hands-free scanning.

You get NETUM’s industry-leading scanning technology, seamless switching between modes and superior ease of use, along with a wide range of innovative features that boost productivity. An RFID model combines a barcode scanner and RFID reader to extend the benefits of RFID to your point of sale.

Application Scenarios

Membership & ID Card Identification: Membership card, employee ID card, visitor badge and paper ticket recognition.
HF RFID Asset Management: High‑frequency RFID asset tag reading, equipment inventory and property tracking.
Retail & Anti‑Counterfeiting Collection: Store on‑site data acquisition, commodity anti‑counterfeiting verification and customer identity checking.
Event & Ticketing System: Ticket verification, access control data collection for exhibitions and activities.
Government & Public Service: On‑site information collection for identity documents and smart card processing.

Optical property

Imaging Sensor: CMOS (Global Exposure)
Resolution: 640×480, Global Exposure
Illumination: Aimer Red color LED, Illumination White color LED
Scan Mode: Image Scanning
Precision: 1D ≥4mil，2D ≥6.8mil
Print Contrast: ≥20%

Operating Characteristic

Operating Environment: ‑10℃‑50℃
Storage Environment: ‑20℃‑70℃
Operating Humidity: 5%‑95%(No Condensation)
Ambient Illumination: 60000 lx

Electrical Specification

Working Voltage: DC5.0V±5%
Maximum Current: 395mA
Battery Capacity: 2000 MAH
Charging Time: 5‑7 hours

Transmission Performance

Transmission Mode: 2.4G Wireless / Bluetooth
Transmission Distance: 2.4G In Open Visual Distance ≤60 Meters；Bluetooth In Open Visual Distance ≤10 Meters

Decoding Capability

Scan Angle: 34°×V30° H(Nominal)
Depth of Field:
Code 128 60mm‑200mm(10mil)
QR Code 160 bytes(paper) 50mm‑140mm(10mil)
DM Code 100 bytes(paper) 50mm‑120mm(10mil)
QR Code 18 bytes(screen) 50mm‑250mm(10mil)
Decoding:
2D: PDF‑417,QR Code,QR1/2,Micro QR,Data Matrix,ECC200,ECC000,050,080,100,140,Chinese Sensible Code etc.
1D: Code128,UCC/EAN‑128,AIM128,EAN‑8,EAN‑13,ISBN/ISSN,UPC‑E,UPC‑A,Interleaved 2 of 5,ITF‑6,ITF‑4,Matrix 2 of 5,Industrial 25,Standard 25,Code39,Codabar Code93,Code11 etc.

RFID parameter

Carrier Frequency: 13.56 MHz (RFID HF)
Read/Write Speed: 26 kbps (ISO 15693),106kbps (ISO 14443)
Antenna: Integration,25mm×4mm,Balance
Supported Protocol: ISO15693,ISO/IEC 14443 A and B; Mifare, Sony FeliCa, Conform to EPC GEN2 13.56MHz
Maximum RFID reading range: 0.4"‑2" (10‑30 mm)

Others

Prompting Mode: 1.Buzzer 2.LED Indicator Light 3.Vibration
Scan Mode (Hand‑held): 1.Trigger Mode 2.Continuous Mode 3.Auto Sense Mode
Charging Interface: USB(B)/USB(A)
