Scan Performance
Sensor: 640×480 High Definition CMOS
Frame Rate: 120 frames per second
Illumination: Green LED
Precision: 1D ≥3mil, 2D ≥7mil
Print Contrast: ≥25% (UPC/EAN 100%, PCS 90%)
Field of View: Horizontal 42°, Vertical 28°
Scan Angle: Roll 360°, Pitch ±55°, Skew ±55°
Scan Modes: Button scan, continuous scan, self-sensing scan, command trigger
Depth of Field:Code128 (5mil): 40mm–215mm | Code39 (13mil): 75mm–440mmEAN-13 (13mil): 40mm–400mm | QR Code (15mil): 20mm–250mmData Matrix (15mil): 30mm–280mm
Supported Symbologies:
1D: EAN, UPC, Code 39, Code 32, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5, Febraban
2D: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Maxicode, Aztec

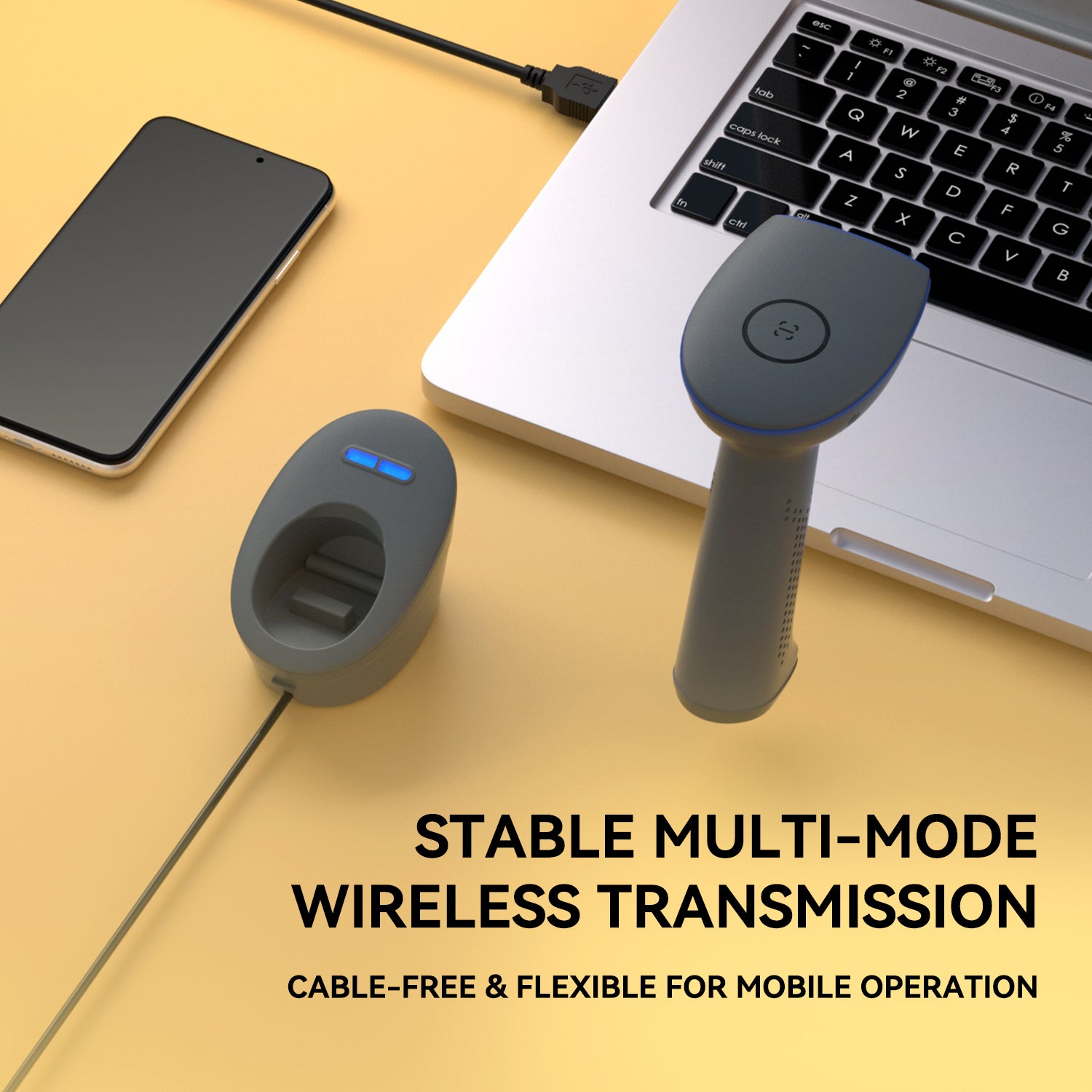

Wireless Parameters
Transmission Mode: Wired + 2.4G Wireless + Bluetooth 2.0/3.0/4.0/4.2
Transmission Distance: 2.4G: 100m line of sight; Bluetooth: 20m line of sight

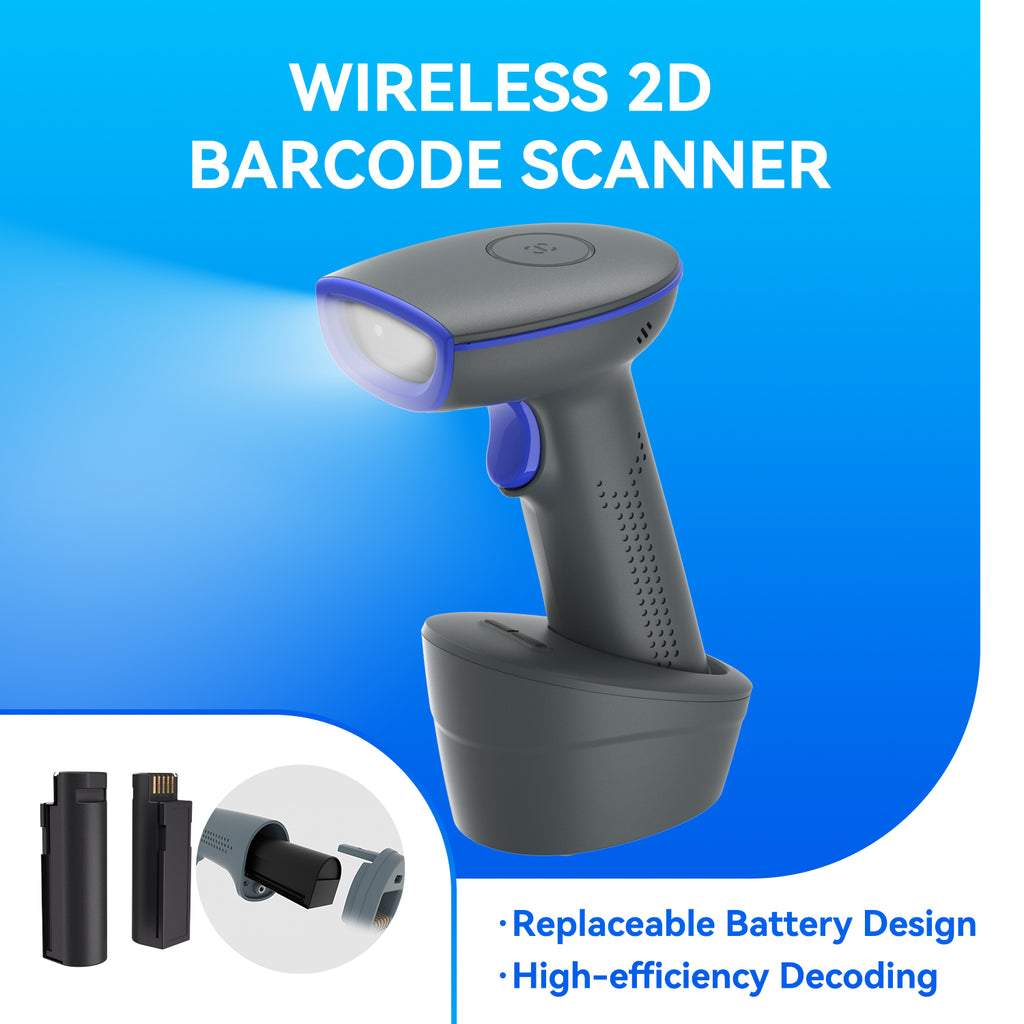

Battery Capacity: 3200mAh Replaceable Lithium Battery
Charging Time: About 5 hours
Auto Standby: Enter standby after 3 minutes of inactivity
Charging Input:5V 1~2A
Electrical Characteristics
Operating Voltage: 5V ±5%
Operating Current: 350mA ±5%
Standby Current: 0.6μA
Operation & Interface
Supported Interface: USB, RS232
Communication Protocol: USB HID, USB COM, RS232, Bluetooth (HID/SPP/BLE)
Feedback Mode: Buzzer + Vibration Dual Prompt
Physical Parameters

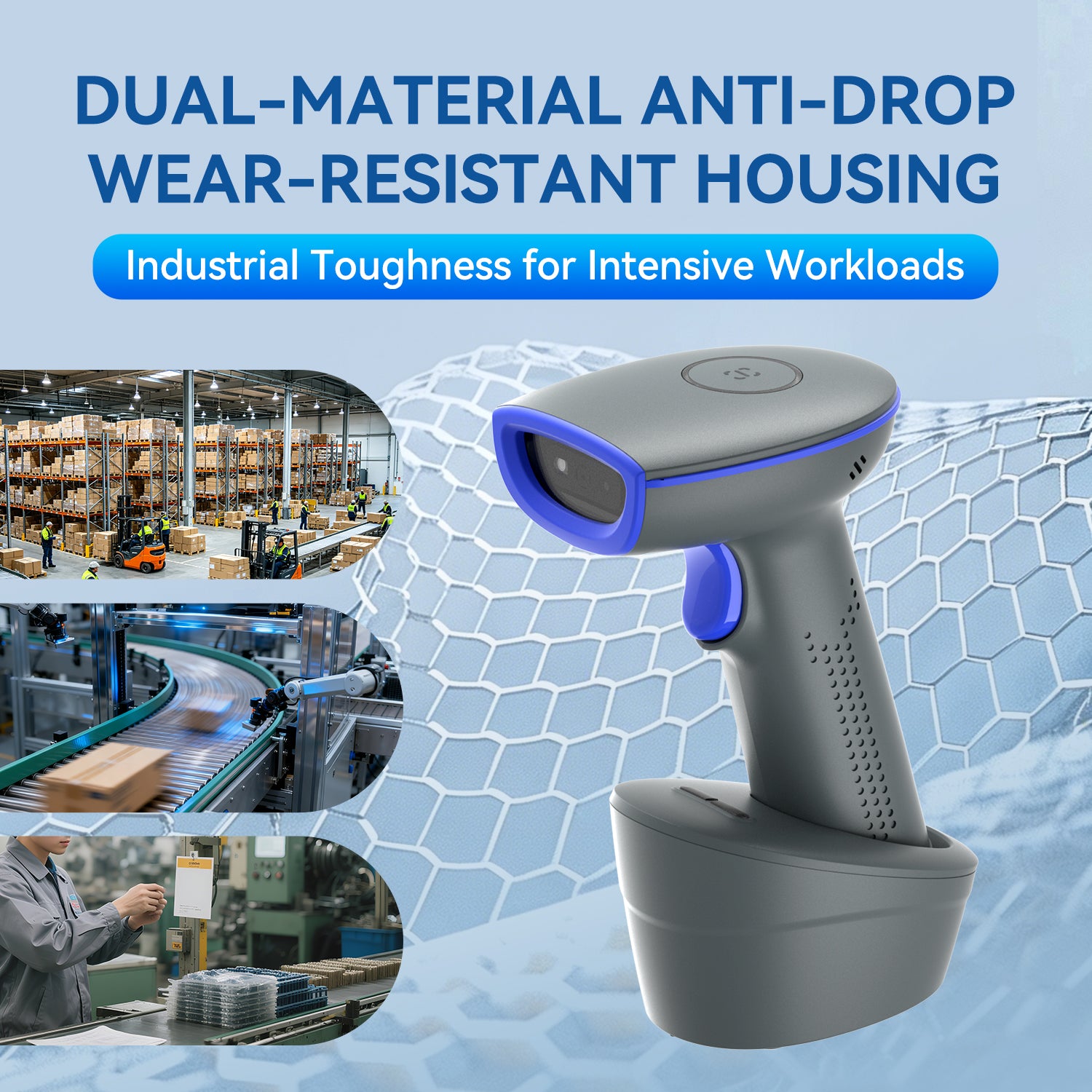

Housing Material: ABS Hard Shell + TPU Soft Rubber
Color: Gray Shell + Blue Soft Rubber
Cable Length: 1.2m
Drop Resistance: 2-meter free fall resistance (concrete surface)
Certifications
Certifications: CE, RoHS, FCC Certified
