NETUM GY-60U 10M Ultra Long Range Wireless Barcode Scanner

Name: NETUM GY-60U 10M Ultra Long Range Wireless Barcode Scanner
Brand: Netum
Availability: OutOfStock

✅ EN: 10-meter ultra-long scanning distance for 200mil Data Matrix codes, supports long-distance mobile wireless scanning for industrial and warehouse scenarios

✅ EN: Dual-lens dual-light automatic switching design, red mid-focus and white far-focus adapt to short, medium and ultra-long range scanning needs

✅ EN: Triple connection modes of 2.4G wireless, Bluetooth and serial port, flexible and compatible for diverse industrial equipment connection

✅ EN:e 1280×1080 high-definition sensor & 100,000-hour long service life, stably reads low-contrast and poorly printed barcodes

✅ EN: IP67 waterproof dustproof & 6m drop resistance, durable ABS+TPU dual material for harsh industrial environments

Warehouse High Shelf Inventory
10m ultra-long wireless scanning distance easily covers high warehouse shelves, eliminating the need for climbing tools and improving inventory efficiency and operational safety.

Industrial Production Line Long-Distance Scanning
Dual-lens adaptive focusing realizes stable long-distance barcode identification for large industrial equipment and production line components.

Logistics Large Cargo Scanning
Supports wireless mobile operation, ideal for long-distance scanning of stacked pallets and oversized logistics goods.

Outdoor Industrial Data Collection
Rugged IP67 body and flexible wireless connection adapt to outdoor engineering equipment and field industrial barcode acquisition work.

Submit Your Bulk Enquiry of This Product Here

For all Bulk & B2B Product Enquiries kindly share your requirement.

Product Overview

10M Ultra-Long Wireless Scanning
NETUM GY-60U is a professional 10-meter ultra-long range industrial wireless barcode scanner. Adopting dual 1280×1080 high-definition sensors and dual red & white light auto-switch lens, it achieves full-distance coverage scanning, accurately reading 200mil large Data Matrix codes from ultra-long distances, solving long-distance scanning pain points in industrial and warehousing scenes.

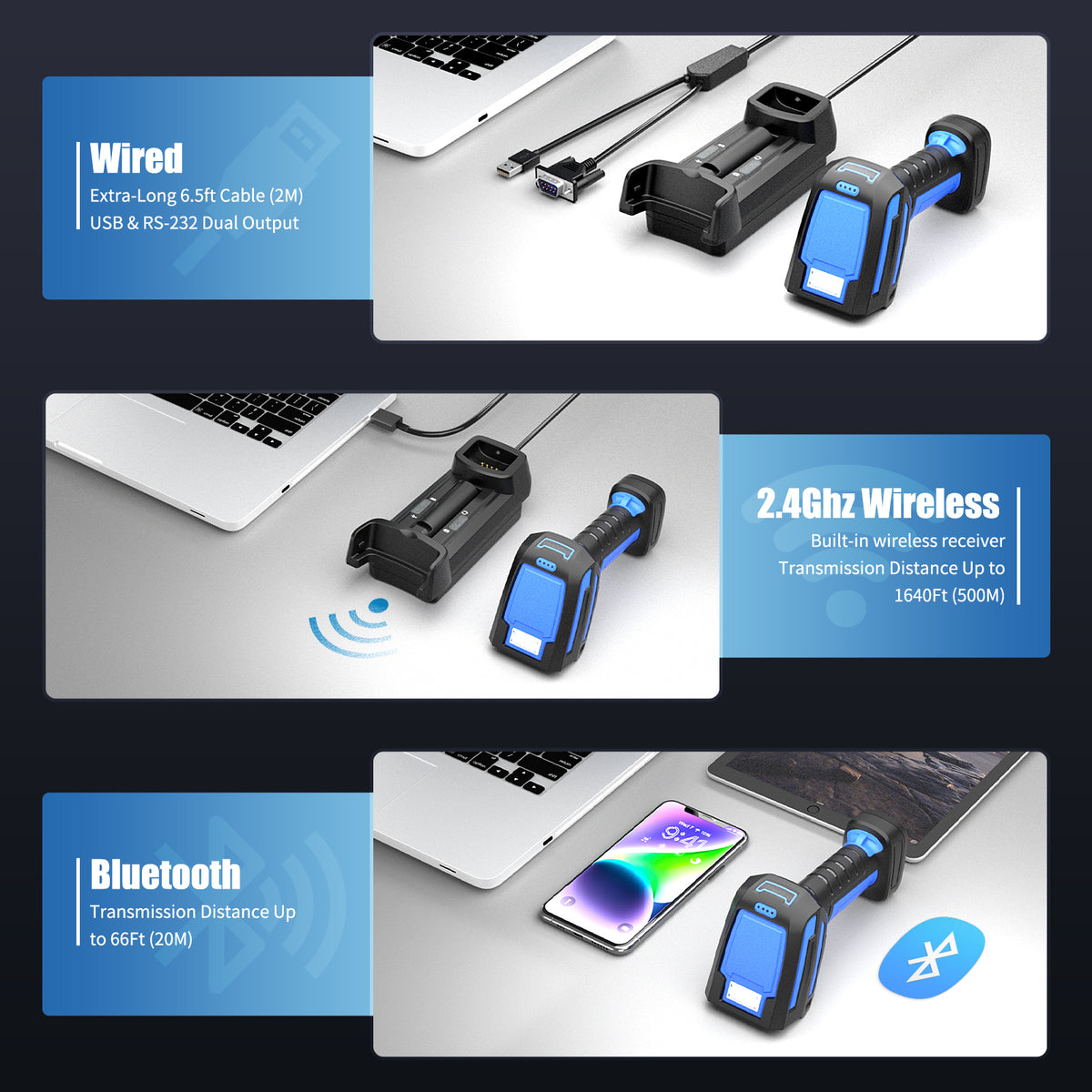

Triple Flexible Connection Design

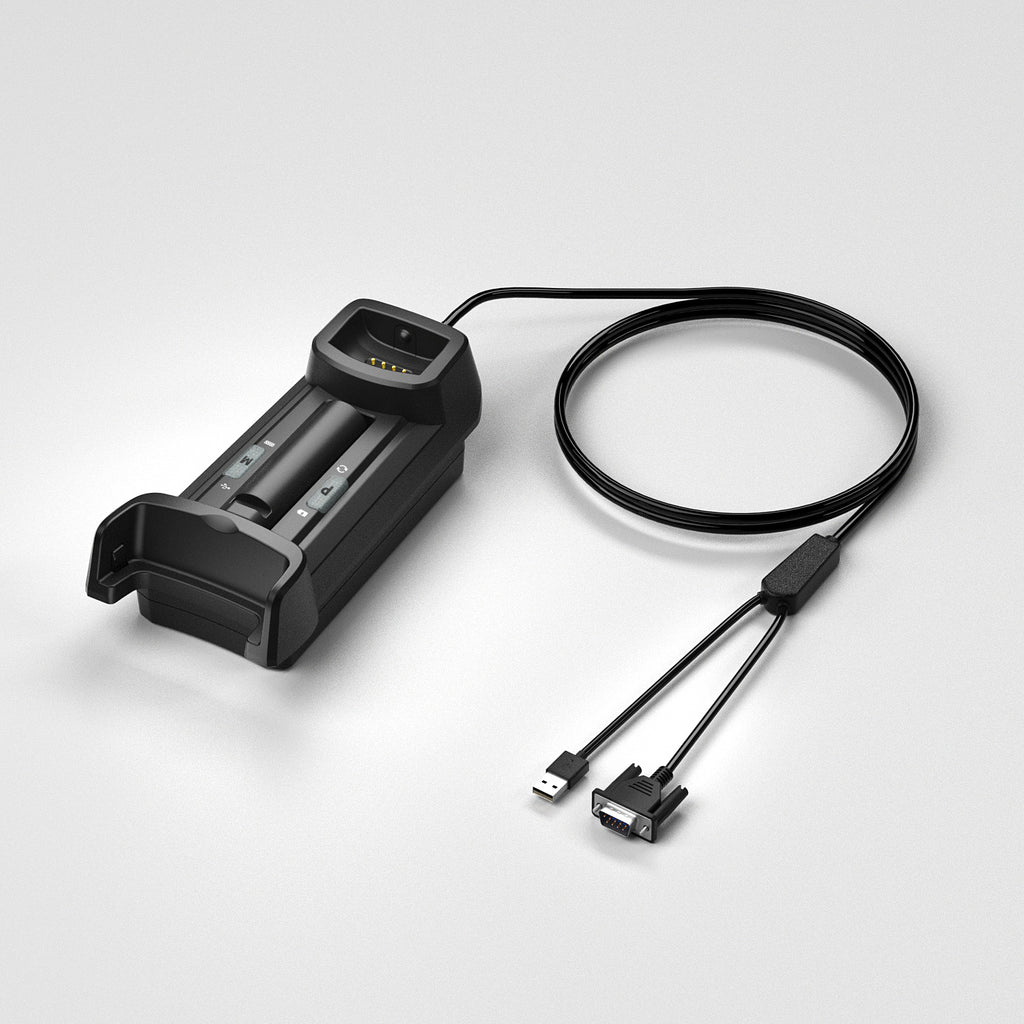

Supports 2.4G long-distance wireless, Bluetooth multi-protocol and serial port triple connection modes. 300m ultra-long 2.4G transmission and 20m Bluetooth range support free mobile operation, compatible with various industrial hosts, terminals and POS systems for flexible data transmission.

Industrial-Grade Decoding Performance
Built with high-brightness optical module and industrial decoding algorithm, it delivers excellent recognition for low-contrast, faded and poorly printed barcodes. With up to 100,000 hours service life, it greatly reduces industrial maintenance and replacement costs.

IP67 Rugged Industrial DurabilityFeatures premium ABS+TPU dual material housing, IP67 full dustproof and waterproof performance. It withstands 6m free drop and professional multi-axis vibration tests, maintaining stable long-term operation in dusty, humid and harsh industrial workshops.

Long Endurance & Stable Operation

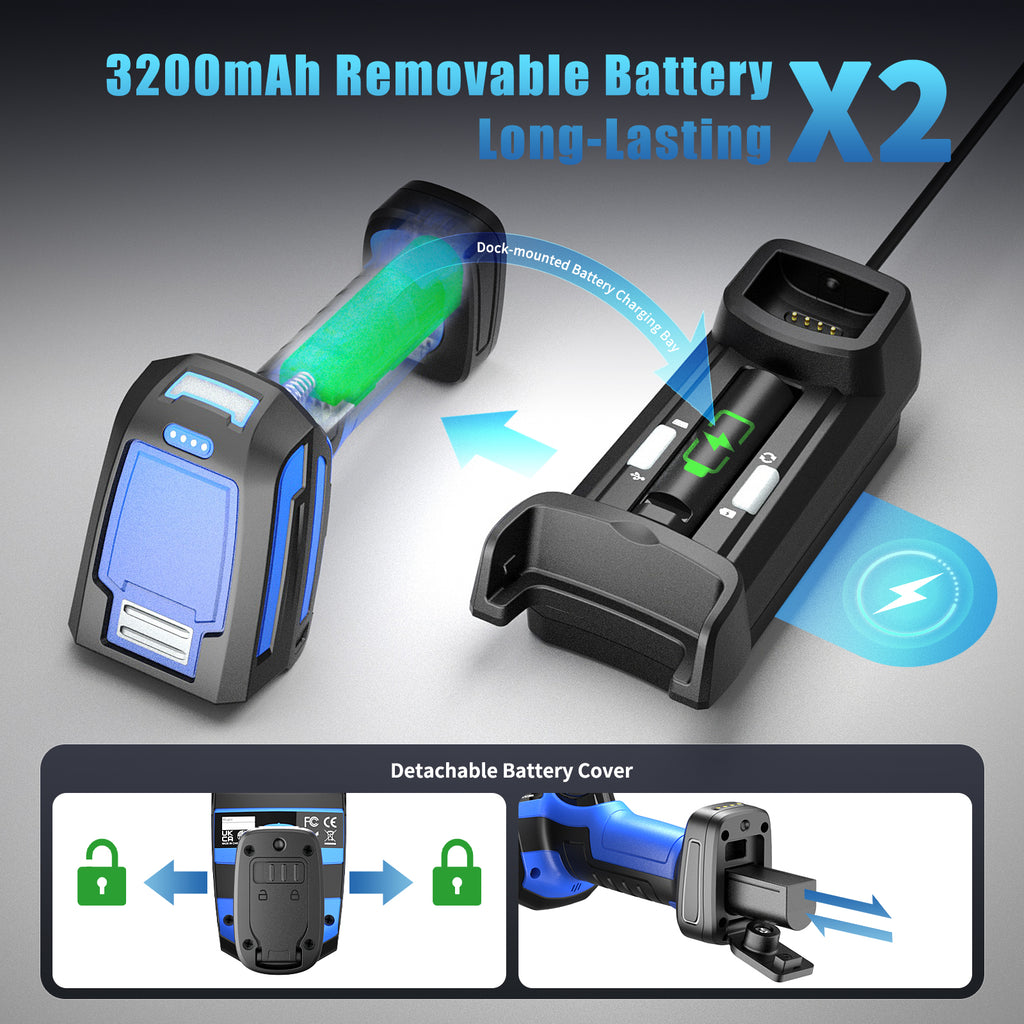

Comes with standard dual 3000mAh batteries and 5-hour fast charging, supporting all-day high-frequency wireless scanning. Multiple scanning trigger modes meet the intelligent operation needs of automated production lines and smart warehouses.

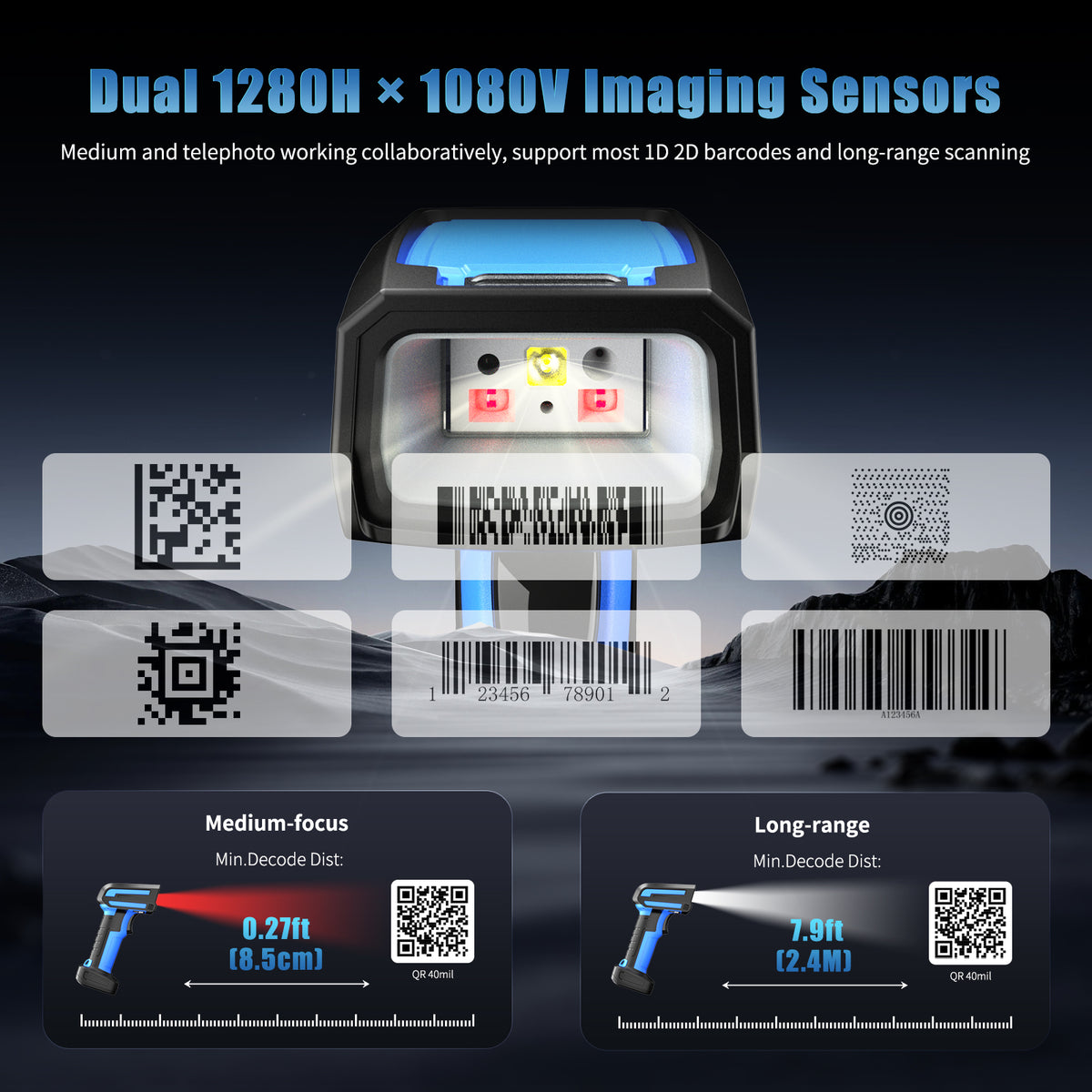

Imager Sensor:
Dual 1280(H) × 1080(V) Pixels
Optical & Scanning Performance
Light Mode: Red Mid-focus Light, White Far-focus Light (Auto Switch)
Aiming Mode: Laser Dot Focus
Scan Angle: Roll 360°, Pitch ±60°, Skew ±60°
Field of View: Medium Range: H28.0°/V22.0°; Long Range: H11.5°/V9.0°
Minimum Resolution: 5mil@Code39, PCS=90%
Printing Contrast: ≥20% (UPC/EAN 100%, PCS 90%)
Max Long-Distance Range: 100cm~1000cm (10m) @DM 200mil
Typical Depth of Field:Code39 (5mil): 5cm ~ 32cm
EAN/UPC (13mil): 5.5cm ~ 190cm
EAN/UPC (15.6mil): 7cm ~ 210cm
Code128 (40mil): 38cm ~ 400cm
QR Code (20mil): 5.5cm ~ 140cm
Data Matrix (200mil): 100cm ~ 1000cm
Supported 2D Symbologies: Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode, Hanxin Code, Dotcode
Supported 1D Symbologies: UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar Series, Composite Code A/B/C
Wireless Parameters
Transmission Mode: 2.4G Wireless + Bluetooth 2.0/3.0/4.0/4.2 + Serial Port
2.4G Wireless Range: 300m (Visual Distance)
Bluetooth Range: 20m (Visual Distance)
Battery Capacity: 3000mAh (Dual Batteries Standard)
Charging Time: About 5 Hours
Standby Mode: Auto Standby after 3 Minutes
Charging Input: 5V 1~2A
Electrical Parameters
Operating Voltage: DC 5V±5%
Standby Current: 0.6μA
Operating Current: 260mA (Typical), Max 380mA
Interface & Working Mode
Transmission Interface: USB HID / USB COM
Prompt Mode: Buzzer & Vibration Alert
Scanning Mode: Key Scan, Continuous Scan, Self-Sensing Scan, Command Trigger

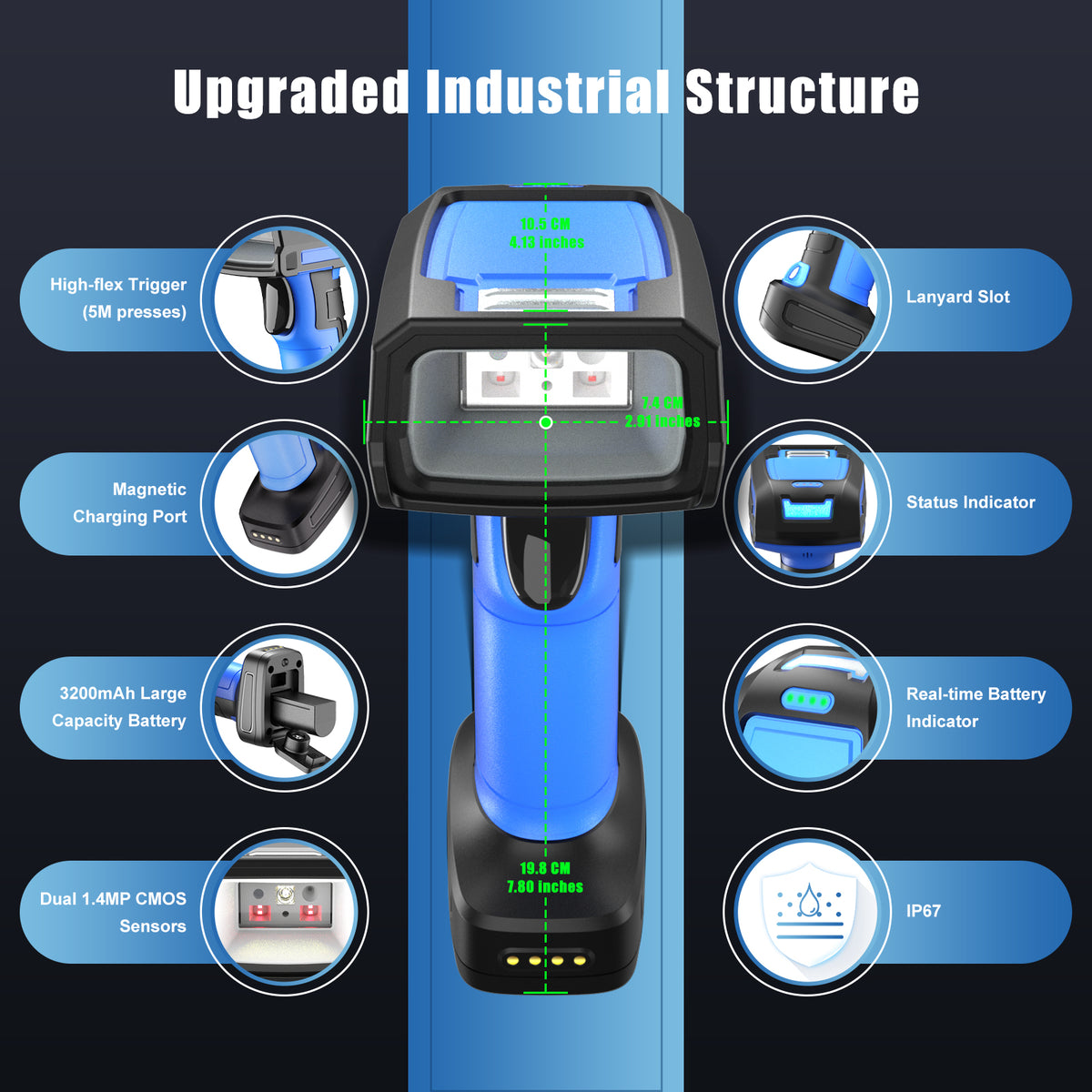

Physical Parameters
Dimension: 198 × 74 × 105mm
Weight: Scanner≈346g, Base≈492g, Battery≈58g
Cable Specification: 1.2m length, 5mm thicknessColor: Soft Rubber Black, Hard Rubber Gray
Material: Hard Shell ABS, Soft Shell TPU
Industrial Durability
Working Vibration: 10~150HZ, 0.5G, 3 Axial, 1min/oct
Durable Vibration: 10~150HZ, 2G, 3 Axial, 1min/oct, 20 times/axial
Drop Resistance: Withstands 6m drop onto concrete surfaces
Protection Level: IP67 Waterproof & Dustproof
Operating Environment
Operating Temperature: -10℃ to 50℃
Storage Temperature: -20℃ to 70℃
Relative Humidity: 5%~90% (non-condensable)
Ambient Light Resistance: Max 100,000Lux
Safety & Compliance
Certifications: CE, ROHS, FCC
