NETUM NT‑L5 Wired 2D Barcode Scanner

Name: NETUM NT‑L5 Wired 2D Barcode Scanner
Brand: Netum
Availability: OutOfStock

✅ EN: Unique image capture function, supports BMP / JPEG / TIFF graphic output, not only decodes barcodes but also saves label images for enterprise record‑keeping

✅ EN: Dual‑interface design of USB and RS‑232C, compatible with modern and legacy industrial equipment, convenient for system integration for banking, postal and manufacturing projects

✅ EN: 0.35 Megapixel CMOS imaging sensor, wide decoding range, stably identifies damaged, blurred and poorly‑printed 1D / 2D barcodes, covers QR, Data Matrix, PDF417 and multi‑country postal codes

✅ EN: Excellent shock‑resistant performance, withstands 2000g impact against concrete surface, wide temperature range from 0℃‑50℃ for stable industrial‑grade continuous operation

✅ EN: Optimized ergonomic housing for long‑time handheld operation, cross‑industry adaptability for retail, warehouse, banking, postal transportation and production line verification

Product Overview

0.35MP CMOS Imager with Barcode & Image Capture Capability

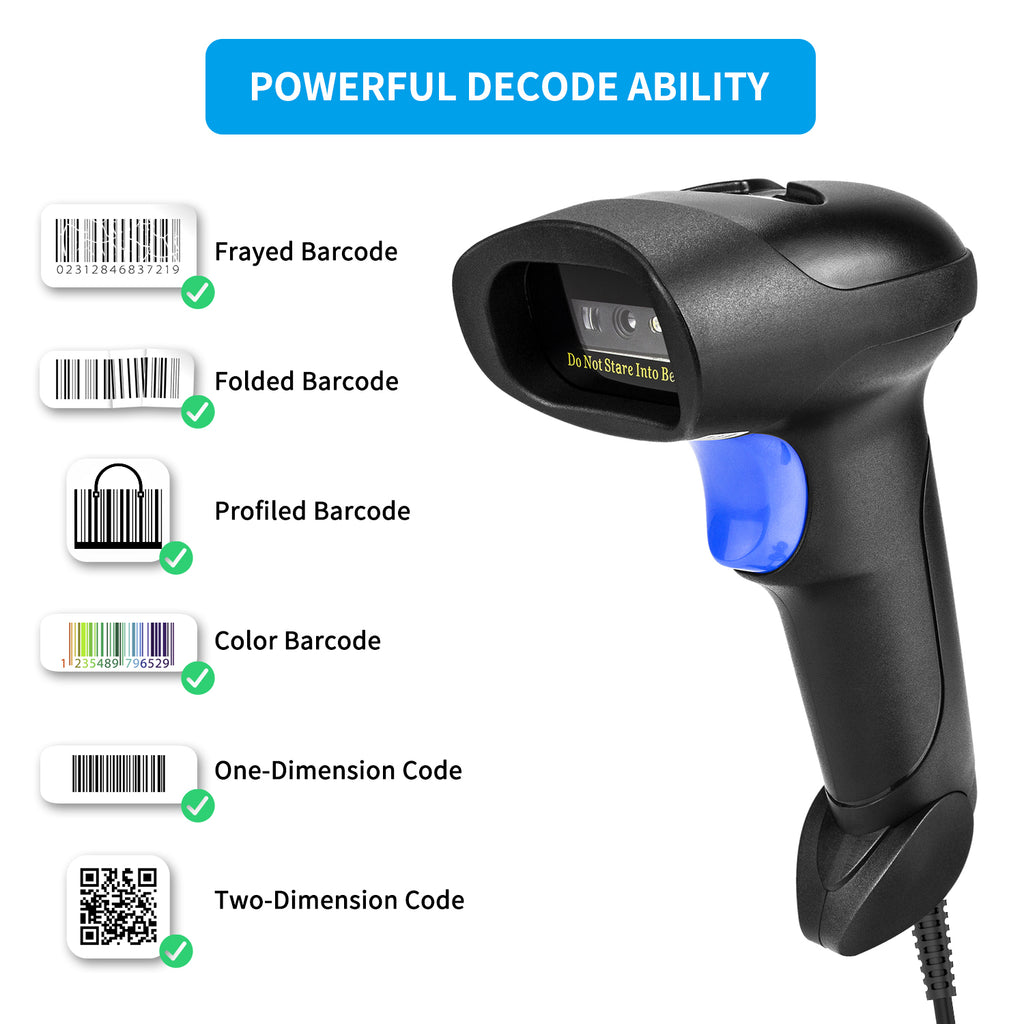

NETUM NT‑L5 is a professional wired 2D barcode scanner oriented to B‑end enterprise integration scenarios. It adopts0.35‑megapixel 752(H)×480(V) CMOS imaging sensor. Different from ordinary scanners which only output barcode text data, NT‑L5 can capture original label images and export them in BMP, JPEG, TIFF formats, helping enterprises realize barcode data matching with physical picture archives, which is very suitable for quality traceability and evidence‑keeping scenarios in manufacturing and public service industries. It performs well on damaged, wrinkled and low‑contrast poorly‑printed barcodes, covering mainstream 1D, 2D symbologies and multiple international postal codes.

USB & RS‑232C Dual‑Interface for Legacy & Modern System Integration

NT‑L5 provides USB and RS‑232C dual communication interfaces. USB supports standard HID, IBM Sure POS and Macintosh modes; RS‑232C serial port reaches baud rate up to 115kb. It can connect not only modern PC and POS terminals, but also legacy industrial control equipment, old‑style banking and postal terminals. This greatly expands the scope of project adaptation, avoiding equipment replacement costs caused by interface mismatch, and simplifies deployment for system integrators.

Robust Shock‑Resistant Structure for Harsh Working Conditions

The mechanical structure is engineered for heavy‑duty business environments. It can withstand 2000g impact to concrete. Operating temperature ranges from 0℃ to 50℃, storage temperature from ‑40℃ to 70℃, humidity 5%‑95% non‑condensing. Whether for continuous high‑frequency scanning at retail counters or frequent operation on noisy factory production lines, it maintains stable and consistent performance, reducing equipment failure rate in B‑end mass‑use scenarios.

Ergonomic Handheld Design for Multi‑Sector Deployment

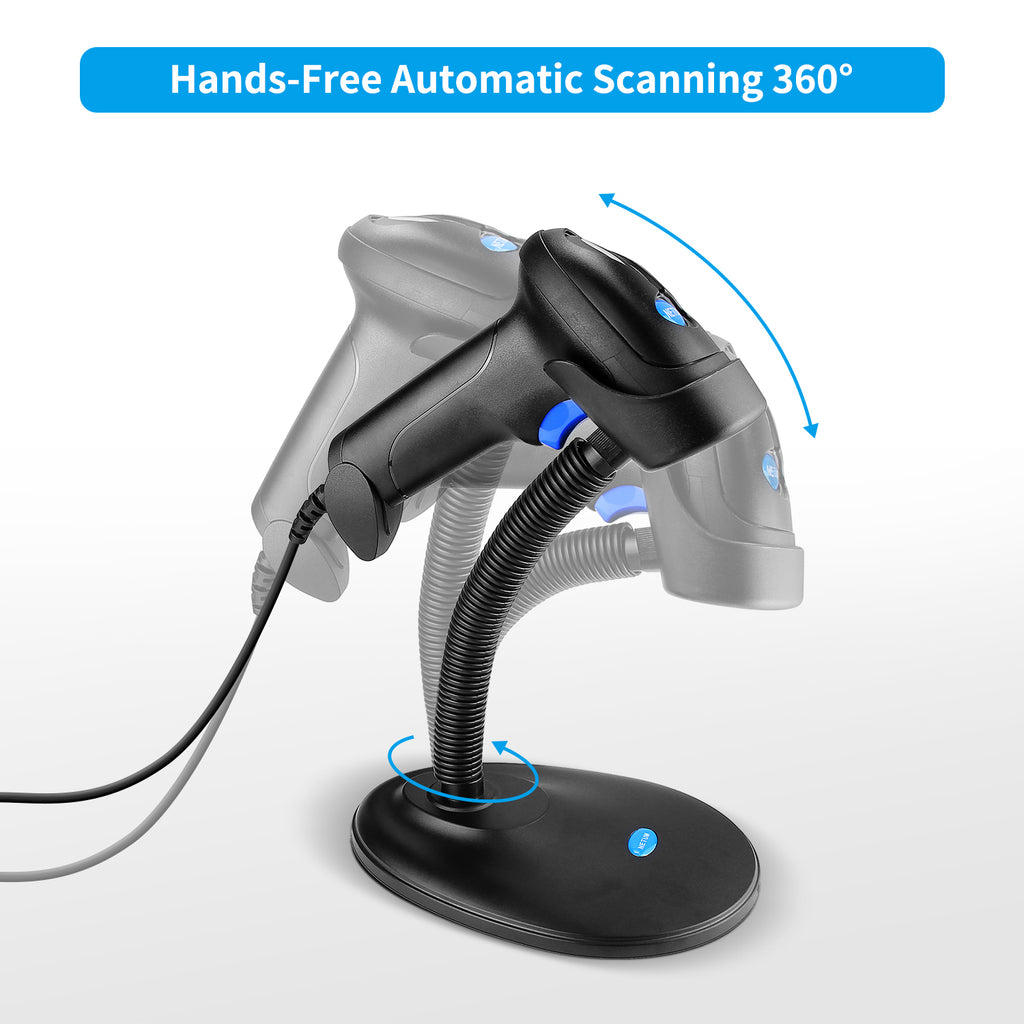

Optimized handheld ergonomic shape reduces operator fatigue during long‑time continuous scanning. The wide field‑of‑view optical system supports 360° roll, ±65° pitch and ±60° yaw reading angles, bringing great tolerance for barcode placement angle. Widely applied in retail POS, warehouse inventory, banking business halls, postal sorting centers and manufacturing production‑line verification. NETUM supports OEM & ODM customization services for global wholesalers and system integrators.

Application Scenarios

- Retail supermarket POS checkout, commodity barcode identification and mobile payment scanning
- Warehouse logistics inventory management, inbound‑outbound inspection and parcel sorting operations
- Banking, telecom service counters, postal and transportation document & parcel processing
- Industrial manufacturing production‑line parts traceability, quality inspection with image archiving requirement
- Government and public service document collection, where label image snapshot and storage are required
