NETUM W8 WIFI Wireless 2D Barcode Scanner

Name: NETUM W8 WIFI Wireless 2D Barcode Scanner
Brand: Netum
Availability: OutOfStock

✅ EN: Dual‑mode Wi‑Fi + Bluetooth 4.2 design, supports MQTT / HTTP / HTTPS / TCP/IP protocol, upload scanned data directly to cloud server or local LAN for IoT system integration

✅ EN: Built‑in offline memory buffer, automatically cache barcode data when out of wireless range and resume transmission after signal recovery, avoid data loss for large‑site mobile operations

✅ EN: Comes with dedicated charging cradle for continuous power supply; 2000mAh battery delivers up to 40 working hours for full‑shift heavy‑duty scanning

✅ EN: IP54 dust‑water resistant housing plus 1‑meter drop resistance, 10‑million‑click long‑life trigger, industrial‑grade durability for workshop and logistics environments

✅ EN: High‑resolution 1MP CMOS(1280×800) imager, reliably decodes 1D, 2D, QR and screen barcodes, supports one‑to‑one / one‑to‑many wireless data transmission

Warehouse inventory, logistics sorting and outbound inspection

Manufacturing production line IoT data collection

Retail store POS checkout & mobile payment code scanning

Factory MES system, cloud server barcode data uploading

Cross‑border e‑commerce stocktaking and traceability management

Industrial embedded secondary development projects

Submit Your Bulk Enquiry of This Product Here

For all Bulk & B2B Product Enquiries kindly share your requirement.

Product Overview

Powerful Wi‑Fi & Bluetooth Dual‑Wireless Network Transmission
NETUM W8 WIFI is an advanced network‑type wireless 2D barcode scanner built for B‑end industrial and IoT scenarios. It combines Wi‑Fi 802.11 b/g/n and Bluetooth 4.2 dual wireless solutions. It supports mainstream development protocols including MQTT, HTTP/HTTPS and TCP/IP(Socket). Scanned barcode data can be directly pushed to cloud server or local LAN server, realizing one‑to‑one or one‑to‑many data transmission. It can also directly open web pages via QR embedded URL, greatly facilitating secondary development for MES, WMS and other industrial systems.

Offline Buffer Storage & Charging Cradle for Non‑stop Work
When the scanner moves out of Wi‑Fi / Bluetooth coverage, W8 automatically saves scanned codes into its built‑in memory buffer. Once back within signal range, cached data will be transmitted to host device automatically to prevent data missing. Matching charging cradle provides convenient continuous power supply. 2000mAh large‑capacity battery achieves up to 40 hours working time, satisfying full‑day non‑interrupted scanning for warehouse and factory operators.

High‑Performance 1MP CMOS Decoding Capacity

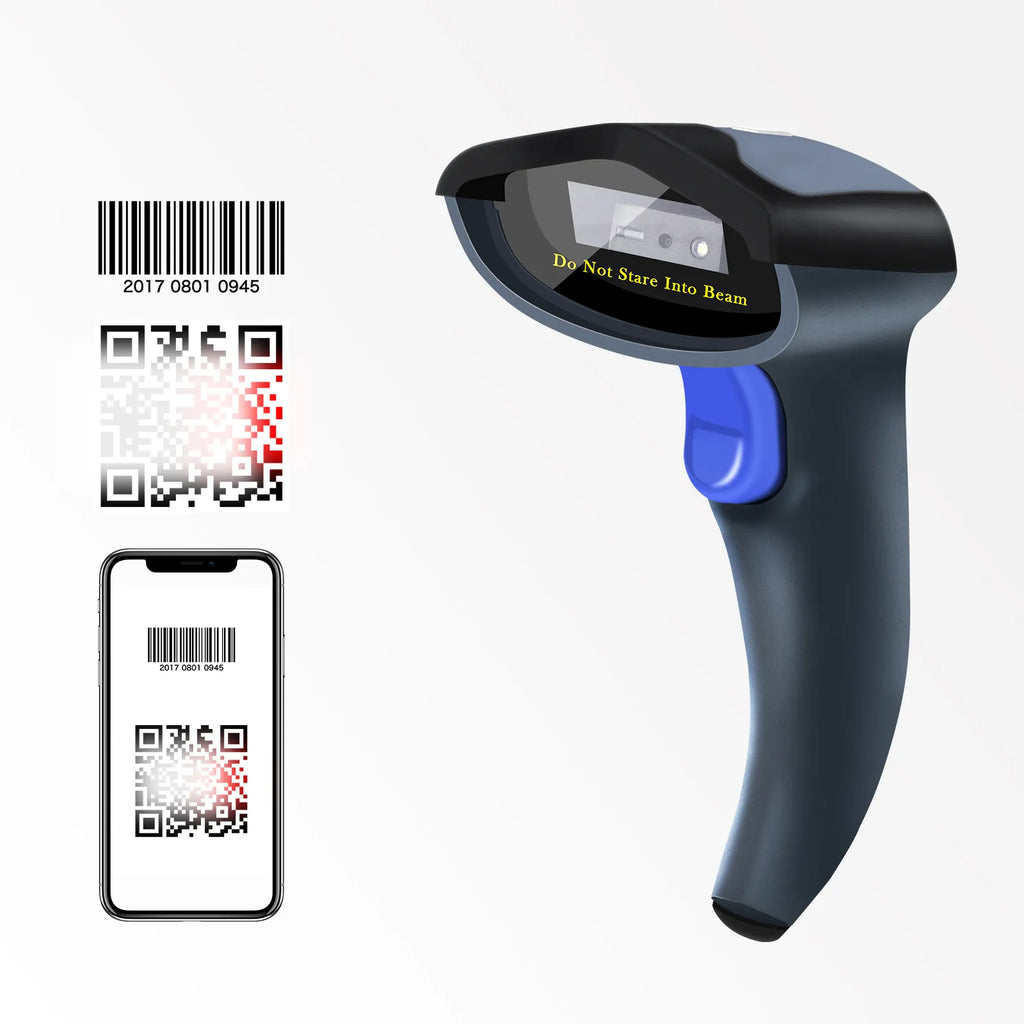

Equipped with 1280×800 1MP CMOS image sensor, W8 quickly decodes all mainstream 1D and 2D symbologies, including QR Code, Data Matrix, PDF417 and postal barcodes. It reads both printed paper labels and barcodes displayed on mobile phone, tablet and PC screens, covering retail payment, asset tracking and logistics label recognition requirements. Multiple trigger modes including button trigger, continuous scan and auto‑sensing adapt to diverse working habits.

IP54 Rugged Industrial‑Grade Reliability
Featuring IP54 dust‑proof and splash‑proof sealing level, the scanner survives 1‑meter high‑free‑fall impact. The trigger switch is rated for 10‑million‑click service life. Wide operating temperature range adapts to complex factory and warehouse environments. It is compatible with Windows, Mac OS, Android, iOS and Linux systems, flexible for commercial and industrial deployment.

Optical Properties
Image Sensor: CMOS 1MP (1280×800)
Resolution: 1280×800
Light Source: Aimer Red color LED, Illumination White color LED
Reading Mode: Image scanning
Precision: 1D ≥3mil, 2D ≥5mil
Print Contrast: ≥15%

Operating Environment
Usage Environment: -10℃‑50℃
Storage Temperature: -20℃‑70℃
Working Humidity: 5%‑95% (No condensation)
Ambient Lighting: 40000 lx Max
Electrical Characteristics
Operating Voltage: DC5.0V±5%
Maximum Current: 395mA
Battery Capacity: 2000MAH
Charging Time: 5‑7 hours
Charging / data Interface: USB(B)/USB(A)
Communication MethodBluetooth: Bluetooth 4.2, supports HID, SPP, BLE
WIFI: WLAN IEEE 802.11 b/g/n
Supported Protocol: MQTT, HTTP/HTTPS, TCP/IP(Socket)
Transmission Distance: Bluetooth ≤10 meters open‑air; Wi‑Fi within Wi‑Fi coverage range
Transmission Mode: One‑to‑one, one‑to‑many transmission
Decoding PerformanceField of View: 34V ×30H degrees
Decoding Ability: Full range mainstream 1D & 2D barcodes, screen barcode readable
Supported 1D Symbologies: UPC / EAN, Code 39, Code 32, Code 128, Code 93, Codabar, Interleaved 2 of 5, Standard 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Telepen, Pharmacode, Chinese post code, MSI Plessey, GS1 DataBar series
Supported 2D Symbologies: QR Code, Micro QR Code, Data Matrix, MaxiCode, Aztec, PDF417, MicroPDF417, PostNet, PLANET, Australia Post, Royal Post, Composite Codes CC‑A, CC‑B, CC‑C
Other PerformancePrompt Method: Buzzer, LED indicator light
Scan Mode: Button trigger mode, Continuous scan mode, Auto‑sensing mode
Memory Buffer: Offline data storage when out of wireless range
Physical PropertiesSize(LWH): 1656590 mm
Cable: 1.2m
Color: Black
Weight: 0.17 KG (Scanner only)
Accessory: Dedicated charging cradle
Safety Regulations
Waterproof and Dustproof Sealing Level: IP5
4Drop Resistance: 1 meter high free fall
Certifications: CE, FCC, ROHS
System Compatibility: Windows, Mac OS X, Linux, Android, iOS
