Scanning Performance
Scanning Engine: CMOS
Imager Sensor: 640×480
Illumination: White LED 6500k

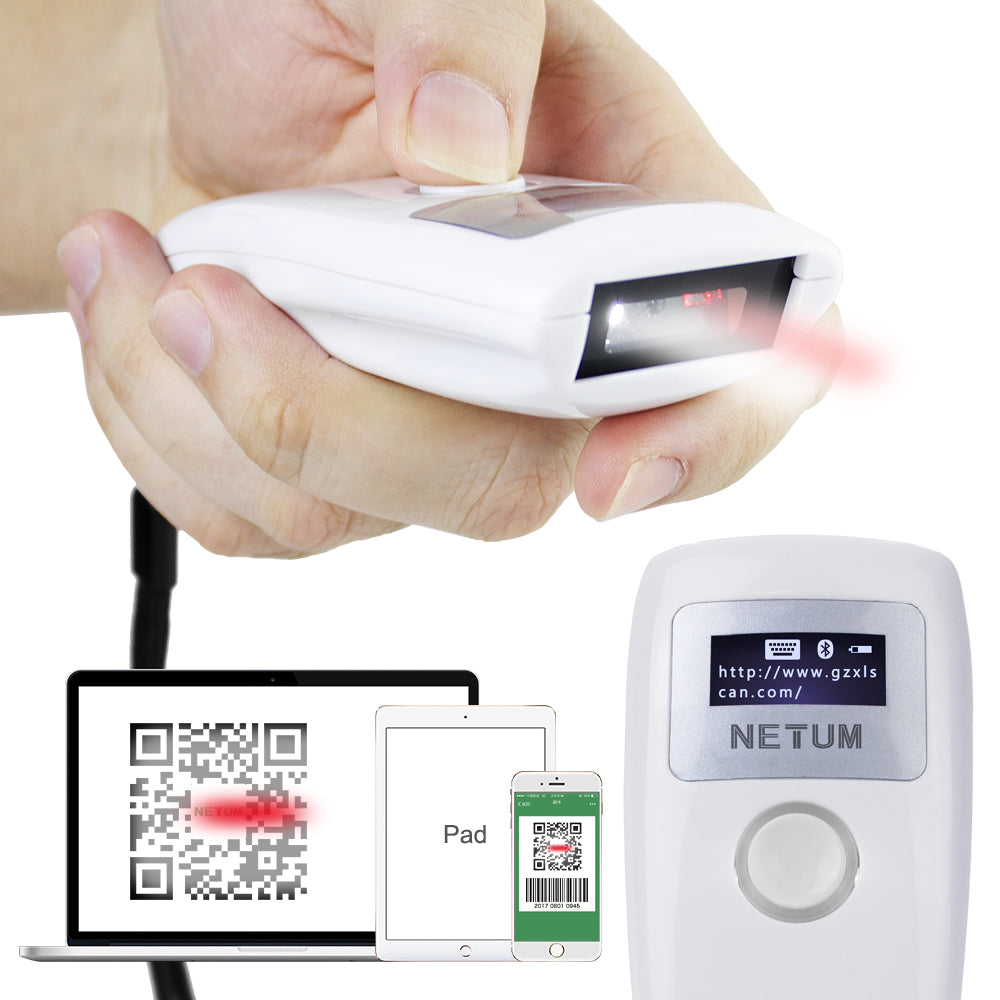

Aiming Light: Red LED 625nm
Minimum Resolution: 1D≥5mil, 2D≥7mil
Scan Angle: Roll: 360°, Pitch: ±60°, Skew: ±60°
Field of View: Horizontal: 42°, Vertical: 31°
Minimum Contrast: ≥25%
Depth of Field: Code128 (5mil): 40-100mm; QR Code (20mil): 25-250mm; PDF417 (6.8mil): 35-202mm; EAN13 (13mil): 45-270mm; Data Matrix (10mil): 25-95mm
Supported 2D Symbologies: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin
Supported 1D Symbologies: UPC-A, UPC-E, EAN13, EAN8, ISBN, ISSN, Code128, GS-128, Code39, Code93, Code32, Code11, Codabar, MSI Plessey, ITF25, STD25, Matrix25, IND25, HK25, Pharma code, Telepen, Trioptic code, Brazilian bank code, Postal Code, GS1 Databar, GS1 Composite code
Wireless Parameters

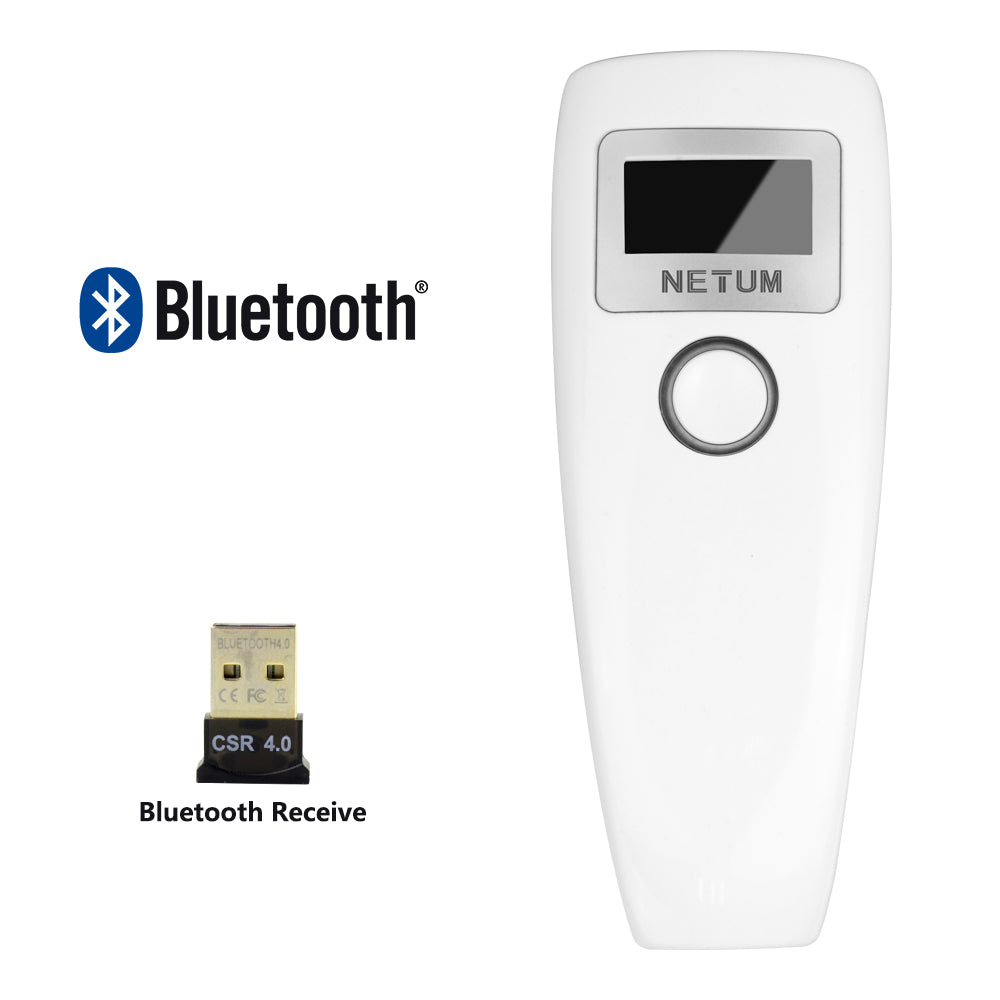

Transmission Mode: 2.4GHz, Bluetooth (2.0/3.0/4.0/4.2), USB Wired
2.4GHz Visible Range: 65m
Bluetooth Visible Range: 20m

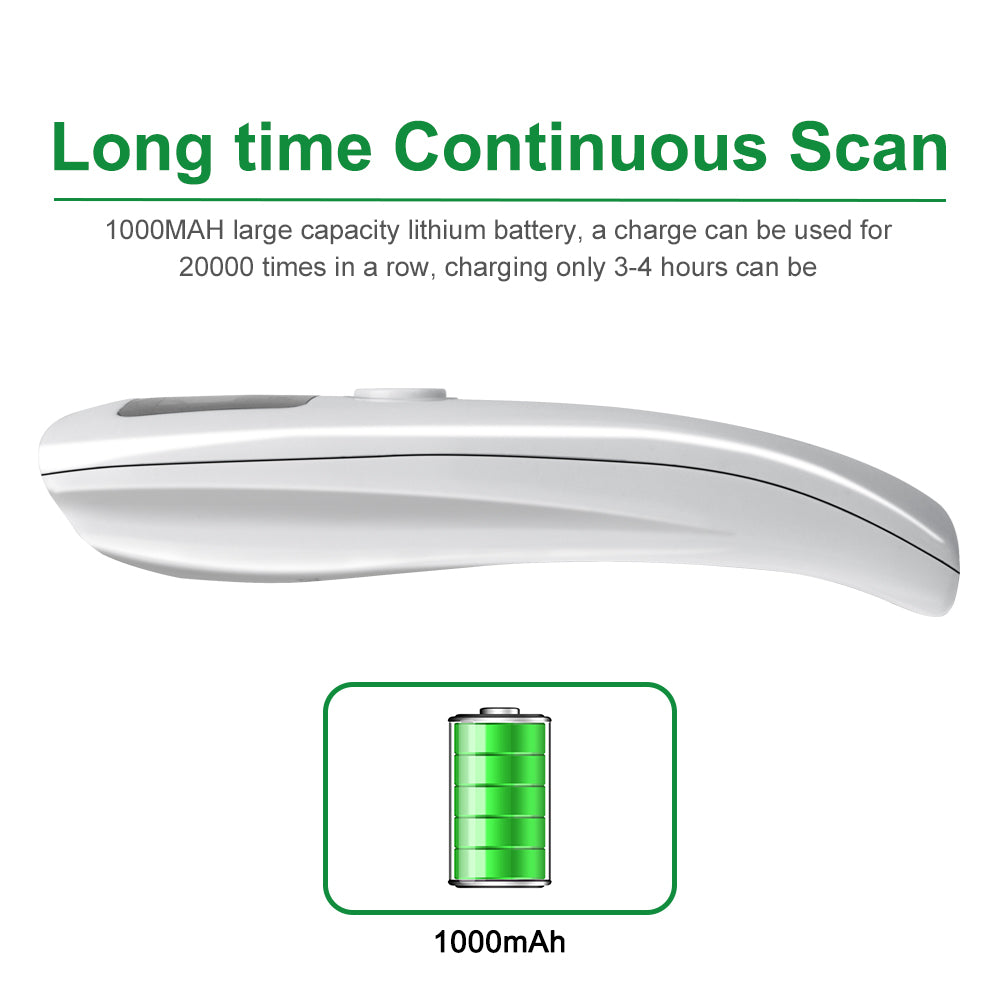

Battery Capacity: 1200mAh
Charging Time: 3h - 4h
Standby Time: 3 min auto sleep
Charging Input: 5V 2A

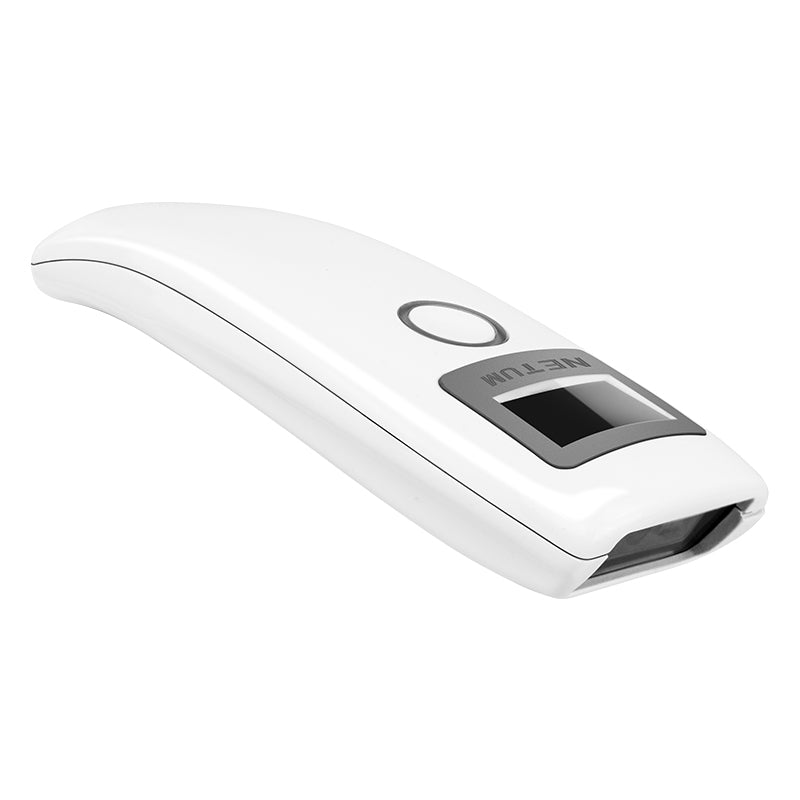

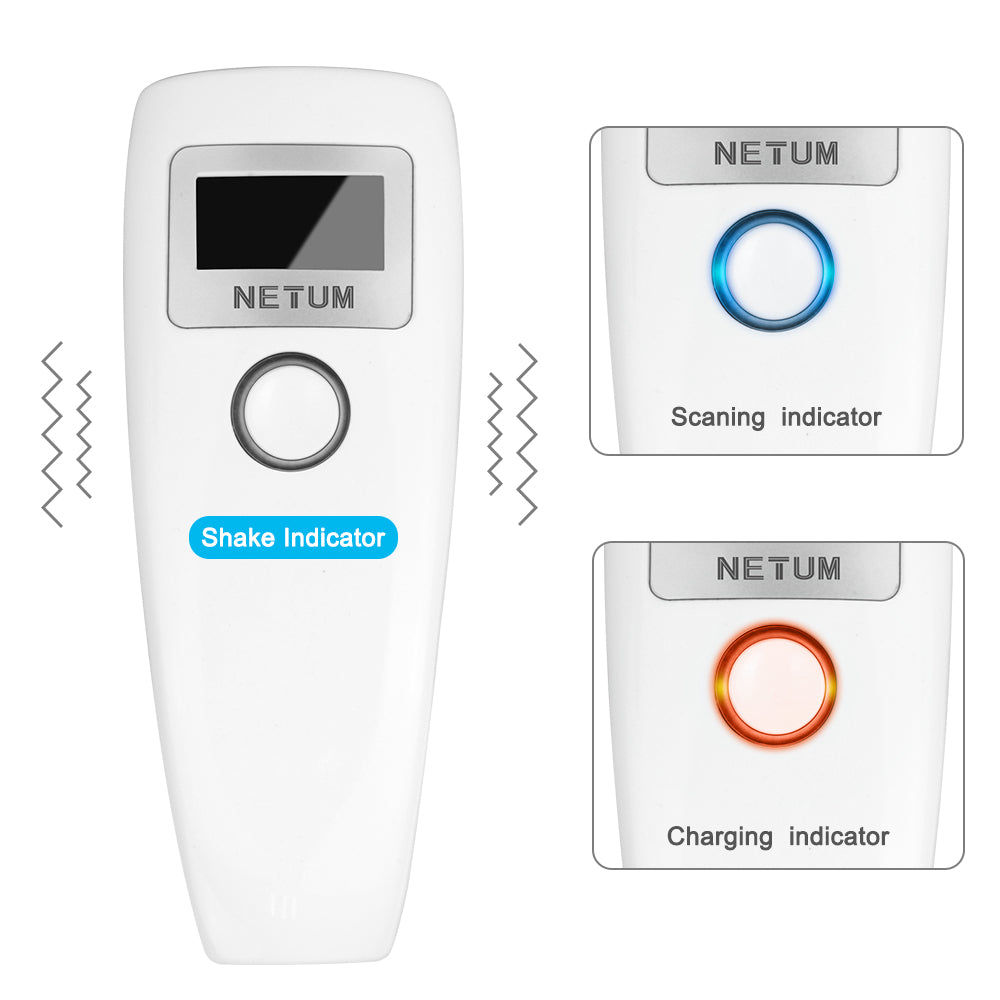

Display Screen: TFT LCD Screen (displays transmission mode, connection status, battery level, scanned data & prompts)
Electrical Parameters
Operating Voltage: DC 5V±5%
Operating Current: 215mA
Standby Current: 0.6μA
Dimension: 130 x 45 x 25 mm
Physical Parameters
Weight: ≈72g
Color: Black
Cable Length: 1.2m
Material: ABS Plastic
Interface: USB
Operating Environment
Operating Temperature: -10℃ to 50℃
Storage Temperature: -20℃ to 70℃
Relative Humidity: 5% to 95% (non-condensable state)
Max Ambient Light Resistance: 100,000Lux
