| Scanning Performance | |
| Scanning Engine | CMOS |
| Imager Sensor | 1280×800 |
| Illumination | Red LED |
| Minimum Resolution | 1D≥5mil 2D≥5mil |

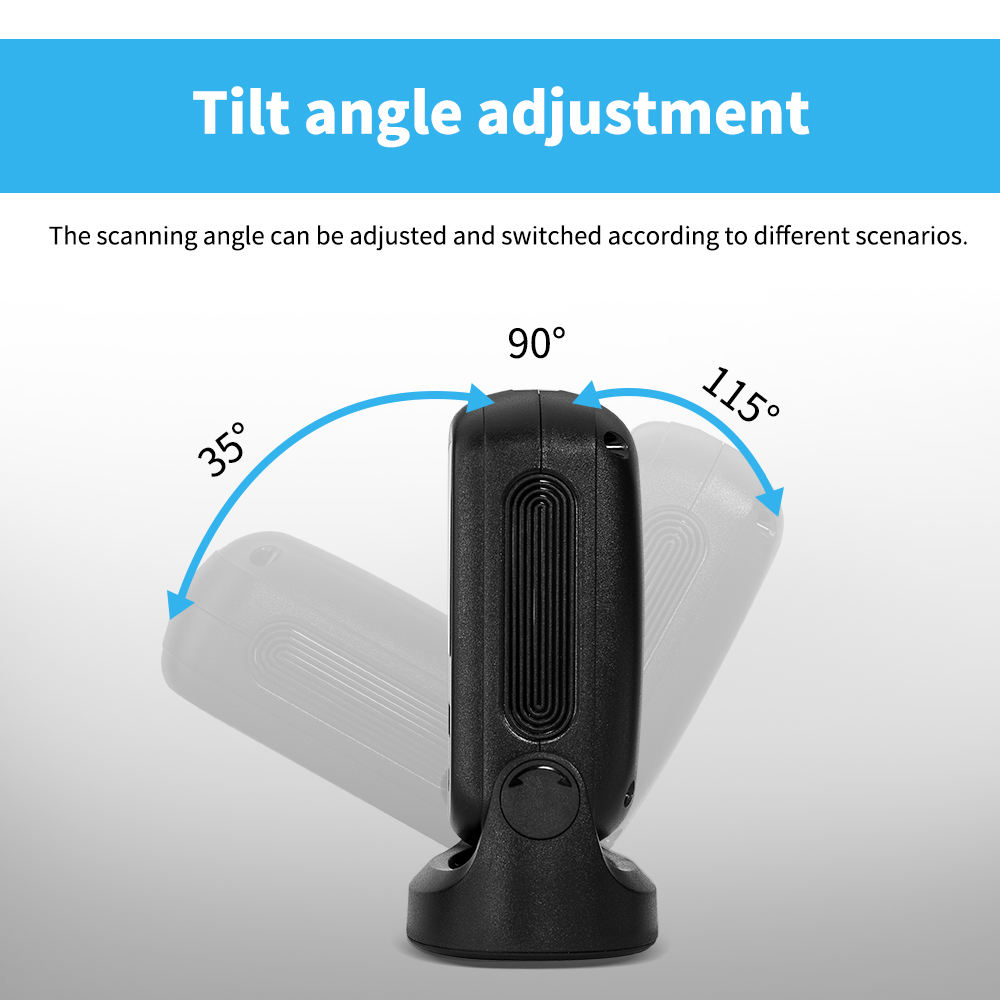

| Scan Angle | Roll: 360° |
| Pitch: ±55° | |
| Skew: ±55° | |
| Field of View | H: 43° |
| V: 33° | |
| Symbologies | 2D: QR Code, Data Matrix, PDF417, Aztec, Han Xin, Dotcode |
| 1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-PlesseyGS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5, Postal Code, etc | |
| Contrast | ≥25% |
| Depth of Field | EAN-13; 20mm-200mm (13mil) |
| Code39; 70mm-140mm (5mil) | |
| QR Code; 50mm-120mm (20mil) | |
| Physical Parameters | |
| Size | 66 x 93 x 145 mm |
| Weight | ≈284g |
| Interface | RJ-45 |
| Material | ABS+TPU |
| Electrical Parameters | |
| Operating Voltage | DC 5V±5% |
| Operating Current | 300mA |
| Operating Environment | |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 70℃ |
| Relative Humidity | 5% to 95% (non-condensable state) |
| Ambient Light Resistance | 100,000Lux Max |
