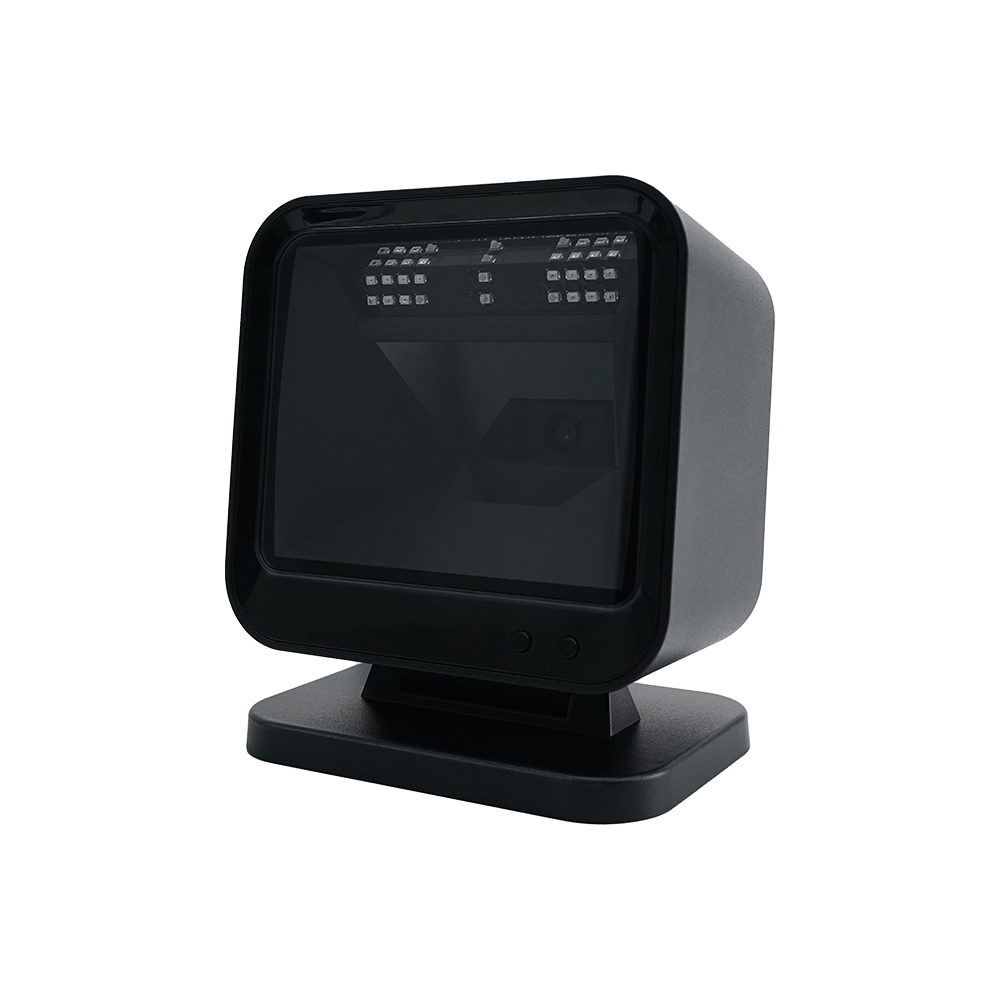

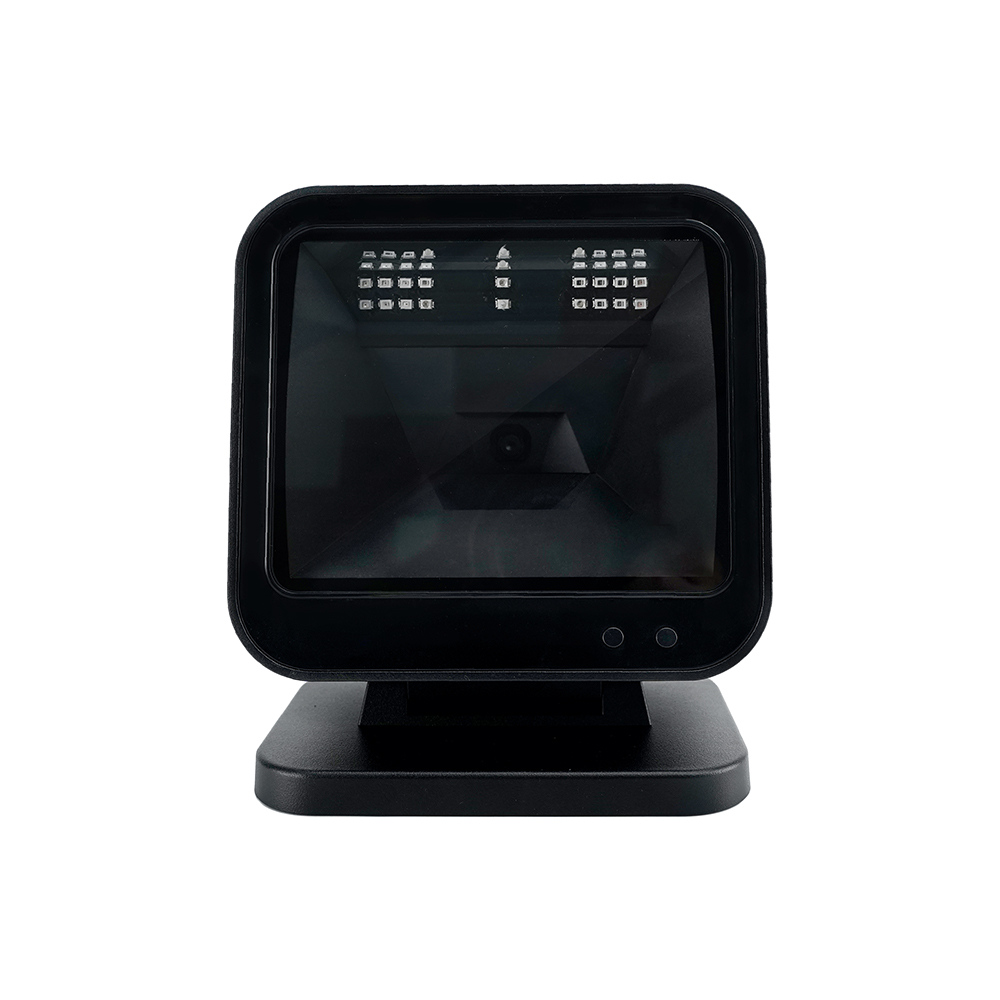

NETUM DP9280 Omnidirectional QR Code Scanner, 2D Desktop Barcode Scanner for Retail POS Supermarket

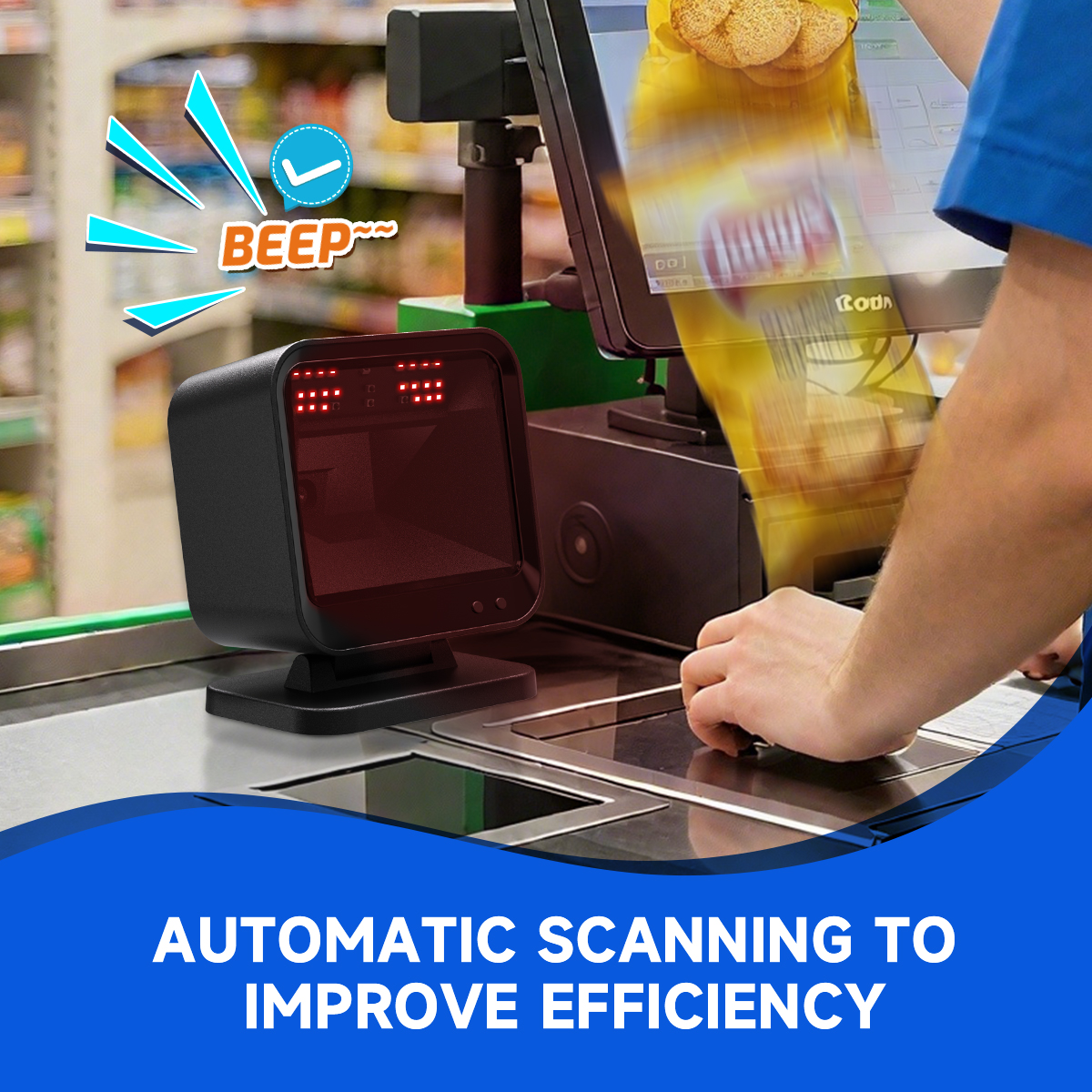

【New Upgrade】NETUM DP9280 Omnidirectional barcode scanner has undergone a comprehensive upgrade,equipped with high resolution megapixel sensor, which greatly improves the accuracy of scanning. Its automatic scanning mode simplifies operation by enabling automatic scanning without manual intervention, significantly enhancing work efficiency and making work processes smoother.
【Ultra-Wide Angle Scanning】This barcode scanner boasts an ultra-wide angle lens, effortlessly capturing barcodes from all angles. It also features an overhead array of eight LED bulbs, providing ample supplemental lighting to ensure accurate barcode reading in various lighting conditions.

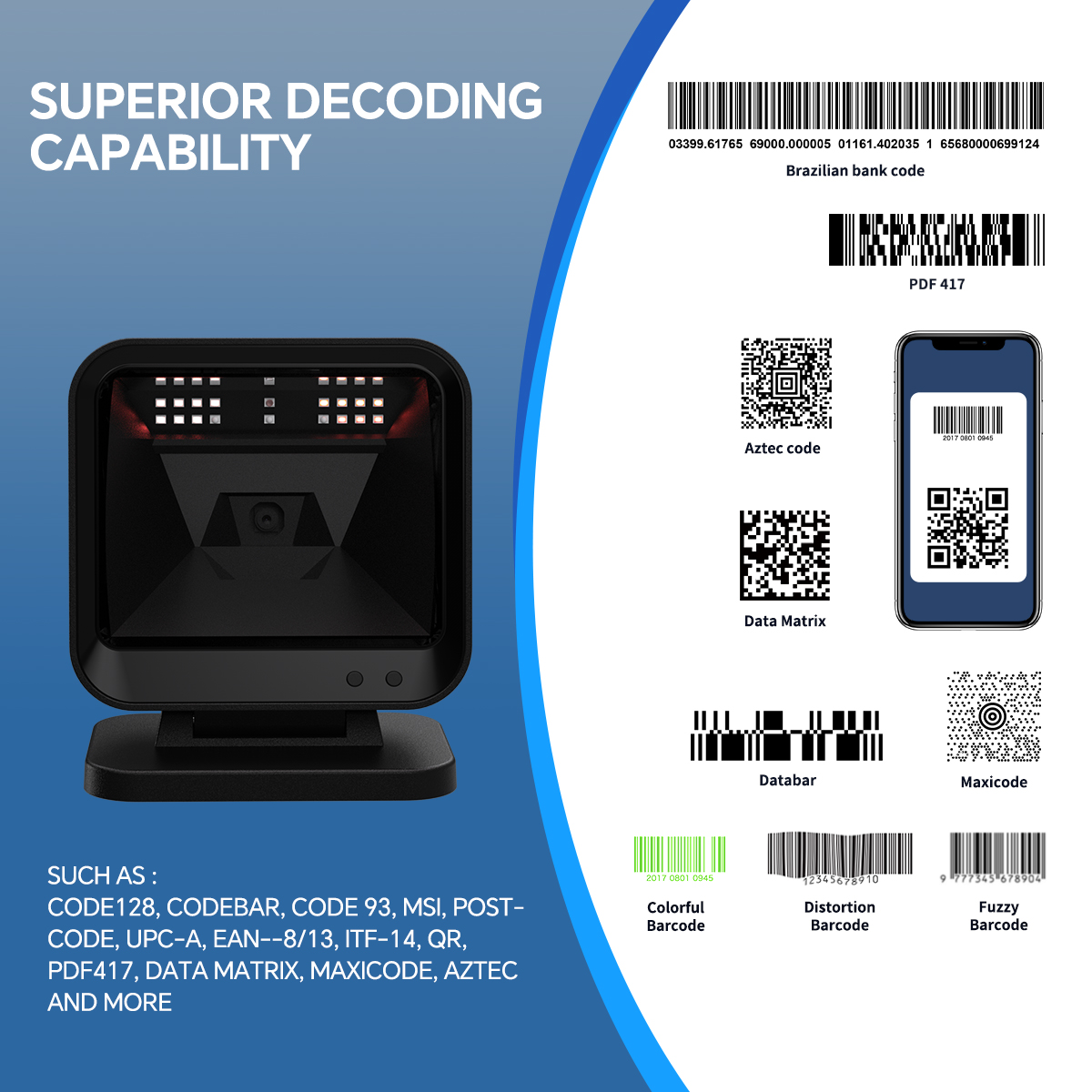

【Superior Decoding Capability】Equipped with 1280H × 800V pixels CMOS sensor, the scanner can capture various barcodes fast and accurately from paper and screen, its powerful decoding ability makes it read 40+ types barcodes, such as Code128, Codebar, Code 93, MSI, Postcode, UPC-A, EAN--8/13, ITF-14, QR, PDF417, Data Matrix, MaxiCode, Aztec and more
【Wide Application】NETUM 2D Omnidirectional desktop barcode scanner applys to retail shop, library, warehouse, supermarket, shopping malls, pharmacies,logistics, bank and more...Its efficient and accurate performance enables you to easily handle various scanning tasks regardless of the industry you are in.

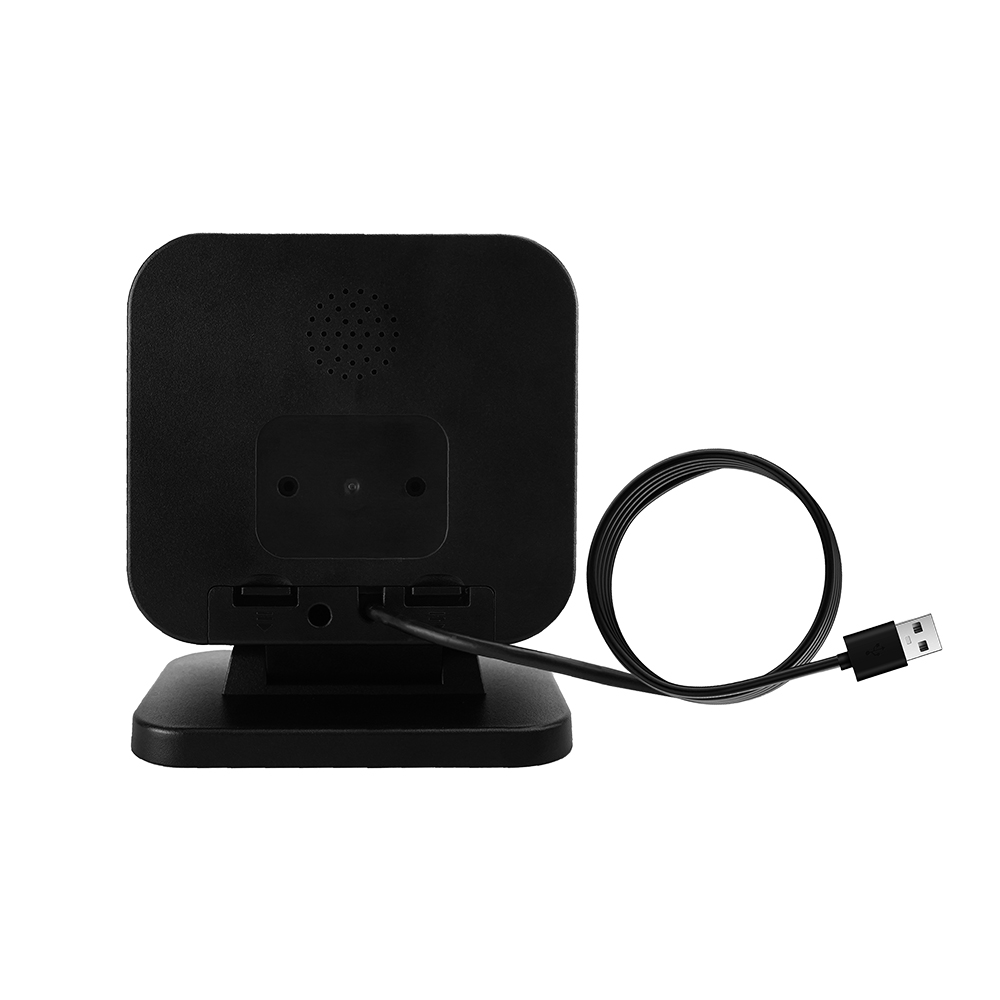

【Plug & Play, Easy to use】No need to install any driver or software, can easily connect with your PC, laptop, POS by USB cable. Work with Win XP/1/8/10/11, Mac OS, Linux operating system.
Specifications
Scanning Performance
Image Sensor: 1280 × 800 CMOS
Illumination: Red LED
Aiming Indicator: Infrared sensor-based targeting
Symbology Support:
2D Codes: PDF417, Micro PDF417, Data Matrix, QR Code, Micro QR, Aztec, MaxiCode
1D Barcodes: Interleaved 2 of 5, ISBN, Code 93, Code 11, UCC/EAN-128, GS1 DataBar, Matrix 2 of 5, Industrial 2 of 5, Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Standard 2 of 5, MSI-Plessey, GS1 Composite Codes, and more
Minimum Resolution:
1D: ≥ 4 mil
2D: ≥ 6 mil
Typical Depth of Field:
EAN-13 (13 mil): 0–330 mm
EAN-13 (5 mil): 0–130 mm
Code 128 (5 mil, 8-bit): 0–150 mm
QR Code (20 mil, 11-bit): 0–210 mm
Code 39 (13 mil, 9-bit): 0–330 mm
Mobile Payment Code on Screen: 0–650 mm
Print Contrast Ratio: ≥ 20%
Scan Angle Tolerance:
Skew: ±55°
Pitch: ±55°
Roll: 360°
Field of View (FOV):
Horizontal: 56°
Vertical: 37°
Motion Tolerance: Up to 2 m/s
Frame Rate: 120 frames per second (typical)
Mechanical & Electrical Specifications
Interface: USB HID, USB COM (optional RS-232 available upon request)

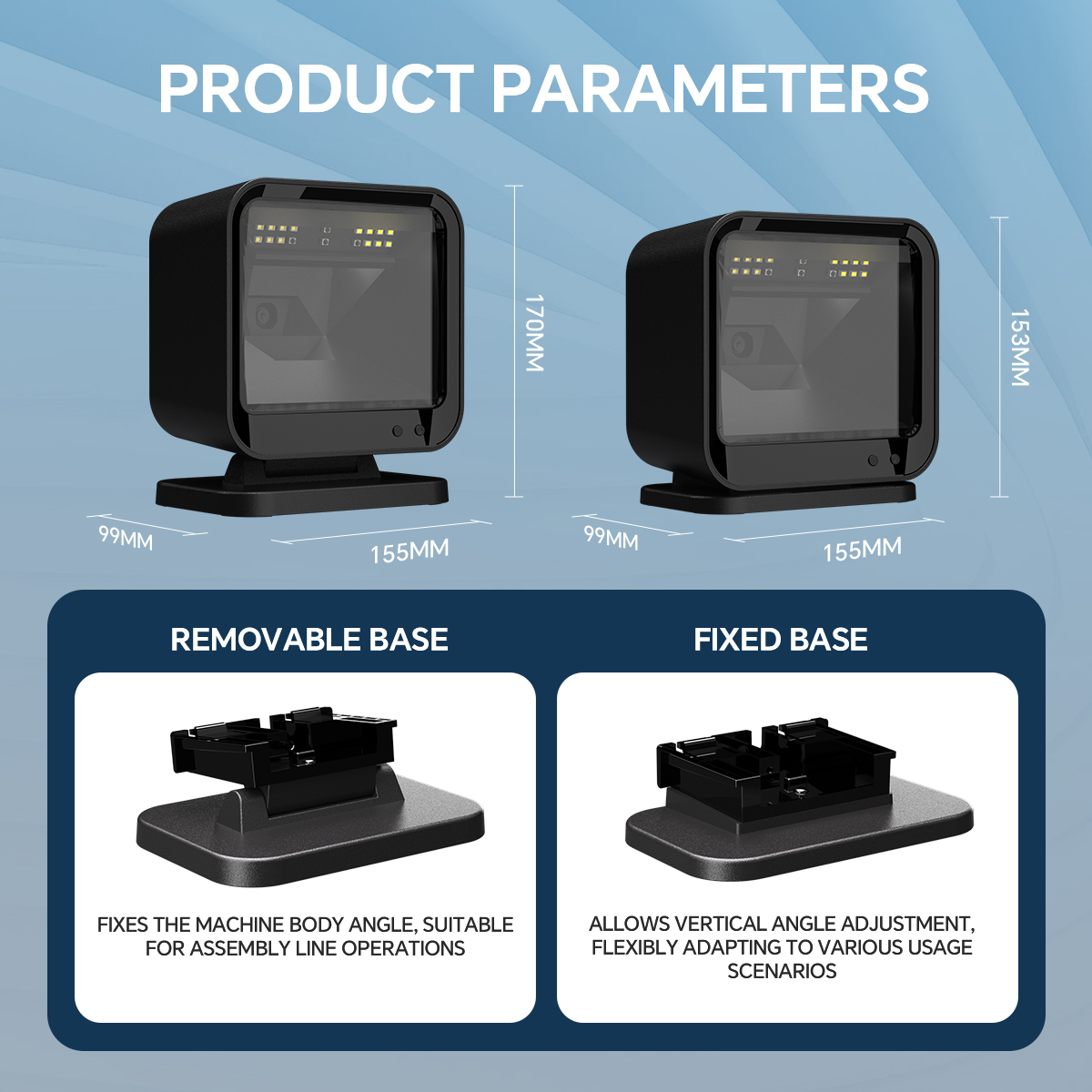

Dimensions (L × W × H): 154 × 170 × 98 mm
Weight: Approx. 606 g (scanner + cable)
Operating Voltage: 5V DC
Rated Current: Approx. 254 mA
Power Consumption: 1.27 W
Environmental Specifications
Operating Temperature: -4°F to 140°F (-20°C to +60°C)
Storage Temperature: -40°F to 158°F (-40°C to +70°C)
Operating Humidity: 5% to 95% RH (non-condensing)
Ambient Light Immunity: 0 to 100,000 lux
Thermal Shock Resistance
Maximum Temperature: 140°F (60°C)
Minimum Temperature: -4°F (-20°C)
Cycle Duration: 30 minutes at high temperature, followed by 30 minutes at low temperature
Total Test Cycles: 24
