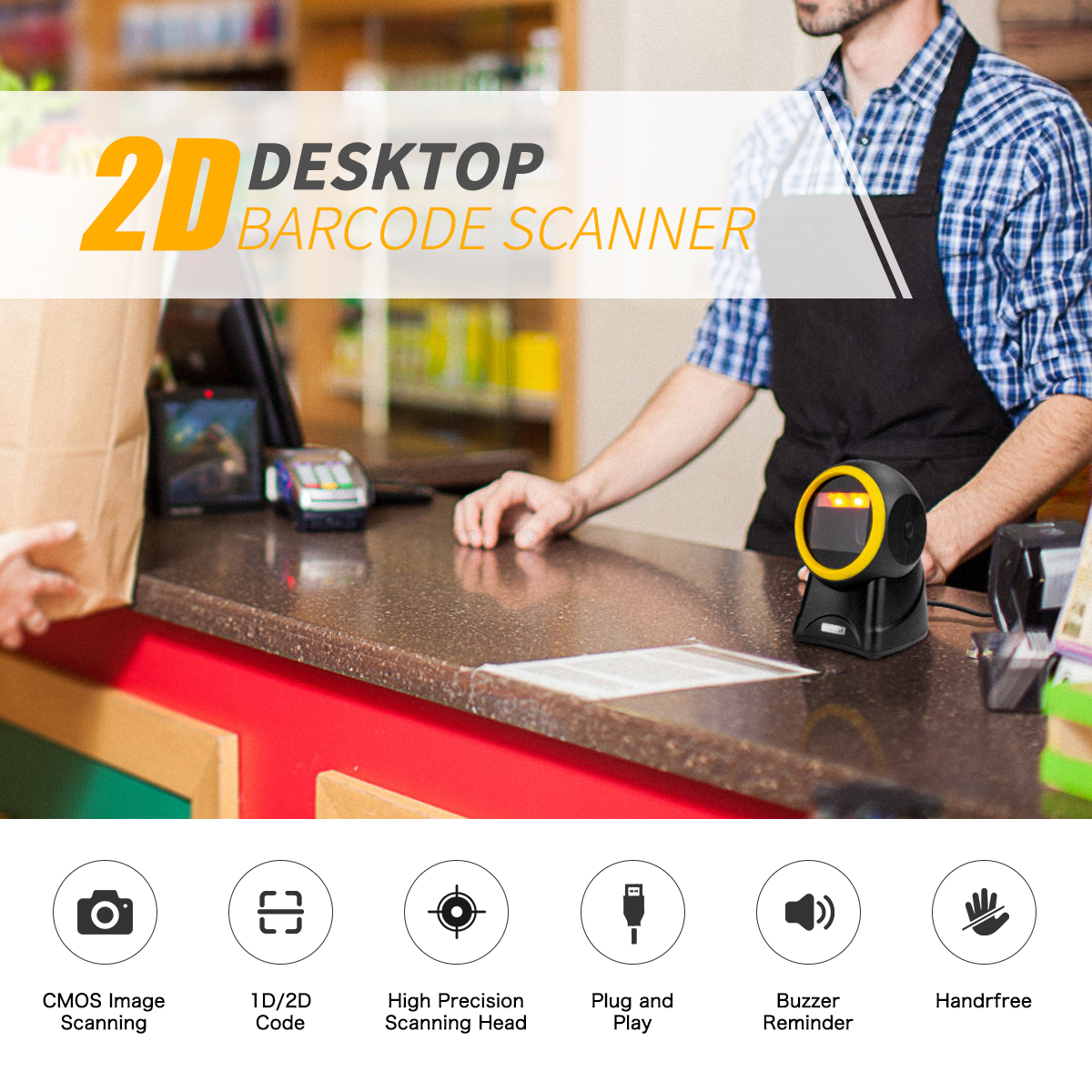

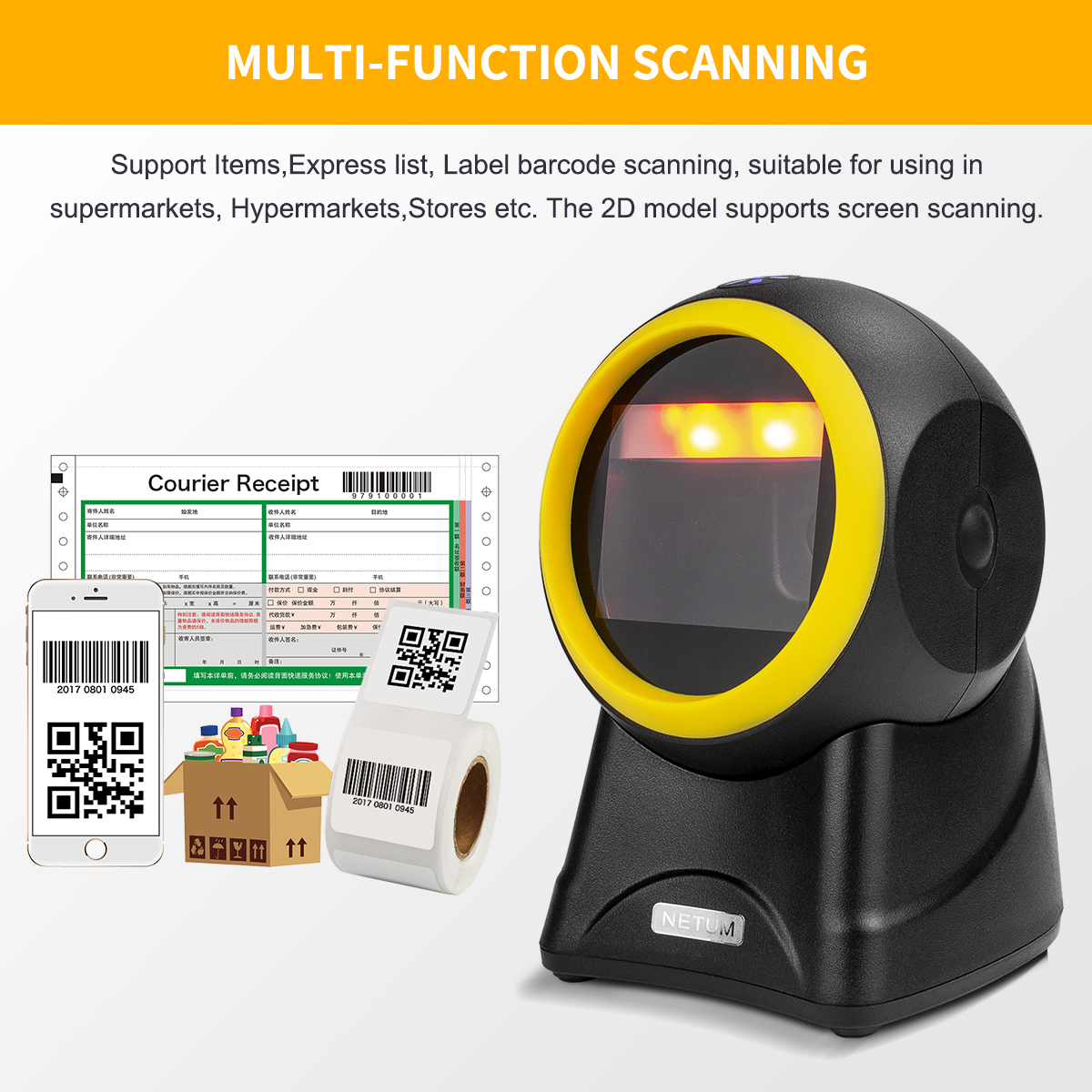

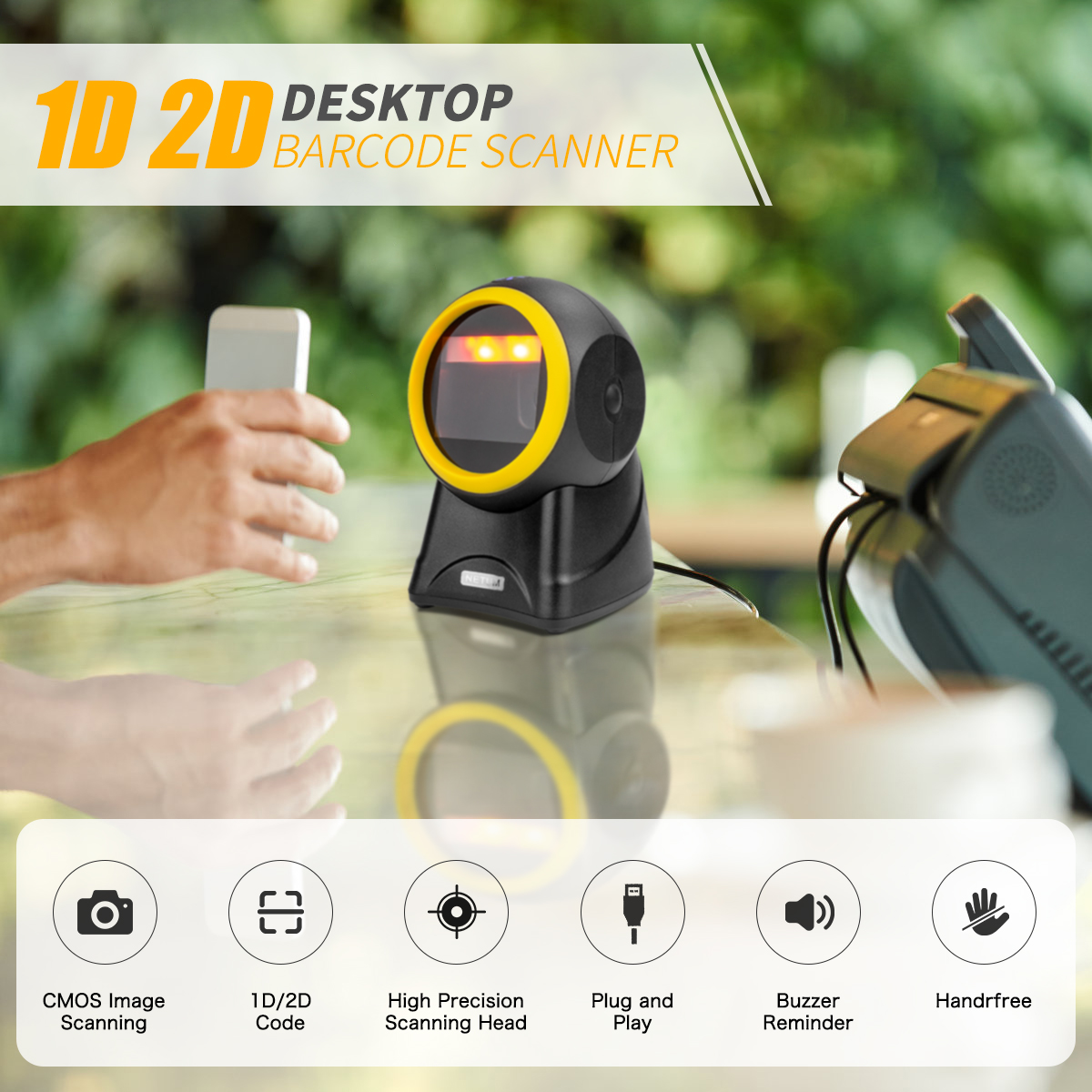

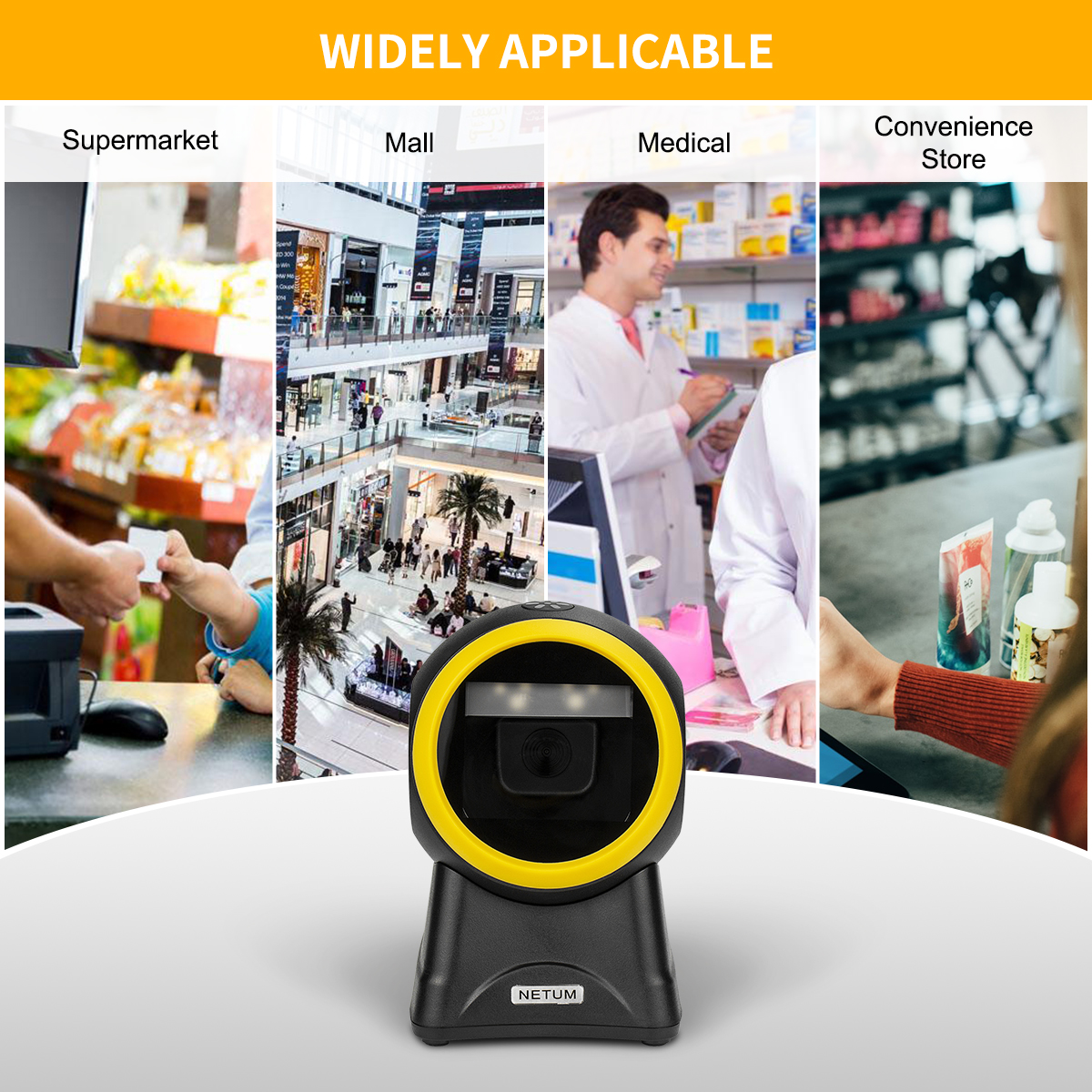

➤The NT-2050M 2D Barcode Scan Platform combines a high-performance 2D scanner with a compact design, enabling precise and intuitive scanning even in tight spaces. Its advanced imaging technology ensures fast and accurate barcode recognition, including challenging DPM (Direct Part Marking) codes. The scanner excels in low-light conditions, reliably reading barcodes from smartphone screens and glossy surfaces. With rugged construction and versatile mounting options, it is the perfect solution for space-constrained environments such as retail checkouts, kiosks, production lines, and mobile workstations.

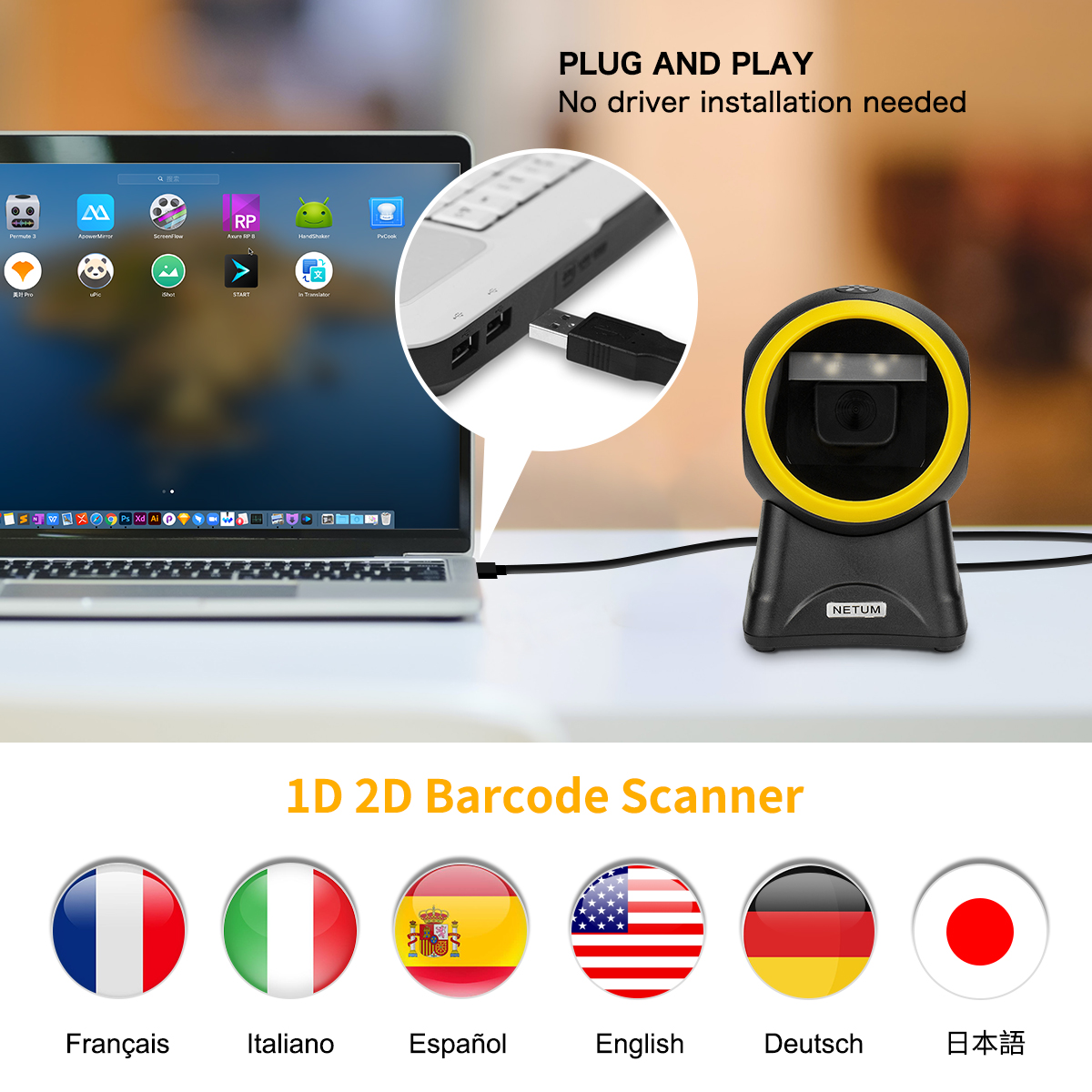

▲The device offers true plug-and-play functionality, requiring no additional drivers or software installation—simply connect to a Windows/Linux PC or Mac via USB for instant operation. It features automatic barcode recognition, adjustable beep volume, and customizable prefix/suffix settings. With multi-language keyboard emulation, it seamlessly supports English (UK/US), French, German, Hungarian, Italian, Japanese, Spanish, Russian, and Turkish layouts. Additional capabilities include virtual COM port configuration, along with flexible prefix/suffix and audio feedback customization to adapt to diverse workflow requirements.
▲Interface - USB / Efficient and precise: LED design of fill light, this product is specially designed for the weakest level of optical fiber to provide auxiliary lighting / 32-chip processor, scanning speed of the ordinary platform 5x / The base is made of high quality anti-slip material / Buzzer and design indicator / It has a rotating head of 30 degrees, adds flexibility, accommodates objects of different sizes.

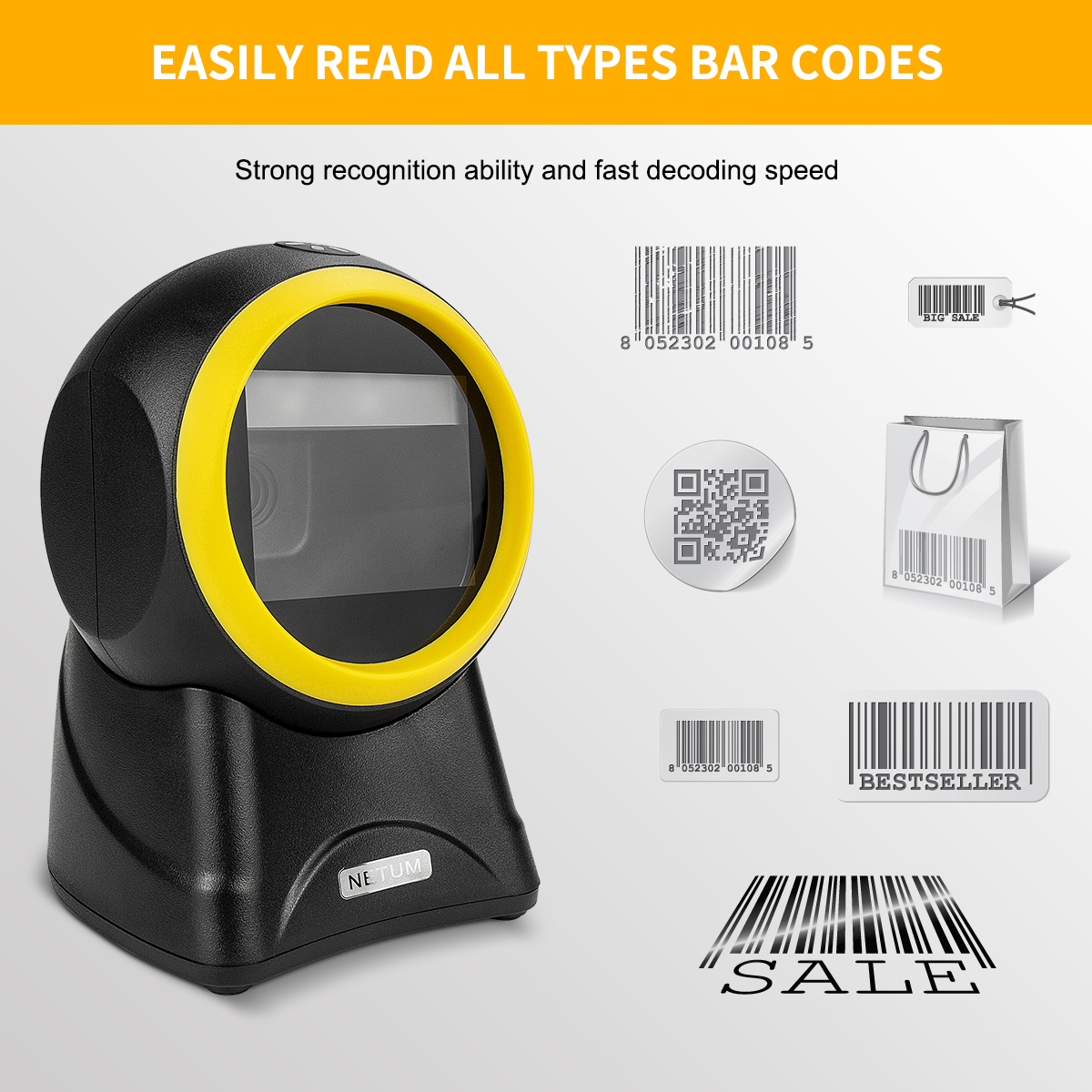

▲Decode capability - 1D: UPC, EAN, JAN, UPC-A, UPC-E, EAN-8, EAN-13, JAN-8, JAN-13, ISBN, ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128, EAN 128, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32 (Italian Pharmacode), RSS 14, RSS Limited, RSS Expanded; 2D:Data Matrix, QR Code, Micro QR Code Aztec Code MaxiCode.
▲Interface - USB / Efficient and precise: LED design of fill light, this product is specially designed for the weakest level of optical fiber to provide auxiliary lighting / 32-chip processor, scanning speed of the ordinary platform 5x / The base is made of high quality anti-slip material / Buzzer and design indicator / It has a rotating head of 30 degrees, adds flexibility, accommodates objects of different sizes.Features
Scanner Performance | ||
Resolution | 640*480 | |
Light Source | Red LED | |
Scan Angle | horizontal 47°，vertical 36° | |
motion tolerance | 2m/s | |
Scan Angle | rotate 360°，H ± 55°，V ± 55° | |
Contrast | ≥25% | |
Decode precision | 1D:4mil 2D:6.5mil | |
Supported Symbology | 1D | 2D |
EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar，Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey,GS1 Databar,GS1 Composite Code,Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5 | QR Code, Data Matrix, PDF417,Aztec | |
User Environment | ||
Operation Temperature | -20℃~+50℃ | |
Storage Temperature | -40℃~+70℃ | |
Humidity | 5%~95%（condensation） | |
Ambient light level | 0~100000LUX | |
Electrical | ||
Voltage | DC+5V±5% | |
Power On Current | 260mA | |
Stand-by Current | 105mA | |
Work Current | 200mA | |
Physical | ||
Shell Material | ABS+TPU | |
Reminder Method | Buzzer、LED Indicator Light | |
Interface | RJ-45 Crystal Head | |
Size | 105mm*190mm*140mm | |
