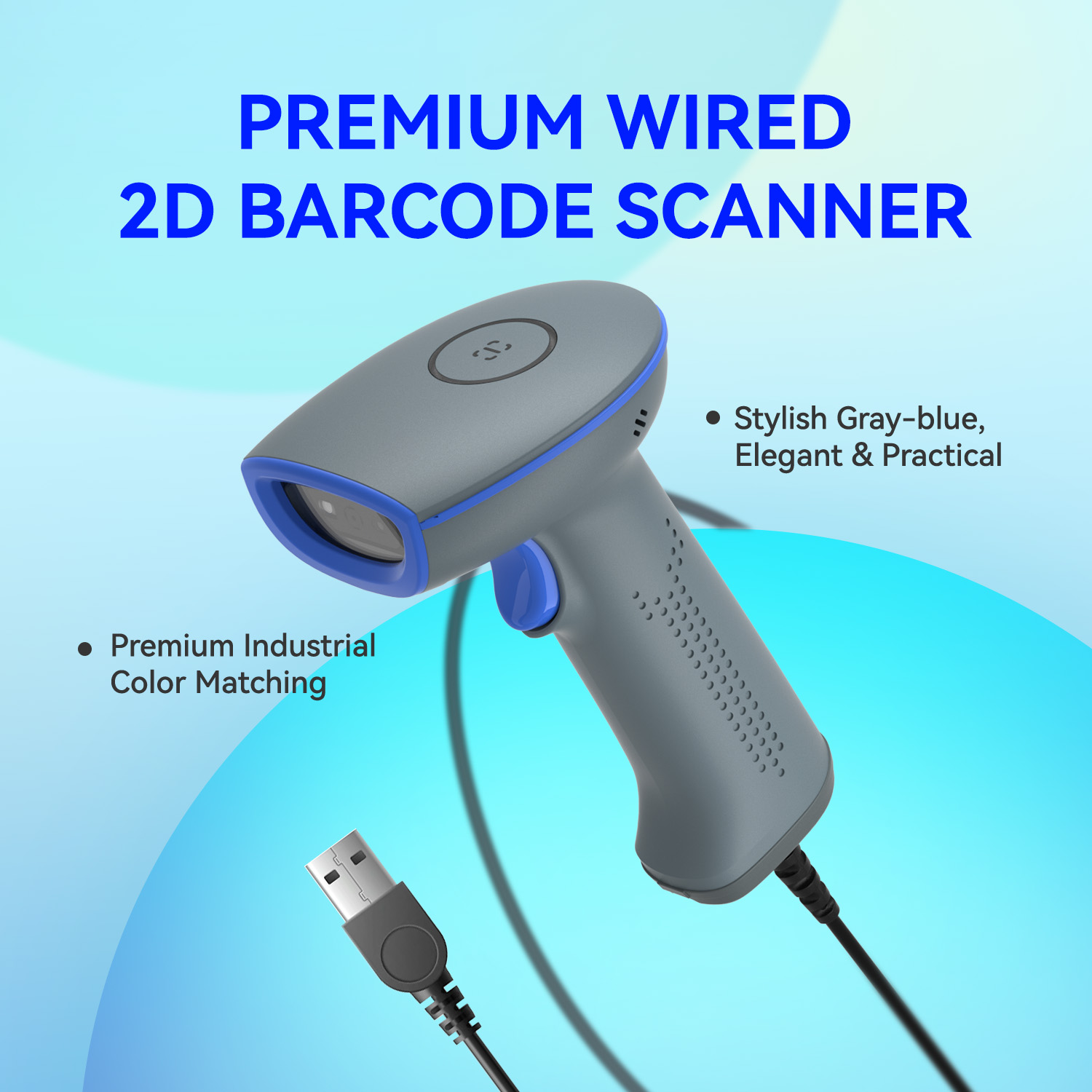

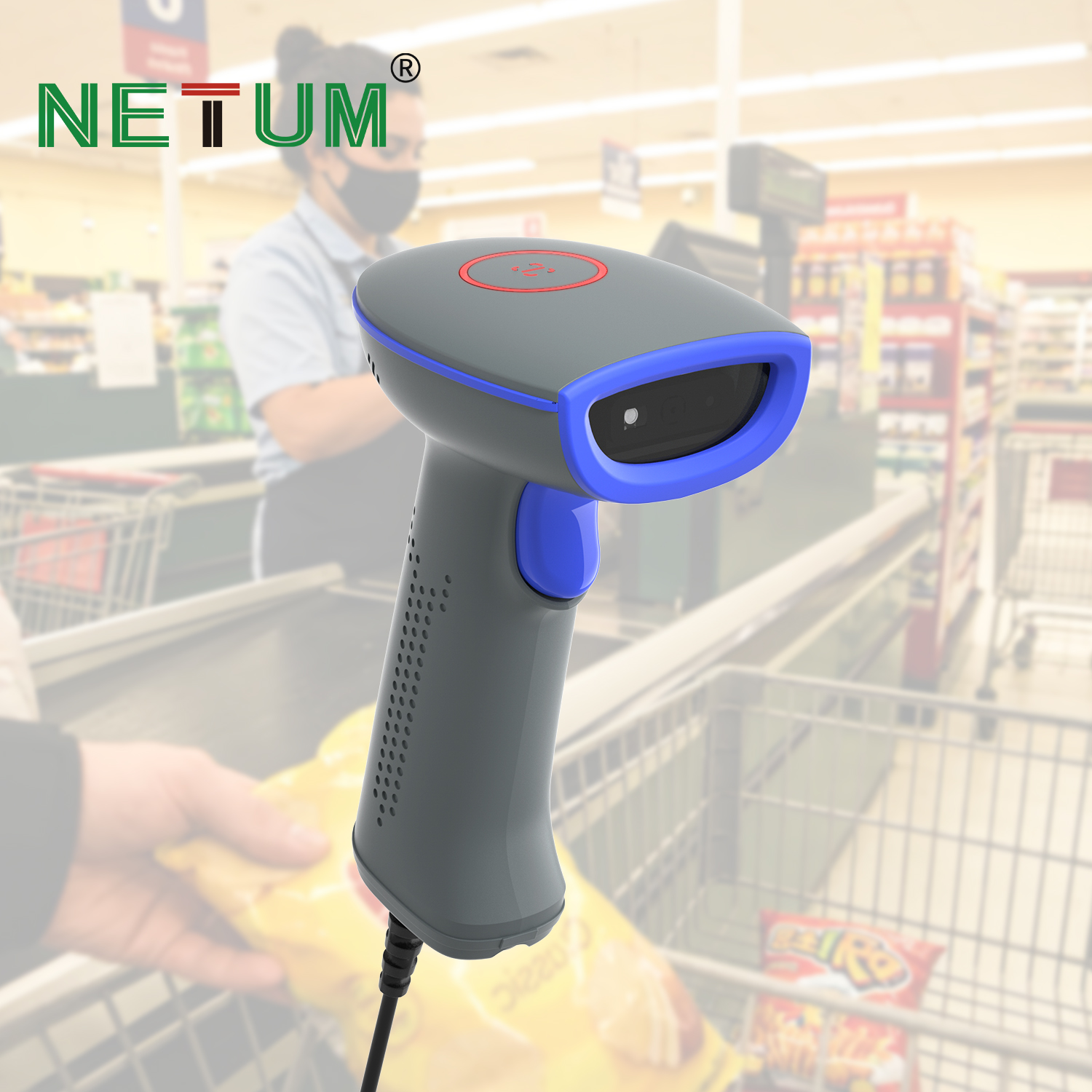

HS1200 is a lightweight premium wired 2D barcode scanner independently developed by NETUM Electronic. Equipped with 1280×800 megapixel CMOS sensor, it delivers outstanding decoding accuracy and fast recognition speed for 1D barcodes, 2D QR codes and screen barcodes.
Combined dual-material housing (high-strength ABS hard shell + anti-slip TPU soft rubber) brings excellent drop resistance and comfortable grip. Ergonomic curved handle with dotted anti-slip texture effectively reduces hand fatigue during long-hour continuous scanning. The grey-blue light industrial appearance fits various business and industrial scenarios perfectly.

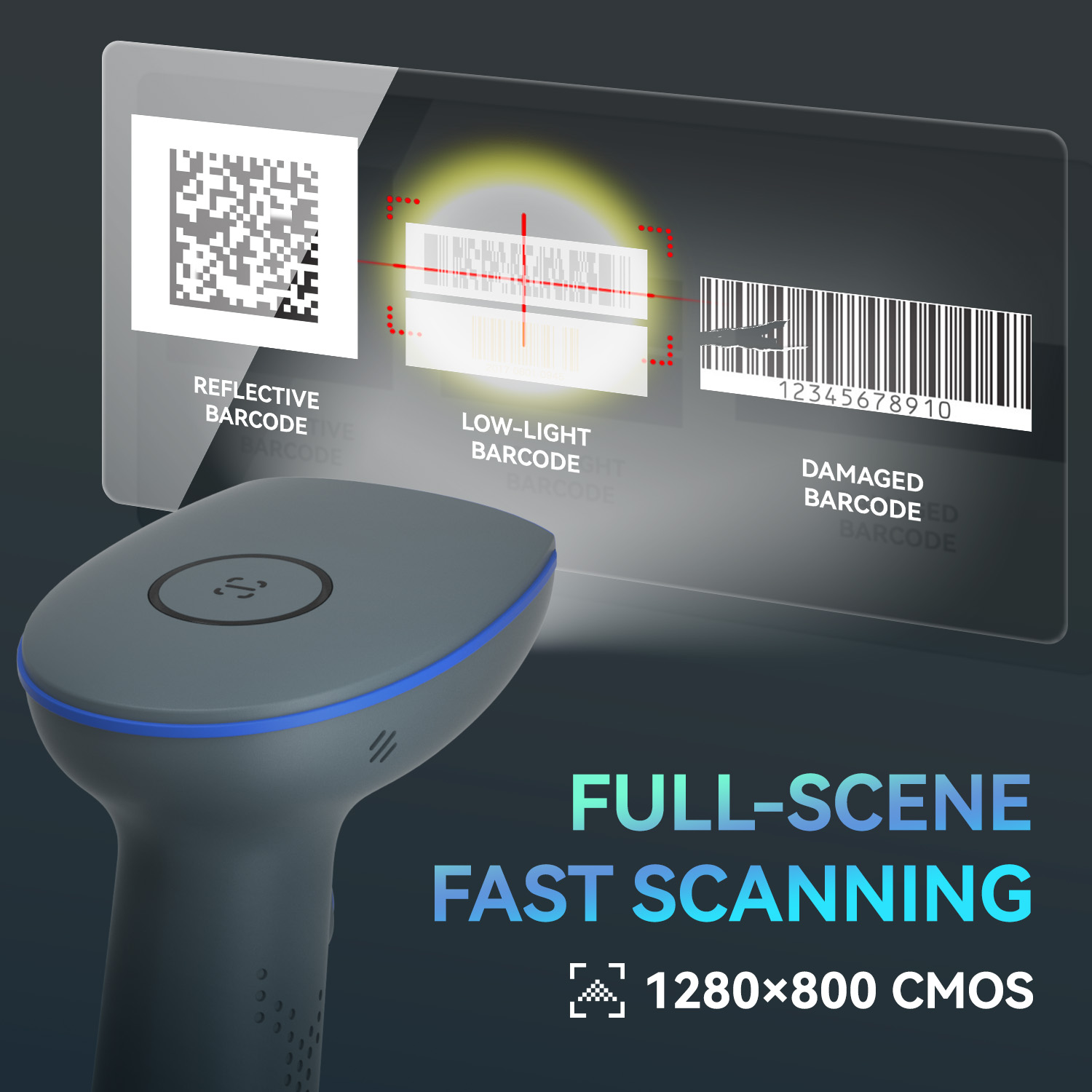

1. Precise Crosshair Laser Targeting, Anti Adjacent Barcode Mis-scan
The crosshair laser sight clearly outlines the scanning coverage area. When scanning dense stacked labels on production lines or piled goods on warehouse shelves, the scanner can lock the target barcode accurately without reading adjacent codes by mistake. It greatly boosts scanning efficiency and cuts extra manual error correction cost.

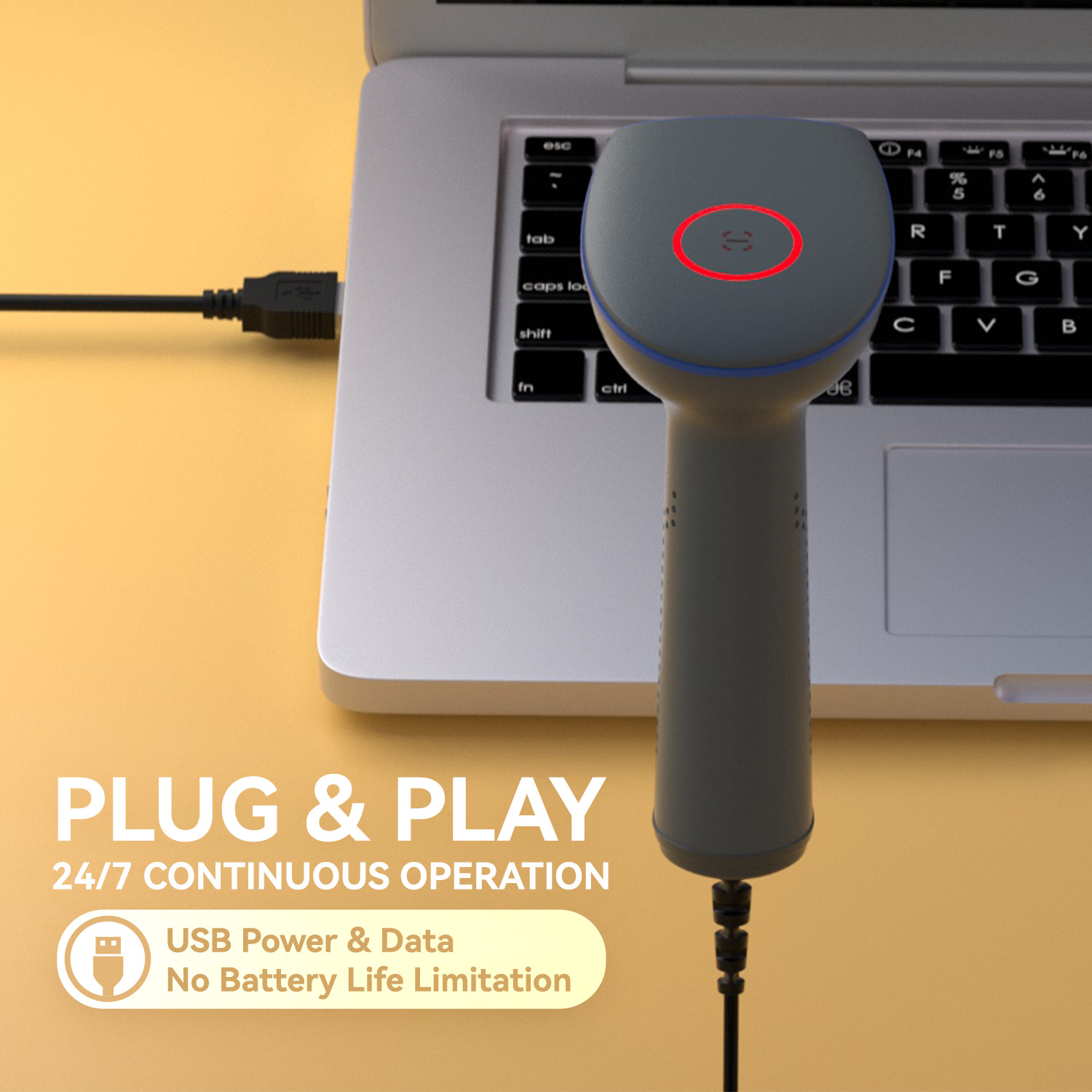

2. USB Wired Direct Connection, Zero Battery Limitation
Plug-and-play USB wired design realizes power supply and data transmission through one single cable. No charging, no battery replacement, no power-off trouble during peak business hours.

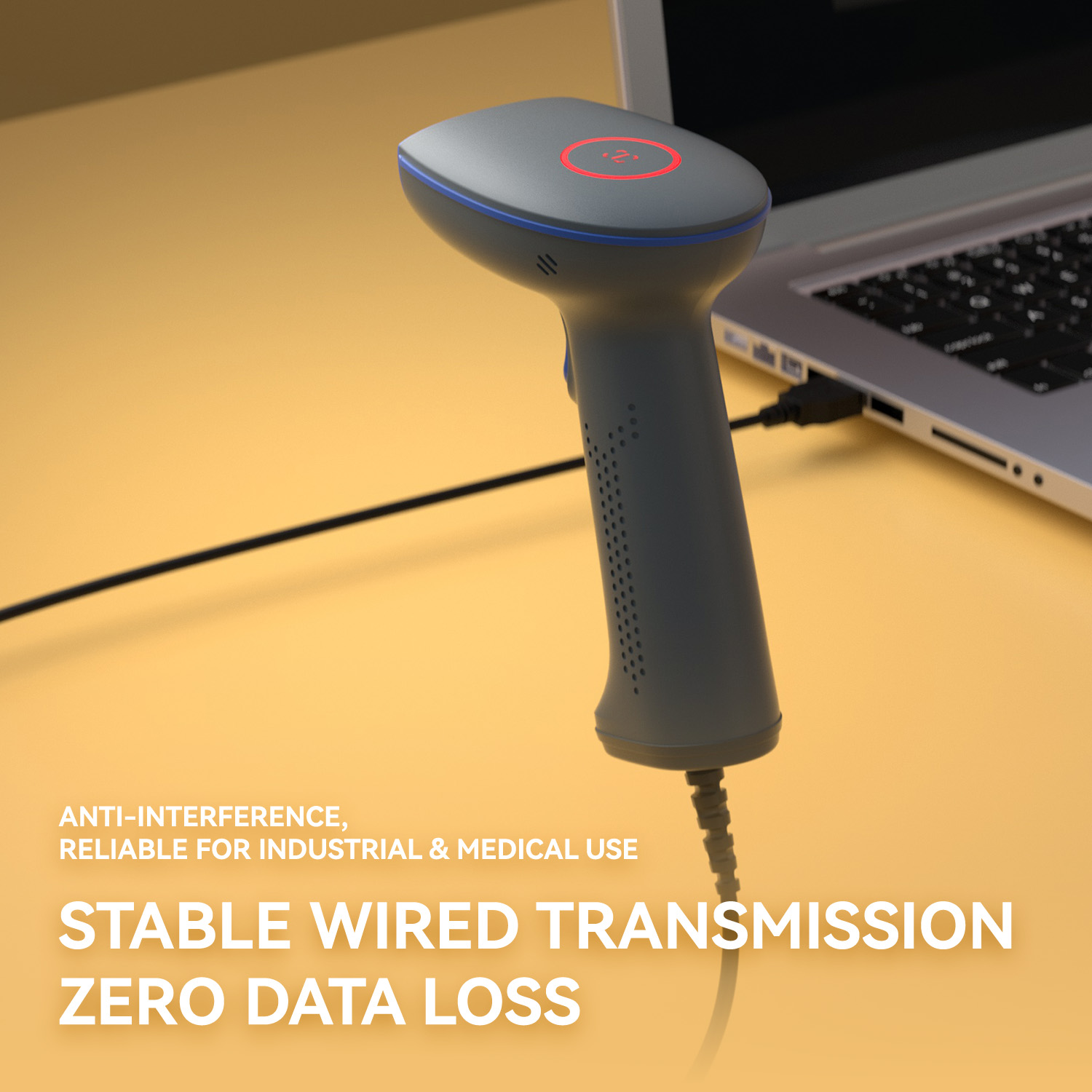

3. Stable Wired Data Transmission, Anti-interference
Wired transmission avoids wireless signal loss, disconnection and electromagnetic interference. Constant stable data upload meets high-reliability demands of factory production, logistics inventory and cash register systems.

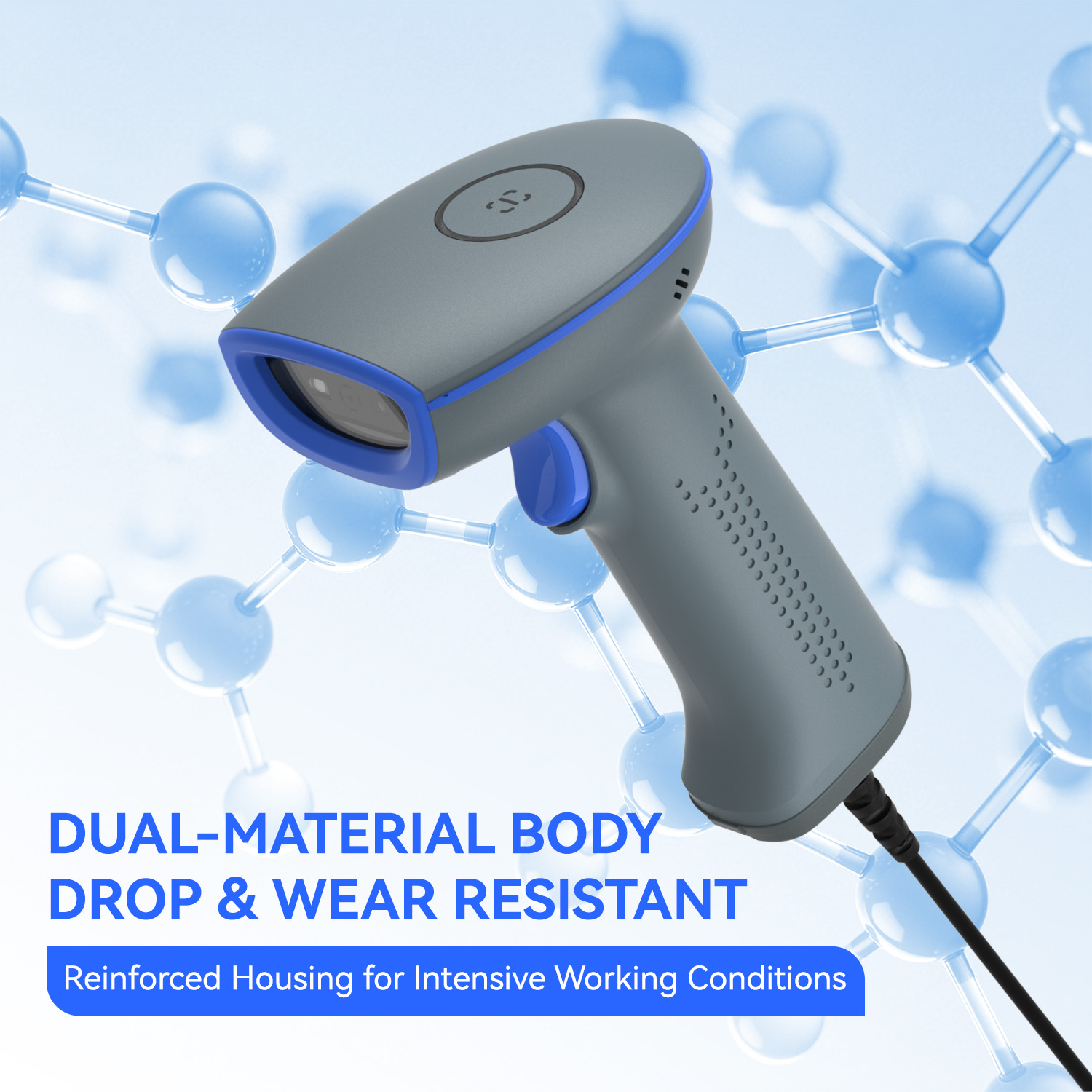

4. Durable Dual-material Anti-drop Shell
Hard ABS plastic shell ensures strong device durability against accidental drops; outer TPU soft rubber layer enhances anti-slip performance and buffer impact force, suitable for high-frequency daily industrial use.

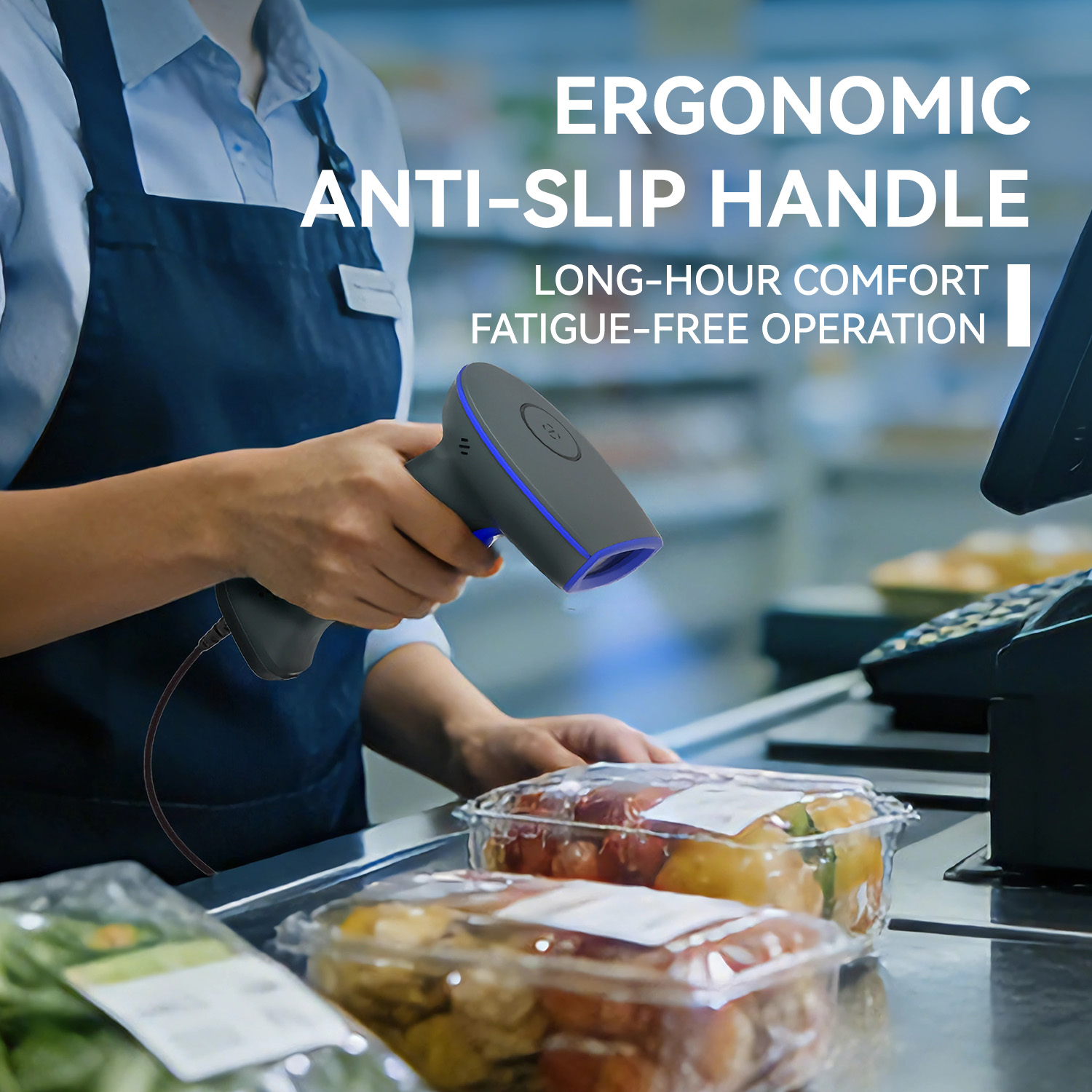

5. Ergonomic Comfort Grip for Long-time Work
Curved handle molded by ergonomic standards with dotted anti-slip surface texture, effectively relieves hand soreness and fatigue after all-day continuous scanning operation.
| HS1200 Specifications | ||
|---|---|---|
| 1 Optical Performance | ||
| 1.1 Resolution: | 1280×800 CMOS | |
| 1.2 Illumination: | White LED | |
| 1.3 Aiming: | Rectangular cross laser aimer | |
| 1.5 Frame Rate: | 120 fps | |
| 1.6 Field of View: | Horizontal 42°, Vertical 28° | |
| 1.7 Scan Angles: | Roll 360°, Pitch ±55°, Skew ±55° | |
| 1.8 Supported Symbologies: | 1D: EAN,UPC,Code 39,Code 32,Code 93,Code 128,UCC/EAN 128,Codabar,Interleaved 2 of 5,ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey,GS1 Databar,Code 11,Industrial 25,Standard 25,Plessey,Matrix 2 of 5, Febraban2D: QR/Mrico QR,Data Matrix,PDF417/Mrico PDF417,Maxicode,Aztec | |
| 1.9 Typical Reading Range: | -Code 128 (5 mil, 10 bytes): 40 mm – 215 mm-Code 39 (13 mil, 9 bytes): 75 mm – 440 mm-EAN-13 (13 mil): 40 mm – 400 mm-QR Code (15 mil, 40 bytes): 20 mm – 250 mm-Data Matrix (15 mil, 50 bytes): 30 mm – 280 mm | |
| 1.2.0 Resolution Accuracy: | 1D:≥3 mil 2D:≥7 mil | |
| 1.2.1 Print Contrast: | ≥25%(UPC/EAN 100%, PCS 90%) | |
| 2 Operating Characteristics | ||
| 2.1 Supported Interfaces: | Standard USB interface, RS232 serial port | |
| 2.2 Communication Modes: | USB HID (USB COM), RS232 serial communication, Bluetooth (HID, SPP, BLE) | |
| 2.3 Feedback Indicators: | Buzzer, vibration | |
| 2.4 Scan Modes: | Trigger scanning*, continuous scanning, auto-sensing scanning, command trigger, etc. | |
| 2.5 Standby Current: | 36 mA | |
| 2.6 Operating Current: | 275mA ±5% | |
| 3 Physical Parameters | ||
| 3.1 Dimensions (L × W × H): | No data shown | |
| 3.2 Weight: | No data shown | |
| 3.3 Cable: | Cable length: 1.8 m | |
| 3.4 Color: | Soft rubber: Blue; Hard shell: Gray | |
| 3.5 Housing Materials: | Soft rubber: TPU; Hard shell: ABS | |
| 4 Safety & Compliance | ||
| 4.1 Drop Resistance: | Withstands 1.5 m drops onto concrete | |
| 4.2 Certifications: | CE, RoHS, FCC and other related certifications |
