NETUM Professional Barcode Scanner - Advanced Features & Specifications
Dual Connectivity Options
• 2-in-1 connection system: 2.4GHz wireless (with included mini USB receiver) + wired USB cable
• True plug-and-play functionality - no drivers required
• Note: Bluetooth functionality not supported
Intelligent Scanning Modes
• Dual operation modes:
Real-time transmission mode
Memory mode (stores 2,600+ barcodes in 256KB built-in memory)
• Advanced data editing features:
Customizable prefixes/suffixes
Character deletion capability
Keyboard command integration (TAB, CR&LF, etc.)
Barcode type enable/disable function
Audible buzzer on/off control
Powerful Performance
• High-capacity 1800mAh Li-Ion battery
• Energy-efficient CPU technology
• Up to 100,000 scans per full charge
• 5mil resolution for precise scanning
Comprehensive Barcode Support
Reads all major 1D barcode types including:
• Retail: UPC-A, EAN-8, EAN-13, ISBN
• Industrial: Code 11, Code 39, Code 93, Code 128
• Special formats: UCC/EAN-128, MSI, Industrial 25
• Logistics: Interleaved 25, Standard 25, 2/5 Matrix
Universal Compatibility
• Operating Systems: Windows, Mac OS
• Software Integration:
Financial: QuickBooks
Office: Word, Excel
Enterprise: Novell
All common business applications
Technical Advantages
• Reliable 2.4GHz wireless technology
• Industrial-grade scanning performance
• Optimized for high-volume operations
• Suitable for retail, warehouse, and logistics environments
This professional-grade scanner combines robust functionality with user-friendly features, delivering exceptional performance for business applications requiring reliable barcode scanning solutions.
➤Bluetooth Barcode Scanner for iPhone iPad Android Tablet PC, Support Mac OS X, Android, Windows
10 and ipad IOS 9
➤Easy your work trigger the button then the barcode scanner will start to pair, Support HID and SPP
mode
➤2000mAh battery squeeze up to 30 hours of continuous scanning for your inventories or working
hours, easily recharge in only 2 hours via the included USB charging cable
Detailed Images

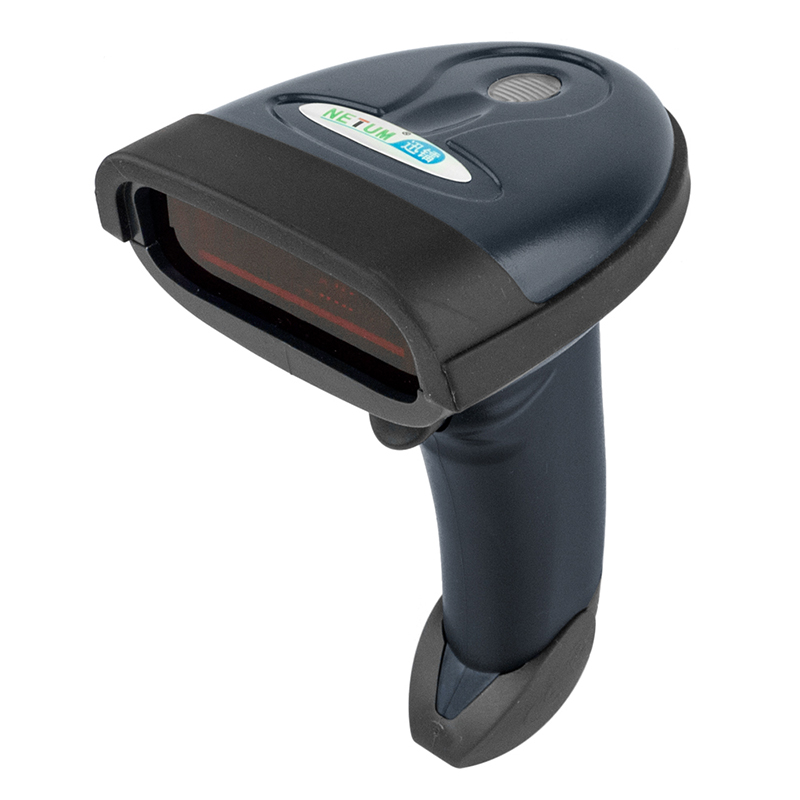

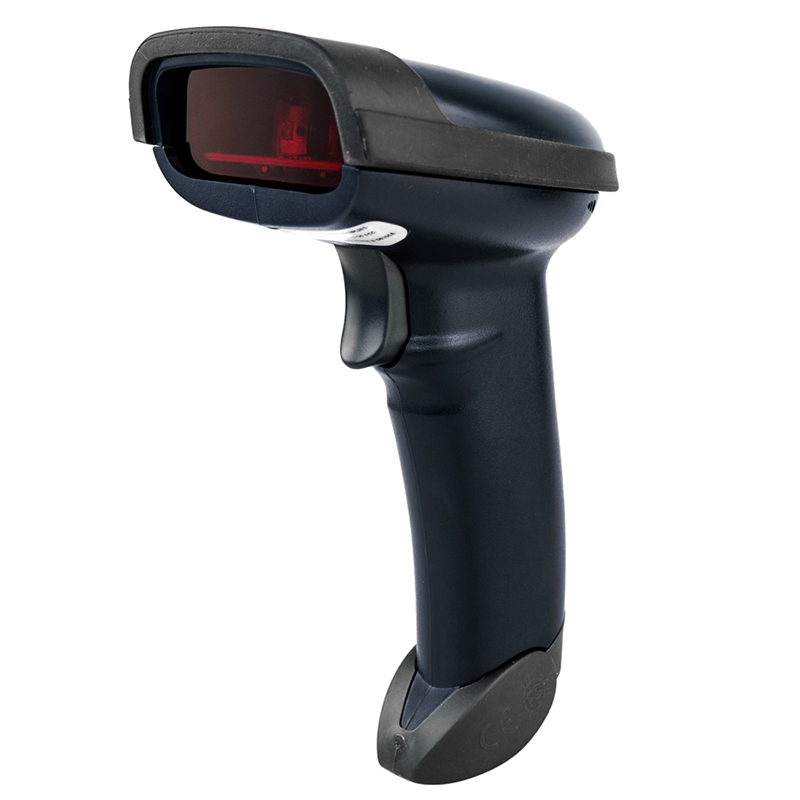

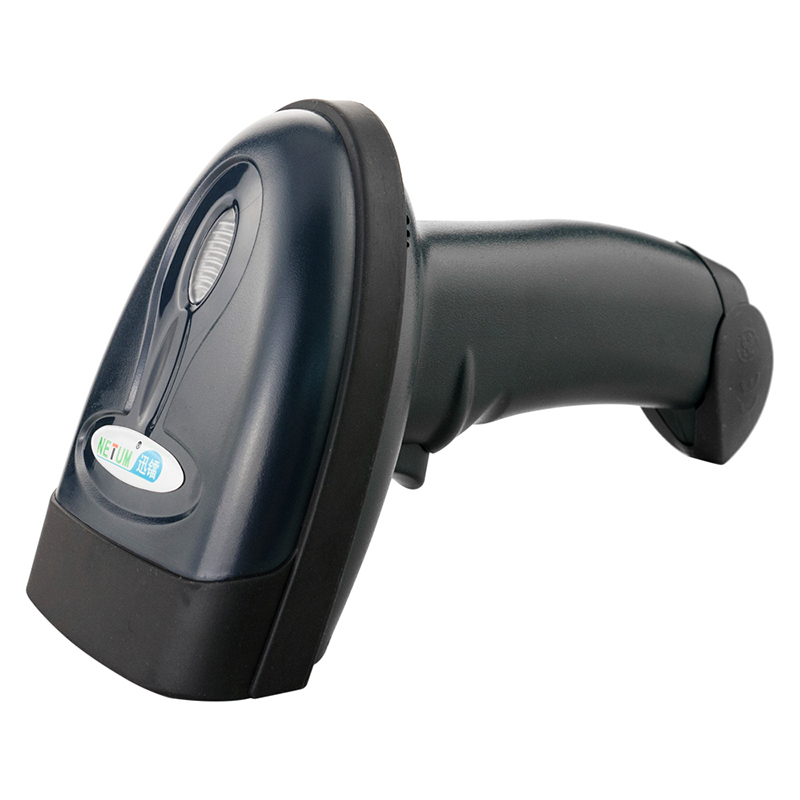

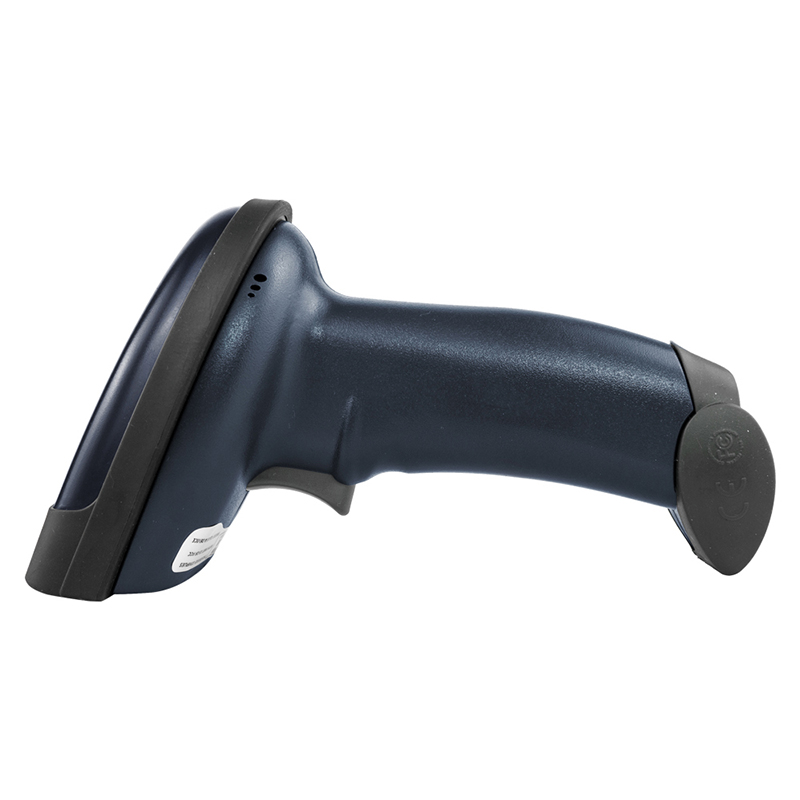

l NT-1698W 1D Wireless Laser Scanner
1 | Optical Performance | |
1.1 | Scanning Mode: | Laser |
1.2 | Light Source Type: | Visible laser diode, wavelength 630–650 nm |
1.3 | Illumination Intensity: | 265 LUX (130nm) |
2 | Operating Environment | |
2.1 | Ambient Temperature: | 23° C |
2.2 | Ambient Light: | 0-100,000 lx |
2.3 | Operating Temperature: | 0°C-60°C |
2.4 | Storage Temperature: | -40°C-80°C |
2.5 | Storage Humidity: | 5%-90% |
3 | Electrical Characteristics | |
3.1 | Operating Voltage: | （3.3V~4.2V）±5% |
3.2 | Maximum Current: | 65mA |
3.3 | Operating Current: | Standby: 10mA Scanning: 65mA |
4 | Wireless Parameters | |
4.1 | Transmission Mode: | Wireless 2.4G receiver + Wired transmission |
4.1 | Communication Range: | 100 meters (line of sight) |
4.2 | Battery Capacity: | 2000mAh |
4.3 | Charging Time: | 4–5 hours |
4.4 | Standby Time: | Enters standby after 3 minutes of inactivity |
4.5 | Charging Input: | 5V 2A |
5 | Decoding Capabilities | |
5.1 | Field of View (FOV): | 34° (Vertical) × 46° (Horizontal) |
5.2 | Scanning Angles: | ±65°, ±60° |
5.3 | Depth of Field (DOF): | (1mil=0.0254mm) 5mil：40-105mm 10mil：10-250mm 15mil：23-380mm 20mil：35-490mm 30mil：30-650mm |
5.4 | Supported Symbologies | Code 39, Full ASCII, Code bar, Industrial 2 of 5, Interleave 2 of 5, Code 93, Code 128, Code 32, Standard Code 39, EAN 128, MSI, EAN 8&13, UPCA&E, Plessey, DataBar14, TELEPE |
5.5 | Scanning Speed: | 150 scans/second |
5.6 | Resolution: | ≥5mil |
5.7 | Print Contrast: | ≥35% |
6 | Physical Characteristics | |
6.1 | Dimensions (L × W × H): | 170 × 75 × 90 mm |
6.2 | Weight: | ≈186g |
6.3 | Color: | Black |
6.4 | Cable Length: | 1.2m |
6.5 | Material: | ABS+TPU |
6.6 | Indicators: | Buzzer, LED Indicator |
6.7 | Scan Modes: | Trigger mode, Continuous auto-scan |
6.8 | Interface Support: | USB |
7 | Safety & Compliance | |
7.1 | Laser Safety Rating: | EN60825-1, Class 1 (National Class 1 Laser Safety Standard) |
7.3 | Drop Resistance: | 2-meter free fall |
7.4 | Certifications: | CE, ROHS, FCC |
