NT-F20 2-in-1 Wireless Barcode Scanner: Flexible Connectivity for Demanding Environments

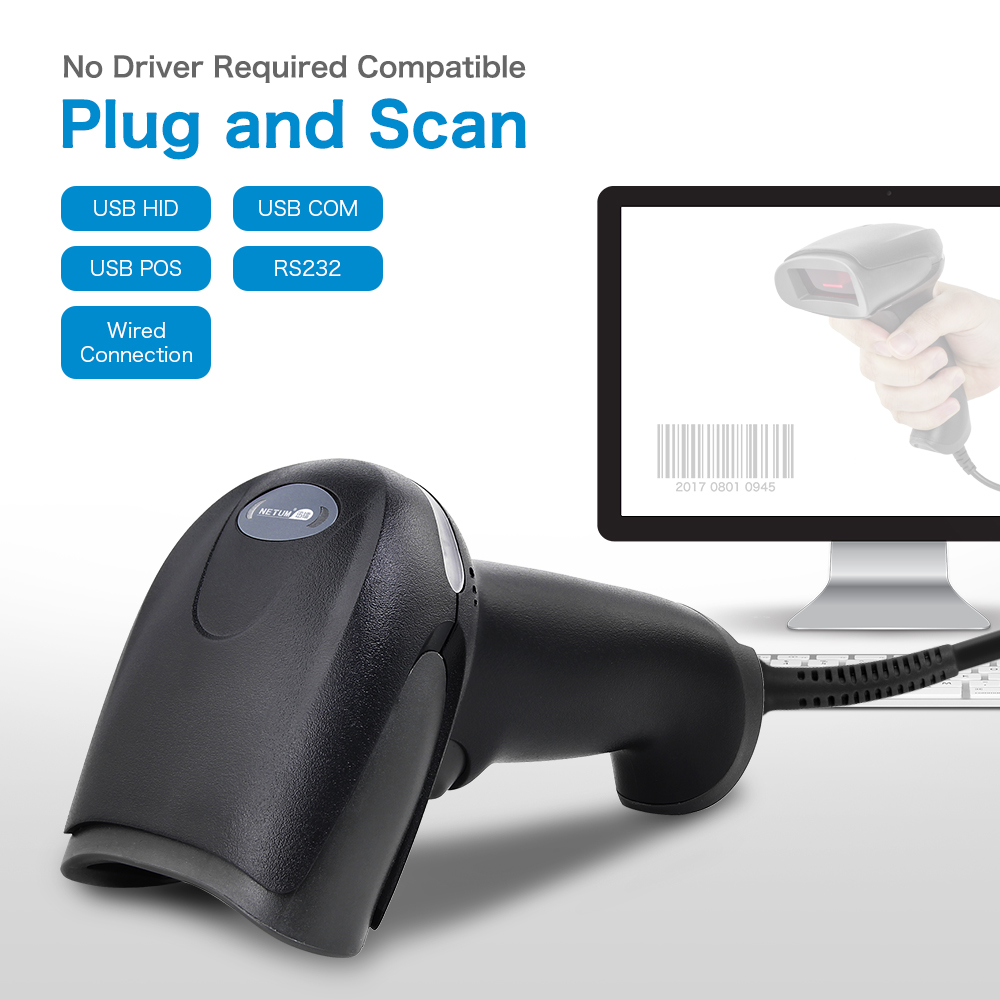

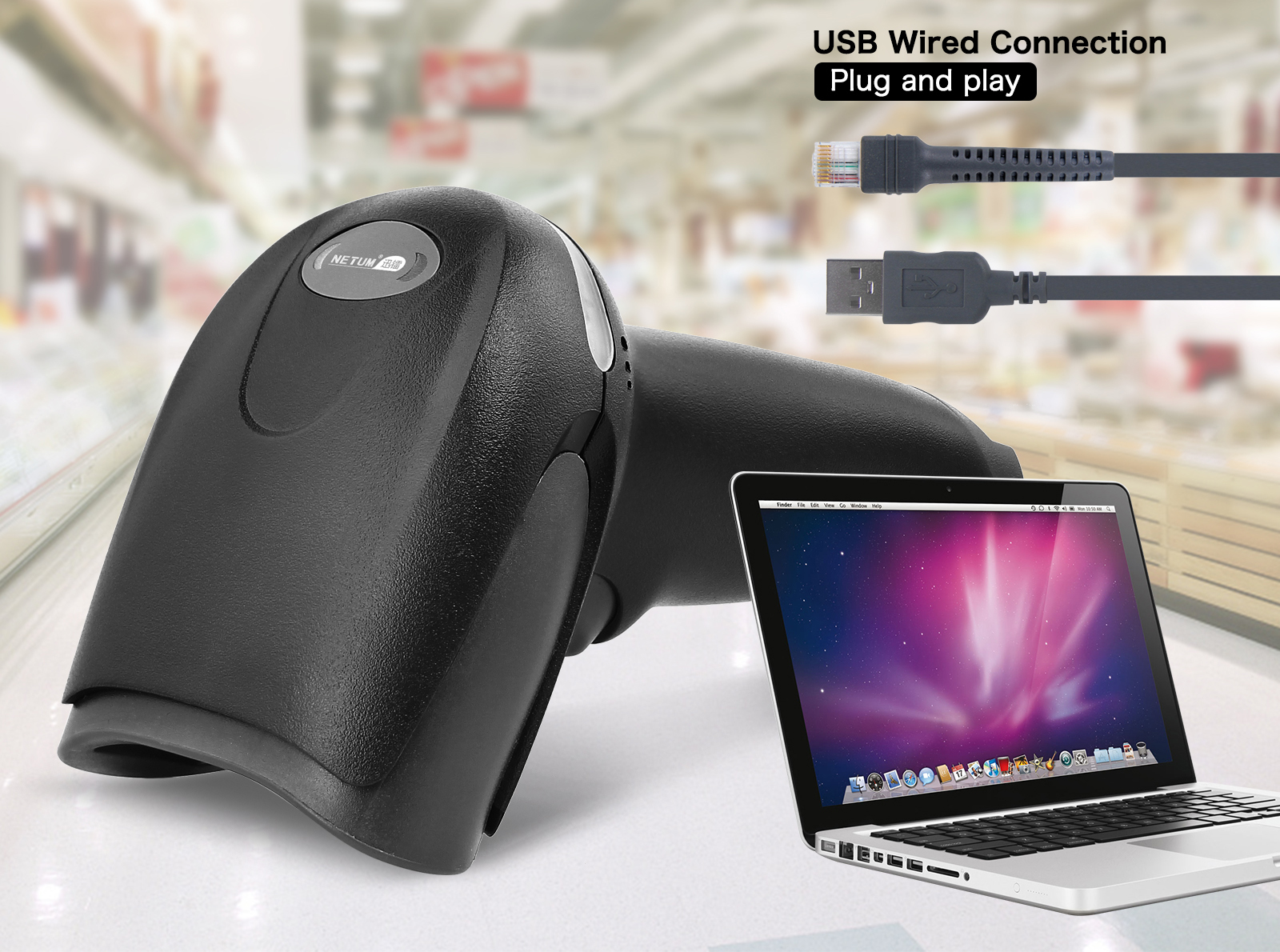

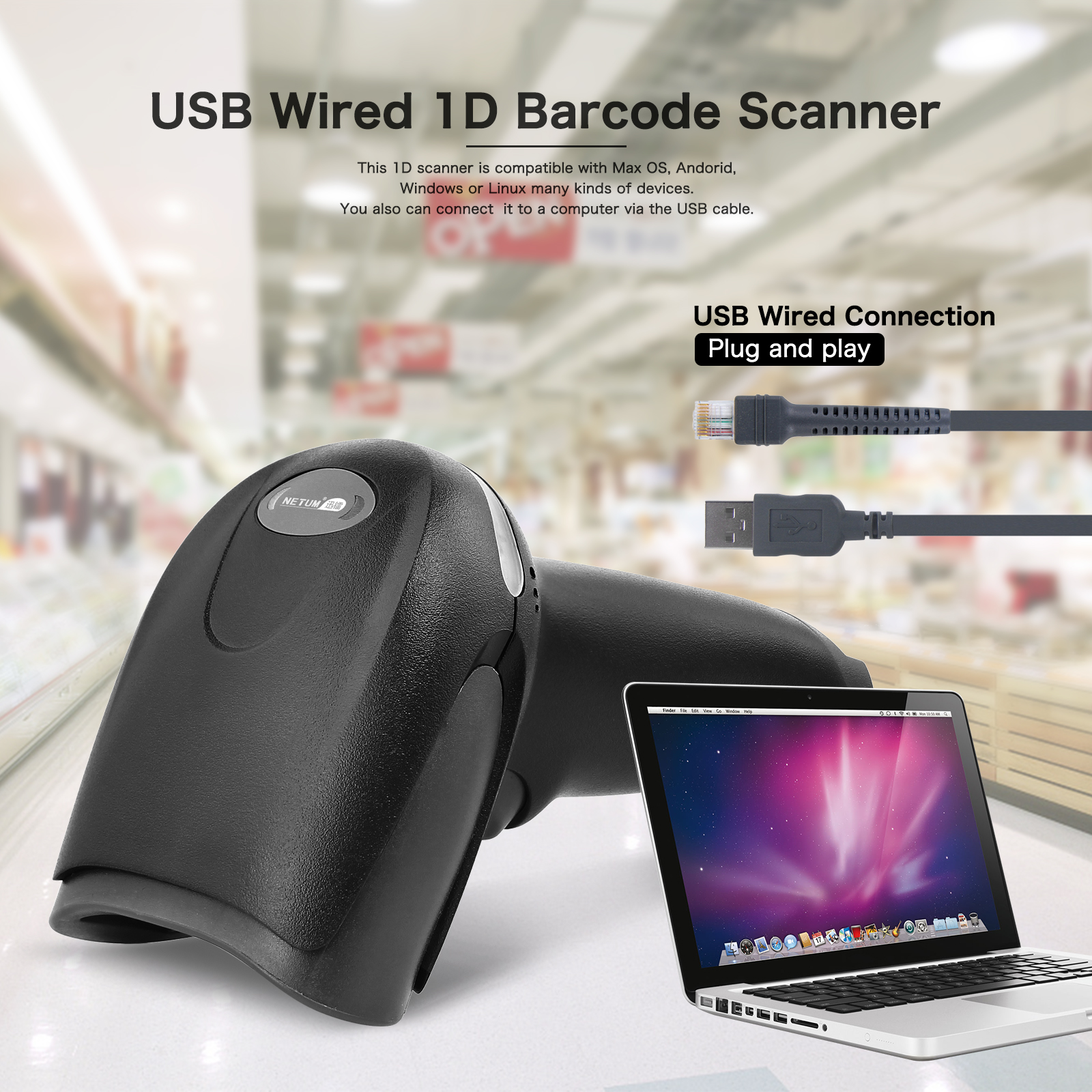

The NT-F20 barcode scanner revolutionizes data collection with its dual connectivity options - reliable 2.4GHz wireless transmission (300-500m range) and direct USB cable connection. Equipped with a mini USB receiver and data cable, this plug-and-play device ensures seamless integration without Bluetooth complexity. Its advanced CCD sensor achieves remarkable 260 scans per second at 4mil resolution, handling A4-sized barcodes with precision. Designed for intensive use in supermarkets, warehouses, and hospitals, the scanner features industrial-grade certifications (CE/FCC/ROHS) and comes with a 12-month warranty for peace of mind.
Intelligent Standalone Operation with Massive Storage
Setting itself apart from conventional scanners, the NT-F20 offers two operational modes including a groundbreaking offline function. The built-in 256KB memory can store over 2,600 barcodes, enabling data capture in areas without network coverage. This unique feature makes it ideal for inventory checks in remote warehouse sections or mobile medical record collection. The scanner maintains an exceptional error rate below 1 in 8 million scans, ensuring data integrity for critical operations while supporting all major 1D barcode formats.
Unmatched Battery Performance for High-Volume Scanning

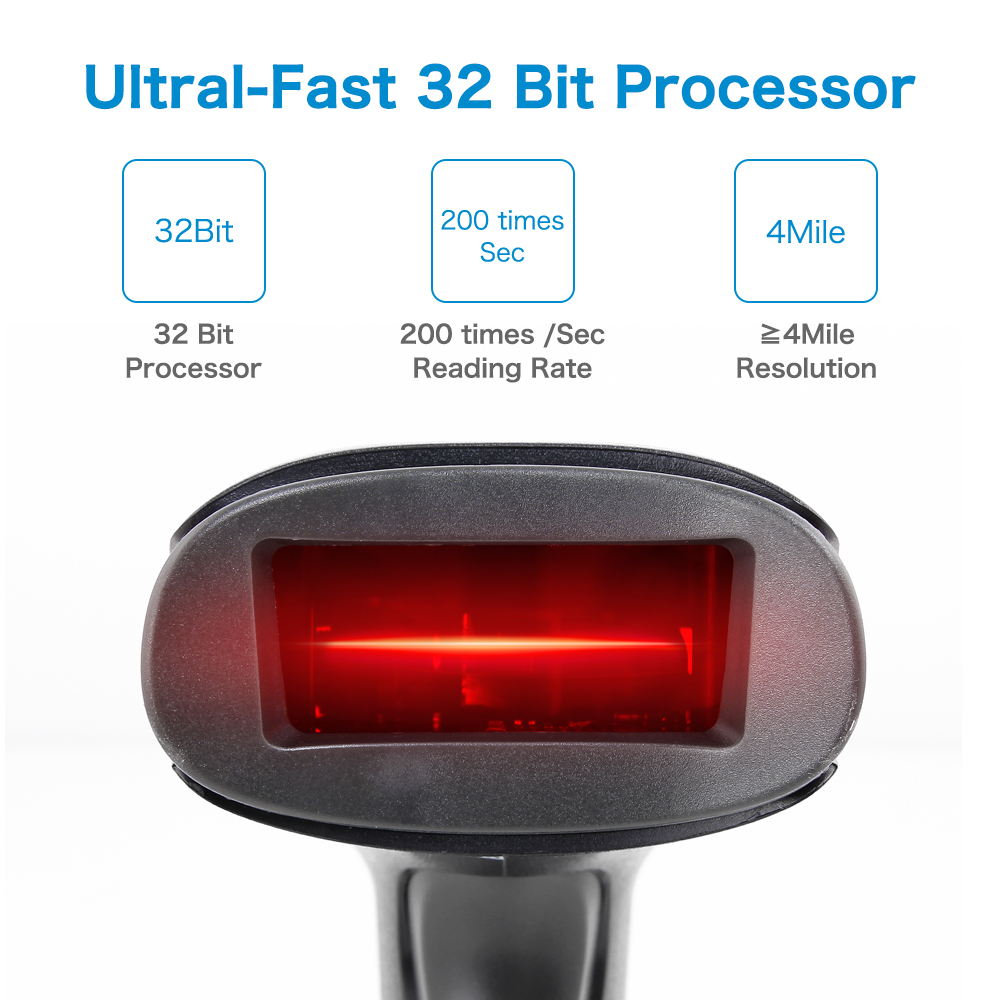

Powered by a 2000mAh lithium-ion battery and advanced low-power CPU technology, the NT-F20 delivers industry-leading endurance - capable of 100,000 continuous scans on a single charge. The energy-efficient design combines with a generous 10-800mm scanning depth to handle everything from close-up medication labels to distant pallet codes. Its 32-bit color depth processing enhances recognition of challenging barcodes, including those on curved surfaces or under poor lighting conditions.
Cost-Effective Professional Solution
The NT-F20 redefines value in industrial barcode scanning, offering premium features at an accessible price point. The ergonomic handheld design reduces operator fatigue during extended shifts, while the USB 2.0 interface guarantees compatibility with existing systems. Whether for retail checkout lanes, logistics tracking, or patient identification in healthcare, this scanner delivers fast, accurate performance. Its combination of wireless freedom, offline capability, and exceptional battery life makes it the smart choice for businesses seeking reliable data collection without compromising on functionality or budget.
Product Description
| Scanning Performance | |
| Illumination | Red 632 nm LED |
| Scanning Engine | Linear CCD Sensor |
| Imager Sensor | 1500 |
| Resolution | ≥5mil/0.127mm@PCS90% |
| Decoding Speed | Max 200/s |
| Scan Angle | Pitch: ±60° |
| Roll: ±30° | |
| Skew: ±60° | |

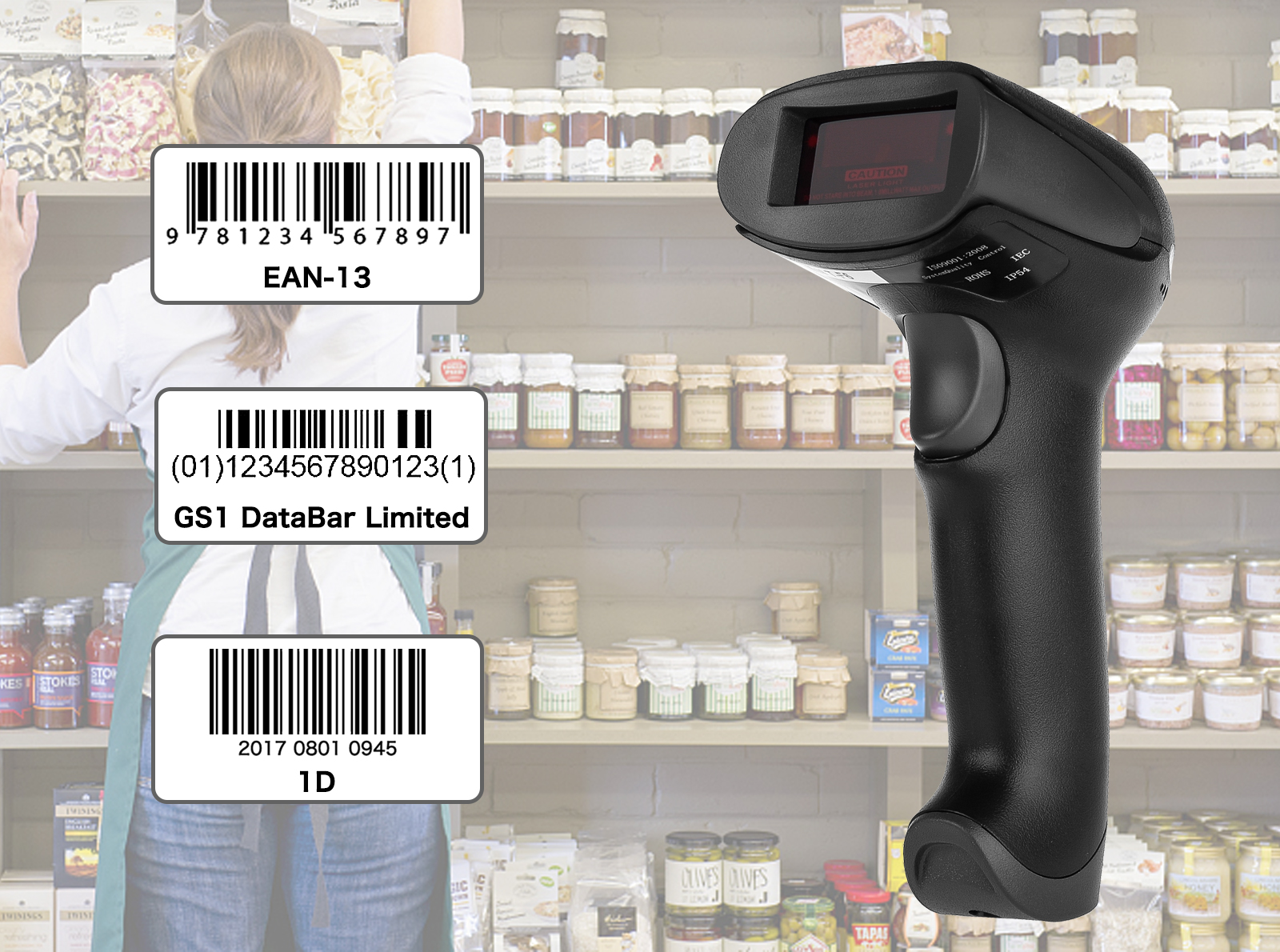

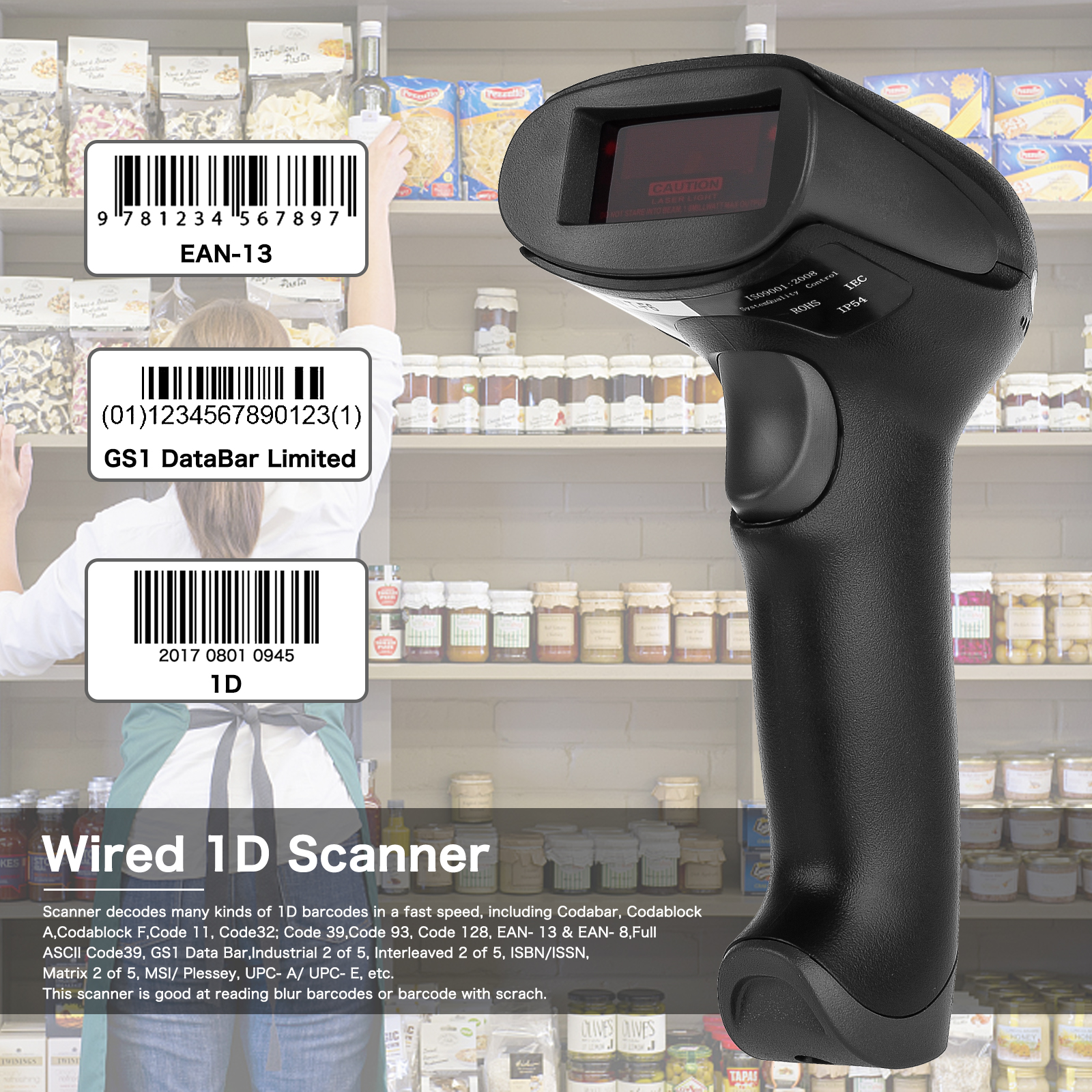

| Symbologies | EAN-8, EAN-13, Codabar, CODE11,CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT, Interleaved 2 of 5, Matrix 2 of 5,Industrial 2 of 5, MSI,Plessey, ITF14. |
| Depth of Field | Code 39 8bytes (5mil) 70mm~180mm |
| Code 39 10bytes (20mil) 120mm~300mm | |
| Code 39 5bytes (40mil) 160mm~450mm | |
| UPC/EAN 13 12bytes (13.0mil) 45mm~270mm | |
| Electrical Parameters | |
| Operating Voltage | DC 5V±5% |
| Operating Current | 110mA |
| Standby Current | 30mA |
| Physical Parameters | |
| Size | 170 x 70 x 80 mm |
| Weight | ≈154g |
| Color | Black |
| Cable Length | 1.8m |
| Material | ABS |

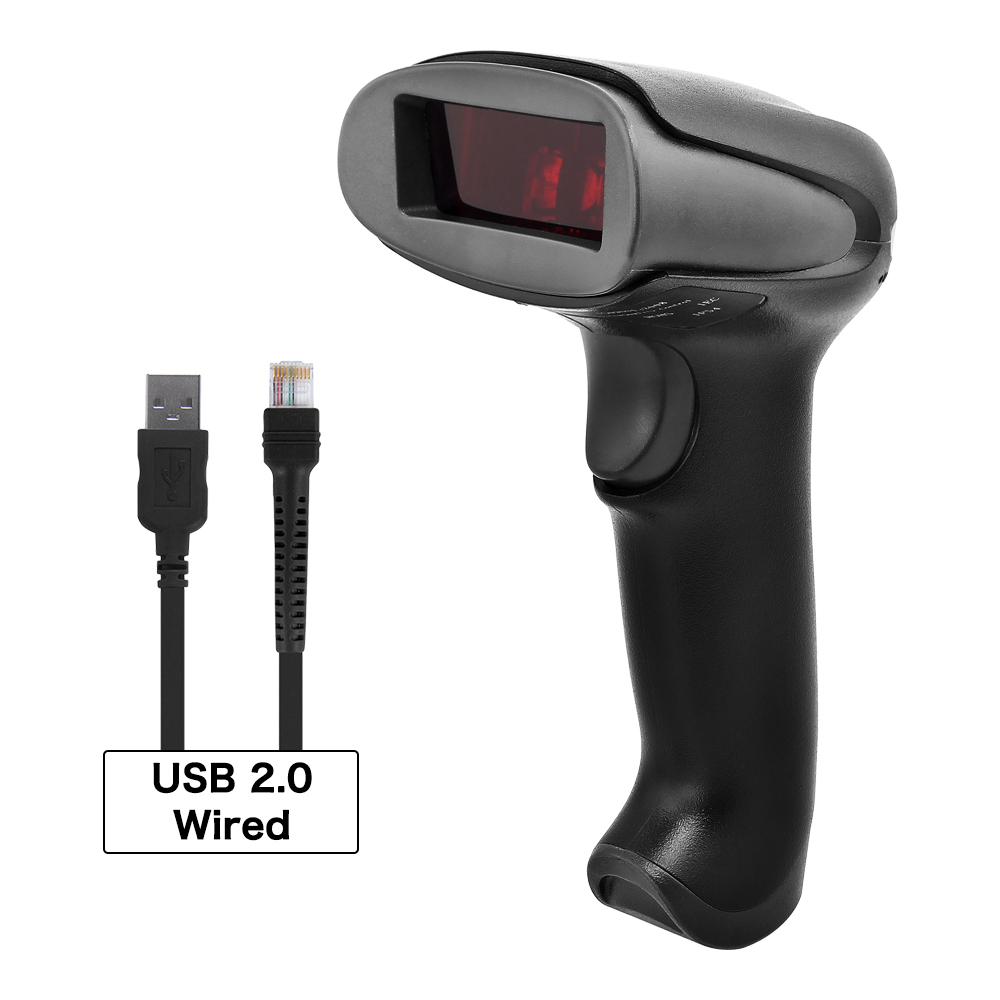

| Interface | USB |
| Operating Environment | |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 70℃ |
| Relative Humidity | 5% to 95% (non-condensable state) |
| Ambient Light Resistance | 100,000Lux Max |
| High and Low Temperature Testing | Max 60°C, Low -20°C |
| Transport Vibration Test | 10H@125RPM |
