NT-500 1D CCD Barcode Scanner: Comprehensive Commercial Solution
The NT-500 wired handheld CCD barcode scanner is specifically designed for commercial environments, making it ideal for supermarkets, retail stores, and various POS systems. Featuring plug-and-play functionality with no driver installation required, it can be quickly deployed via standard USB interface. The high-quality ABS+PC housing is not only durable but also ergonomically designed to prevent fatigue during extended use. The included hands-free flexible stand enhances efficiency for cashiers and warehouse staff.
Superior Decoding Performance & Extensive Compatibility
Equipped with advanced CCD sensing technology, this scanner accurately reads various 1D barcodes including retail-standard EAN-8/13, UPC-A/E, and industrial-specific formats like GS1-128 and ITF14. Its exceptional decoding capability also covers specialized applications such as Chinese postal codes and Interleaved 2 of 5. Fully compatible with Windows 7/8/10, Mac OS X 10.8.4+, and iOS7, it seamlessly integrates with business software including QuickBooks and Office suites to meet diverse enterprise digital management needs.
Ideal Choice for Multi-Industry Applications
The NT-500 boasts remarkably wide applications: goods tracking in logistics/warehousing, library book management, bank document processing, transportation ticketing systems, and postal package sorting. In industrial production, it effectively manages workflow processes, while in public service sectors like tourist attractions, insurance institutions, and government agencies, it provides equally reliable barcode recognition solutions. Its stable performance makes it an invaluable asset for operational efficiency improvement.
Professional Quality, User-Friendly Design
The NT-500 perfectly combines professional-grade scanning performance with simple operation. The plug-and-play feature enables quick adoption by non-professional users, while industrial-grade decoding accuracy (capable of reading damaged/blurred barcodes) meets the stringent demands of professionals. Whether in busy supermarket checkouts, noisy warehouse environments, or precision-critical medical facilities, the NT-500 delivers consistent performance, helping enterprises achieve efficient, accurate barcode management to optimize workflows and reduce operational costs.

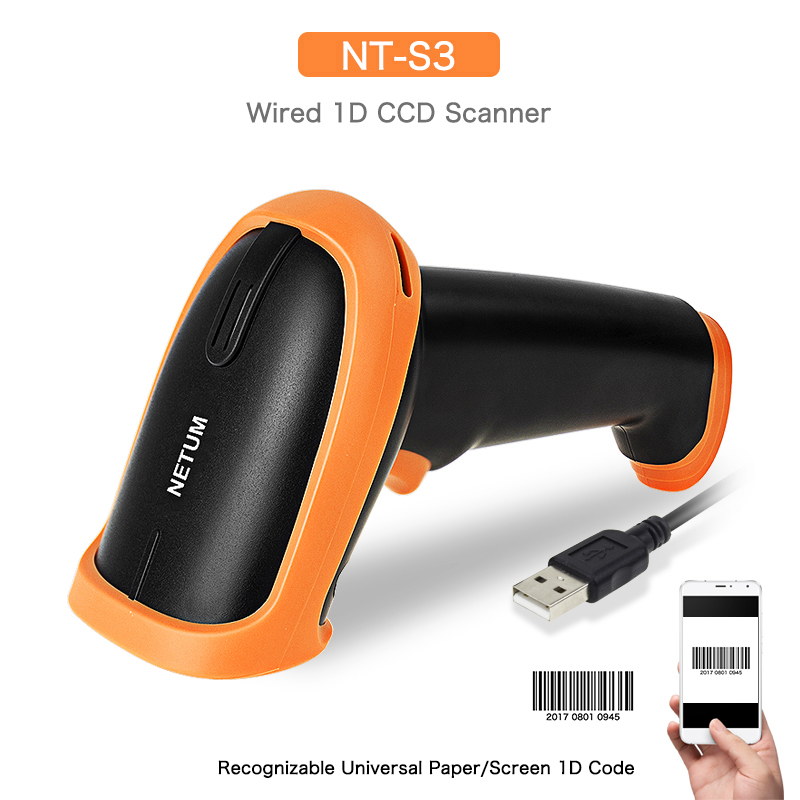

l S3 Wired 1D Scanner
1 | Scanning Performance | |
1.1 | Light Source: | Visible red light, wavelength 632 nm |
1.1.2 | Optical System: | Linear CCD Sensor |
1.1.3 | Processor: | ARM32-bit |
1.1.4 | Resolution: | 1500 |
1.1.5 | Decoding Accuracy: | ≥5mil/0.127mm@PCS90% |
1.1.6 | Decoding Speed: | Up to 200 scans per second |
1.1.7 | Trigger Modes: | Button trigger, continuous scan, auto-sensing, command control |
1.1.8 | Reading Angles (Tested with CODE39, 10mil/0.25mm, PCS90%): | Test Conditions：CODE39,10mil/0.25mm,PCS90% Pitch: ±60° Roll: ±30° Skew: ±60° |
1.1.9 | Supported 1D Symbologies: | EAN-8, EAN-13, Codabar, CODE11，CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT , Interleaved 2 of 5， Matrix 2 of 5，Industrial 2 of 5 , MSI，Plessey, ITF14. |
1.2 | Scanning Depth (DOF): | Code 39 8bytes (5mil) 70mm~180mm Code 39 10bytes (20mil) 120mm~300mm Code 39 5bytes (40mil) 160mm~450mm UPC/EAN 13 12bytes (13.0mil) 45mm~270mm |
Environmental Parameters | ||
2.1 | Operating Temperature: | -20℃ to 50℃ |
2.2 | Storage Temperature: | -40℃ to 70℃ |
2.3 | Relative Humidity: | 5% to 95% RH (non-condensing) |
2.4 | Ambient Light Resistance: | 100,000Lux Max |
2.5 | Temperature Cycling Test: | High temp: 60°C for 30 minutes |
2.6 | Transportation Vibration Test: | 10H@125RPM |
Electrical Characteristics | ||
3.1 | Operating Voltage: | DC 5V±5% |
3.2 | Working Current: | 110mA |
3.3 | Standby Current: | 30mA |
4 | Physical Characteristics | |
4.1 | Dimensions (L × W × H): | 170 × 75 × 100 mm |
4.2 | Weight: | ≈176g |
4.3 | Color: | Black |
4.4 | Cable Length: | 1.8m |
4.5 | Housing Material: | ABS |
4.6 | Notification Modes: | Buzzer and LED indicator |
4.7 | Interface: | Standard USB (Optional: RS232 customizable) |
5 | Safety & Compliance | |
5.1 | Drop Resistance: | 1.5-meter free fall |
5.2 | Certifications: | CE, ROHS, FCC |
