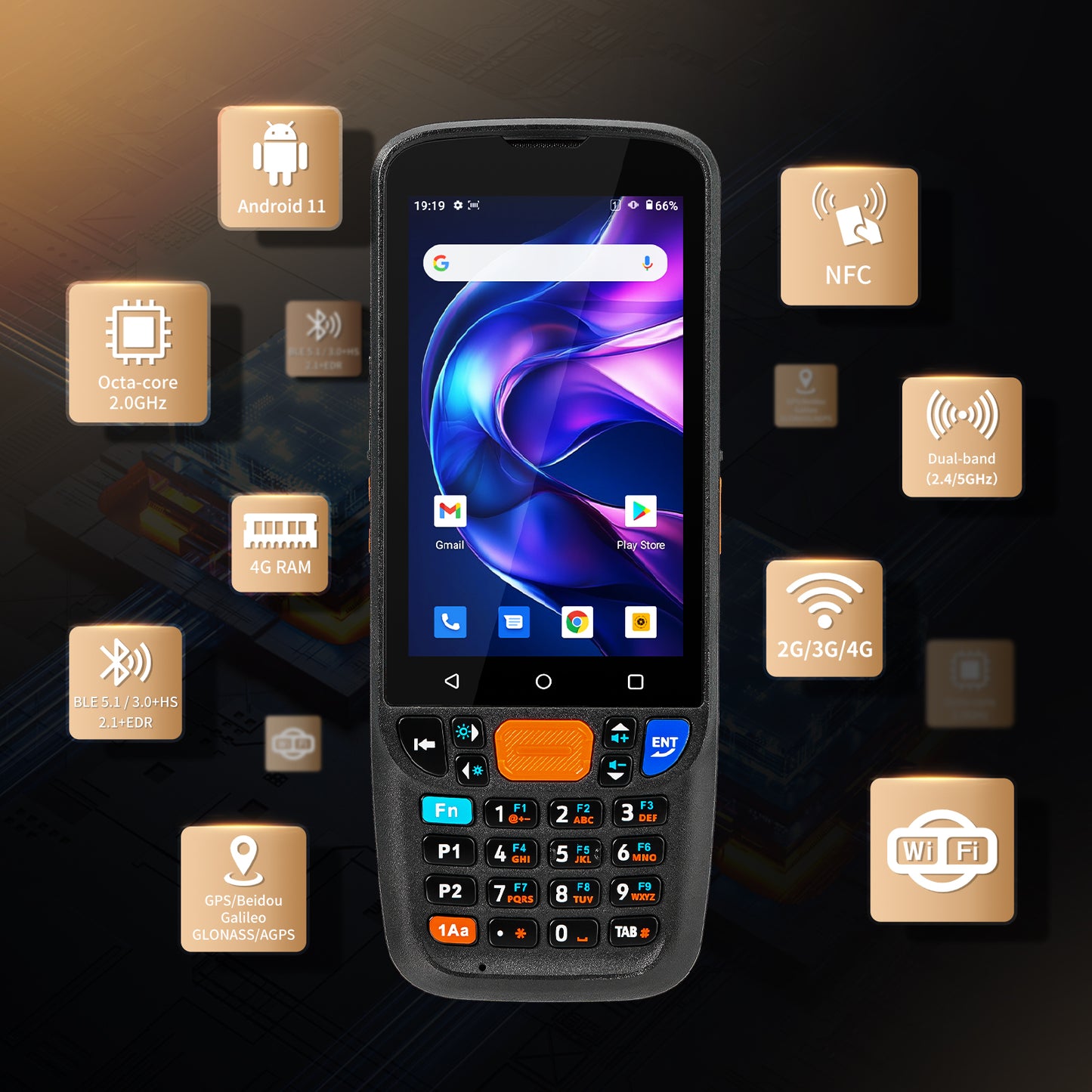

[Reliable Build, Enhanced Productivity]

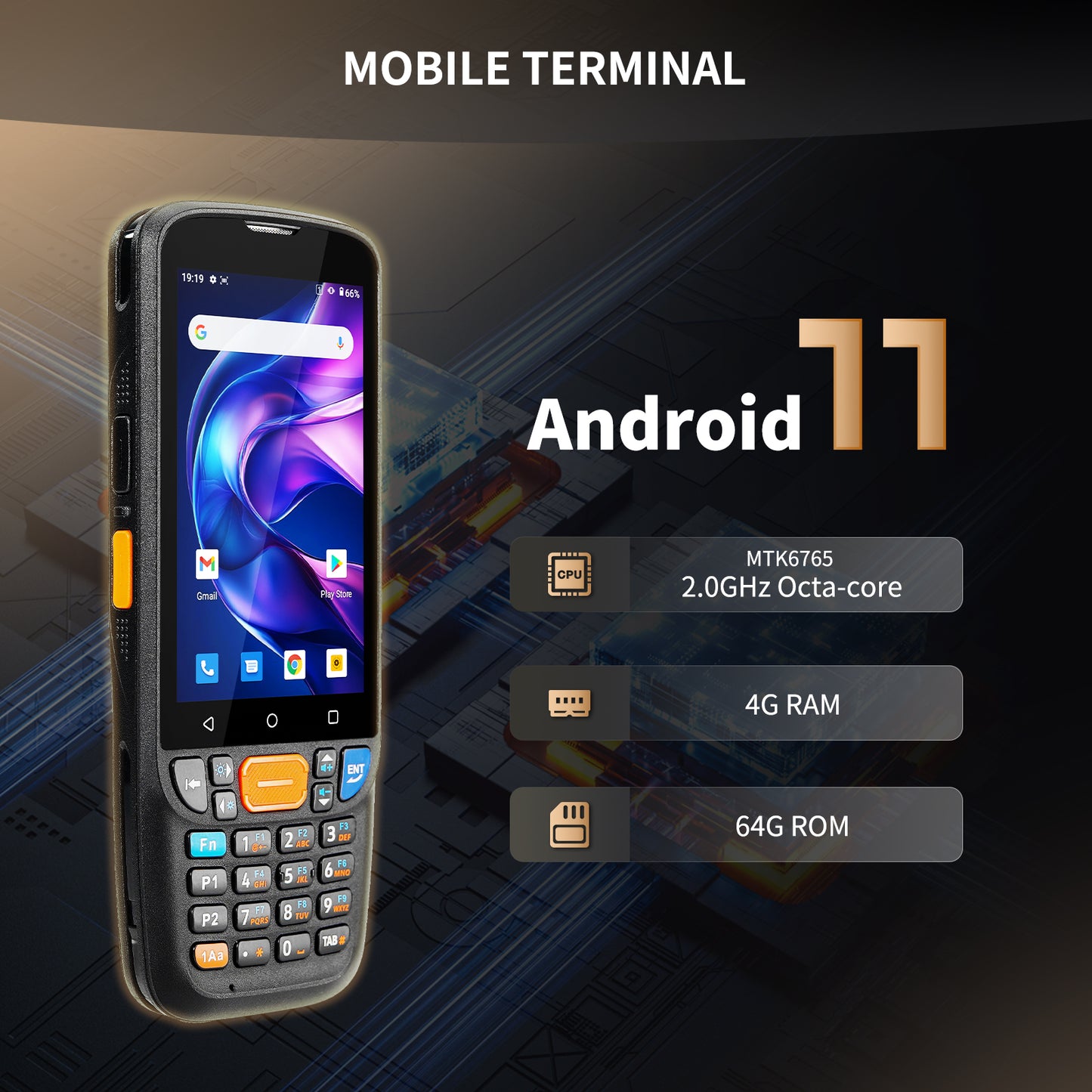

This mobile terminal runs on the Android 11 operating system, powered by an octa-core MTK6765 processor for swift performance. With 4GB RAM and 64GB storage, it seamlessly handles multiple business applications. Equipped with dual-band Wi-Fi, 4G LTE, Bluetooth 5.1, and NFC support, it ensures constant connectivity, making it ideal for mobile payments, inventory scanning, and field services. Comprehensive connectivity options guarantee compatibility with all your critical business apps and systems.

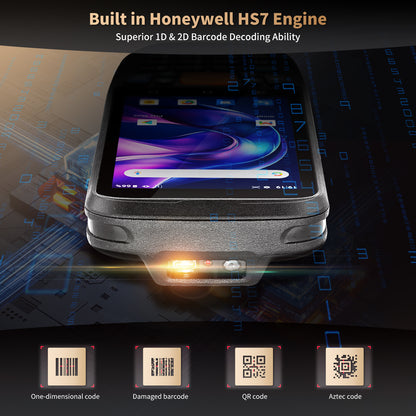

[Outstanding Decoding Performance]
The NETUM Q500 handheld barcode scanner features a Honeywell HS7 scan engine, enabling fast and accurate scanning of 1D and 2D barcodes, including UPC, GS1, QR Code, PDF417, Codebar, DataMatrix, and more. Perfect for applications in healthcare, retail, logistics, manufacturing, and asset management.

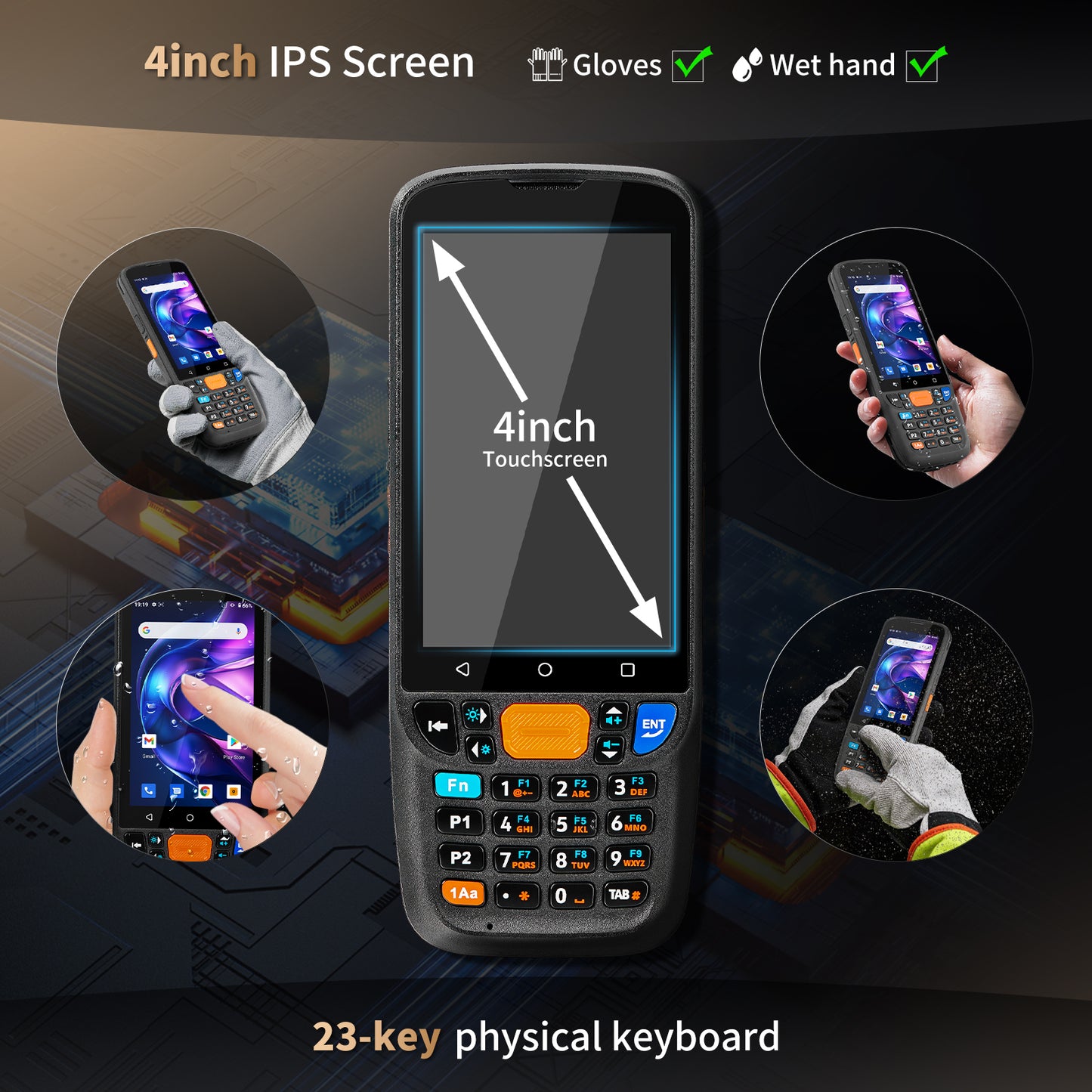

[4-Inch Touchscreen & 23-Key Keyboard]
This mobile data terminal boasts a 4-inch IPS touchscreen with clear visibility even in sunlight, along with a 23-key physical keyboard. Designed for easy operation with wet hands or gloves, it ensures reliable performance in harsh conditions. This hybrid design outperforms touch-only PDAs, making it ideal for inventory management tasks.

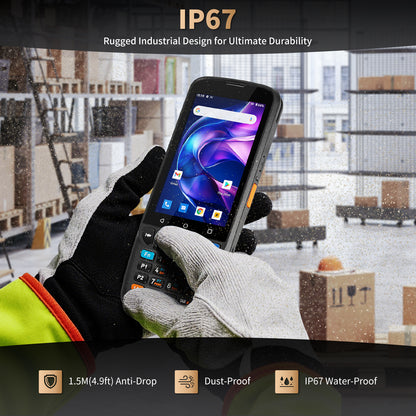

[IP67 Rugged Industrial Design]
The PDA Q500 is built for tough environments, featuring an IP67 waterproof/dustproof rating and 1.5m (4.92ft) drop resistance. It operates reliably in extreme temperatures from -20°C to 55°C (-4°F to 131°F), making it a perfect choice for challenging work settings.

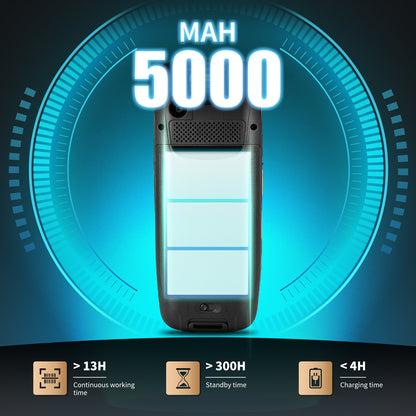

[Long-Lasting Battery Advantage]
With a 5000mAh replaceable battery, the scanner delivers up to 13 hours of continuous operation and 300 hours of standby time on a full charge. This enhances productivity while reducing operational costs for businesses.
Q500 Specification
|
Basic information |
|||
|
Product type |
AIDC with keyboard |
|
|
|
Model number |
Q500 |
||
|
Certificate |
■ CCC ■SRRC&CTA ■UN38.3、MSDS ■Battery CCC ■ IP 67 |
||
|
IP Rate |
IP67 （Waterproof, dustproof, shockproof） |
||
|
Drop test |
1.5 meters |
||
|
Operation temp |
-20℃~55℃ |
||
|
Storage temp |
-40℃~70℃ |
||
|
Humidity |
5%~95%RH |
||
|

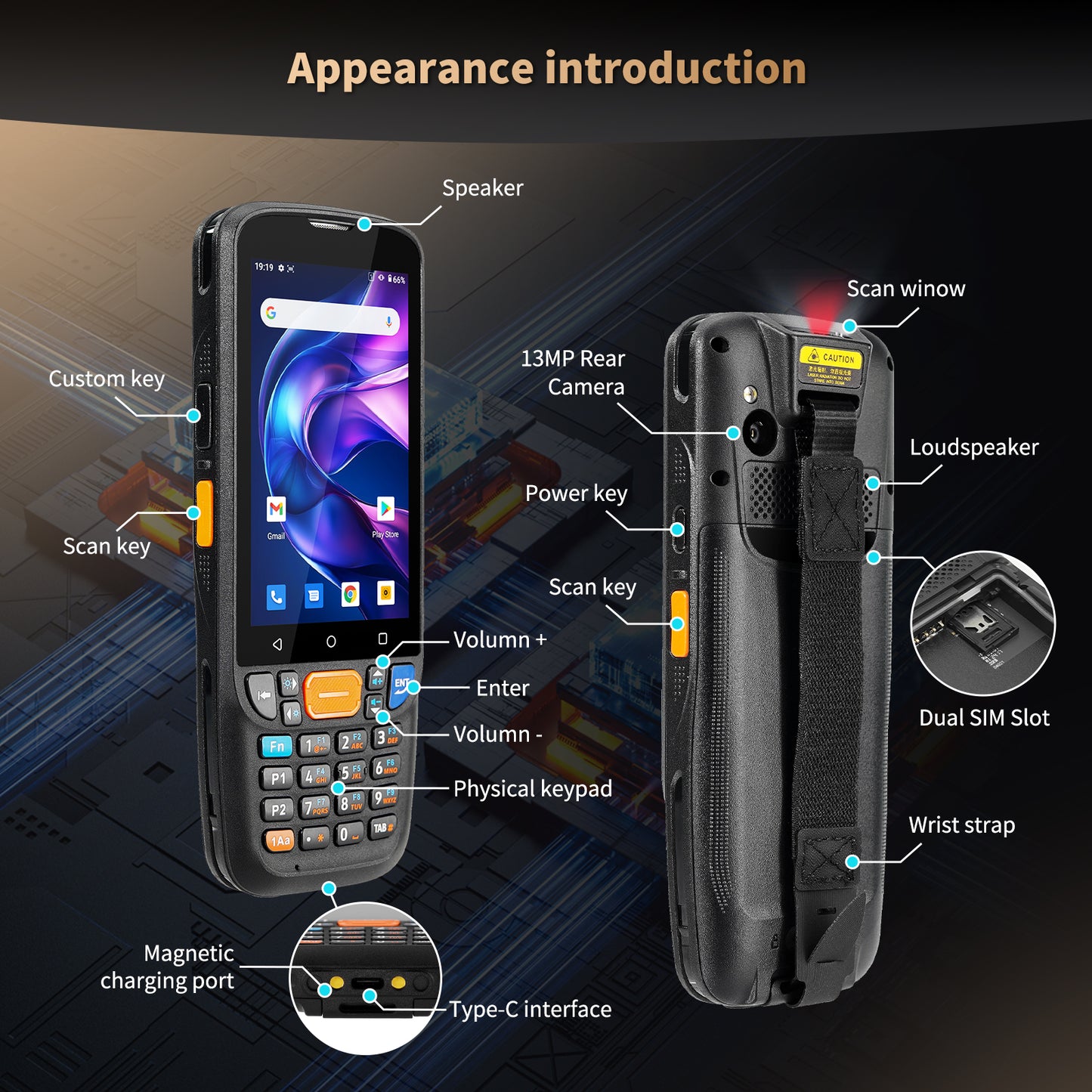

Appearance |
|||
|
Size（mm） |
168*66*18.5mm |
||
|
Weight（g） |
265g（include battery） |
||
|
Color |
Black (original color injection molding), surface resistant to scratches and sun marks |
||
|
Material |
Single-color high-strength engineering plastic |
||
|
Key |
■PTT key ■SCAN key *2 ■on and off key ■ main keyboard（23 keies） |
||
|
Systerm |
|||
|
Operating system version |
Android 11 |
with GMS |
|
|
Platform Application |
Adapt to QR code scanning assistant and third-party QR code scanning service APK |
|
|
|
CPU |
Octa-core |
MTK6765 |
|
|
Standard frequency band |
|||
|
Network Type |
4G LTE |
|
|
|
2/3/4G |
Frequency band |
Europe GSM：850/900/1800/1900 WCDMA：B1/2/4/5/8 LTE：B1/2/3/4/5/7/8/20/28a&b/34/38/39/40/41 |
Optional America GSM：850/900/1800/1900 WCDMA：B1/2/4/5/8 LTE：B1/2/3/4/5/7/12/13/17/18/19/25/26/28a&b/38/40/41/66 |
|
CA |
not support |
|
|
|
LTE Cat/Max Speed |
DL：Cat4 150Mbps（DL 256QAM） UL：Cat4 50Mbps（UL 64QAM） |
|
|
|
Card Mode |
Dual SIM card requirements |
support，L+L |
L+L、L+C、L+W、L+G and so on |
|
Switch between primary and secondary cards |
support |
|
|
|
Voice Solution |
VoLTE、ViLTE、VoWiFi |
|
|
|
Card slot |
|||
|
SIM Card slot type |
NanoSIM+NanoSIM/TF |
The battery compartment has a built-in three-in-two card tray, and does not support hot swapping |
|
|
eSIM |
not support |
|
|
|
Storage |
|||
|
RAM |
4GB |
|
|
|
ROM |
64GB |
|
|
|
Extended storage (TF card) |
support |
|
|
|
Display |
|||
|
Size of screen |
4 inch TFT（IPS） |
typ.450cd/m² |
|
|
Rezolution |
WVGA，480×800 |
|
|
|
Touch Type |
G+FF Multi-point capacitive touch, support gloves and wet hand mode |
|
|
|
Cover plate fitting |
Full lamination |
Tempered glass cover |
|
|
Camera |
|||
|
Proactive |
optional |
FF fixed focus, supports up to 800W |
|
|
Main camera |
1300W |
PDAF，F2.2 |
|
|
Secondary Photo |
not support |
|
|
|
Flashlight |
support |
Maximum current 1A, supports flashlight function |
|
|
Sensor |
|||
|
Standard |
Optical distance sensor, gravity acceleration sensor |
|
|
|
Fingerprint module |
not support |
|
|
|
Optional |
Geomagnetic sensor, gyroscope sensor |
|
|
|
IO interface |
|||
|
USB |
Support standard TYPE-C interface (USB 2.0 Device, support OTG) |
Waterproof |
|
|
3.5mm earphone |
USB interface |
|
|
|
Base |
support |
5V~2A |
|
|
External expansion interface |
Compatible options |
Optional 2PIN external handle |
|
|
Electroacoustic Audio |
|||
|
MIC |
support |
|
|
|
Audio PA Type |
K type |
High Power |
|
|
Bee |
support |
Rear 105dB high power speaker |
|
|
motor |
support |
|
|
|
earpiece |
support |
|
|
|
Wireless function |
|||
|
GPS |
Support L1 GPS/Beidou/Galileo/GLONASS Support AGPS |
Internal antenna |
|
|
WLAN Protocol |
Support WiFi5，Dual-band（2.4/5GHz） Support WiFi Roaming 1 stream 802.11ac/a/b/g/n |
IEEE 802.11d/e/h/i/j/k/r/v compliant 802.11w protected managed frames Security：WFA WPA WPA3/2 personal，AES-CCMP，WPI-SMS4，GCMP， WPS2.0，WAPI（hardware） WFA、Wi-Fi display、Wi-Fi HotSpot 2.0、 |
|
|
Bluetooth |
Support BLE 5.1、3.0+HS、2.1+EDR |
|
|
|

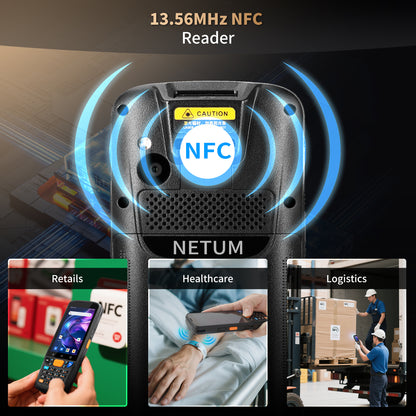

NFC |
optional |
ISO18092、ISO14443 A/B、ISO15693 protocol、Mifare compliance |
|
|
FM |
support |
External headphones as antenna |
|
|
Accessibility |
|||
|
Information indicator |
support |
Three-color LED light: slow flashing at low battery, red at charging, green at full power; green for successful code scanning, red for failed code scanning; blue for Bluetooth and other prompt information; |
|
|
Battery life |
|||
|
Battery |
5000mAh（4.4V） |
|
|
|
Charging Current |
5V 2A adapter |
|
|
|
Standby |
TBD |
|
|
|
Working time |
13.5 hours |
Approximately 9.5 hours with LCD brightness and volume at maximum |
|
|
RTC battery |
support |
Onboard button battery, replace the battery and the system time will last 15 |
|
|
Scanner |
|||
|
Engine |
support 1D 2D |
HS7 Engie |
|
|
Packaging and accessories |
|||
|
Standard |
■ Adapter: Input 100~240V, Output 5V 2A, 3C certification, black ■ Data cable: TypeA-TypeC data cable, current 2A, USB2.0, 1m, black ■ Wrist strap |
|
|
|
Packaging material |
■ LOGO ■Cover protective film |
□Tempered film |
|
|
Packaging box type |
■ Pit box + cover |
Leaflet, service guide, protective bag |
|
|
Optional accessories |
□Single host universal charger □PE+ 15W fast charger □ Lanyard |
Supports customized accessories: quad-charger, TPU protective case |
|
