NETUM Q900 Android 14 Barcode Scanner – Handheld PDA Mobile Computer with Honeywell HS7 Engine, 1D/2D Scanning, 5.99" HD Touchscreen, Wi-Fi & 4G LTE – Ideal for Warehousing, Logistics & Asset Tracking
High Performance with Immersive Display:
**Powered by an octa-core MT8781 processor and Android 14, the Q900 delivers responsive performance. Enjoy a crisp, 5.99” HD IPS touchscreen with multi-touch support, 4GB RAM, and 64GB of storage—expandable for all your business needs.
Advanced Barcode Scanning & Modular Expansion:

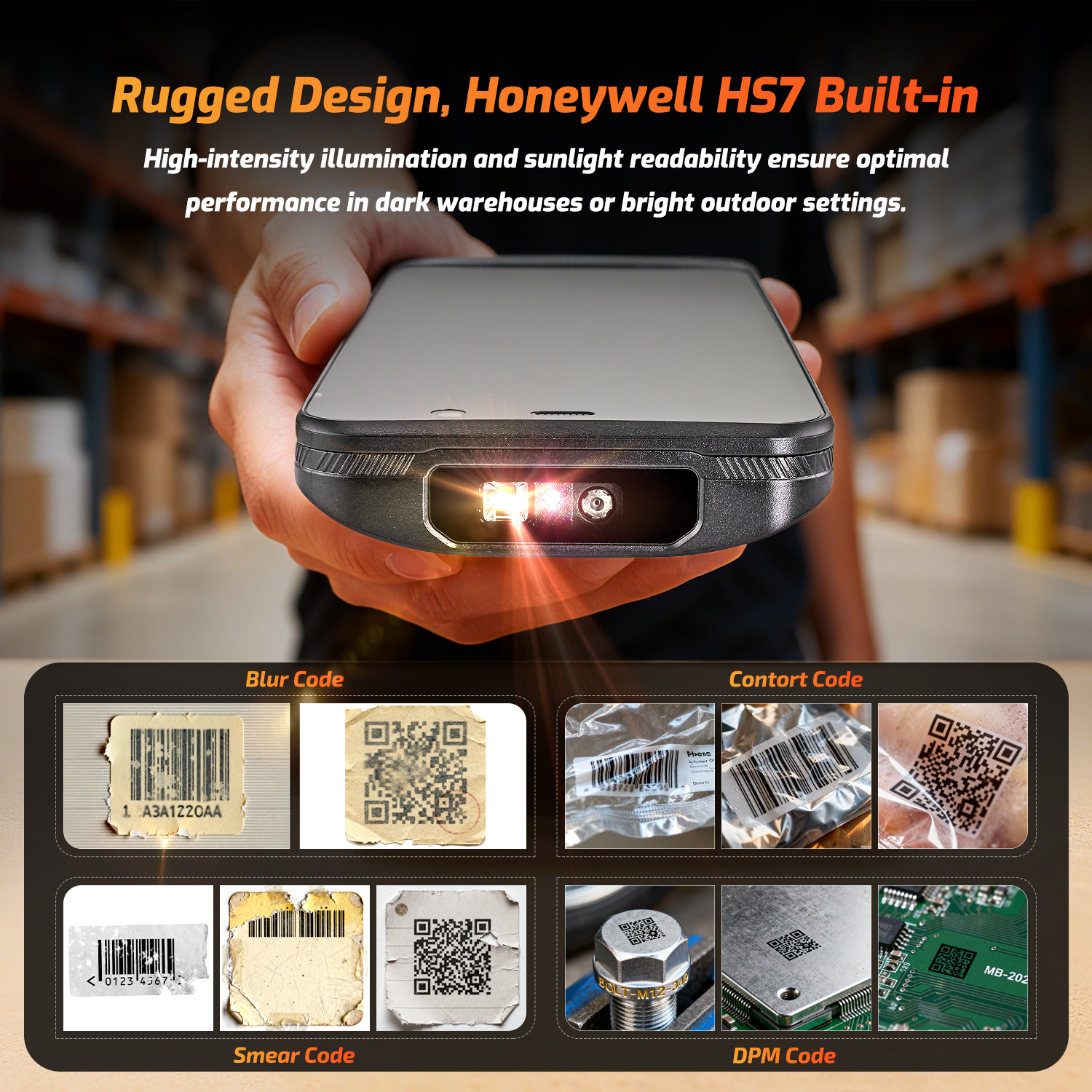

**Equipped with Honeywell’s high-performance HS7 scan engine, the Q900 captures 1D and 2D barcodes in a flash. Optional modules like UHF RFID, NFC, fingerprint reader, and a scan handle offer added flexibility to fit your workflow.
Industrial-Grade Rugged Design:
**Built tough for demanding jobs. Rated IP67 for water and dust resistance, and drop-tested from 1.5 meters—this device is engineered to thrive in warehouses, field service, transportation, and other rugged environments.
Global 4G Connectivity & Rich Wireless Interfaces:
**Supports global 4G LTE bands with dual SIM capability, plus Wi-Fi 5 (dual band), Bluetooth 5.2, and full GNSS (GPS, GLONASS, Galileo, Beidou) for reliable connectivity—whether indoors or out in the field.
Long Battery Life & Quick Charging:
**Stay productive with a 5000mAh battery that lasts up to 13.5 hours on a single charge. Tool-free battery access makes swaps quick and easy. Fast charging via USB-C or optional docking cradle.
Q900 Rugged Handheld Terminal (AIDC)
Operating System & Platform
OS Version: Android 14, native UI with GMS support
Preinstalled App: Scan Assistant compatible

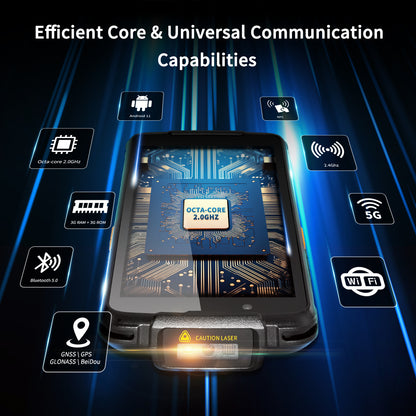

Processor: Octa-core MediaTek MT8781
Cellular & Network
Network Type: 4G LTE
2G Bands: GSM 850/900/1800/1900
3G Bands: WCDMA B1/2/4/5/8
4G LTE Bands:
TDD-LTE: B34/38/39/40/41
FDD-LTE: B1/2/3/4/5/7/8/20/28a&b
Optional Americas Version:
GSM: 850/900/1800/1900
WCDMA: B1/2/4/5/8
LTE: B1/2/3/4/5/7/12/13/14/25/26/28a&b/30/38/40/41/66/71
CA (Carrier Aggregation): Not supported
MIMO: /
LTE Category/Speed:
DL: Cat 4 – 150 Mbps (256QAM)
UL: Cat 4 – 50 Mbps (64QAM)
SIM Configuration: Dual SIM (L+L, L+C, L+W, L+G modes supported)
SIM Tray Type: 2 Nano SIMs / TF card (2 of 3 shared slot)
eSIM: Not supported
Voice Support: VoLTE, ViLTE, VoWiFi
Memory & Storage
RAM: 4GB LPDDR4x (up to 12GB optional)
ROM: 64GB eMMC (up to 256GB optional)
Expandable Storage: Supports up to 1TB MicroSD (TF), SDIO-encrypted cards supported
Display
Size: 5.99" TFT IPS
Resolution: HD+ (720 × 1440), optional FHD+
Brightness: typ. 500cd/m²
Touch: Multi-point capacitive (In-cell)
Glass: Full-laminated, 1.1 mm reinforced cover glass
Camera

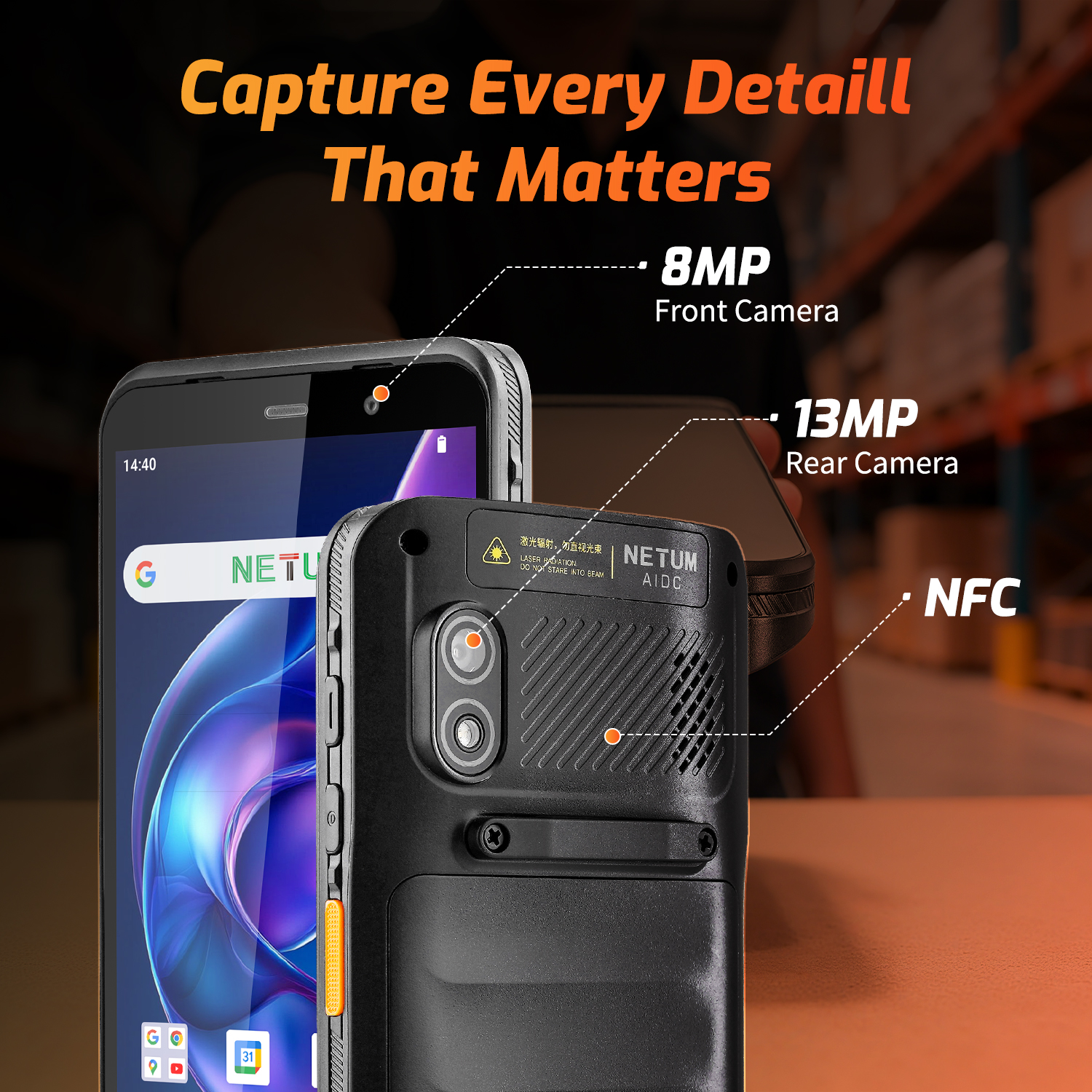

Front Camera: 8MP, Fixed Focus, f/2.4
Rear Camera: 13MP, PDAF, f/2.2
Secondary Camera: Not supported
Flashlight: Supported (up to 1A, also serves as flashlight)
Sensors
Standard: Ambient light, Proximity, Accelerometer
Optional: Hall sensor, Magnetometer, Gyroscope
Fingerprint: Optional rear fingerprint or UHF (choose one)
Interfaces
USB: Standard Type-C (USB 2.0, OTG supported), waterproof
Audio: Digital headset via Type-C
Charging Dock Interface: Supported (5V~2A, compatible with UC100)
Extension Port: 8-pin interface for barcode pistol grip
Audio
Microphone: Dual silicon mics
Noise Cancellation: Supported
Speaker: 100dB loudspeaker
Audio PA: Class-K
Vibrator & Earpiece: Supported
Wireless Connectivity
GPS/Location: GPS, BeiDou, Galileo, GLONASS, AGPS (internal antenna)
WLAN: Wi-Fi 5, Dual-band (2.4GHz/5.1GHz/5.8GHz)
IEEE 802.11 a/b/g/n/ac
Roaming supported
Security: WPA, WPA2, WPA3 Personal, AES-CCMP, WPI-SMS4, GCMP, WPS 2.0, WAPI (hardware), Wi-Fi Display, Wi-Fi Hotspot 2.0
Bluetooth: BLE 5.2, 3.0+HS, 2.1+EDR
NFC: Supported – ISO18092, ISO14443 A/B, ISO15693, MIFARE compatible
FM & Wireless Charging: Not supported
Status Indicators
LED Indicators:
Tricolor (Low battery: slow red flash, Charging: red, Full: green)
Scan success: green, Scan fail: red
Bluetooth/Wi-Fi: blue
Eye Light / Secondary Display: Not supported
Battery & Power
Battery Capacity: 5000mAh (4.4V), integrated design, tool-free removable
Battery Type: Li-polymer, 0V charging supported
Charging: 5V 2A standard adapter
Working Time: Up to 13.5 hours (approx. 9.5 hrs at max screen/audio)
RTC Battery: Built-in coin cell, retains time during battery swap
Backup Power (Hot Start): Optional 60mAh lithium polymer battery
Data Collection Modules
Barcode Scanner: Built-in 1D/2D scanning module (Honeywell HS7)
UHF RFID: Optional, with internal antenna
Independent BeiDou Module: Optional, shared slot with scanner or UHF
Durability

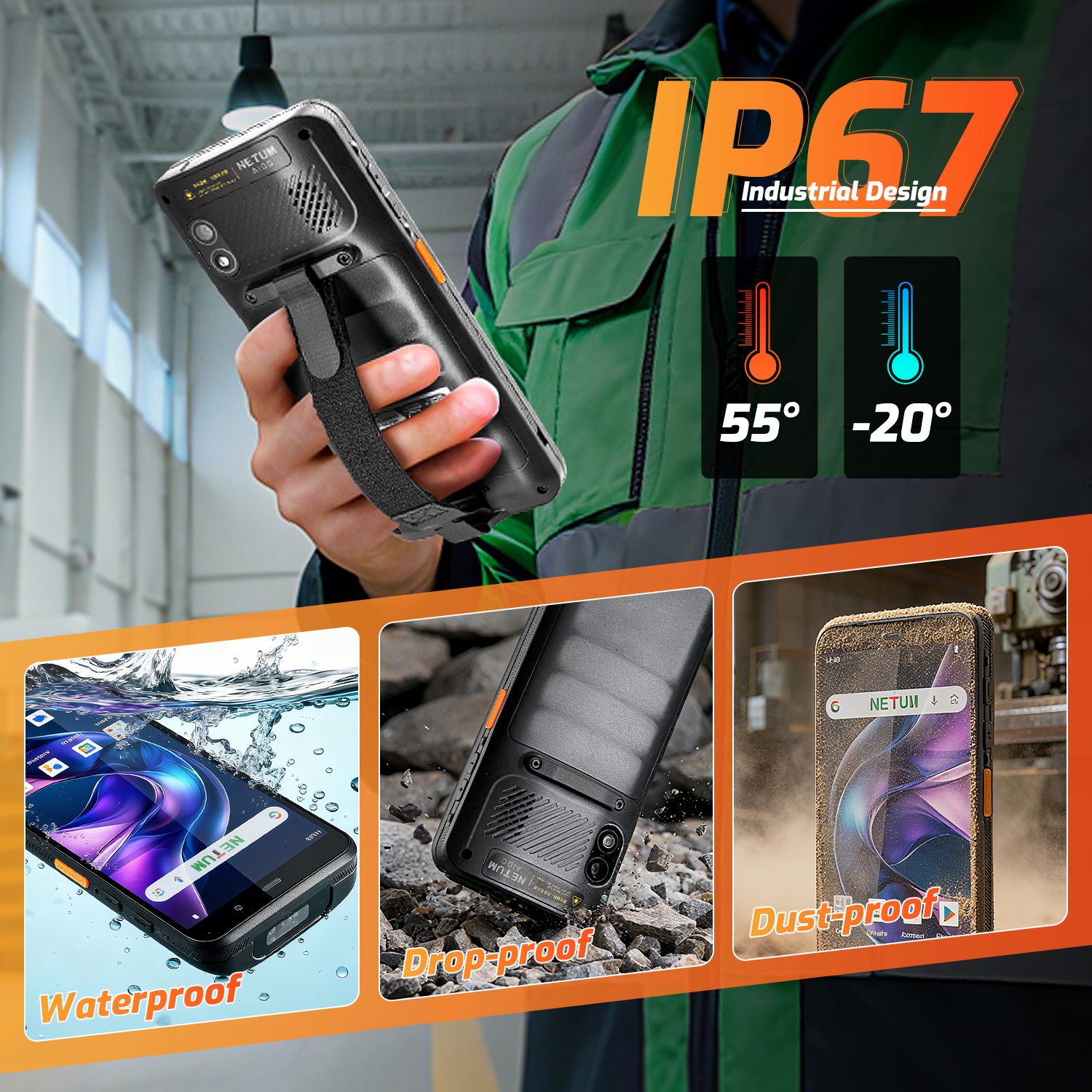

Ingress Protection: IP67 (Dustproof, Waterproof, Shockproof)
Drop Resistance: Survives drops from up to 1.5 meters
Operating Temperature: -4°F to 131°F (-20°C to 55°C)
Storage Temperature: -40°F to 158°F (-40°C to 70°C)
ESD Protection: ±12kV air discharge, ±8kV contact discharge
Design
Form Factor: Slate
Dimensions: 163 × 77 × 13.9 mm (without protrusions; subject to actual unit)
Weight: Approx. 265 g (with battery)
Color: Black (native injection molding with scratch-resistant matte texture)
Material: High-strength industrial-grade plastic

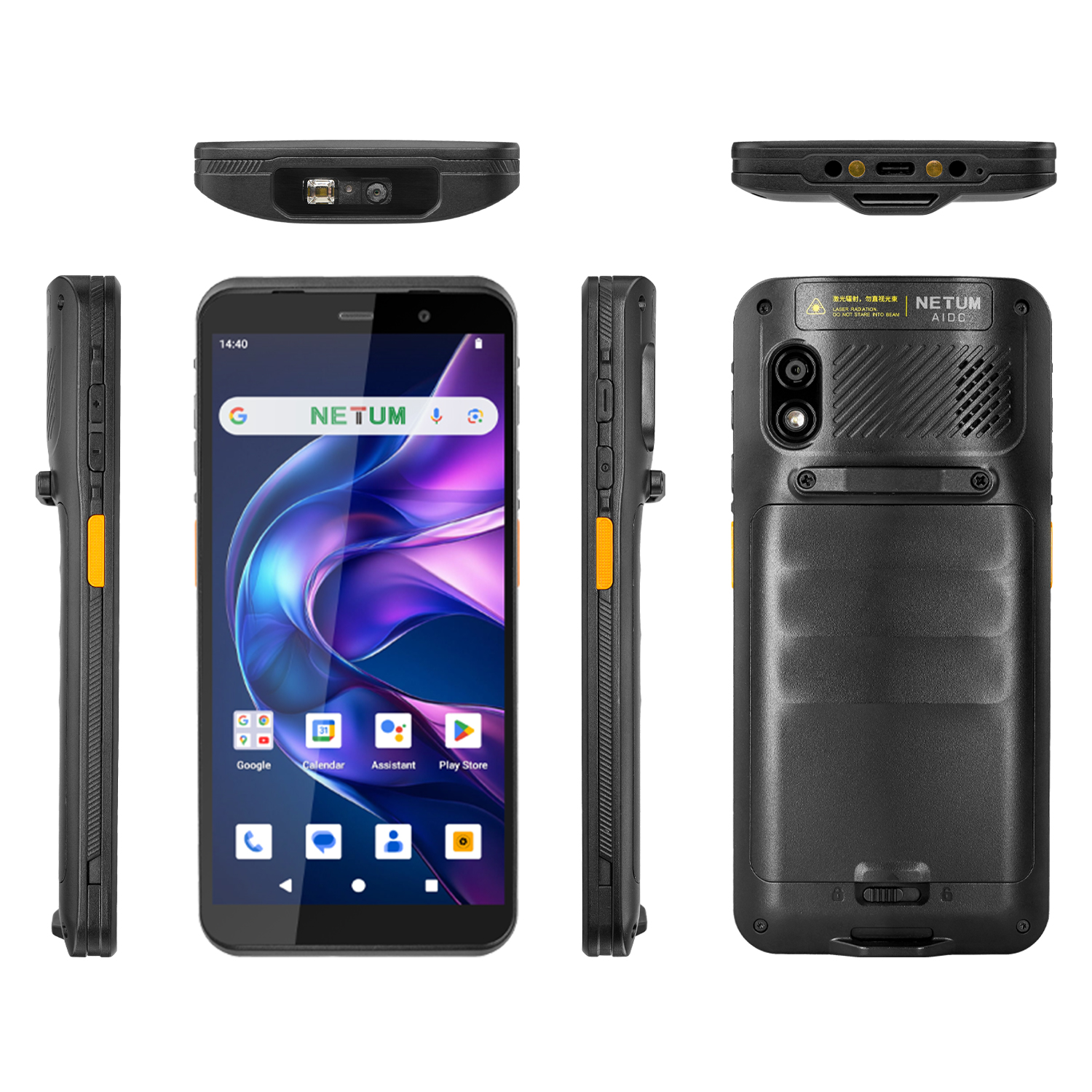

Button Layout
Top: Integrated barcode scanner module
Left: Scan trigger, volume keys
Right: Power button, customizable key, scan trigger
Bottom: USB Type-C port
Front/Rear: TBD based on configuration
Dimensions: 163 x 77x 13.9 mm
Weight: 265g
CPU: MT8781(Octa-core)
System: Android 14
RAM/ROM: 4GB/64GB
Screen: 5.99-inch TFT (IPS)
Battery: 5000mAh
Working Time: 13.5h
IP Rating: IP67
