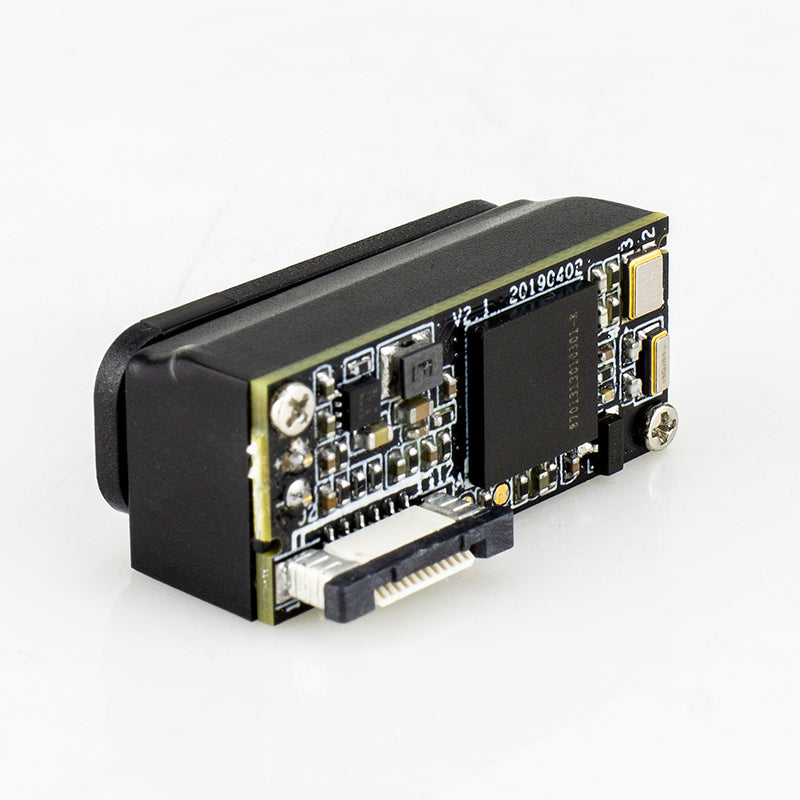

NETUM NT‑212M Global Shutter 2D Barcode Scanner Module

Global Shutter Compact Embedded 2D Scan Engine
NETUM NT‑212M is a high‑performance miniature embedded 2D barcode scanner module equipped with 640×480 Global Shutter CMOS sensor. Different from rolling shutter sensors, global shutter captures full‑frame image simultaneously, effectively reduces motion blur and distortion when scanning moving barcodes, greatly improving decoding success rate for wearable and handheld mobile scanning scenarios.

Full‑Symbology Industrial & Commercial Decoding
NT‑212M supports comprehensive 2D codes including QR Code, Data Matrix, PDF417, Aztec, Maxicode, and mainstream 1D barcodes such as EAN, UPC, Code 39, Code128, GS1 Databar etc. It reads both printed paper barcodes and screen‑displayed codes, meets diversified identification demands of logistics, retail and industrial manufacturing.

Mini‑Size Structure for Space‑Limited Equipment

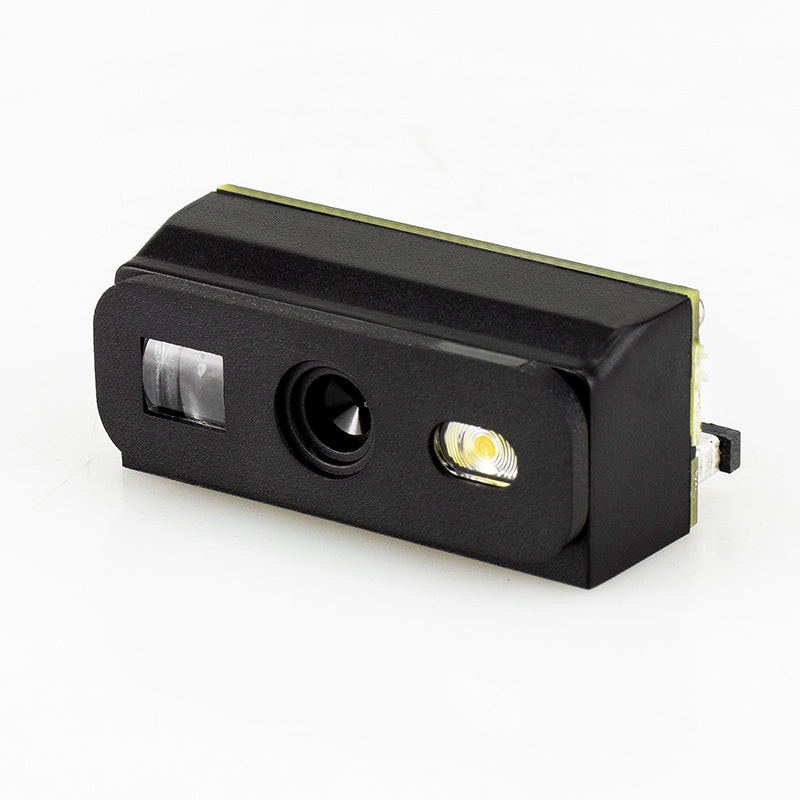

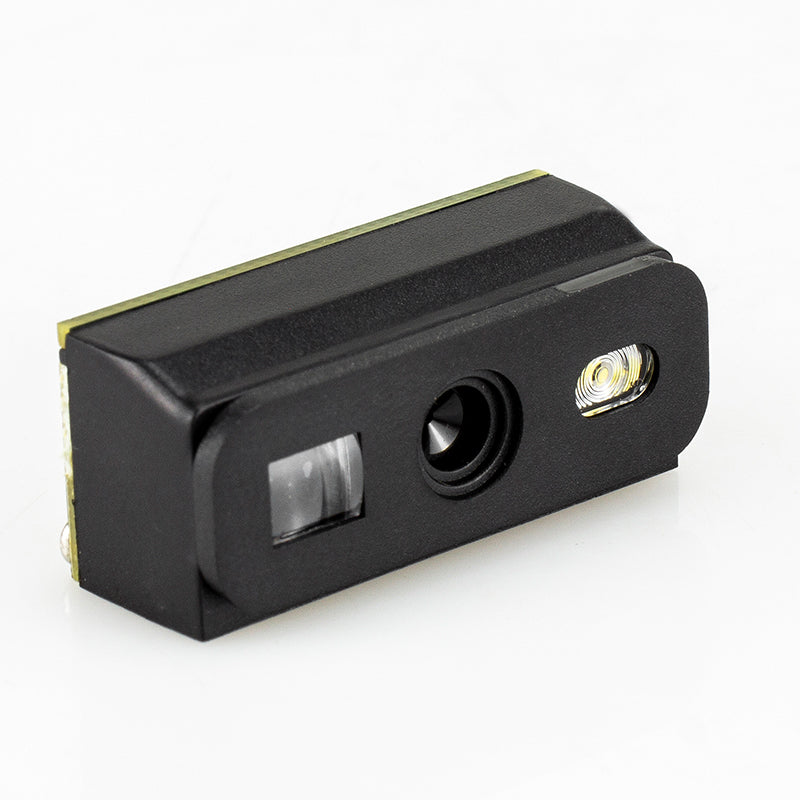

With ultra‑small physical dimension 28(W)×12(D)×10(H)mm, the module saves precious internal space of wearable devices, PDA and slim portable equipment. White LED illumination and red LED aiming light ensure accurate positioning and stable imaging in different lighting conditions.

Dual‑Interface Design for Flexible OEM Integration
It provides TTL‑232 serial port and USB dual communication options, compatible with USB HID‑KBW keyboard output and Virtual COM transmission. Optimized power consumption design, low standby current helps extend battery life of wireless portable devices, lowers difficulty for B‑side manufacturers’ secondary development.

Reliable Industrial‑Level Environmental Resistance
Supports ‑20℃ ~ +50℃ wide operating temperature, adapts to 5%‑95% non‑condensing humidity and 0‑100000LUX strong ambient light. Maintains consistent decoding performance under complicated workshop, outdoor and unattended kiosk working conditions.

✅ EN: 640×480 Global Shutter CMOS sensor, anti‑motion‑blur performance, stable decoding for fast‑moving barcodes in mobile scanning scenarios
✅ EN: Full‑range 1D & 2D barcode decoding capability, covers QR Code, Data Matrix, PDF417, Aztec, Maxicode and multiple industrial 1D symbologies
✅ EN: Ultra‑compact dimension28(W)×12(D)×10(H)mm, small footprint for easy embedding into ring scanners, PDA, slim portable terminals
✅ EN: TTL‑232 serial & USB(HID‑KBW / Virtual COM) dual‑interface, low standby current, convenient for OEM secondary development
✅ EN: Industrial‑grade environmental adaptability, ‑20℃~+50℃ wide operating temperature, stable performance under 0‑100000LUX ambient light
