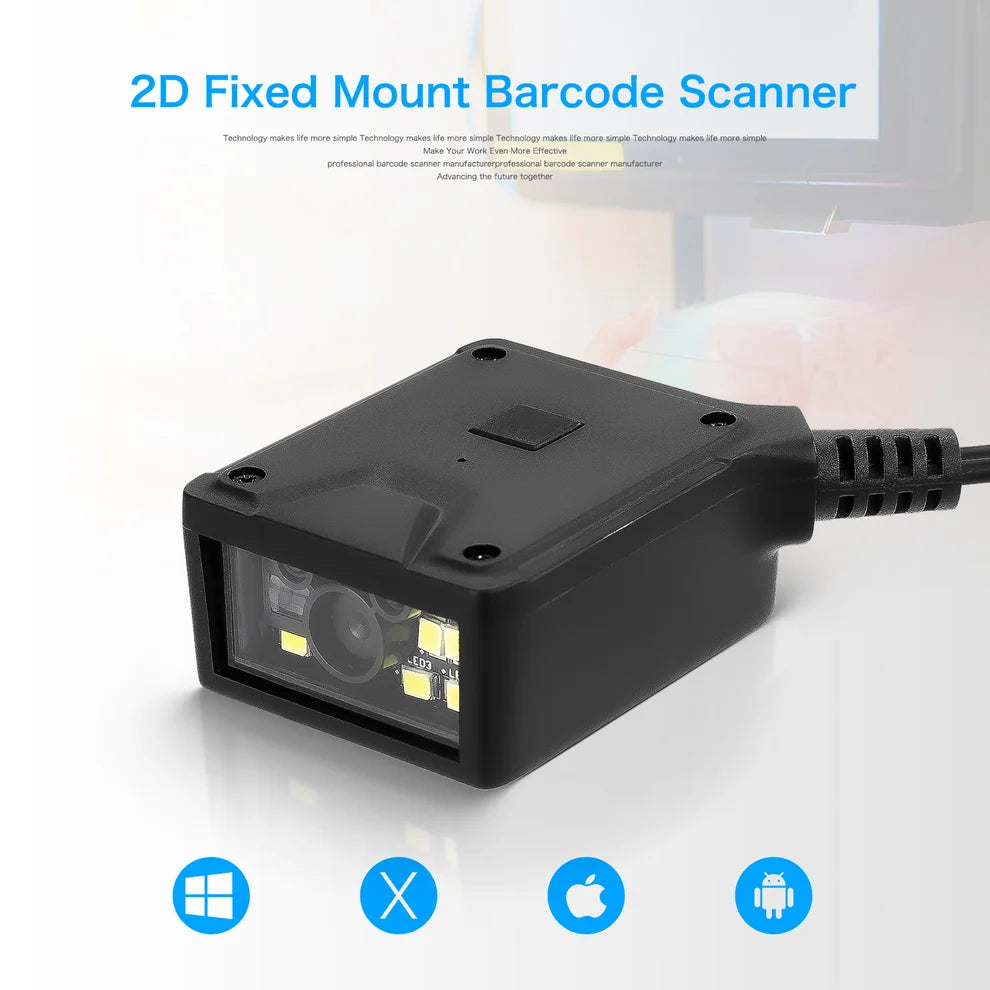

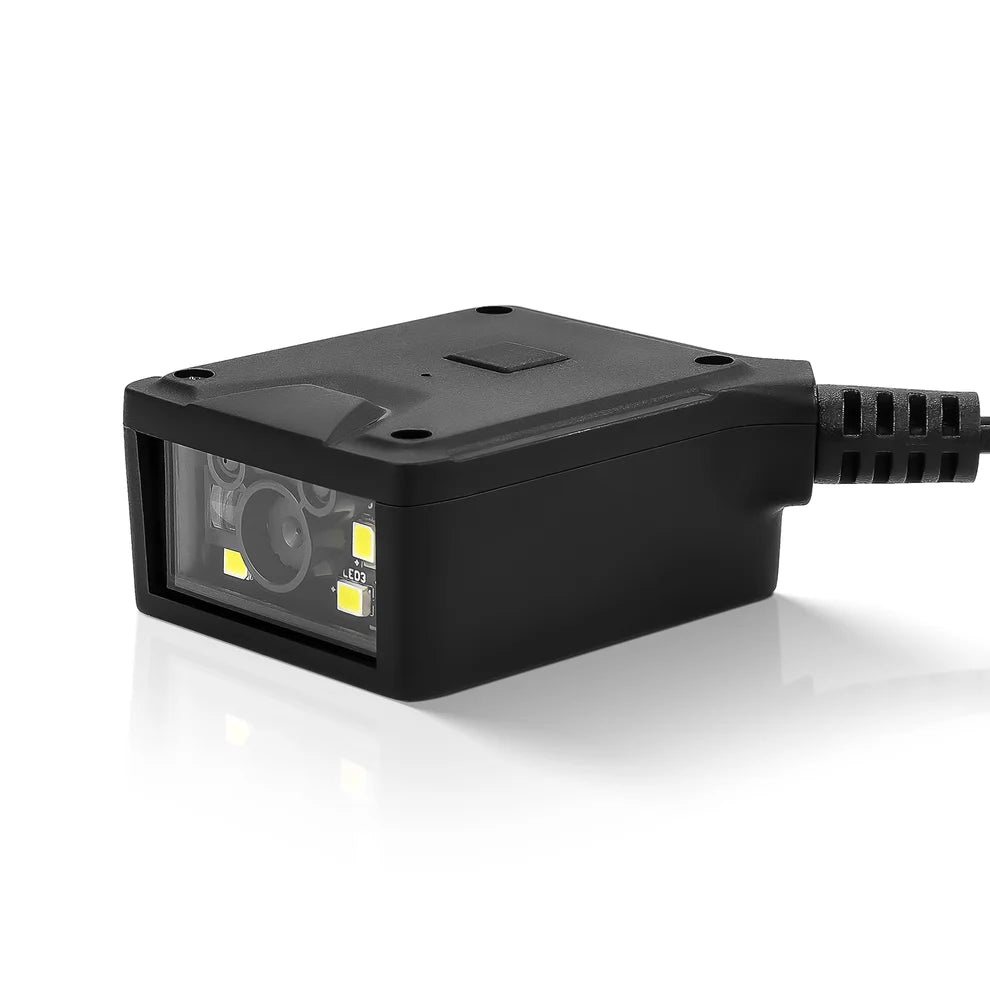

NETUM NT-91 Industrial Fixed Mount Scanner

Name: NETUM NT-91 Industrial Fixed Mount Scanner
Brand: Netum
Availability: OutOfStock

✅ EN: Industrial-grade global shutter 640×480 CMOS sensor, captures fast-moving barcodes stably for production line dynamic scanning

✅ EN: 150 scans/sec high decoding speed + wide-angle lens, excellent performance for short-distance slim barcodes identification

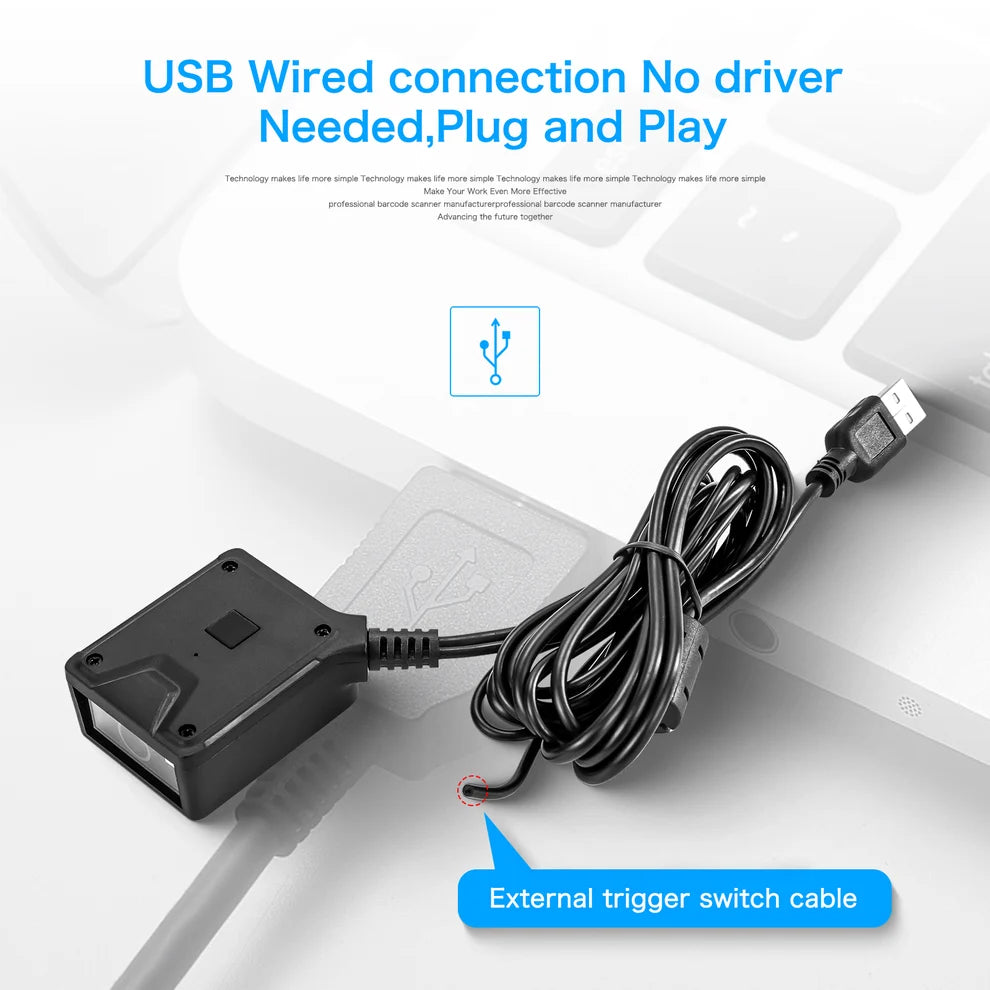

✅ EN: Dual USB & RS232 industrial interface with lockable cable design, ensuring stable connection for long-term embedded operation

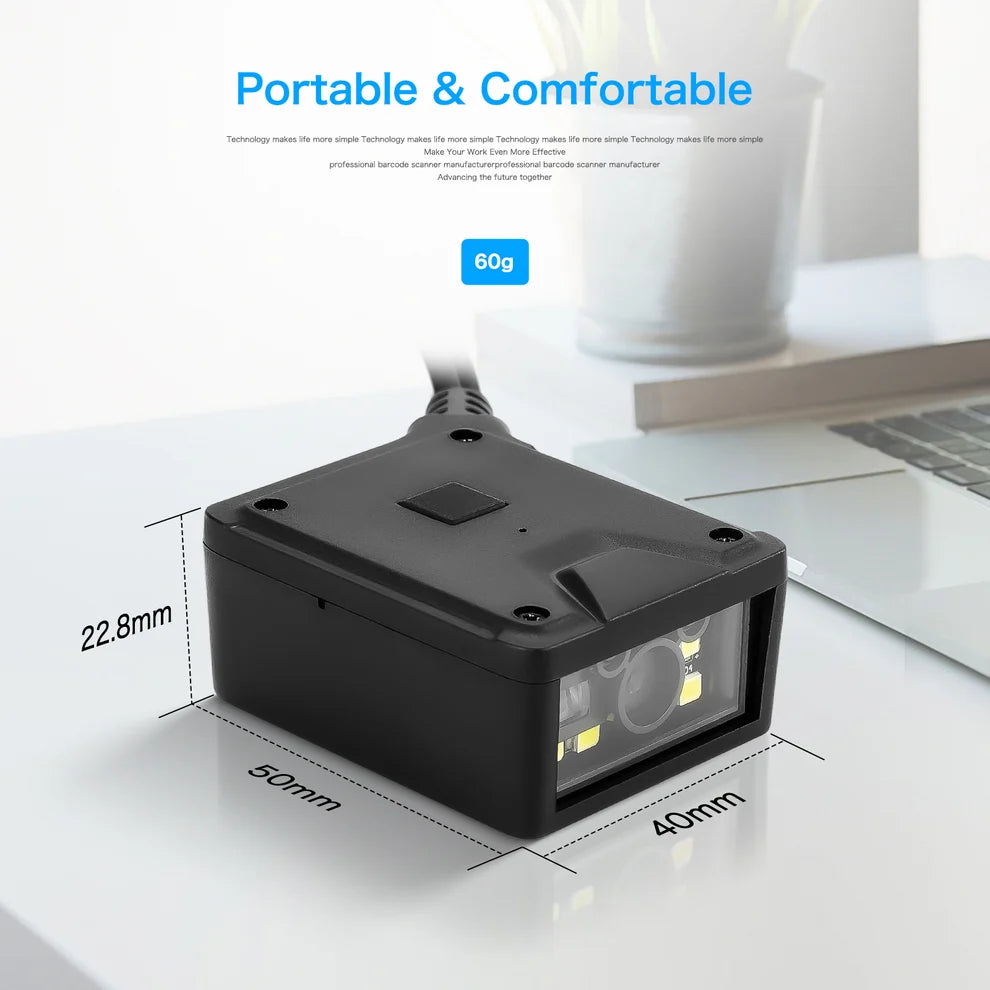

✅ EN: Ultra-compact 50×40×22.8mm mini size, easy to embed into turnstiles, kiosks and automated industrial equipment

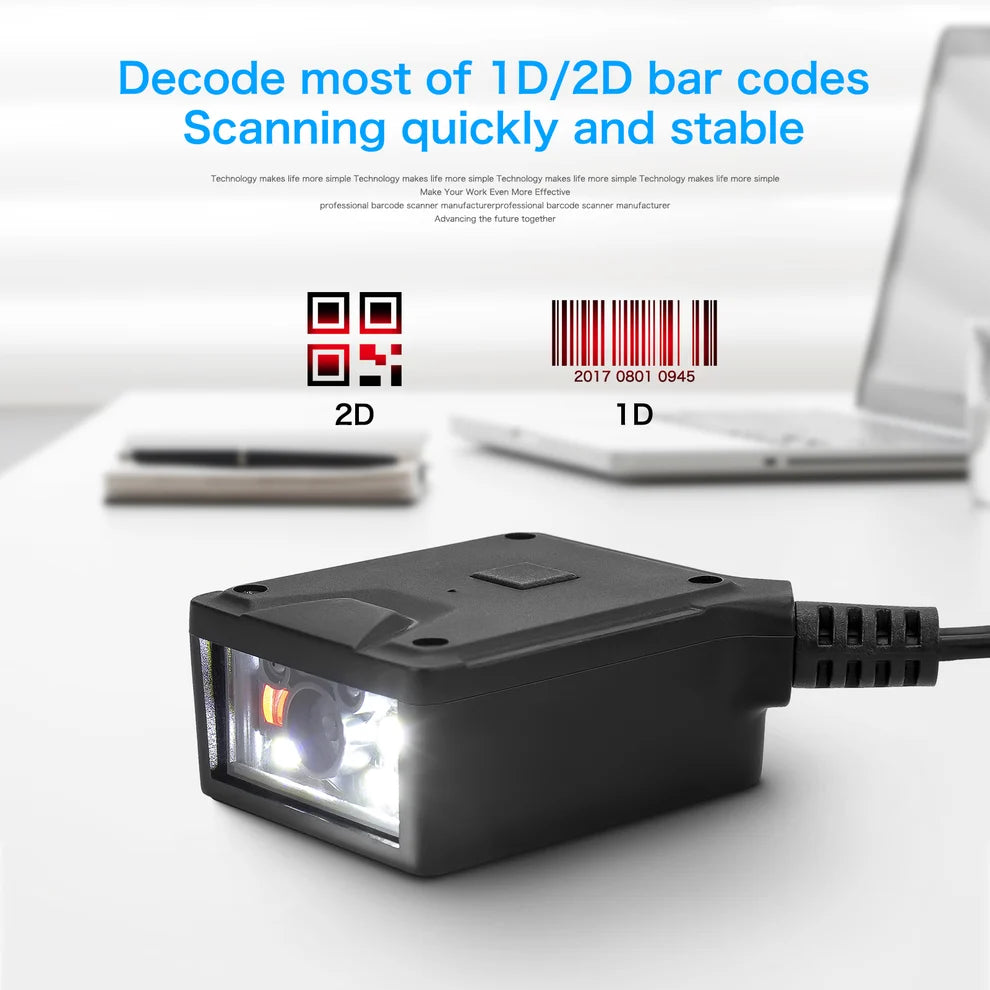

✅ EN: Ultra-low error rate less than 1/8 million, supports full-range 1D/2D barcode recognition for industrial data collection

Product Overview

Global Shutter High-Speed Industrial Scanning Module
NETUM NT-91 is a mini industrial fixed-mount barcode scanning module specially designed for automated industrial scenarios. Adopting professional 640×480 global shutter CMOS sensor, it effectively eliminates motion blur and stably captures fast-moving barcodes on high-speed production lines. With 150 scans per second ultra-high decoding speed, it fully meets the high-frequency dynamic scanning demands of industrial automated production.

Wide-Angle & Short-Distance Professional Decoding Ability
Featuring optimized wide-angle optical lens and professional industrial algorithm, NT-91 performs excellently in identifying narrow and slim barcodes at short distances. It supports 360° omnidirectional reading with strong angle tolerance, no precise positioning required. The scanning depth ranges from 20mm to 240mm, covering most industrial fixed-point scanning distances, adapting to diverse on-site installation environments.

Industrial Reliable Dual Interface Connection
Equipped with standard USB HID, Virtual COM and RS232 industrial serial port, compatible with various industrial control systems and automated equipment. The lockable cable structure prevents loose connection during long-term industrial operation, ensuring continuous and stable data transmission. Plug-and-play design greatly reduces equipment integration difficulty and after-sales maintenance cost.

Ultra-Compact Embedded Installation Design

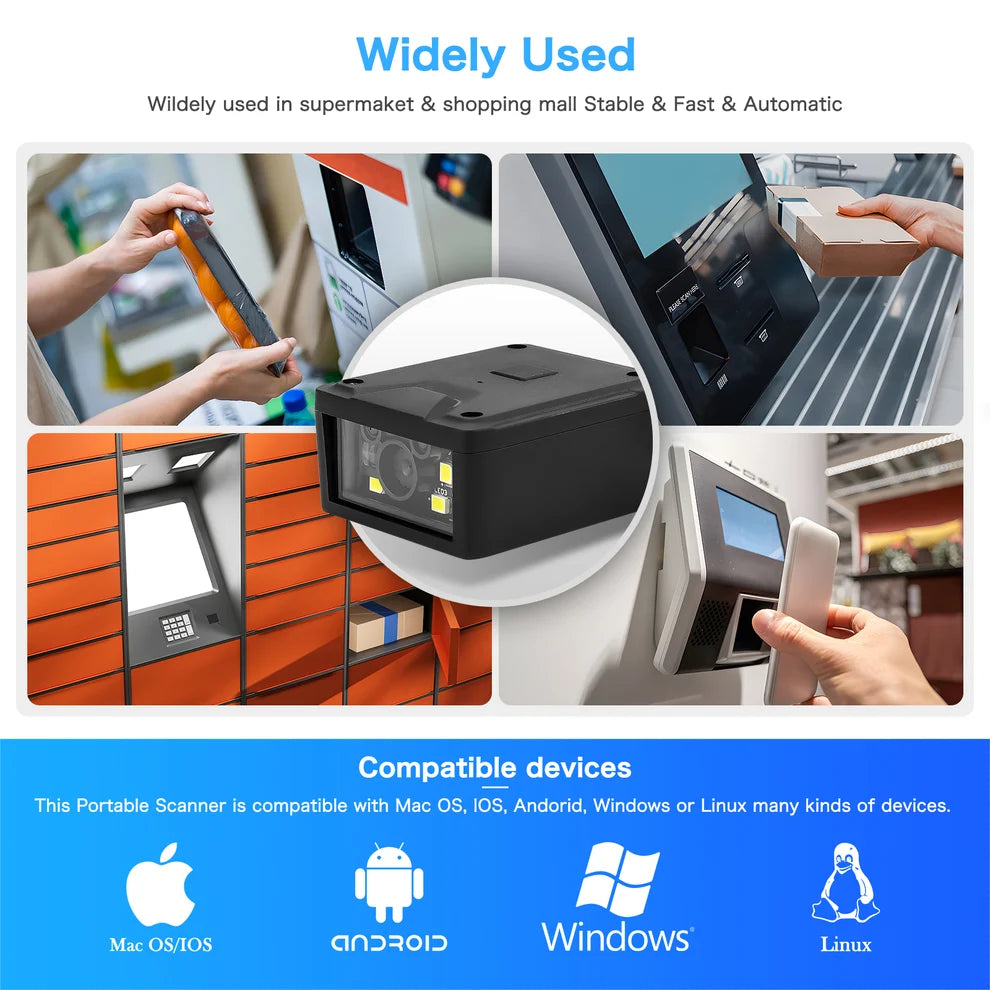

With ultra-small body size of 50×40×22.8mm, NT-91 occupies minimal installation space and is highly adaptable. It can be easily embedded into turnstiles, access control equipment, self-service kiosks, vending machines and various automated mechanical devices, becoming the preferred mini scanning module for B-end industrial secondary development.

Ultra-Low Error Rate Industrial-Grade Stability

The decoding error rate is less than 1/8 million, supporting full decoding of mainstream 1D and 2D barcodes including QR Code, Data Matrix, PDF417 and industrial code systems. Wide working temperature range adapts to complex factory environment, providing long-term stable and uninterrupted scanning service for industrial automated production.

Application Scenarios

Production Line Dynamic Scanning

Perfect for factory assembly line high-speed dynamic barcode identification, batch product tracking and industrial quality inspection data collection.
