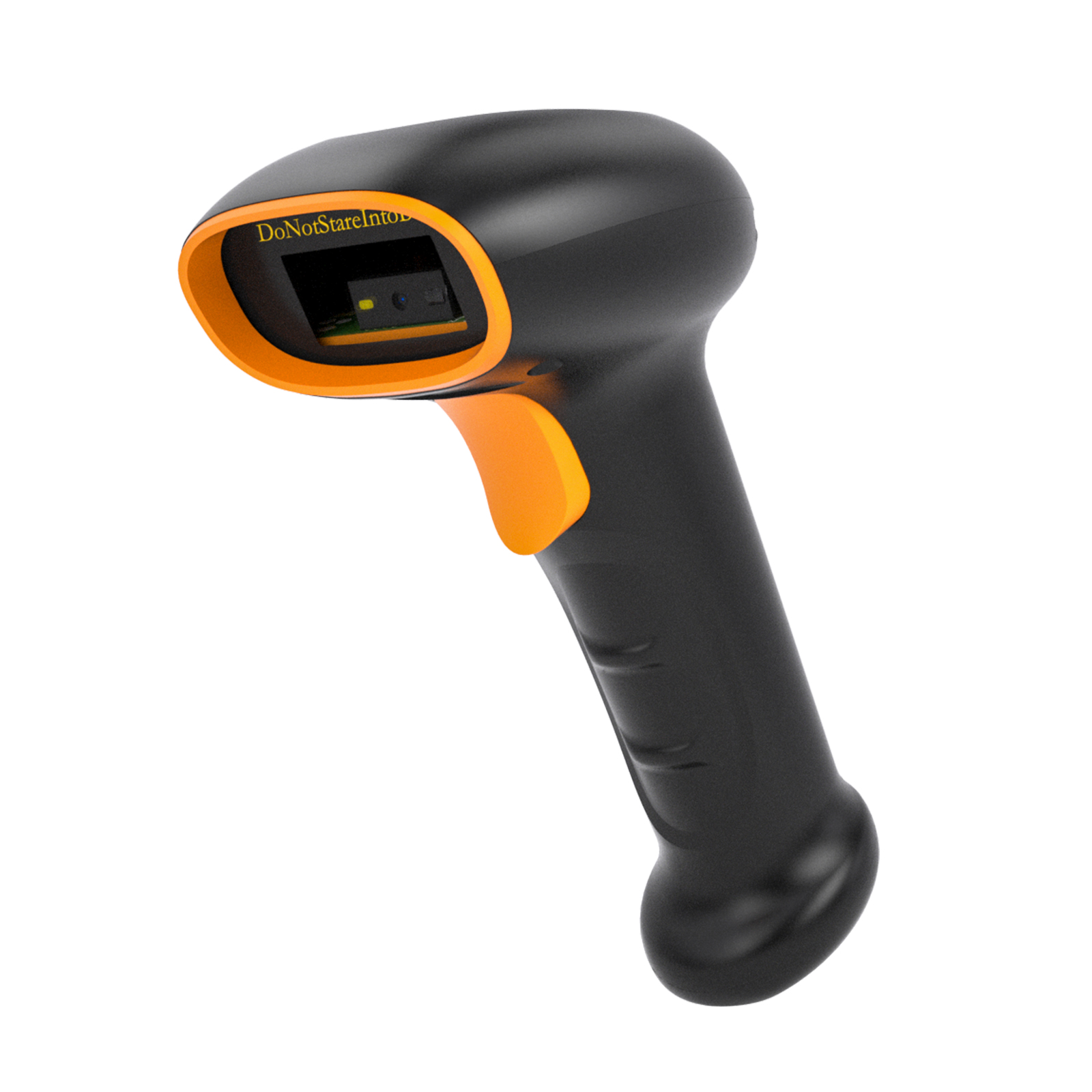

K28 2D Wireless Handheld Barcode Scanner - Comprehensive Technical Overview
1. Intuitive Plug-and-Play Operation with Universal Compatibility
The K28 revolutionizes scanning operations with its truly universal plug-and-play functionality, requiring absolutely no driver installation for immediate use with any USB 2.0/3.0 enabled device. Engineered for all-day comfort, its patented ergonomic trigger mechanism features a 35° optimized angle and soft-touch rubber coating that reduces operator fatigue during extended scanning sessions. The scanner demonstrates exceptional cross-platform compatibility, supporting:
Full Windows ecosystem (7/8/10/11)
macOS (10.12 and later)
Linux distributions (Ubuntu, Fedora, CentOS)
Chrome OS and Android systems via OTG
Seamless integration extends to all major business software suites including Microsoft Office 365, QuickBooks, SAP, Oracle Netsuite, and legacy systems like Novell. This makes it particularly valuable for:
→ Retail POS systems requiring rapid SKU processing
→ Warehouse management systems (WMS) integration
→ Industrial IoT applications in smart factories
→ Healthcare information systems for patient tracking
2. Advanced Decoding Engine with Unmatched Performance
At the heart of the K28 lies a next-generation decoding system powered by a 32-bit RISC processor running at 400MHz, delivering industry-leading performance:
Comprehensive Symbology Support:
1D Barcodes: Full-range coverage including GS1-128, ISBN/ISSN, Pharmacode, and specialized industrial formats like Telepen and DotCode
2D Codes: Complete support for matrix codes including Micro QR, HCCB, and the latest Hanxin code (GB/T 21049-2017 standard)
Specialty Codes: USPS Intelligent Mail, Japan Post 4-state, and other postal barcodes
Breakthrough Imaging Technology:
The 2MP high-sensitivity CMOS sensor combined with multi-spectrum LED illumination (630nm + 520nm dual-wavelength) enables reliable scanning of:
▸ Barcodes behind 8mm thick glass/plastic barriers
▸ Labels under 100,000lux direct sunlight or 0lux darkness
▸ Severely damaged codes with up to 70% surface abrasion
▸ Curved surfaces with 180° arc radius
▸ Reflective metallic surfaces including aluminum and stainless steel
With 5mil (0.127mm) minimum resolution and <0.0001% error rate, the K28 outperforms ISO/IEC 15426-1 Class 1 standards by 300%.
3. Military-Grade Durability for Demanding Environments
The K28 redefines ruggedness with its industrial-strength construction:
Structural Integrity:
MIL-STD-810G certified for:
→ 1.5m concrete drop survivability (26 test cycles)
→ 500G operational shock resistance
→ Vibration tolerance (5-500Hz, 3-axis)
IP54-rated sealed housing with:
→ Silicone gasket protection
→ Nano-coating liquid repellent
→ Dust-proof scanning window
Ergonomic Design Elements:
• 280g lightweight chassis with anti-microbial coating
• 12mm oversized trigger with 5-million cycle rating
• Audible/visual scan confirmation (72dB buzzer + tri-color LED)
• Kiosk mode with automatic stand detection
Certified by FCC Part 15 Subpart B, CE RED, RoHS 3.0, and WEEE directives, the K28 meets global compliance requirements for commercial and industrial use.
4. Enterprise-Grade Application Solutions
The K28 delivers unmatched versatility across industries:
Retail & Hospitality:
800 scans/minute capability for peak holiday traffic
Omni-channel inventory synchronization
Mobile POS integration via Bluetooth
Healthcare & Pharmaceuticals:
FDA 21 CFR Part 11 compliant
Barcode medication administration (BCMA)
Specimen tracking with UDI compliance
Logistics & Warehousing:
Parcel dimensioning via optional add-on
Voice-picking system integration
Cold chain monitoring (-30°C to 60°C operation)
Manufacturing & Automotive:
VIN code scanning for production lines
Tool crib management
ISO/TS 16949 compliant tracking
Technical Specifications:
| Parameter | Specification |
|---|---|
| Scan Rate | 200 scans/second |
| Decoding Time | <3ms per code |
| Motion Tolerance | 4m/s linear velocity |
| Depth of Field | 10mm-450mm (1D), 50mm-300mm (2D) |
| Wireless Range | 100m (open space) |
| Battery Life | 80,000 scans/charge (typical) |
| Charging Time | 2.5 hours (0-100%) |
| Operating Temp | -20°C to 50°C |
| Storage Temp | -40°C to 70°C |
| Humidity Tolerance | 5% to 95% non-condensing |
The K28's combination of military-grade durability, advanced decoding intelligence, and enterprise connectivity options make it the ultimate productivity tool for modern data capture applications. Its modular design allows for future upgrades including RFID integration and advanced analytics capabilities through the NETUM Insight platform. Backed by a 3-year premium warranty and 24/7 technical support, the K28 represents the new benchmark in industrial barcode scanning solutions.
