NT-M8BT 2D Wireless Barcode Scanner - Product Features

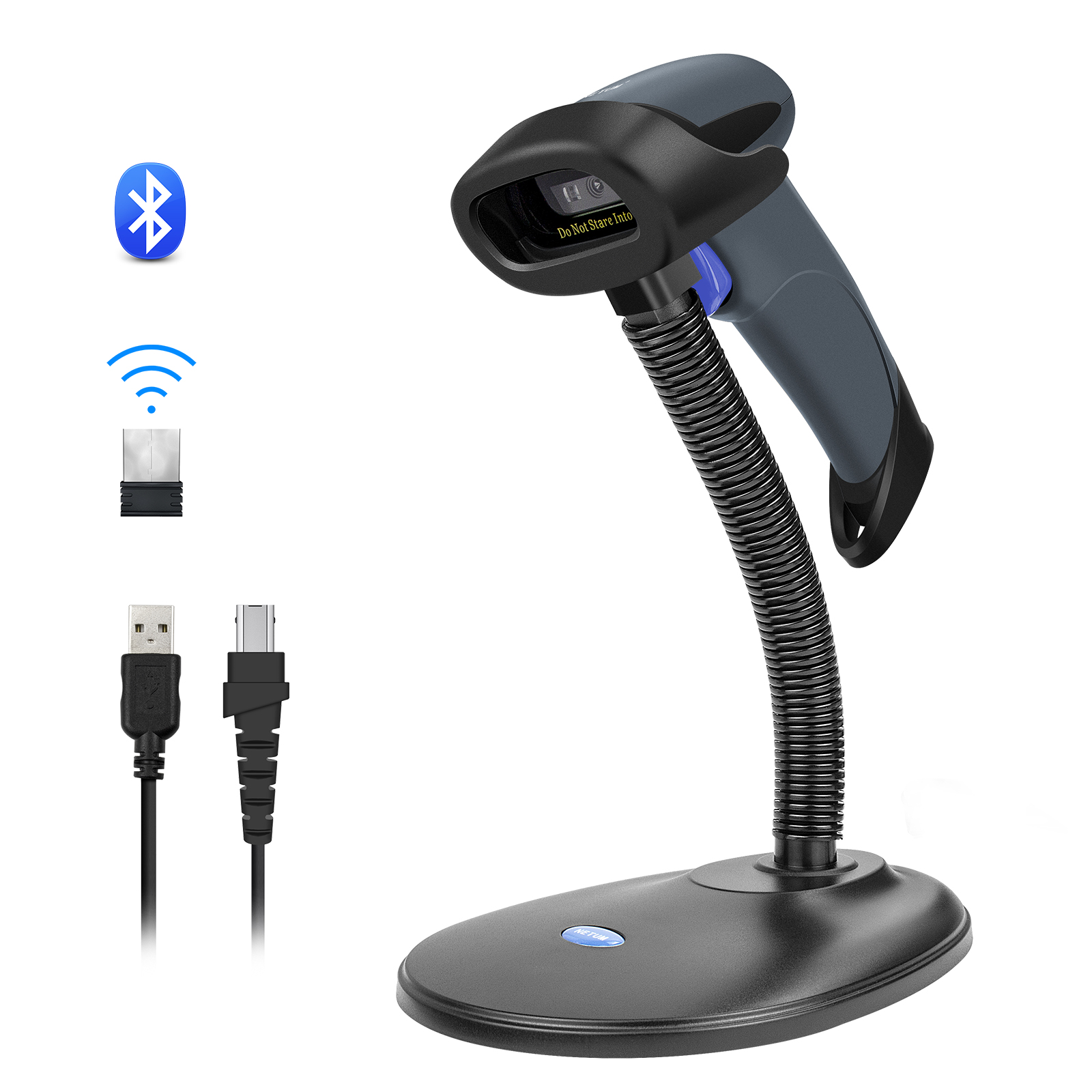

1. Tri-Mode Connectivity for Ultimate Flexibility
The NT-M8BT revolutionizes scanning operations with its innovative triple-connection system:
Bluetooth 5.0 for mobile device compatibility
2.4GHz wireless with included mini USB receiver
USB wired connection for stable data transfer
This versatile setup ensures seamless integration with any workstation configuration, from traditional POS systems to modern mobile setups, all featuring true plug-and-play functionality.
2. Advanced Memory & Offline Operation
Engineered for demanding environments, the scanner features:
256KB onboard memory capacity
Stores 2,600+ barcode records
Continuous offline scanning capability
This memory function is particularly valuable for warehouse operations and field service where network connectivity may be intermittent, with automatic data synchronization when reconnected.
3. Industry-Leading Battery Performance
The power management system delivers exceptional efficiency:
2000mAh high-density lithium battery
Advanced low-power CPU architecture
Up to 100,000 scans per charge cycle
Real-time battery level indicators
This endurance makes it ideal for round-the-clock operations in retail, logistics, and manufacturing environments.
4. Professional-Grade Scanning Capabilities
At the heart of the NT-M8BT lies a precision scanning engine:
32-bit CMOS imaging sensor
150 scans/second rapid capture
1D (≥4mil)/2D (≥5mil) high-resolution reading
630nm optimized illumination wavelength
The scanner handles all major barcode formats except GS1, including challenging screen-based and damaged codes, with consistent accuracy.
5. Rugged Enterprise Solution
Built to withstand industrial demands:
Military-grade shock resistance (1.5m drop tested)
IP54-rated dust/water protection
Ergonomic 0.35kg lightweight design
Black/yellow industrial safety coloring
Certified with CE/FCC/ROHS/ISO9001 standards and backed by a 12-month warranty, it's the reliable choice for retail, healthcare, logistics, and manufacturing applications where durability meets cutting-edge performance.
Production Description
l M8BT 2.4GWireless + Bluetooth 2D Scanner
1 | Scanning Performance | |
1.1 | Sensor: | CMOS(Global Shutter) |
1.1.2 | Resolution: | 640×480 |
1.1.3 | Illumination: | White LED |
1.1.4 | Aiming: | Red LED |
1.1.5 | Reading Accuracy: | 1D≥4mil 2D≥5mil |
1.1.6 | Scan Angle: | Rotation: 360° Pitch: ±55° Skew: ±55° |
1.1.7 | Field of View (FOV): | D:48° H:40° V:30° |
1.1.8 | Supported Symbologies: | 2D QR Code, Data Matrix, PDF417,Aztec, Maxicode，Hanxin Code 1D EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar，Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey, GS1 Databar,GS1 Composite Code,Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5 |
1.1.9 | Depth of Field (DOF): | EAN-13: 50mm–220mm (13mil) Code 39: 40mm–100mm (5mil, 10 characters) QR Code: 25mm–240mm (20mil, 16 characters) Data Matrix: 50mm–100mm (10mil, 20 characters) PDF417: 30mm–140mm (6.67mil, 7 characters)
|
1.2 | Contrast Ratio: | ≥20% |

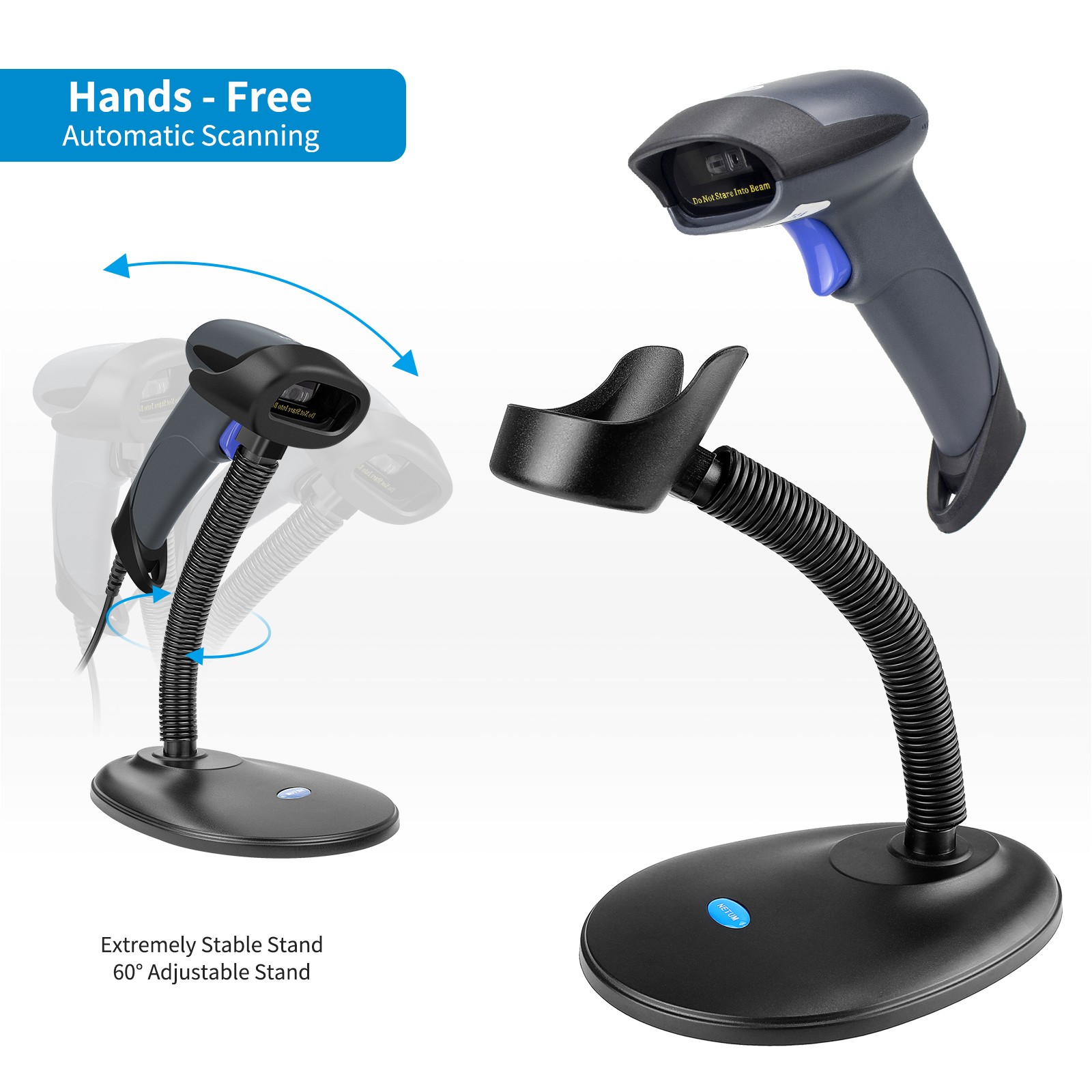

1.2.1 | Scanning Modes: | Trigger mode, Continuous scan, Auto-sensing scan |
2 | Wireless Specifications | |
2.1 | Transmission Methods: | 2.4G wireless + Bluetooth (supports protocols 2.0, 3.0, 4.0, 4.2) + Wired transmission |
2.2 | 2.4G: | 100 meters (line of sight) |
Bluetooth: | 20 meters (line of sight) | |
2.3 | Battery Capacity: | 2000mAh |
2.4 | Charging Time: | 4–5 hours |
2.5 | Standby Time: | Enters standby mode after 3 minutes of inactivity |
2.6 | Charging Input: | 5V 2A |
3 | Electrical Specifications | |
3.1 | Operating Voltage: | DC 5V±5％ |
3.2 | Operating Current: | 125mA |
3.3 | Standby Current: | 0.6μA |
4 | Physical Characteristics | |
Dimensions (L × W × H): | 165 × 65 × 90 mm | |
4.2 | Weight: | ≈166g |
4.3 | Cable Length: | 1.2m |
4.4 | Interface: | USB |
4.4 | Color: | Black |
4.5 | Material: | ABS+TPU |
4.6 | Indicators: | Buzzer, LED Indicator |
5 | Operating Environment | |
5.1 | Operating Temperature: | -10°C-50°C |
5.2 | Storage Temperature: | -20°C-70°C |
5.3 | Storage Humidity: | 5%-95%(non-condensing) |
5.4 | Ambient Light： | 0~100000 LUX |
6 | Safety & Certifications | |
6.1 | Drop Resistance: | Withstands free drops from 2 meters |
6.2 | Certifications: | CE, ROHS, FCC |
