NT-W8-X Professional 2D Barcode Scanner - Comprehensive Technical Specifications
1. Cutting-Edge Scanning Technology
The NT-W8-X incorporates precision German optical engineering with:
High-performance CMOS imaging sensor (0.05mm resolution)
200 scans/second rapid decoding capability
Multi-spectrum illumination system (630nm+520nm dual LED)
Advanced algorithms for:
Digital screen barcode recognition (LCD/OLED/e-ink)
Low-contrast/damaged label recovery
Curved surface compensation

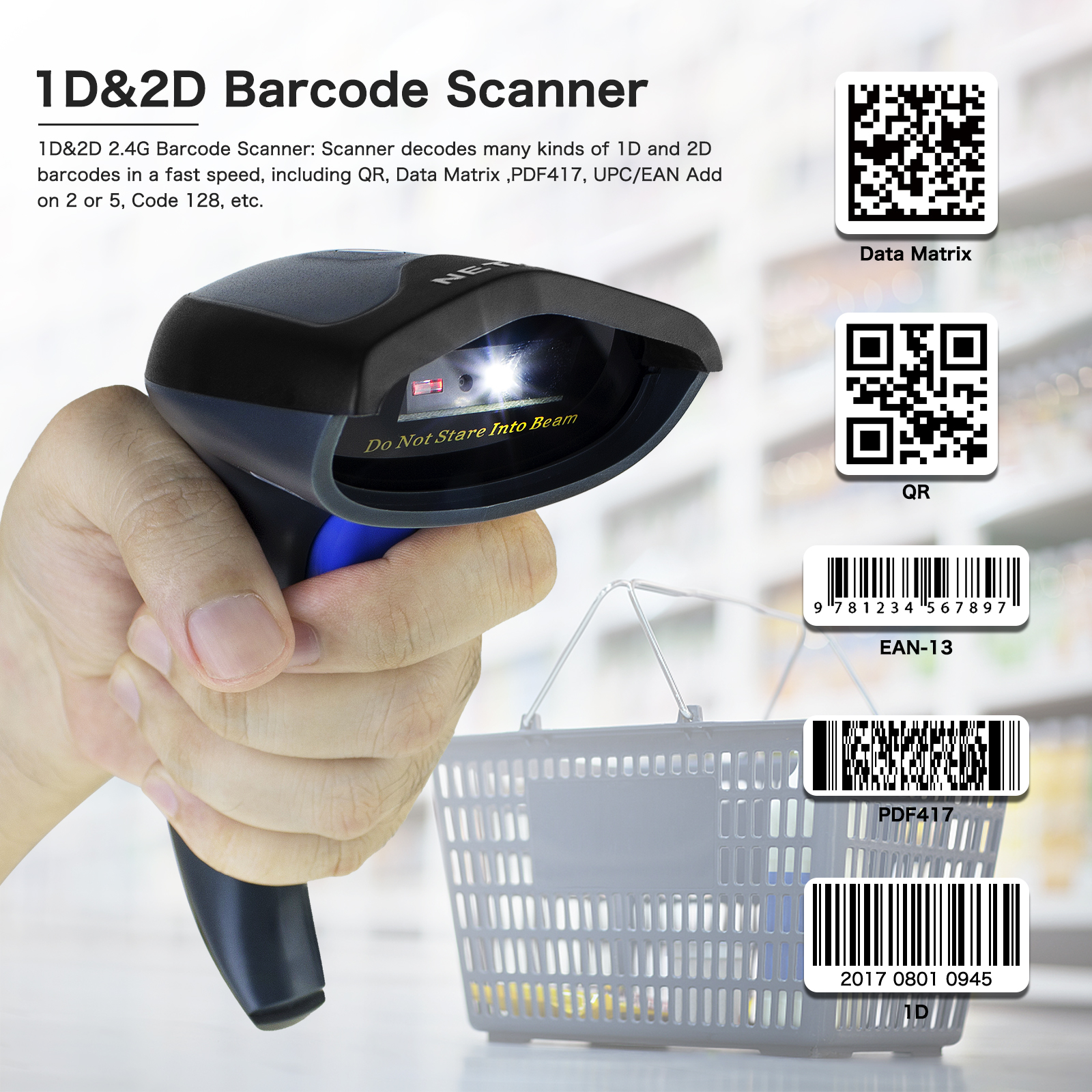

Comprehensive symbology support:
✓ QR/Datamatrix/PDF417/MicroPDF
✓ UPC/EAN with 2/5 digit add-ons
✓ GS1-128/Code 39/93/11
✓ Composite/Postal codes
✓ 20+ additional industrial formats

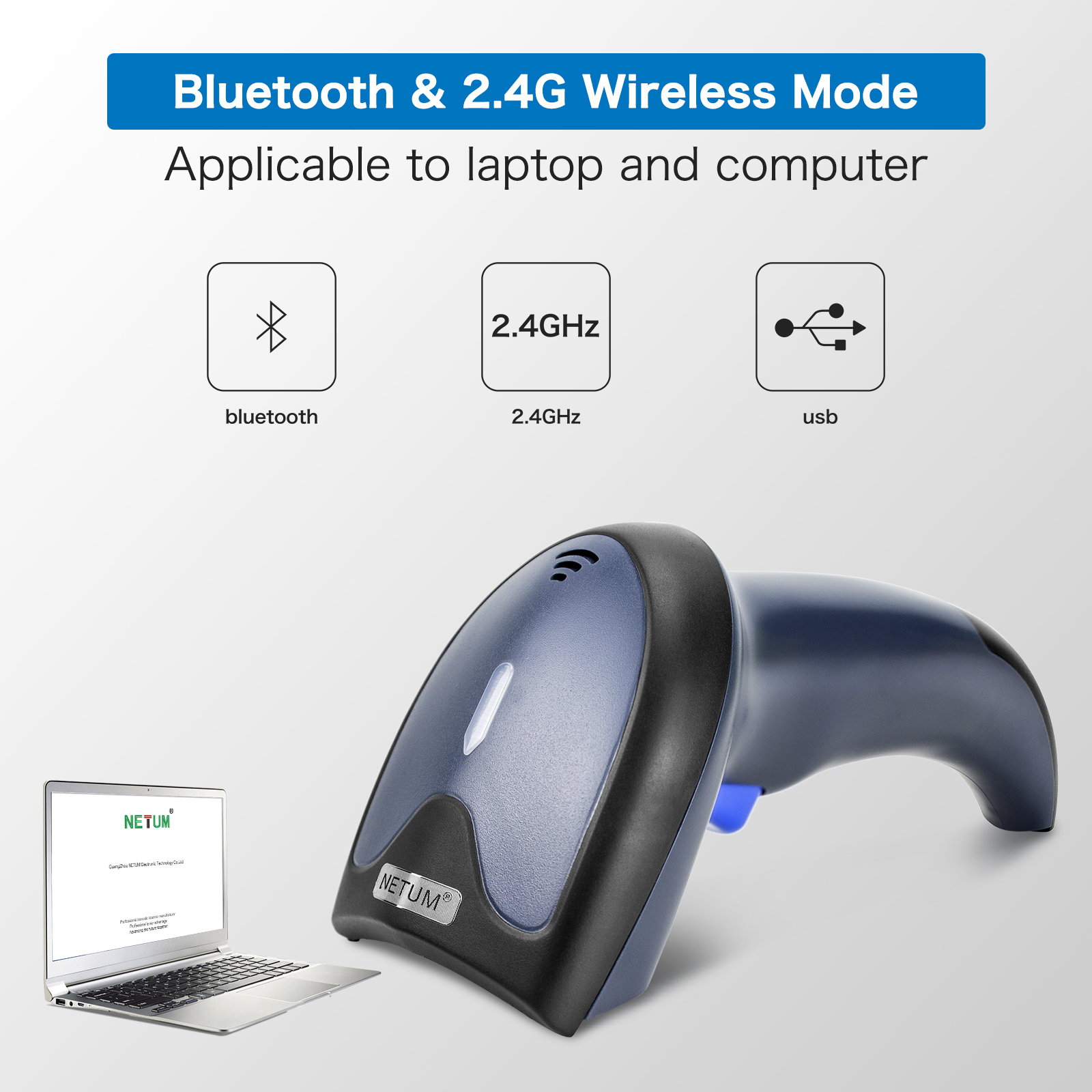

2. Enterprise-Grade Connectivity
Triple-mode connection architecture:
Bluetooth 5.0:
35m operational range (open space)
BLE 4.2 backwards compatibility
HID/SPP profile support
2.4GHz Wireless:
30m+ stable transmission
Frequency hopping technology
Included USB nano receiver
Wired USB:
USB 2.0 Full Speed
Keyboard emulation mode
Automatic cable detection
3. Military-Spec Durability
Constructed for 24/7 industrial operation:
Reinforced TPU housing (3.5-6.5mm impact zones)
MIL-STD-810G certified:
→ 1.8m concrete drop survival
→ 500G operational shock
→ IP54 dust/moisture resistance
Internal protection system:
• Vibration-dampened scanner module
• Shock-absorbent mounting
• Industrial-grade component fixation
Ergonomic design:
✓ 180g balanced weight
✓ Anti-slip grip surfaces
✓ Single-handed operation
4. Intelligent Power Management
Advanced energy system features:

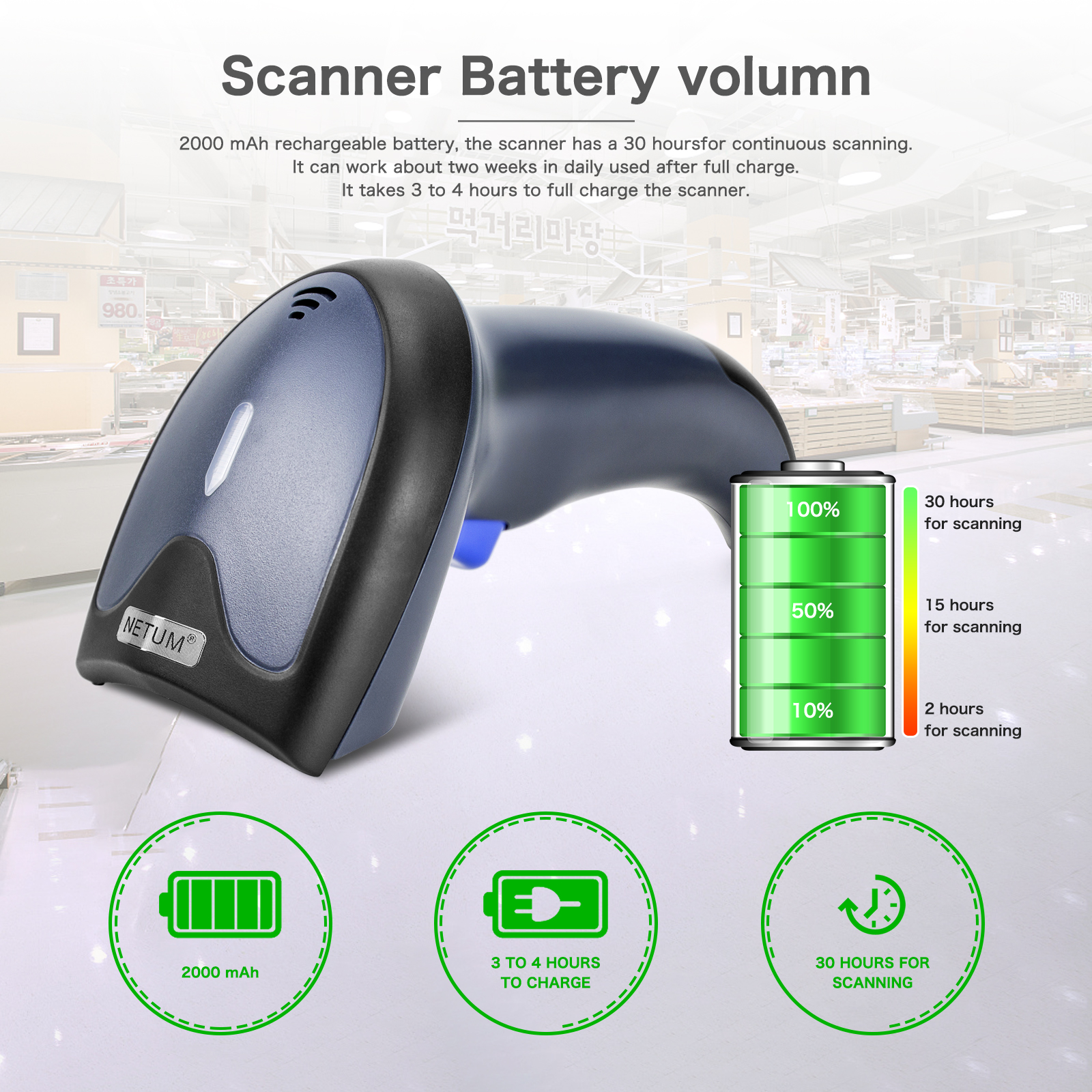

2000mAh Li-Polymer battery:
15-day typical operation
60,000+ scan cycles/charge
3.5 hour quick charge
Smart power modes:
Active scanning (200mA)
Standby (8mA)
Deep sleep (0.5mA)
Battery protection:
✓ Overcharge/discharge prevention
✓ Temperature monitoring
✓ Cycle life optimization
5. Professional Application Solutions
Optimized workflow integration for:
◉ Large-format Retail:
Hypermarket checkout
Mobile price verification
Shelf inventory management
◉ Logistics & Warehousing:
Pallet tracking
Loading dock operations
Yard management
◉ Industrial Manufacturing:
Work-in-process tracking
Tool crib management
Quality control stations
Technical Specifications:
| Parameter | Specification |
|---|---|
| Image Sensor | 2MP Global Shutter CMOS |
| Scan Rate | 200 scans/second |
| Motion Tolerance | 4m/s linear velocity |
| Depth of Field | 50mm-450mm (1D), 30mm-300mm (2D) |
| Decoding Time | <3ms per code |
| Operating Temp | -20°C to 50°C |
| Storage Temp | -40°C to 70°C |
| Humidity Tolerance | 5% to 95% non-condensing |
| Wireless Security | 128-bit AES encryption |
| Certifications | CE/FCC/RoHS/ISO9001 |
Included Accessories:
USB charging cable
2.4GHz nano receiver
Quick start guide (6 languages)
Warranty card (12 months)
The NT-W8-X represents the pinnacle of wireless barcode scanning technology, combining laboratory-grade optical performance with jobsite-ready durability. Its unprecedented 35m wireless range and intelligent power system create new possibilities for enterprise mobility, while the German-engineered scanning core delivers best-in-class first-pass read rates. Whether for retail mega-stores, distribution centers, or manufacturing plants, the NT-W8-X provides the reliability and performance demanded by modern data capture applications.
