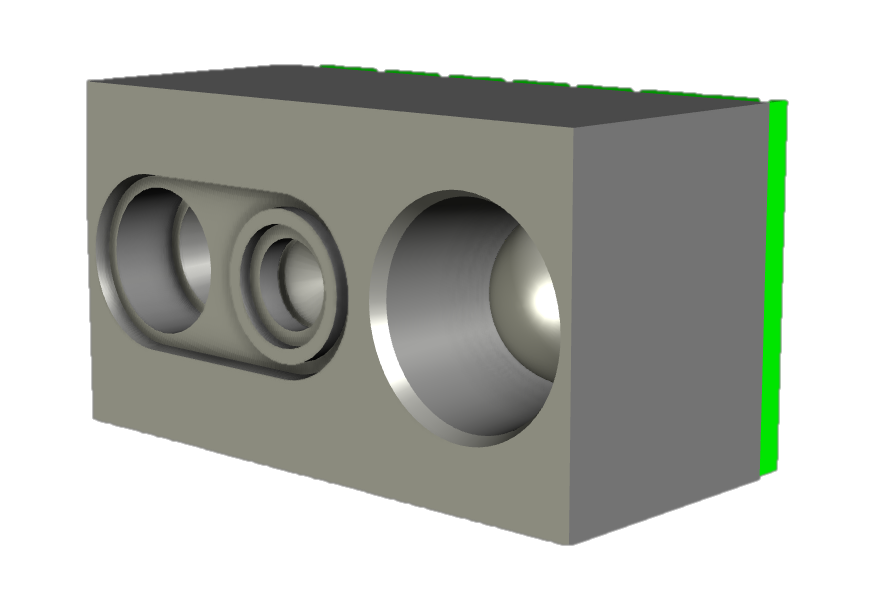

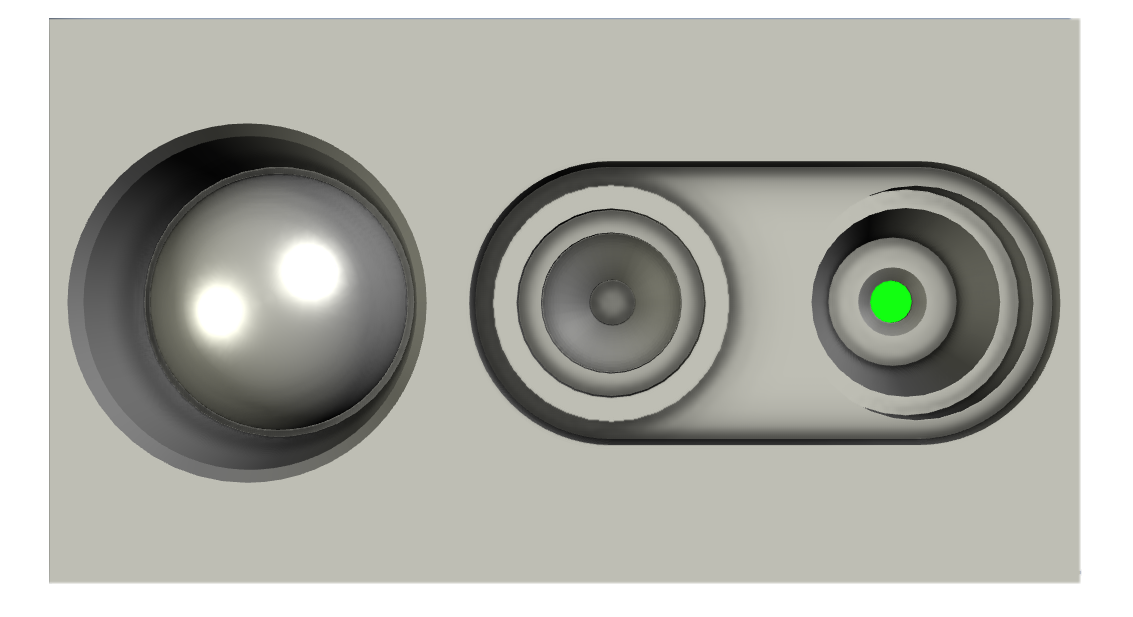

NETUM NT-212F: 1.28MP 2D & QR Code Scanner Module
Compact 2D Barcode Reader Module & QR Code Reader Module
NETUM proudly introduces the NT-212F, a high-performance 2D barcode reader module and QR code scanner module designed for embedded applications. Equipped with a 1.28 million pixel (1280×800 CMOS) sensor, this versatile scanner module efficiently decodes both 1D and 2D barcodes, including QR codes, Data Matrix, PDF417, and more.
Key Features:
1.28MP Sensor: High-resolution image capture for accurate barcode reading.
Versatile Barcode Support: Reads a wide range of 1D and 2D codes, ensuring compatibility with various barcode formats.
Compact Design: Small form factor for easy integration into PDA devices, tablets, and other slim equipment.
Multiple Interfaces: Supports USB and TTL-232 interfaces for flexible connectivity options.
Wide Operating Temperature Range: Functions effectively from -20°C to +50°C.
ESD Protection & Dust Resistance: Built-in ESD protection and sealed design for durability in harsh environments.
Applications:
Ideal as a 2D barcode scanner module, QR code reader module, and QR code scanner module for use with PDA devices, tablet computers, lightweight equipment, traditional self-service terminals, and more.
Technical Specifications:
| Parameter Category | Specifications |
|---|---|
| Sensor | 1280×800 CMOS |
| Illumination | White LED |
| Aiming | Red LED |
| Barcode Types Supported | QR Code, Data Matrix, PDF417, EAN, UPC, Code 39, Code 93, Code 128, etc. |
| Decoding Precision | ≥5mil |
| Reading Depth of Field | Varies by barcode type; e.g., EAN-13: 35mm-420mm (13mil) |
| Contrast Ratio | ≥25% |
| Scan Angles | Rotation 360°, Tilt ±55°, Skew ±55° |
| Field of View | Horizontal 42°, Vertical 28° |
| Communication Interfaces | TTL-232, USB (HID-KBW, Virtual COM Port) |
| Dimensions | 10.4mm(L) x 21.8mm(W) x 11.9mm(H) |
| Operating Voltage | DC 3.3V |
| Operating Current | 180mA |
| Standby Current | 30mA |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Ambient Light | 0~100,000 LUX |
Accessories:
Development board (with trigger button and buzzer)
USB cable
RS232 cable
5V power adapter
