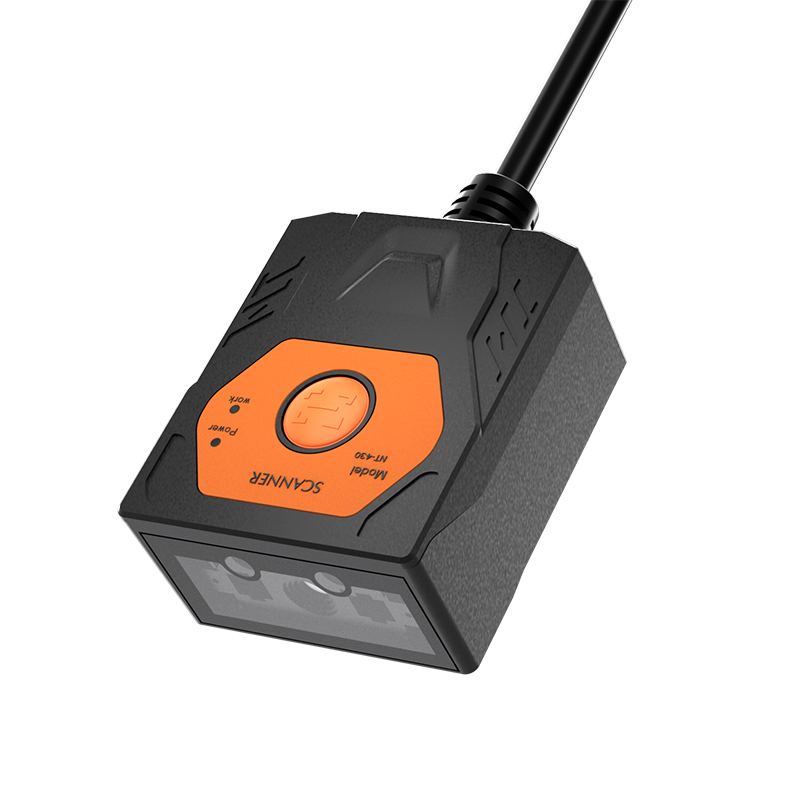

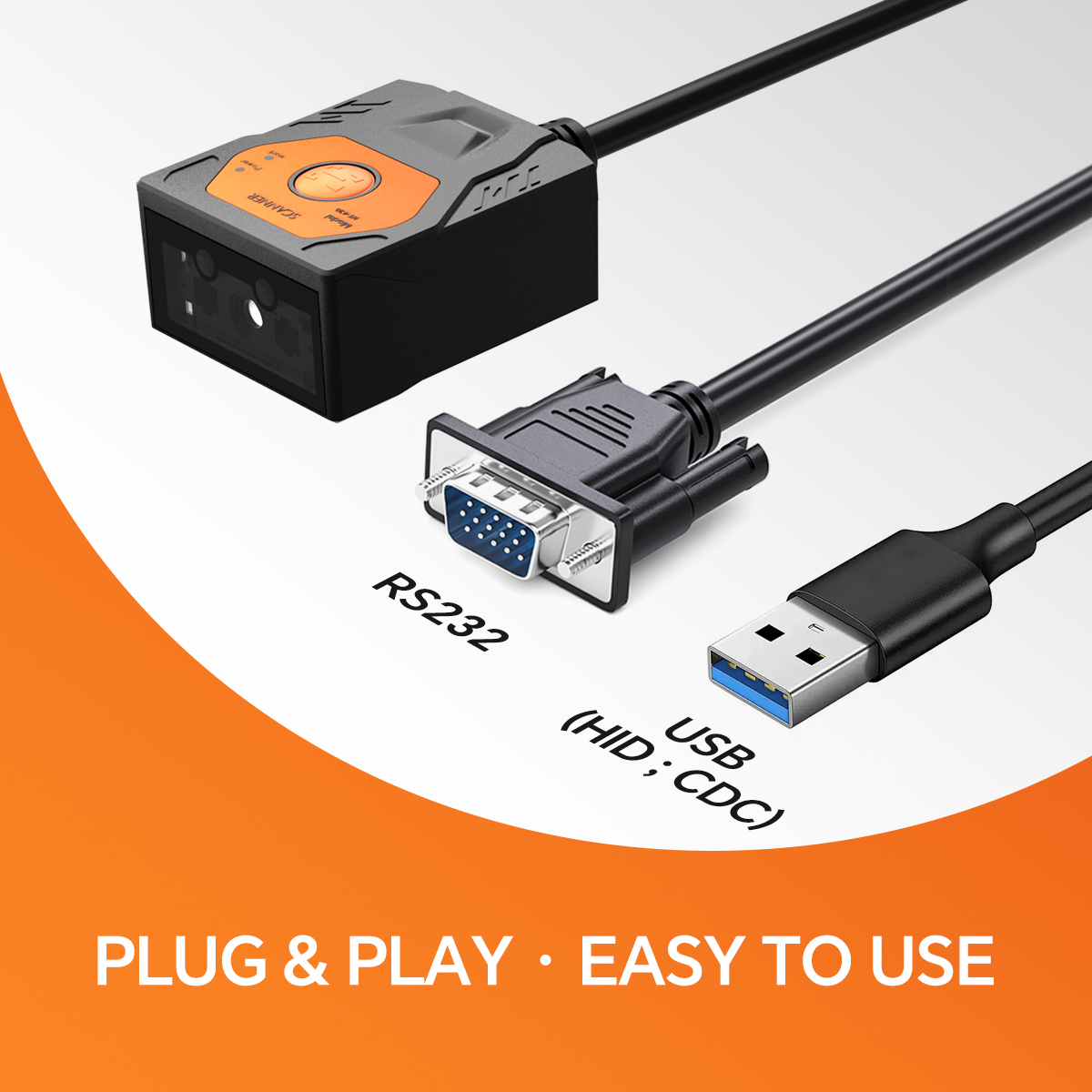

NT-430 Industrial Fixed Mount Barcode Scanner

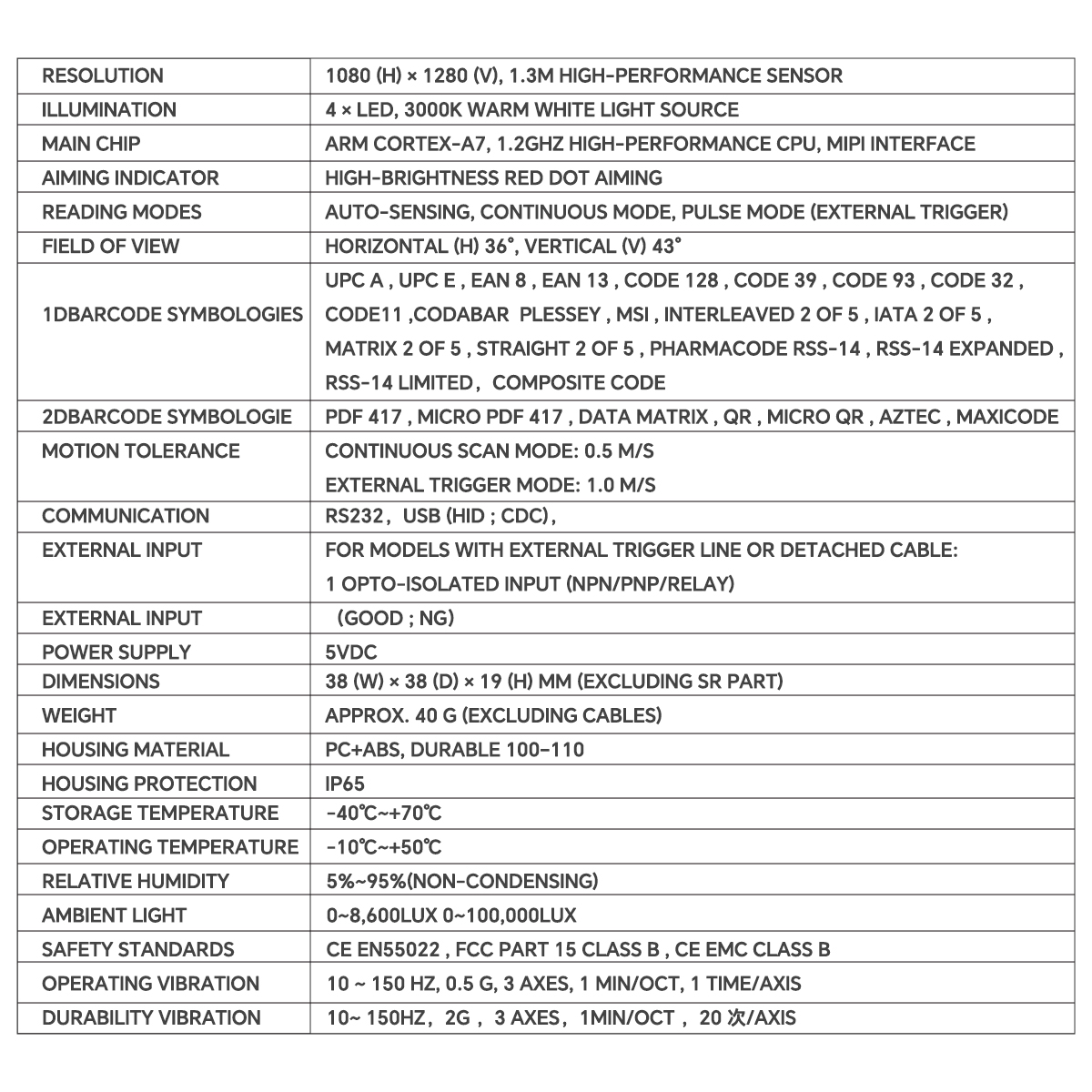

Performance and Specifications

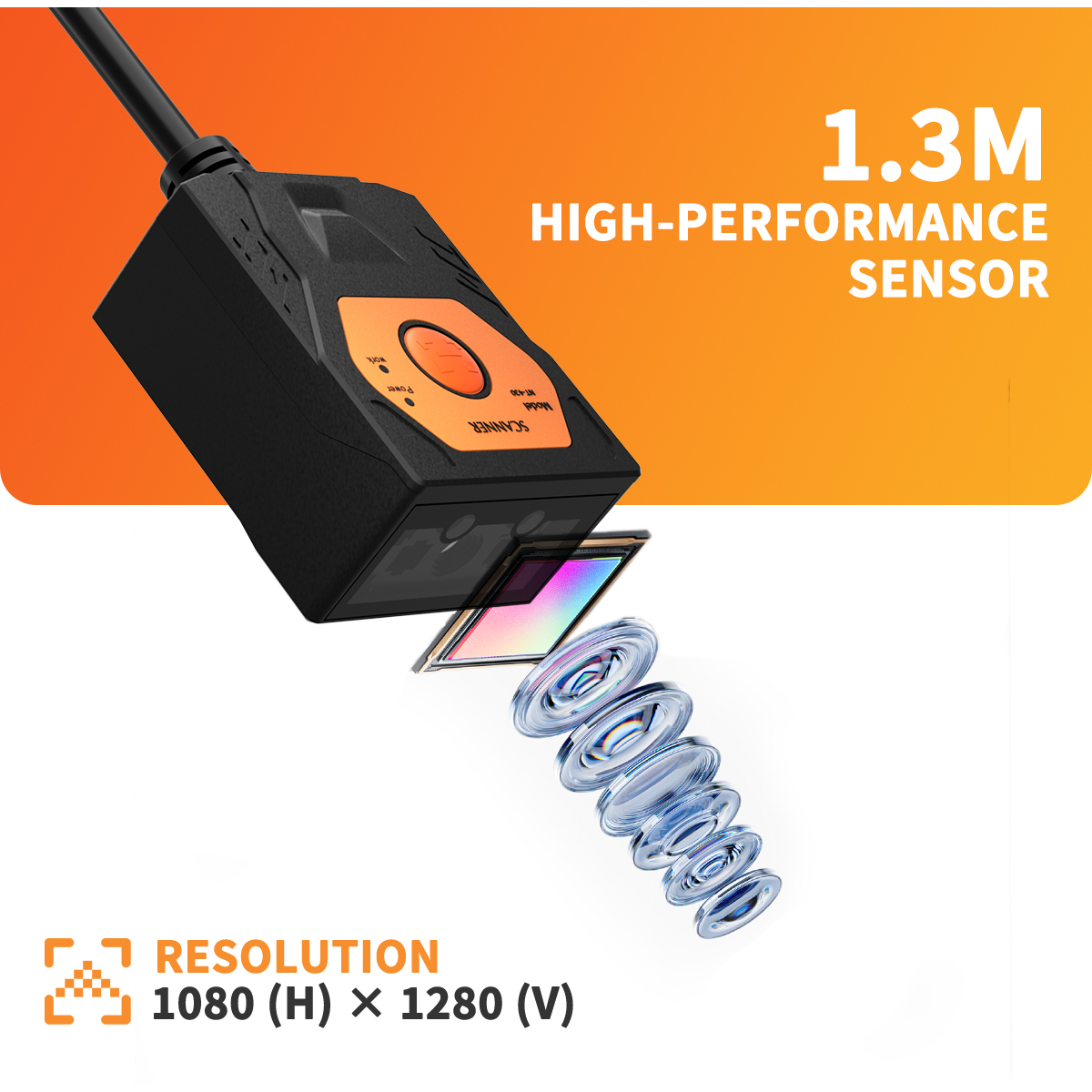

Resolution
1080 (H) × 1280 (V), 1.3M high-performance sensor

Illumination
4 LEDs, 3000K warm white light source

Main Chip
ARM Cortex-A7, 1.2GHz high-performance CPU, MIPI interface

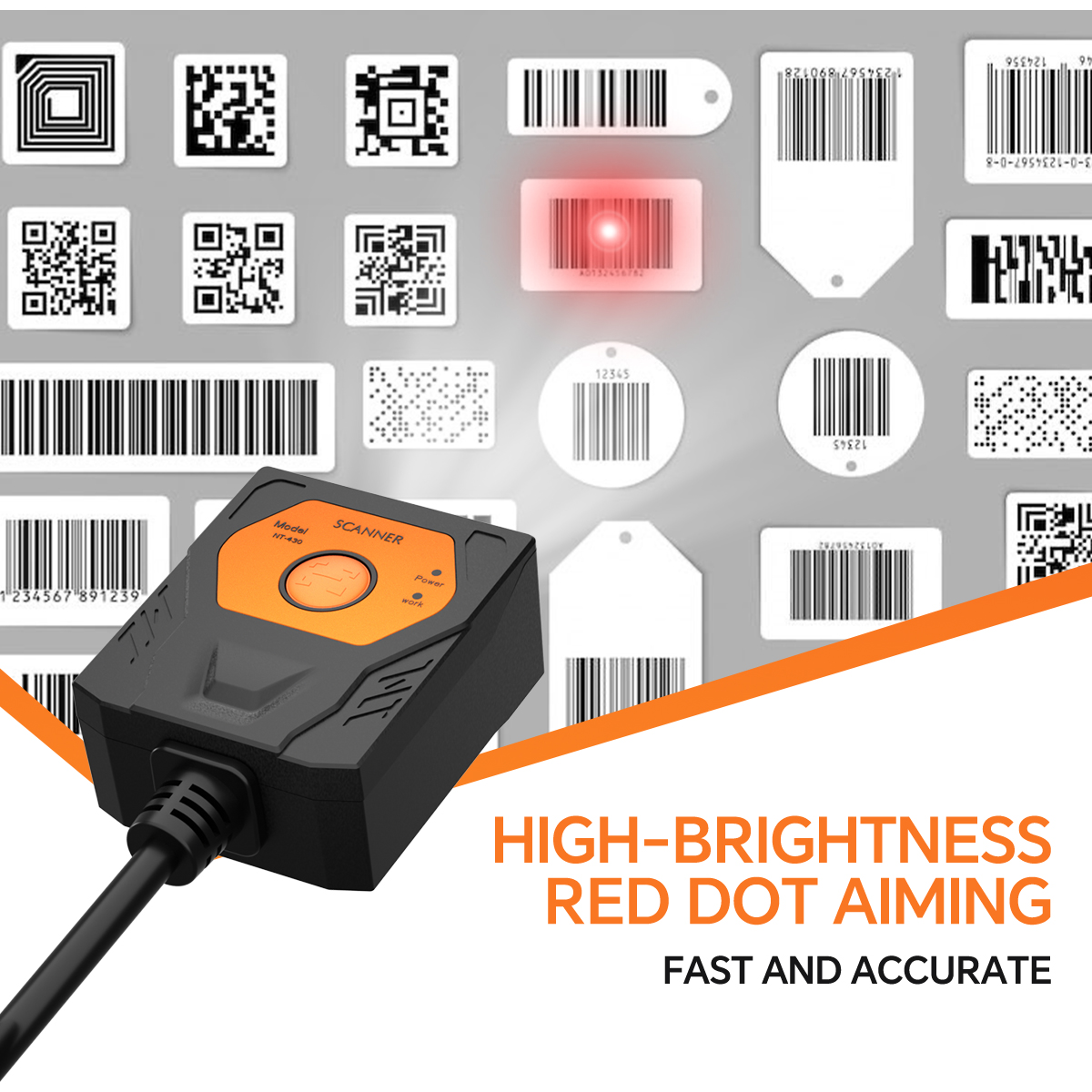

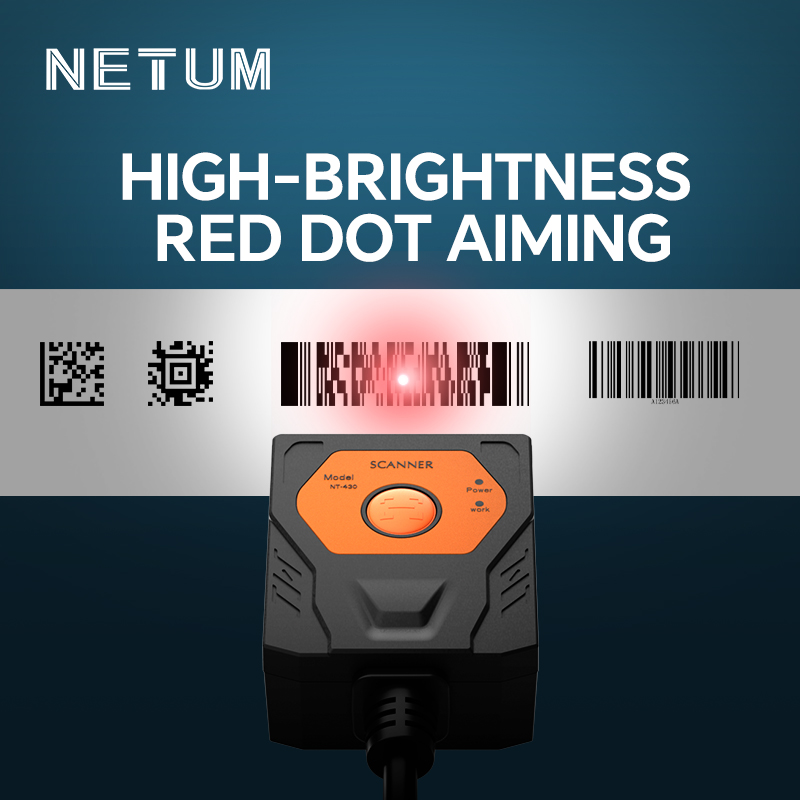

Aiming Indicator
High-brightness red dot aiming

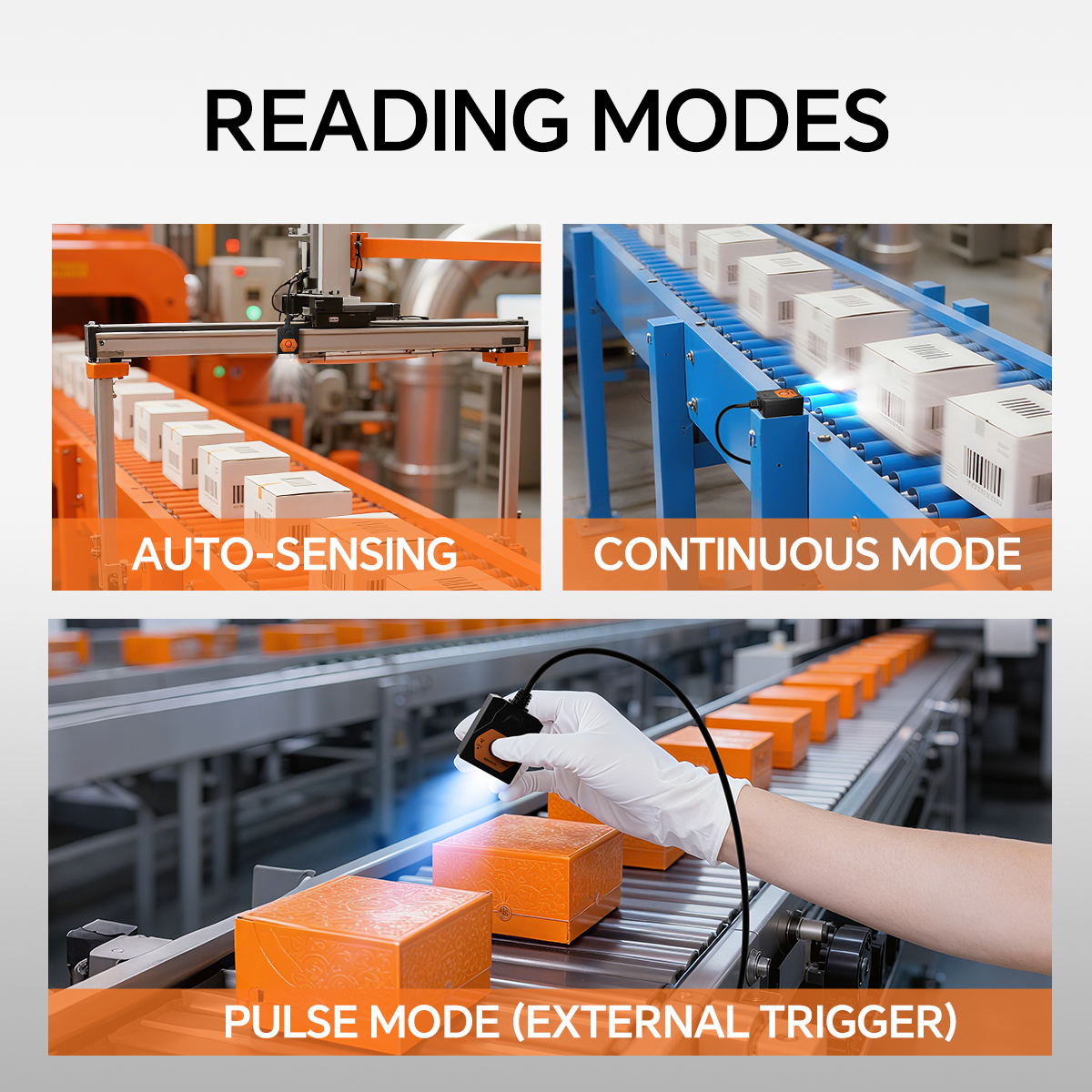

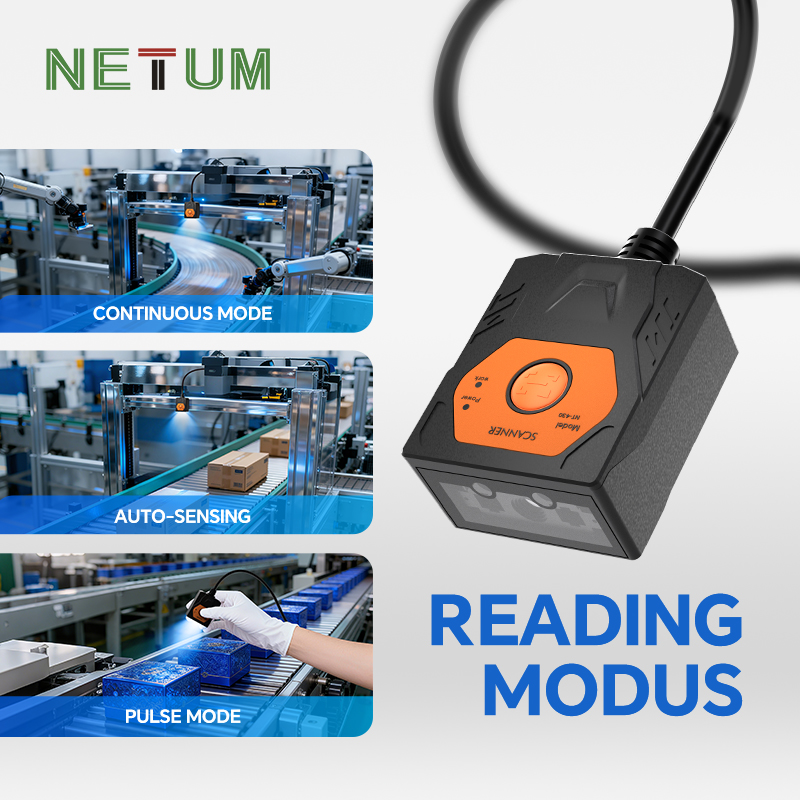

Reading Modes
Automatic sensing, continuous mode, pulse mode (external trigger)

Field of View
Horizontal (H): 36°, Vertical (V): 43°

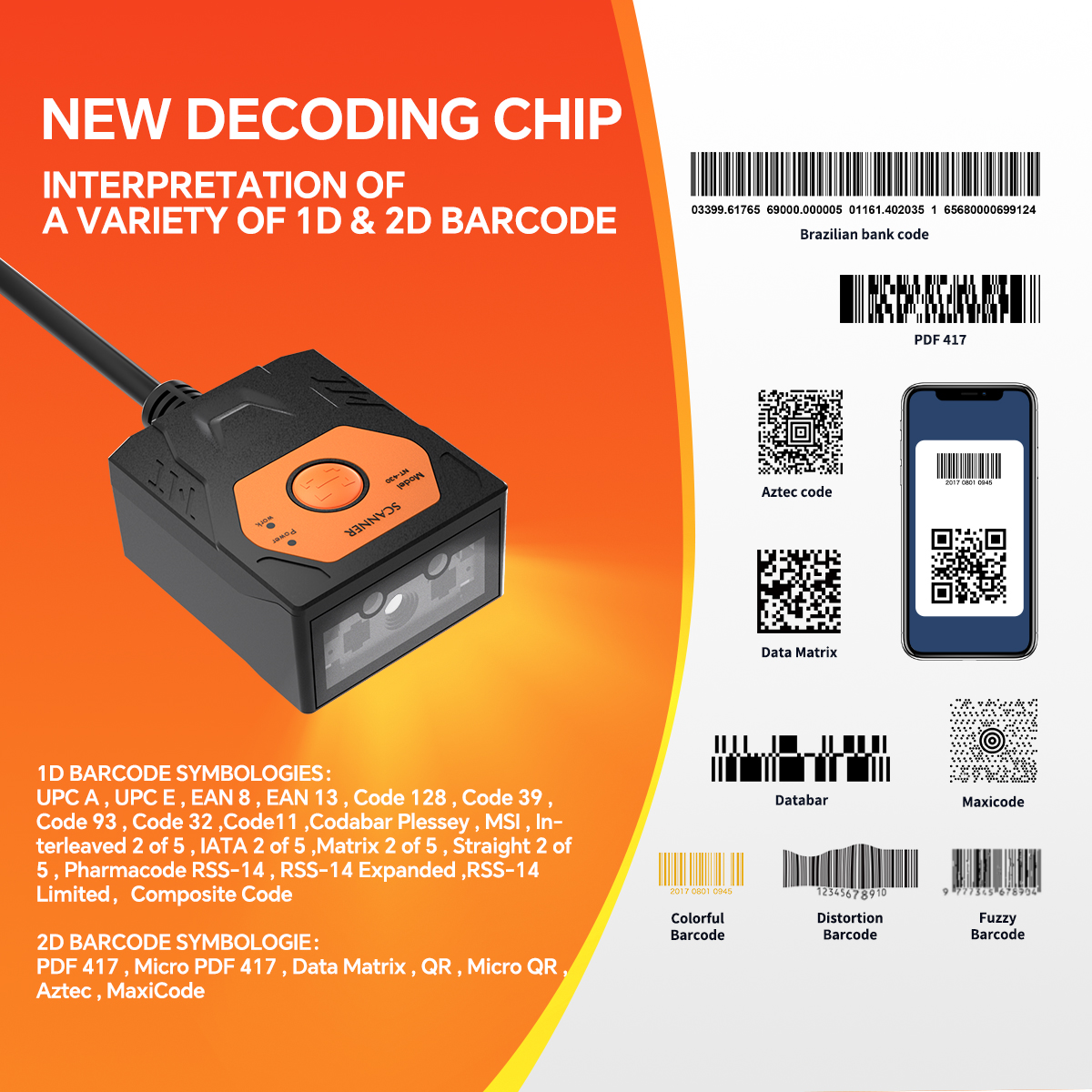

1D Barcode Symbologies
UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 32, Code 11, Codabar,
Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode,
RSS-14, RSS-14 Expanded, RSS-14 Limited, Composite Code

2D Barcode Symbologies
PDF417, Micro PDF417, Data Matrix, QR, Micro QR, Aztec, MaxiCode

Motion Tolerance

• Continuous scan mode: 0.5 m/s

• External trigger mode: 1.0 m/s

Data Interfaces

• Communication: RS232, USB (HID; CDC)

• External Input: With external trigger wire or separate cable version: 1 channel optocoupler isolated input (NPN / PNP / Relay)

• External Output: Separate cable version: 2 channels optocoupler isolated output (Good; NG)

Power Supply
5VDC

Physical Characteristics

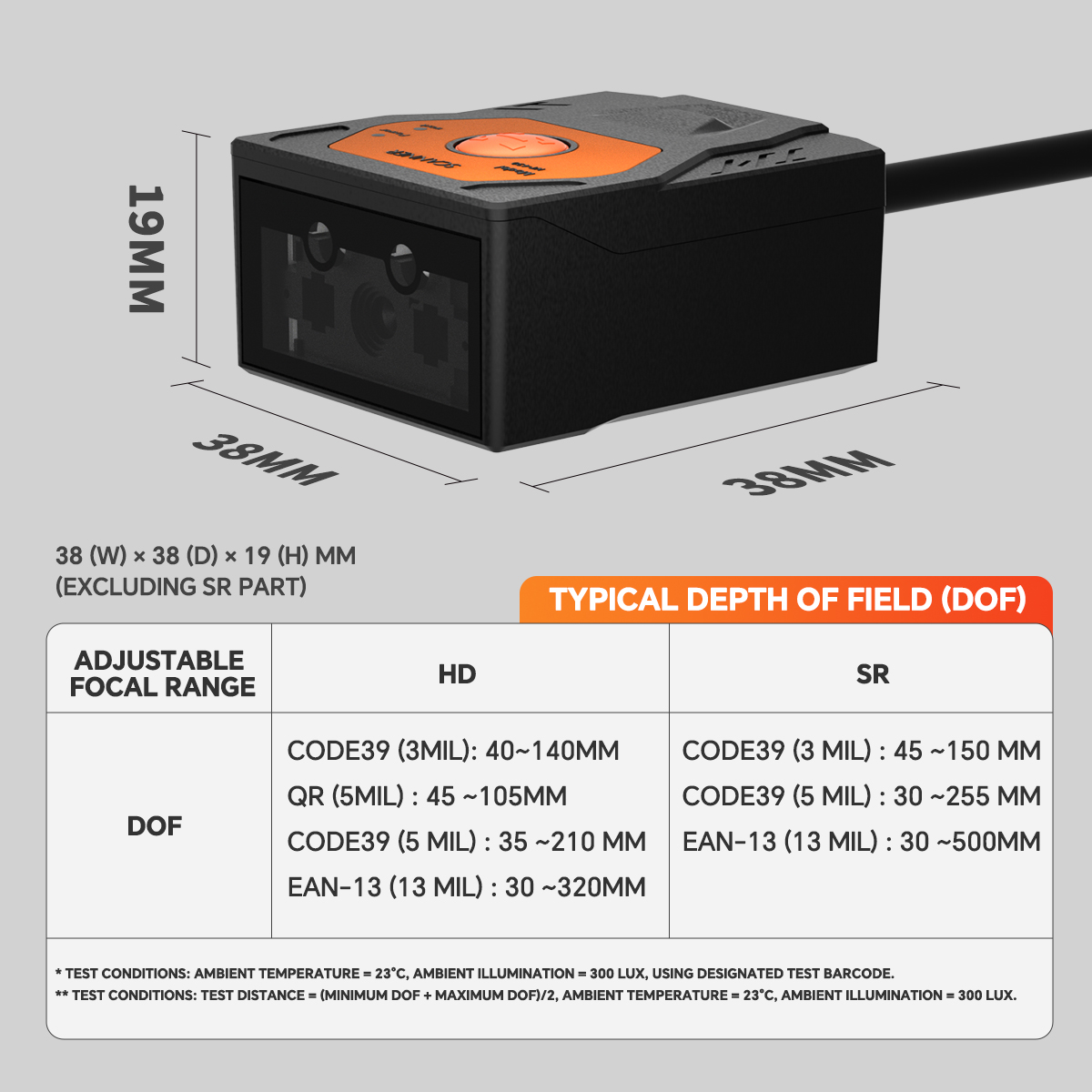

Dimensions
38(W) × 38(D) × 19(H) mm (excluding SR part)

Weight
Approx. 40g (excluding cable)

Housing Material
PC+ABS, resistance 100–110

Protection Rating
IP65

Reliability

Storage Temperature
-40℃ ~ +70℃

Operating Temperature
-10℃ ~ +50℃

Relative Humidity
5% ~ 95% (non-condensing)

Ambient Light Immunity
0 ~ 8,600 Lux (fluorescent), 0 ~ 100,000 Lux (sunlight)

Certifications
CE EN55022, FCC Part 15 Class B, CE EMC Class B

Operational Vibration
10 ~ 150Hz, 0.5G, 3 axes, 1min/oct, 1 time/axis

Durability Vibration
10 ~ 150Hz, 2G, 3 axes, 1min/oct, 20 times/axis

Typical Reading Depth of Field

Focal Range: Adjustable

• HD Model

• Code39 (3 mil): 40 ~ 140 mm

• QR (5 mil): 45 ~ 105 mm

• Code39 (5 mil): 35 ~ 210 mm

• EAN-13 (13 mil): 30 ~ 320 mm

• Reading Precision: 1D ≥ 3 mil; 2D ≥ 5 mil

• DOF:

• SR Model

•


• Code39 (3 mil): 45 ~ 150 mm

• Code39 (5 mil): 30 ~ 255 mm

• EAN-13 (13 mil): 30 ~ 500 mm

• Reading Precision: 1D ≥ 3 mil; 2D ≥ 7 mil

• DOF:

Test Conditions: Ambient temperature = 23℃, Ambient light = 300 Lux, using our designated test samples.
