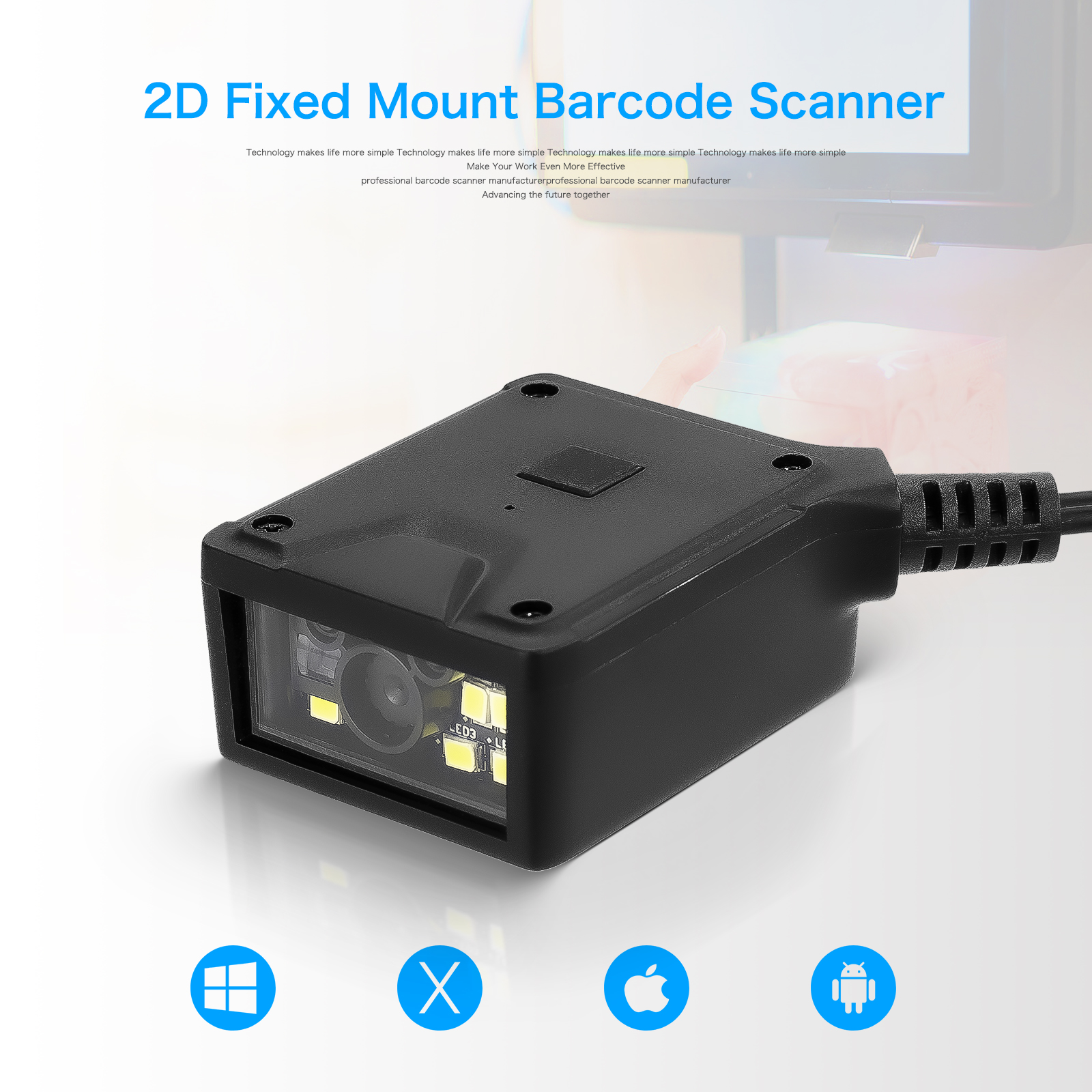

NT-91 Fixed Mount Barcode Scanner

Scan Element Type: CMOS Minimum Resolution: 1D :5 Mil 2D: 5 Mil Scan speed:150 times/sec

Imager Sensor: 640×480

Minimum Resolution: 1D≥5mil 2D≥5mil

Scan Angle:

Depth of Field: 20mm - 240mm

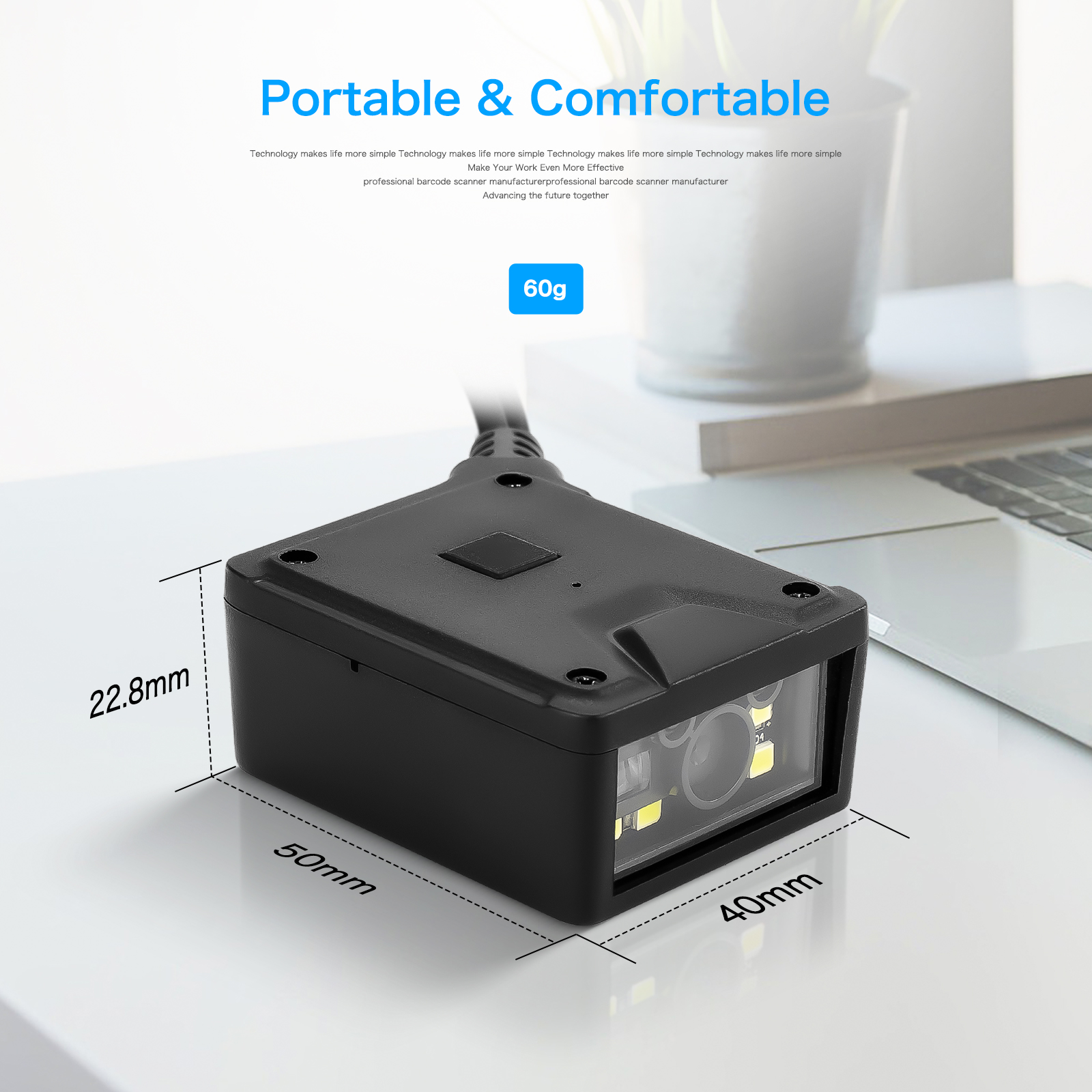

Size: 50 x 40 x 22.8 mm

Operating Temperature: -10℃ to 50℃

fixed mount barcode scanner fixed barcode scaner Industrial barcode scanners

Light Resource	CMOS
Pixel	640×480 CMOS(Global Shutter)

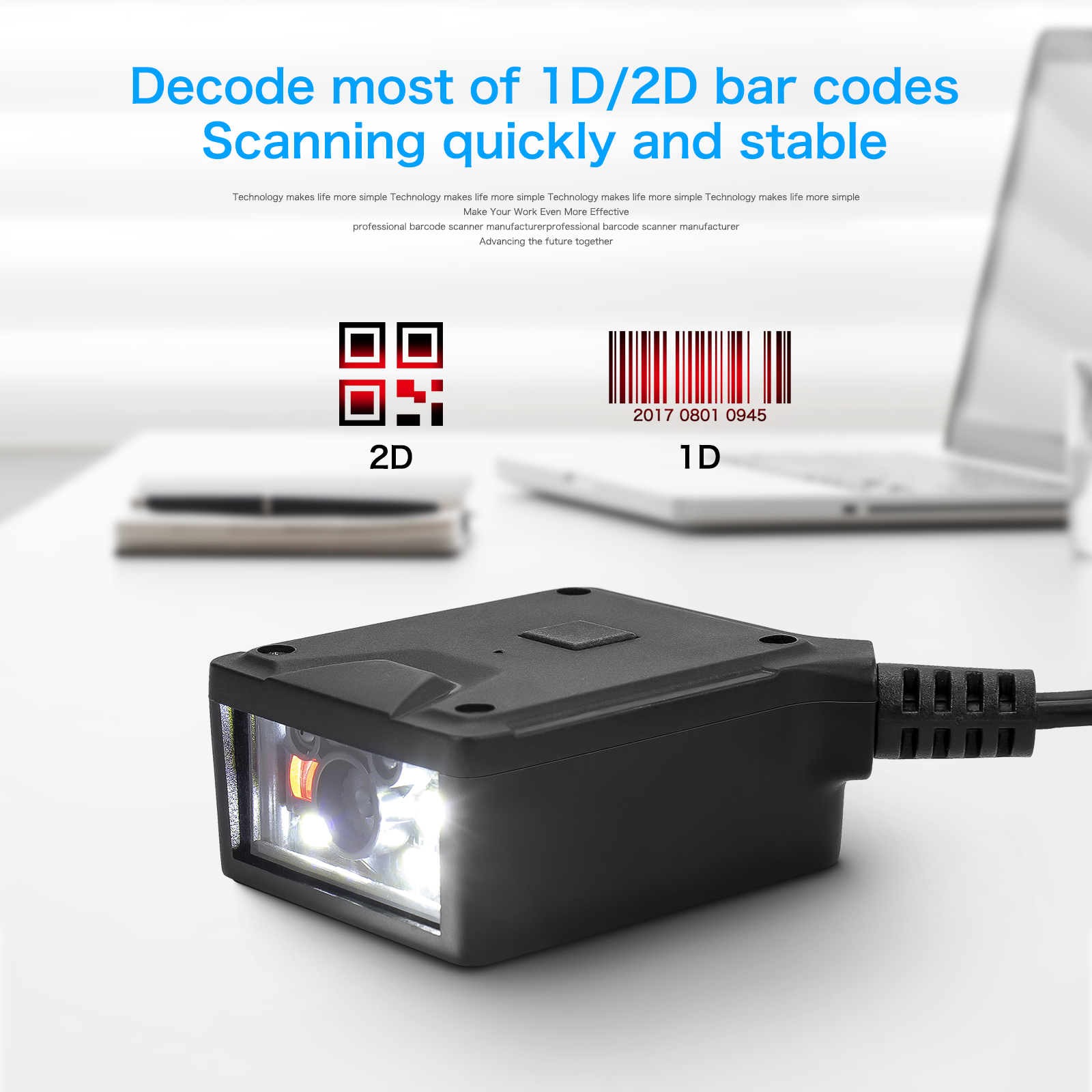

Supported Symbologies	2D: QR Code, Data Matrix, PDF417,Aztec, Maxicode 1D : Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, JAN-8&JAN-13,ISBN/ISSN, UPC-E, UPC-A, (Expanded stacked)Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Code32,IATA 2 of 5,Pharmacode GS1 databar stacked, Limited, Expanded, Codebar(NW7)
Indicator	Red + White LED

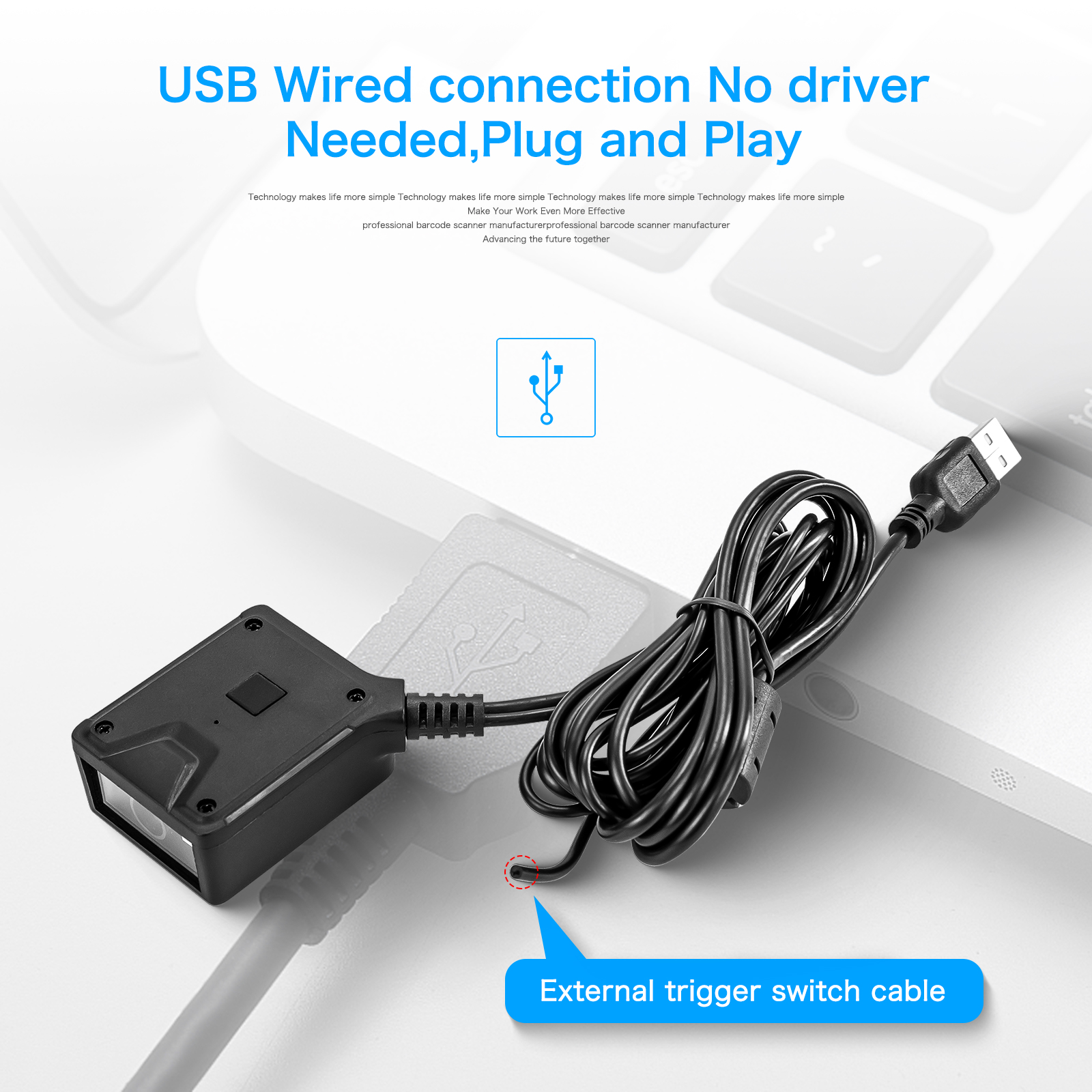

Interface	USB(HID/Virtual COM Port);RS-232
Decode speed	5 in/s(12.7 cm)
Decode error rate	Less than 1/8 million
Depth of scan field	EAN-13 30mm-210mm (13mil) Code39 25mm-95mm （5mil） QR Code 20mm-240mm (20mil) Data Marix 30mm-100mm （10mil） PDF 417 25mm-130mm (6.67mil)
Print Contrast Signal	≥ 25°
Scan angle	52°(H)x32°(V)
Scan mode	Handheld; Auto sensor
