1.1

Image Senso：

CMOS

1.2

Resolution：

640×480,Global Shutter

1.3

Light Source:

White LED (6500K)

1.4

Scan Mode:

Area Imaging

1.5

Resolution Capability：

1D ≥5mil

2D ≥6mil

1.6

Print Contrast:：

≥30%

2

Decoding Performance

2.1

Field of View

D:52° H:42.7° V:32.4°

2.2

Scan Angle::

Roll: 360°，Pitch: ±55°，Skew: ±55°

2.3

Scan Performance (Depth of Field):

Code 128: 10 mm – 60 mm (5 mil, 8 bytes)

EAN-13: 0 mm – 95 mm (13 mil)

QR Code: 10 mm – 130 mm (15 mil, 40 bytes) WeChat Pay Code: 10 mm – 260 mm (QR Code)

2.4

Decoding Capability

2D QR Code, Data Matrix, PDF417

1D EAN-13, EAN-8, UPC-A, UPC-E, Code 39,Code 128, ISBN,

Code 93, Code 11,UCC/EAN-128,Interleaved 2 of 5

Read Speed

26 kbps (ISO 15693), 106kbps (ISO 14443)

Antenna

Integrated balanced antenna, 25 mm × 14 mm

Carrier Frequency

26 kbps (ISO 15693)

106 kbps (ISO/IEC 14443)

High-Frequency RFID Tag Support

· ISO 15693: ICODE SLI2, LRI512, my-d, Tag-it HF-I

· Proprietary: ICODE SLI, PicoTag (no anti-collision), Tag-it HF

· ISO/IEC 14443 Type A & B compatible tags (all variants including MIFARE, Sony FeliCa)

Transmission Format

ASCII、 HEX

Maximum RFID

Reading Distance

0- 20 mm

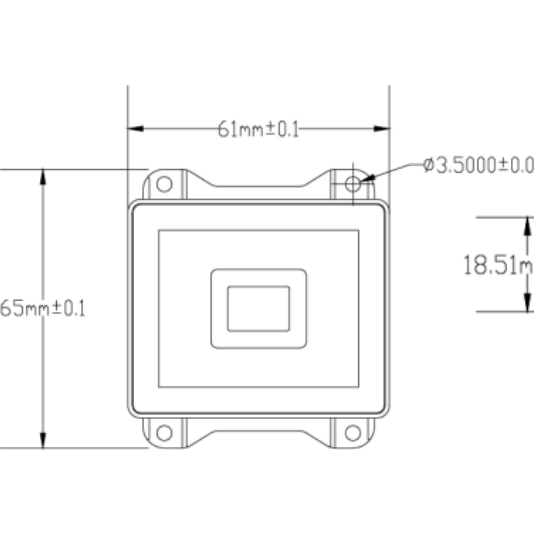

1.1

Dimensions::

61mm*65mm*18.51mm mm

1.2

Color:

Black + Translucent Off-White

2

Electrical Characteristics

2.1

Operating Voltage:

DC5.0V±5%

2.2

Operating Current:

400 mA (Peak)

3

Environmental Specifications

3.1

Operating Temperature:

-10°C-50°C

3.2

Storage Temperature:

-20°C-70°C

3.3

Operating Humidity:

5% – 95% RH (Non-condensing)

3.4

Ambient Light Immunity:

0~60000 lx

3.5

ESD Protection:

Contact Discharge: ±8 kV Air Discharge: ±12 kV

3.6

Drop Resistance:

Withstands 1.5 m drop onto concrete surface
