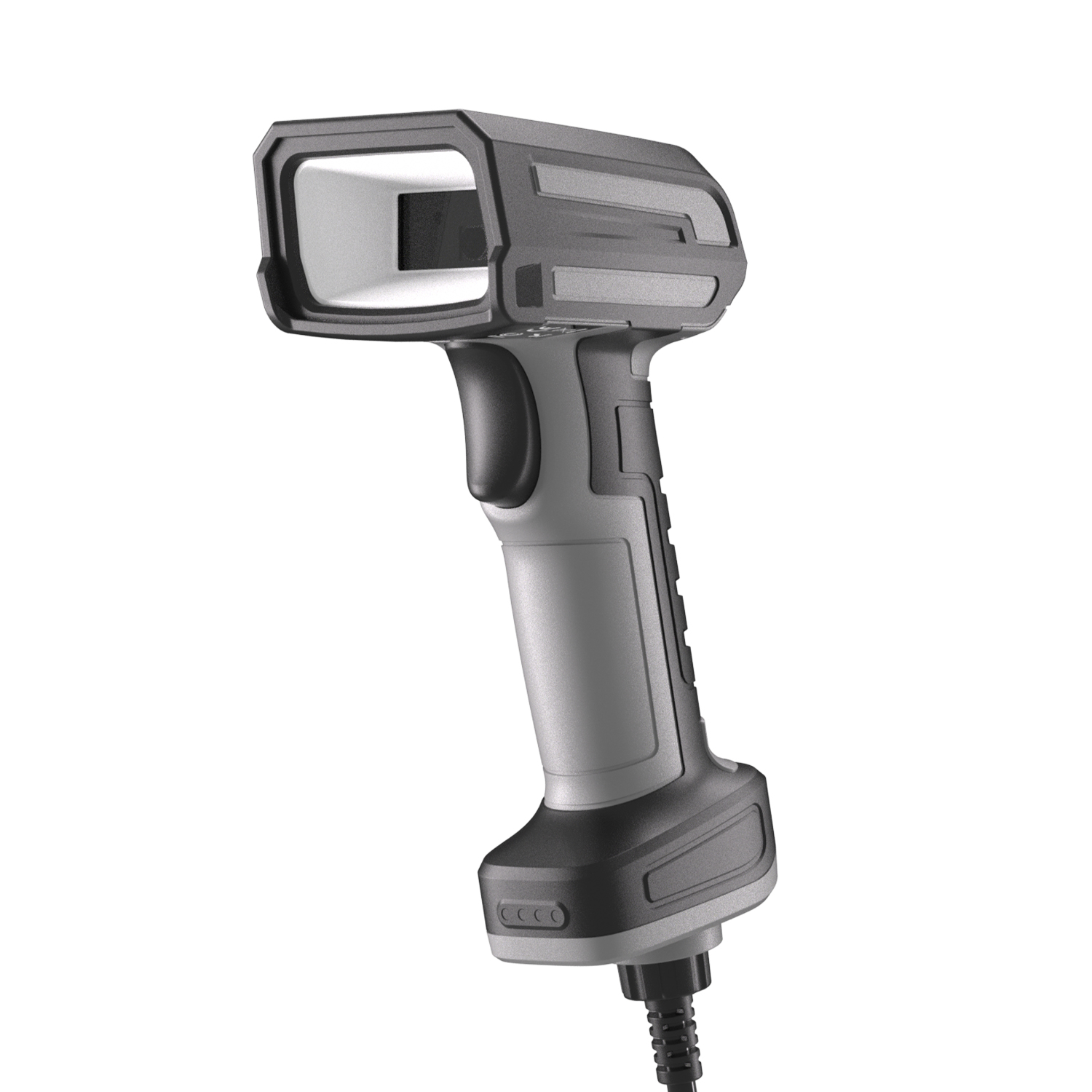

GY-30U is a handheld wired 2D barcode scanner Description
Exceptional Barcode Recognition Capability
The GY-30U employs advanced scanning technology to efficiently read various 1D/2D barcodes. Even under challenging conditions such as low contrast, stains, or deformations, it maintains outstanding recognition performance to meet industrial-grade application requirements.
Robust Industrial Durability

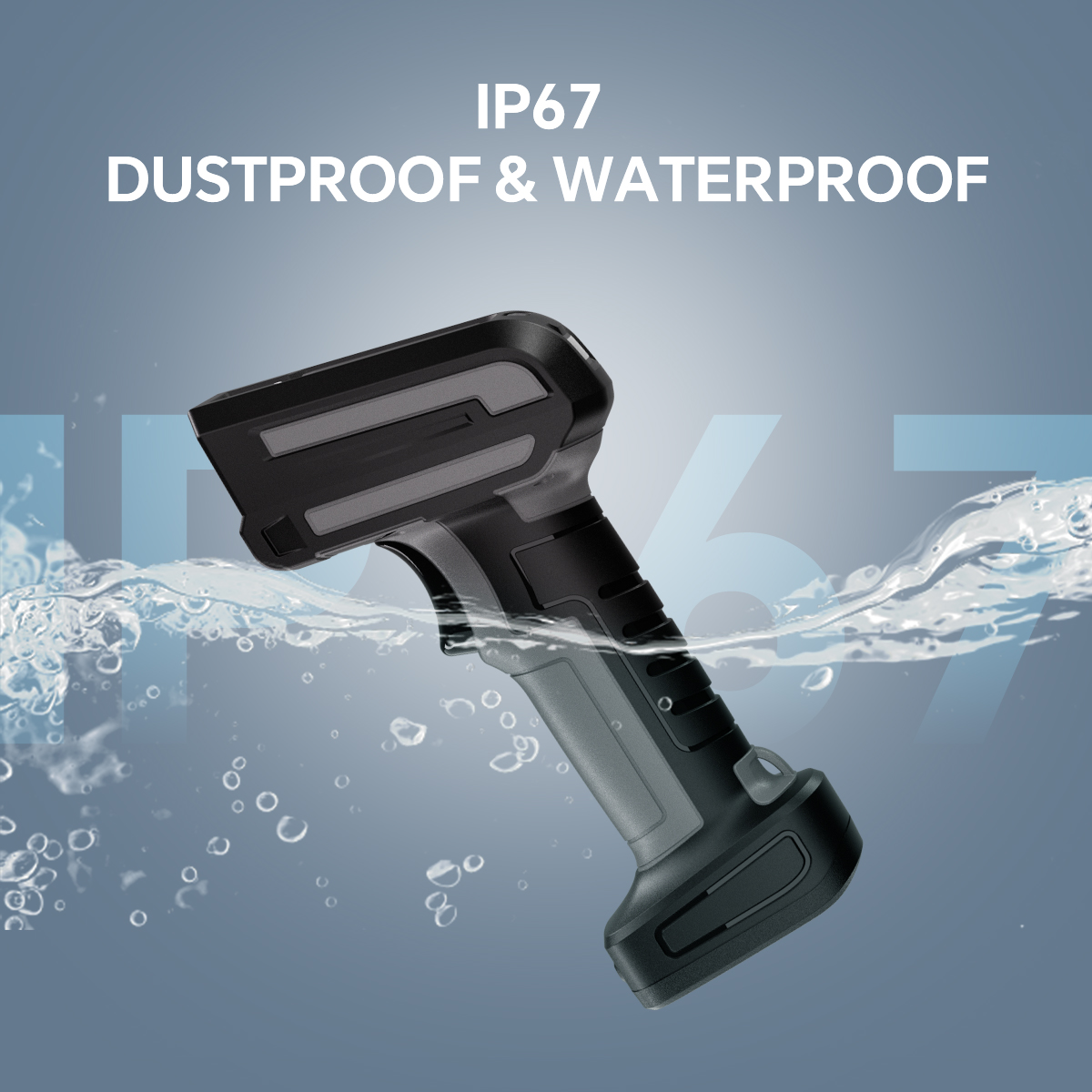

Certified with IP67 protection rating, the device features excellent dustproof and waterproof performance. It adapts to harsh industrial environments including humidity and dust, ensuring long-term stable operation under extreme conditions.
High-Precision Optical System
Equipped with a megapixel high-definition lens, it enables rapid and accurate identification of narrow barcodes and miniature barcodes (as small as 3mil), achieving zero-distance quick scanning to meet demanding applications like precision manufacturing.
Reliable Connection Design
The detachable USB interface ensures stable and dependable connections while facilitating easy maintenance and replacement. This effectively reduces downtime risks caused by cable damage and enhances overall equipment efficiency.
GY-30U Data Sheet
1 | Optical performance | |
1.1 | Resolution | 1280 (H) * 1080 (V) |
1.2 | light | Lighting (white light)：IEC 62471 |
1.3 | focus： | Crosshair (red) |
1.4 | Typical frame rate: | Up to 120 fps |
1.5 | Motion tolerance | 6m/s [19.7 ft/ s] |
1.6 | View: | Horizontal: 43°(H), Vertical: 36°(V) |
1.7 | Scanning angle： | Tilt: 360°, left and right: ±60°, up and down: ±60° |
1.8 | Code support： | 1D：UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , GS1 DataBar 14 , GS1 DataBar Expanded , GS1 DataBar Limited , Composite Code A , Composite Code B，Composite Code C 2D：Data Matrix , QR Code , Micro QR , PDF417, Micro PDF417 , Aztec , MaxiCode , hanxin code |

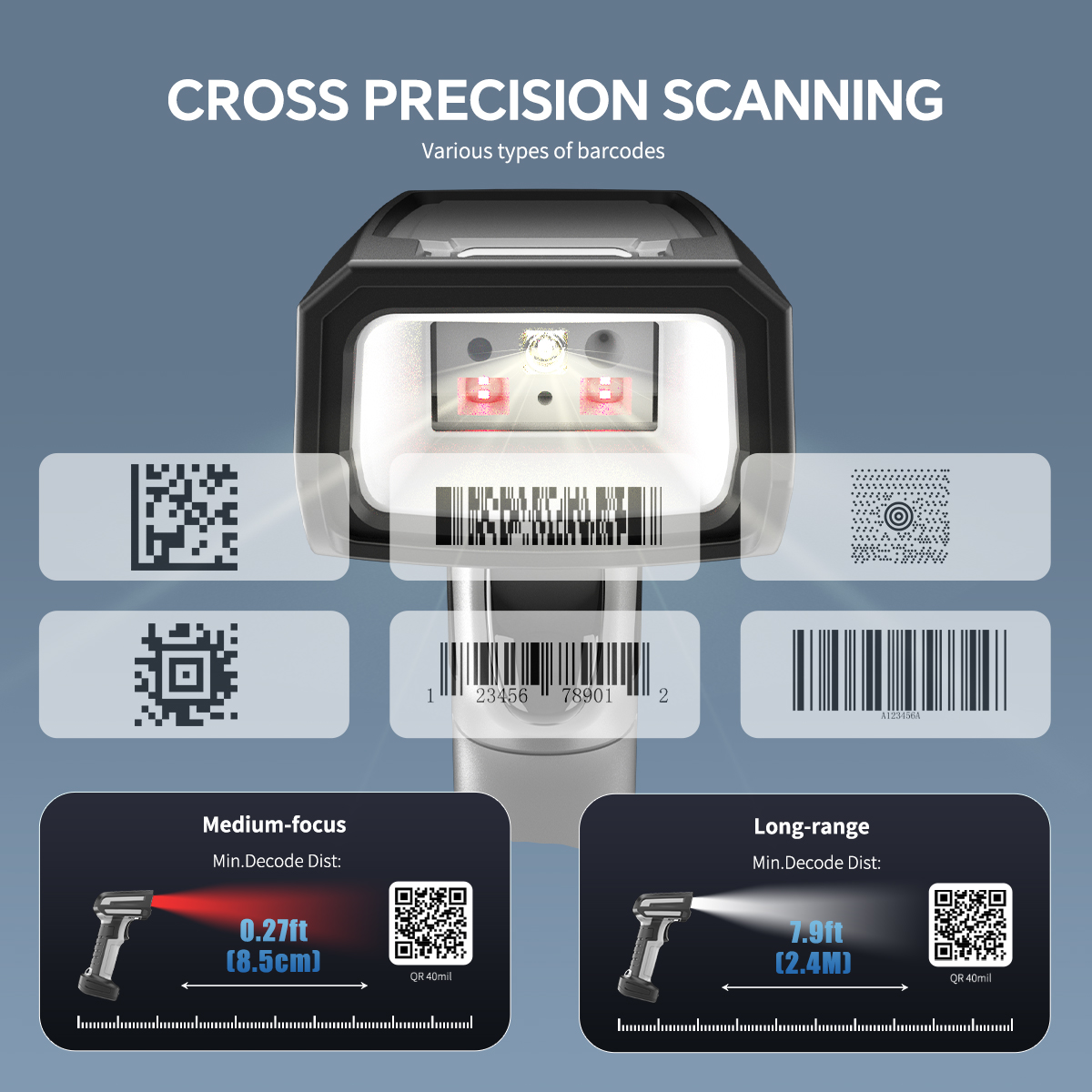

1.9 | Read range (typical): | QR (5mil) 40mm~100mm Code39(3mil) 35mm~140mm Code39(5mil) 35mm~190mm EAN(13mil) 50mm~330mm |
1.2.0 | Accuracy: | 1D:≥3 mil 2D:≥5 mil |
1.2.1 | Printing contrast: | ≥20%(UPC/EAN 100% , PCS 90%) |
2 | Electrical characteristics | |
2.1 | Working voltage | 5V±5% |
2.2 | Standby currency： | 64mA |
2.3 | Working currency: | 300 mA ±5%（typical）,500 mA ±5%（max） |
3 | Working characteristics | |
3.1 | Interface support: | USB |
3.2 | Transmission mode: | USB HID（USB COM） |
3.3 | Prompt mode: | Buzzer, vibration |
3.4 | Scanning mode: | Key scan, continuous scan, self-sensing scan, command trigger (etc.) |
4 | Physical parameters | |
4.1 | Size（mm）： | 198*74*105 |
4.2 | Weight： | 364g |
4.3 | Cable： | length：1.8m、thickness：5mm、With magnetic ring + shield, black |
4.4 | Color | Soft glue: black Hard glue: gray |

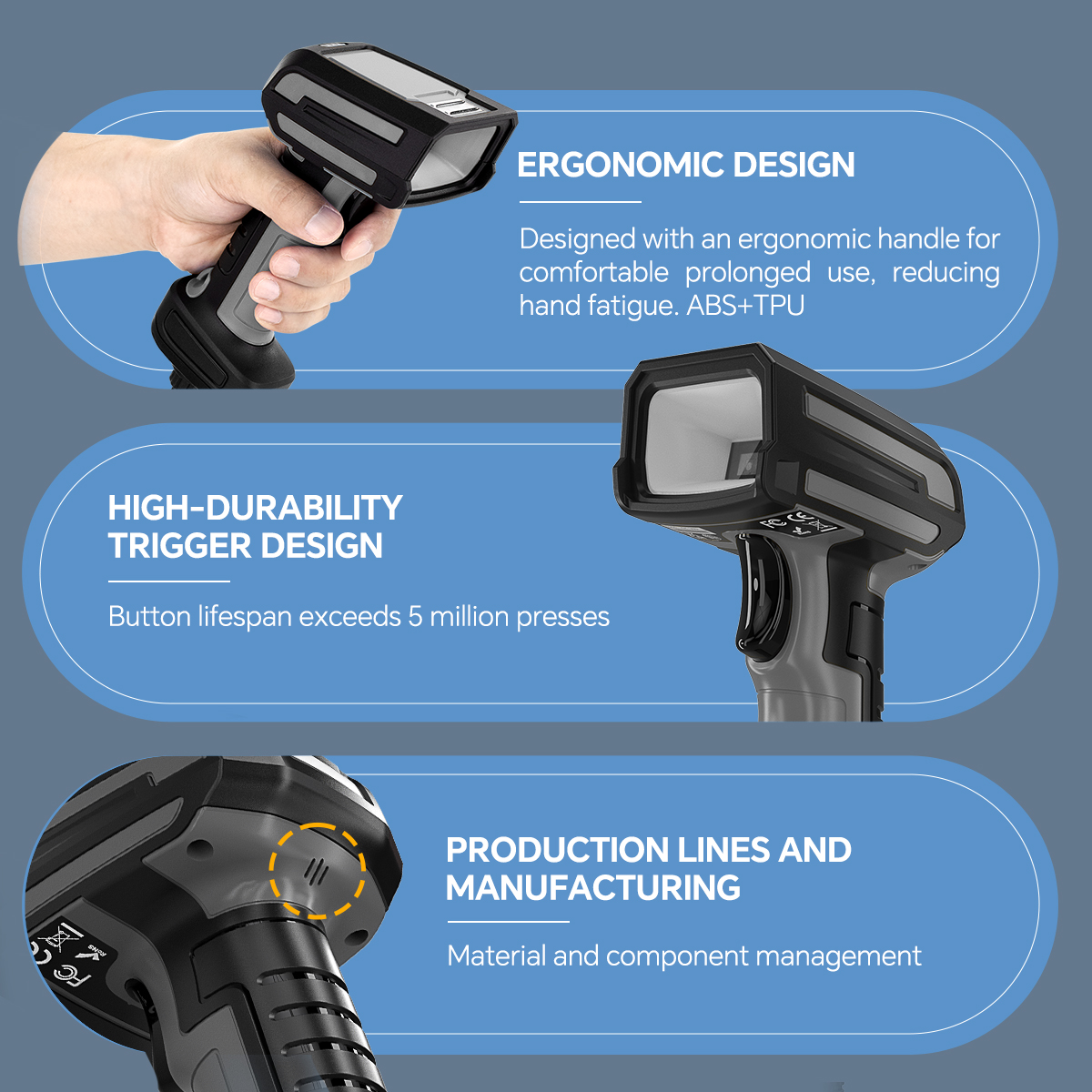

4.5 | Shell material | Soft plastic: TPU Hard plastic: ABS |
5 | Safety regulations | |
5.1 | Working vibration： | 10~ 150HZ，0.5G，3 Axial, 1min/oct, 1 time/axial |
5.2 | Durable vibration： | 10~ 150HZ，2G ，3 Axial, 1min/oct, 20 times/axial |
5.3 | drop： | Withstands a 6-meter drop onto concrete |
5.4 | IP rate： | IP67 |
5.5 | Certificate： | CE ROHS FCC and so on |
