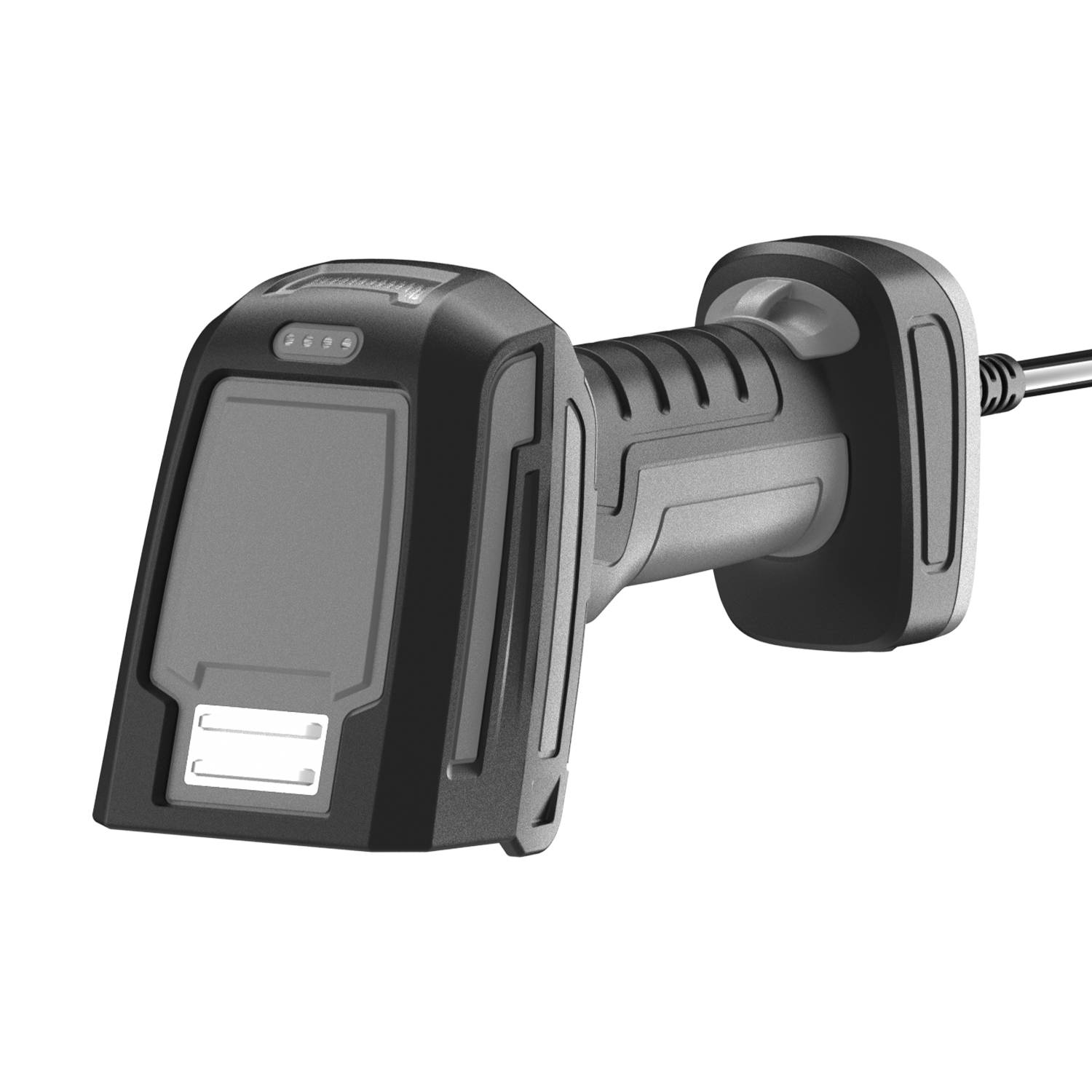

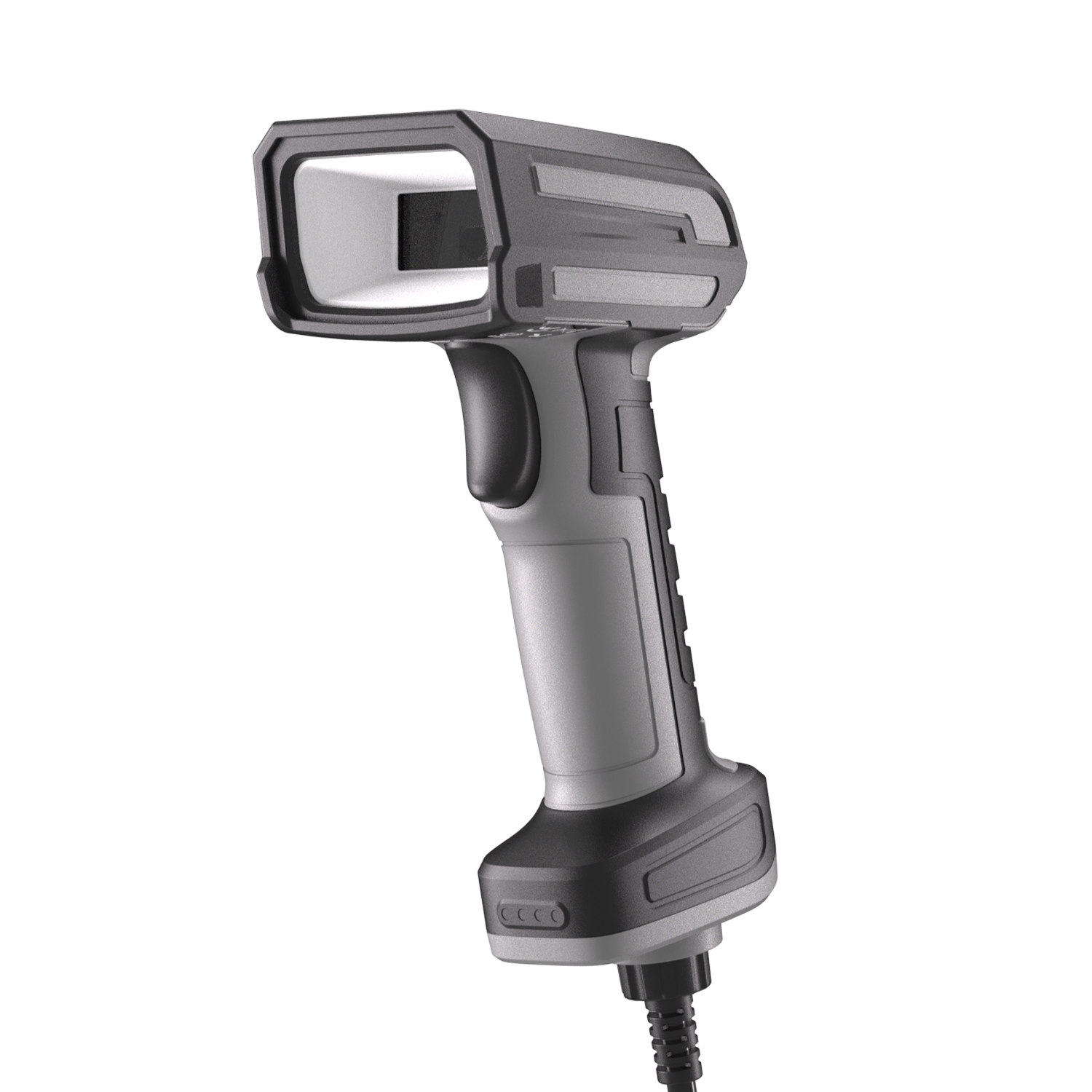

NETUM GY-70U Industrial-Grade Wired 2D Barcode Scanner
The NETUM GY-70U is a rugged handheld 2D barcode scanner designed for demanding industrial environments. Equipped with a high-performance 1.3-megapixel CMOS sensor (1280×1024 resolution), it delivers fast and accurate scanning of both 1D and 2D barcodes, even for low-contrast, damaged, or poorly printed codes. Its IP67-rated construction ensures reliable operation in harsh conditions, offering dustproof and waterproof protection to withstand moisture, dirt, and accidental drops.

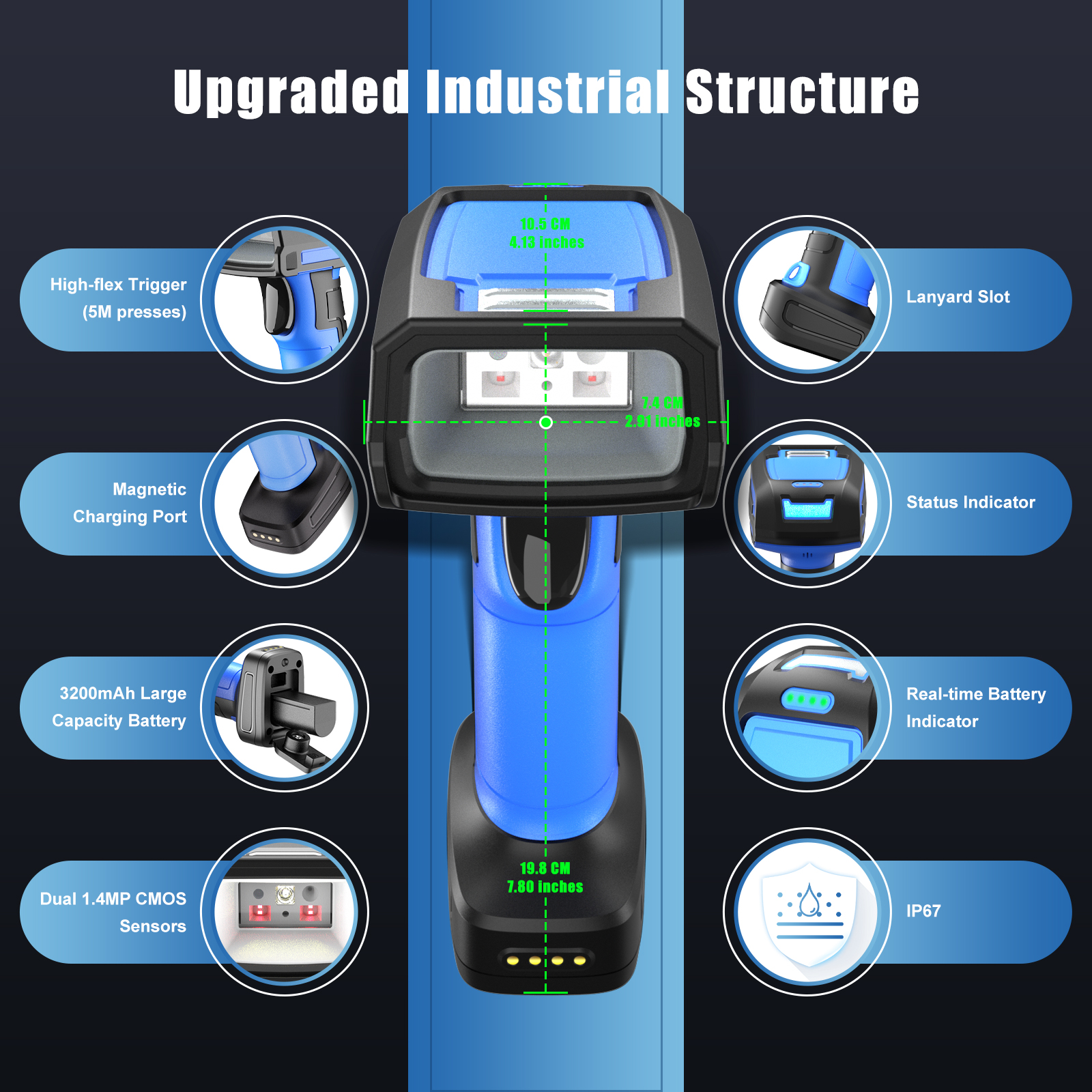

Built for durability, the GY-70U features a dual-material housing combining soft TPU and hard ABS, providing shock resistance and extended lifespan. The internal components are specially engineered to endure extreme industrial settings, maintaining stable performance under heavy daily use.
With plug-and-play USB connectivity, this wired scanner ensures a secure and stable data transmission, making it ideal for logistics, manufacturing, warehousing, and retail applications. Whether scanning at close range or under challenging lighting, the GY-70U delivers consistent, high-speed decoding to optimize workflow efficiency.
Designed for long-term reliability and precision, the GY-70U is the perfect solution for businesses seeking a robust, industrial-grade barcode scanning tool.
GY-70U Specification
1 | Optical Performance | |
1.1 | Resolution: | 1280 × 1024 |
1.2 | Illumination: | White LED |
1.3 | Aiming: | Red LED |
1.4 | Frame Rate: | Up to 50 fps |
1.5 | Motion Tolerance: | 6m/s [19.7 ft/ s] |
1.6 | Field of View (FOV): | 40° (H) × 34° (V) |
1.7 | Scanning Angle: | · Tilt: 360° · Horizontal: ±60° · Vertical: ±60 |
1.8 | Supported Symbologies: | 1D： Code 39, Code 93, Code 128, Codabar, EAN-8, EAN-13, ITF-25, ITF-14, UPC-A, UPC-E, etc. 2D：Data Matrix, QR Code, PDF417, etc DPM码：PCB hollow marks, reflective metal laser-etched codes, cast surface dot-peen marks, oil-contaminated engraved codes, resin laser marks, cylindrical surface laser engraving, etc. |
1.9 | Reading Range (Typical): | Code 39（3 mil）：45 ~ 80 mm Code 39（5 mil）：35 ~ 100 mm Data Matrix（5 mil）：45 ~ 75 mm Data Matrix（10 mil）：45 ~ 220 mm EAN13（13 mil）：60 ~ 400 mm |
1.2.0 | Minimum Resolution: | 1D:≥3 mil 2D:≥4 mil |
1.2.1 | Print Contrast: | ≥20%(UPC/EAN 100% , PCS 90%) |
2 | Electrical Characteristics | |
2.1 | Operating Voltage: | 5V±5% |
2.2 | Standby Current: | 164mA |
2.3 | Max. Current: | 360mA |
3 | Operational Features | |
3.1 | Interface: | Standard USB |
3.2 | Transmission Modes: | USB HID（USB COM） |
3.3 | Alert Modes: | Buzzer, vibration |
3.4 | Scanning Modes: | Manual trigger*, continuous scan, auto-sensing, command trigger |
4 | Physical Specifications | |
4.1 | Dimensions (L×W×H): | 198*74*105 |
4.2 | Weight: | 364g |
4.3 | Cable: | · Length: 1.8 m · Diameter: 5 mm · Features: Ferrite core + shielding, black |
4.4 | Color: | · Soft rubber: Black · Hard casing: Gray |
4.5 | Materials: | · Soft rubber: TPU · Hard casing: ABS |
5 | Safety & Compliance | |
5.1 | Operating Vibration: | 10–150 Hz, 0.5G, 3 axes, 1 min/oct, 1 cycle/axis |
5.2 | Endurance Vibration: | 10–150 Hz, 2G, 3 axes, 1 min/oct, 20 cycles/axis |
5.3 | Drop Test: | Withstands 3 m drops onto concrete |
5.4 | IP Rating: | IP67 |
5.5 | Certifications: | CE, RoHS, FCC, etc. |
