Product Description

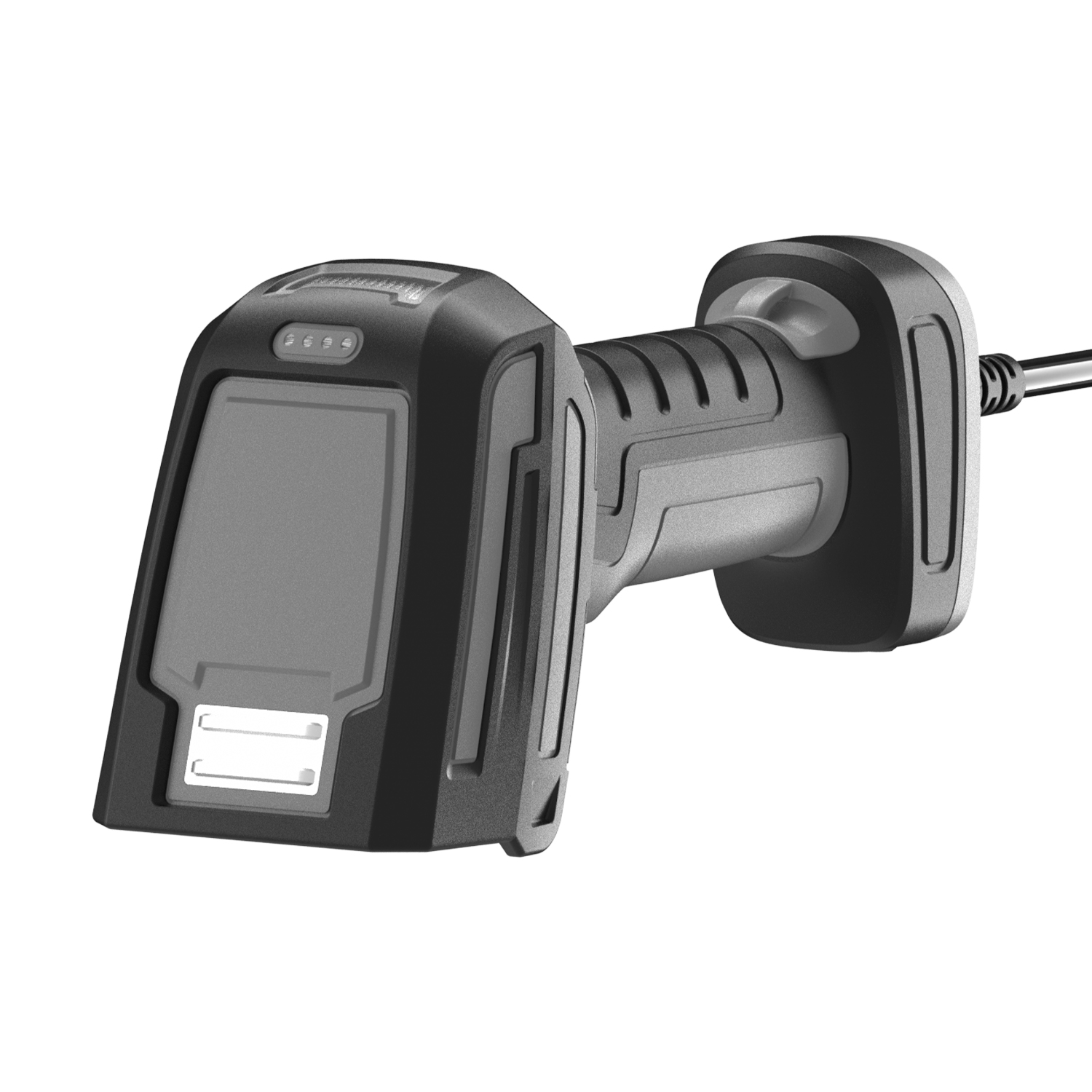

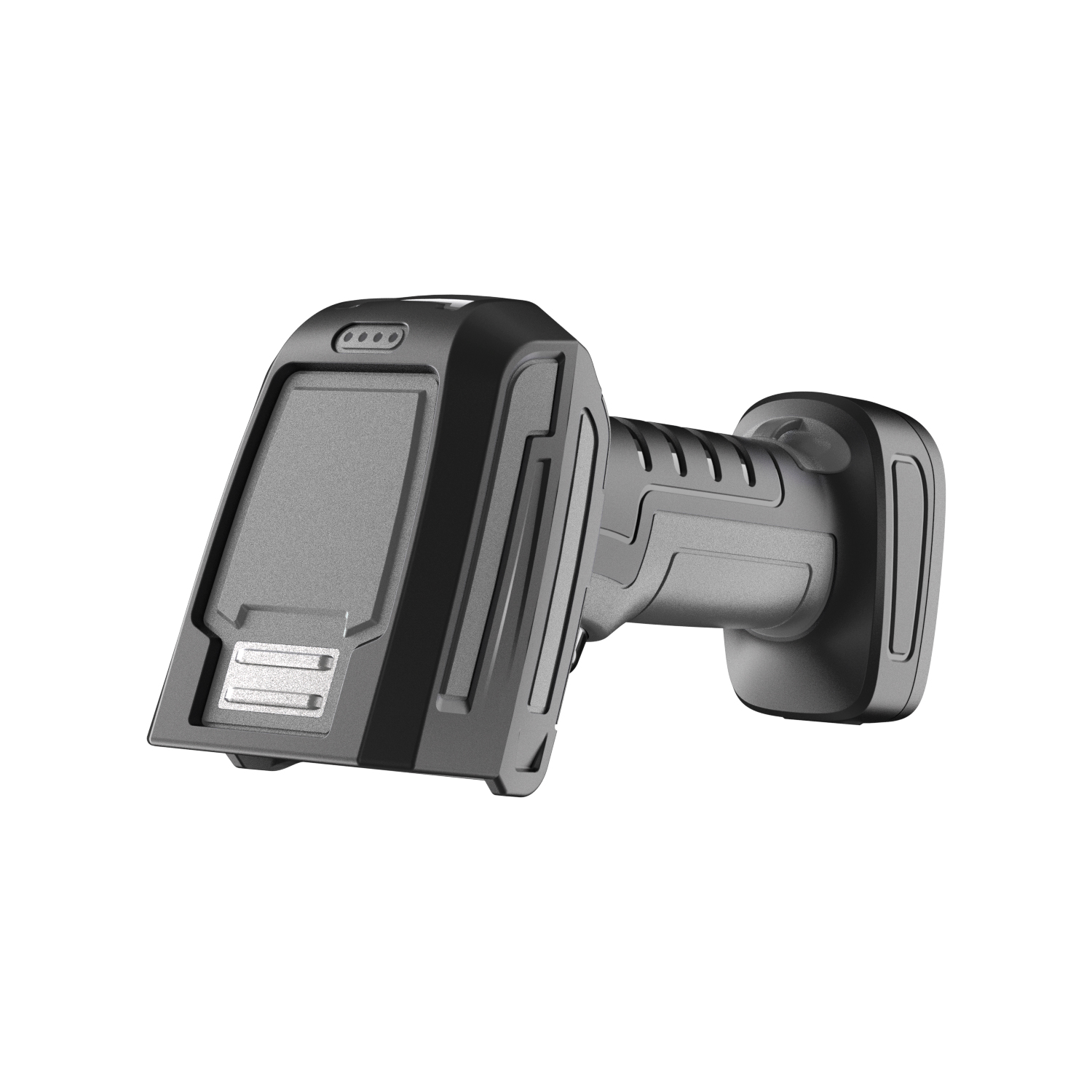

GY-50U is a handheld wired 2D barcode scanner produced by NETUM which is mainly used for industrial environments. It is equipped with a 1280*1080 megapixel C-MOS sensor with excellent scanning recognition.

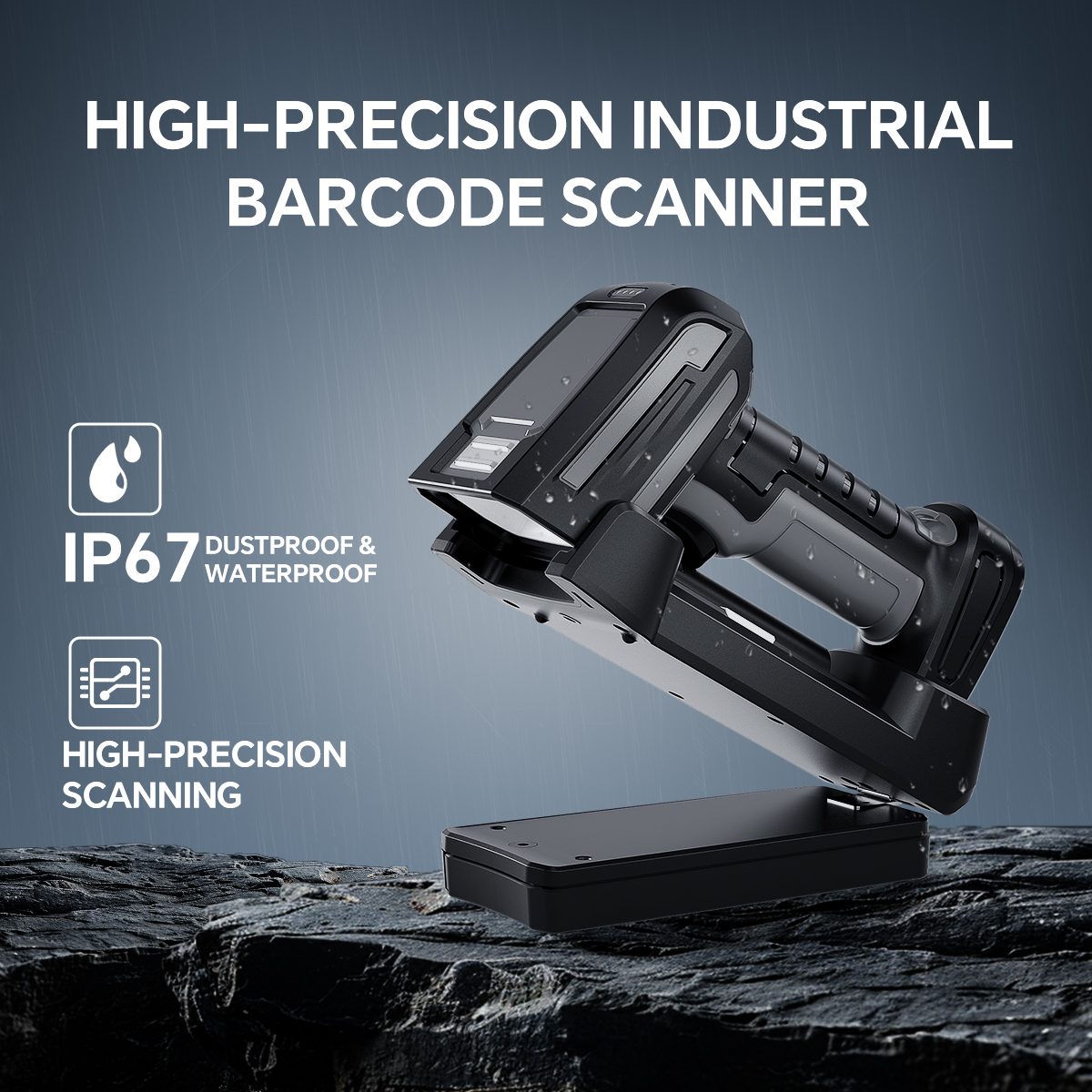

GY-50U is IP67 industrial grade, and it can maintain good working condition for a long time in a humid or dusty working environment.

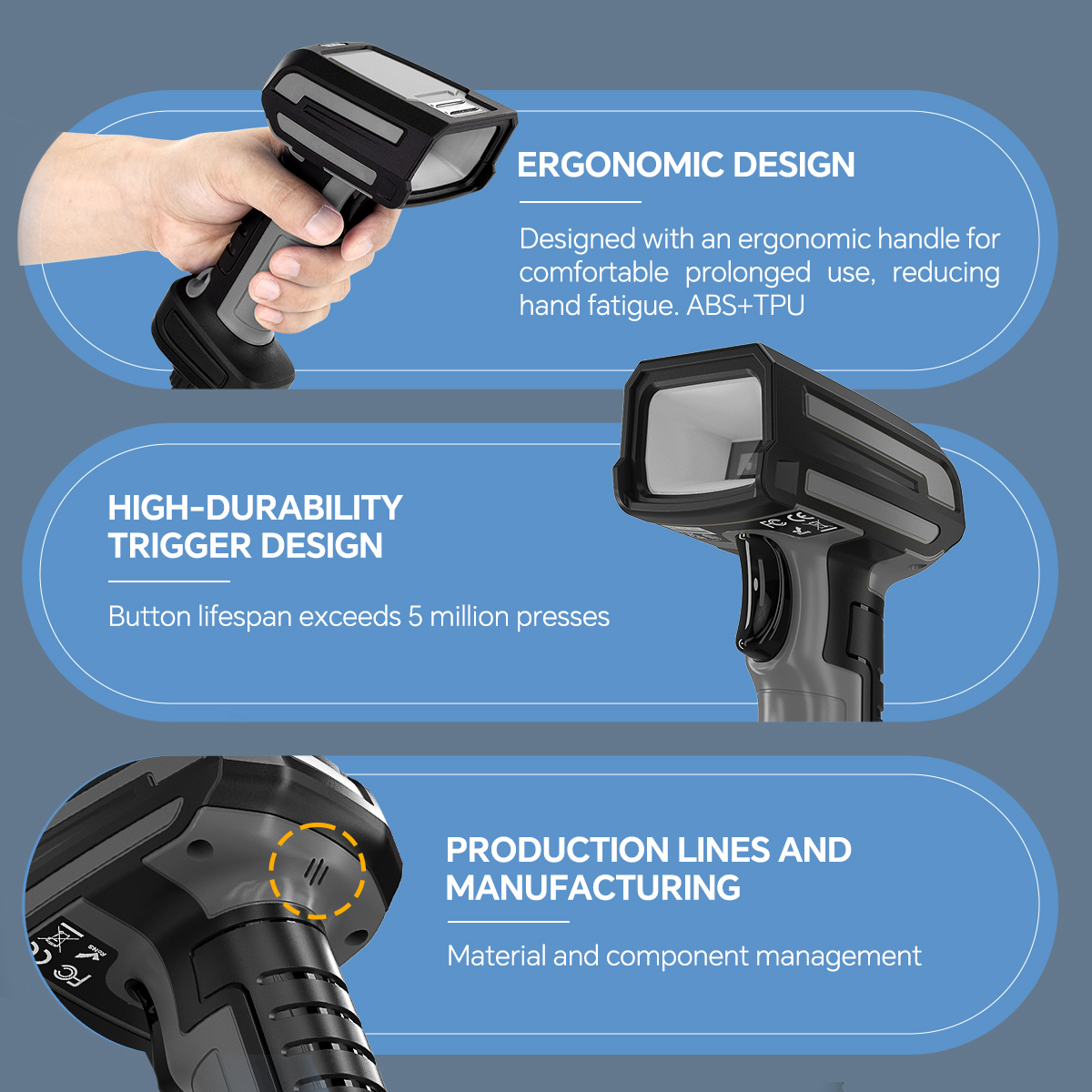

GY-50U adopts a high-strength soft TPU and hard ABS two-color shell design. The internal components are designed for harsh working environments. Even if an accidental collision occurs, it will not cause damage to the product.
The overall design of GY-50U is fully in line with industrial applications. The internal decoding engine is equipped with high-brightness LEDs and high-quality photosensitive modules. Its theoretical design life can reach 100,000 hours, which greatly improves the life of the scanner.
Outstanding Scanning Performance
The GY-50 series barcode scanning engine utilizes advanced image recognition technology to deliver high-performance 1D/2D barcode scanning. It maintains exceptional reading performance even under challenging conditions such as low contrast, stains, or deformations. Powered by robust algorithms, it accurately identifies various poorly printed barcodes, meeting the stringent reliability requirements of industrial-grade applications.
Innovative Dual-Light Mode Design

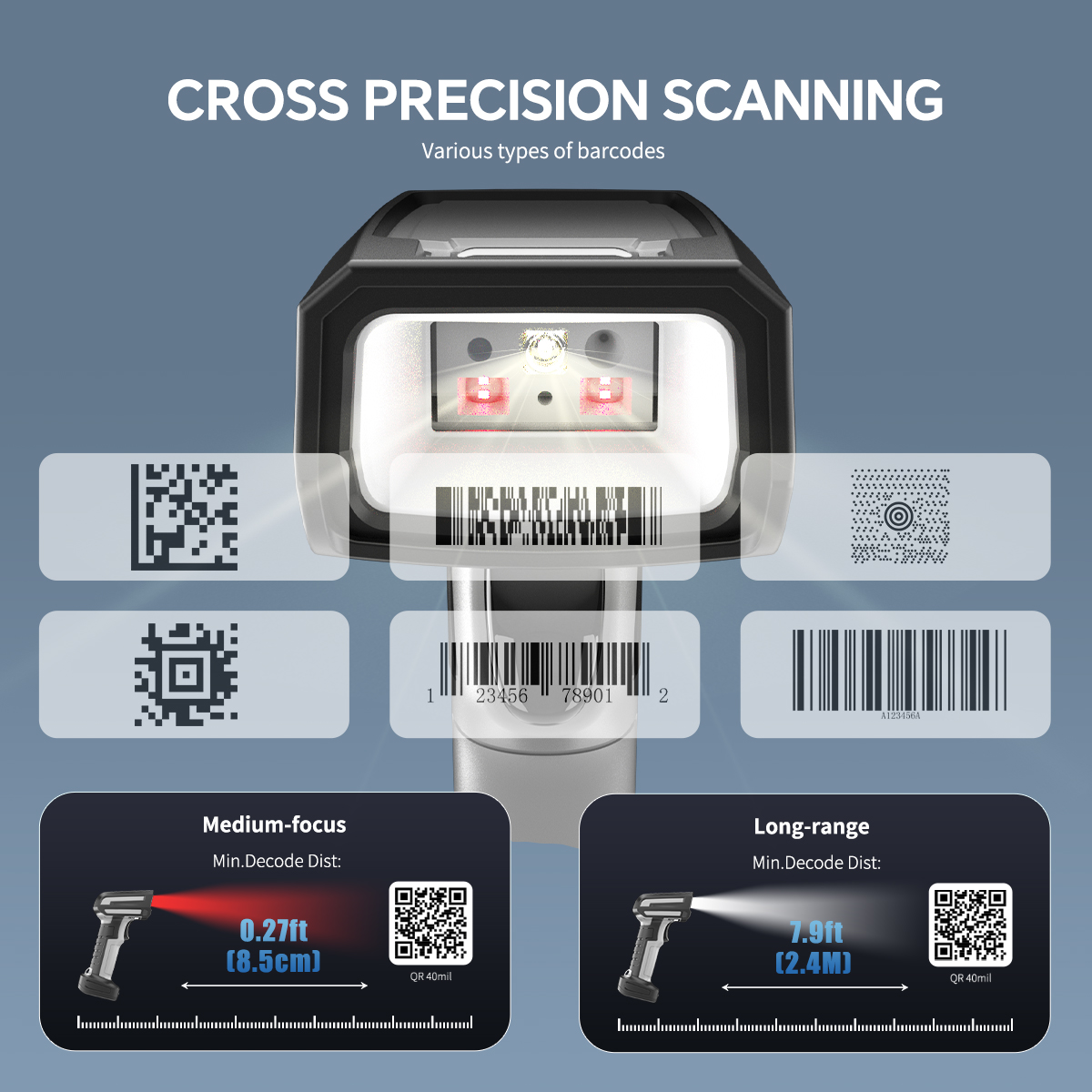

The GY-50 engine innovatively integrates dual-light modes—red light (mid-focus) and white light (far-focus)—automatically switching between optimal light sources based on scanning scenarios. This design significantly enhances barcode compatibility and error correction while offering a wider depth-of-field range. Its dual-focal-length capability allows flexible adaptation to scanning needs at various distances, dramatically improving work efficiency.
Long-Range Scanning Capability

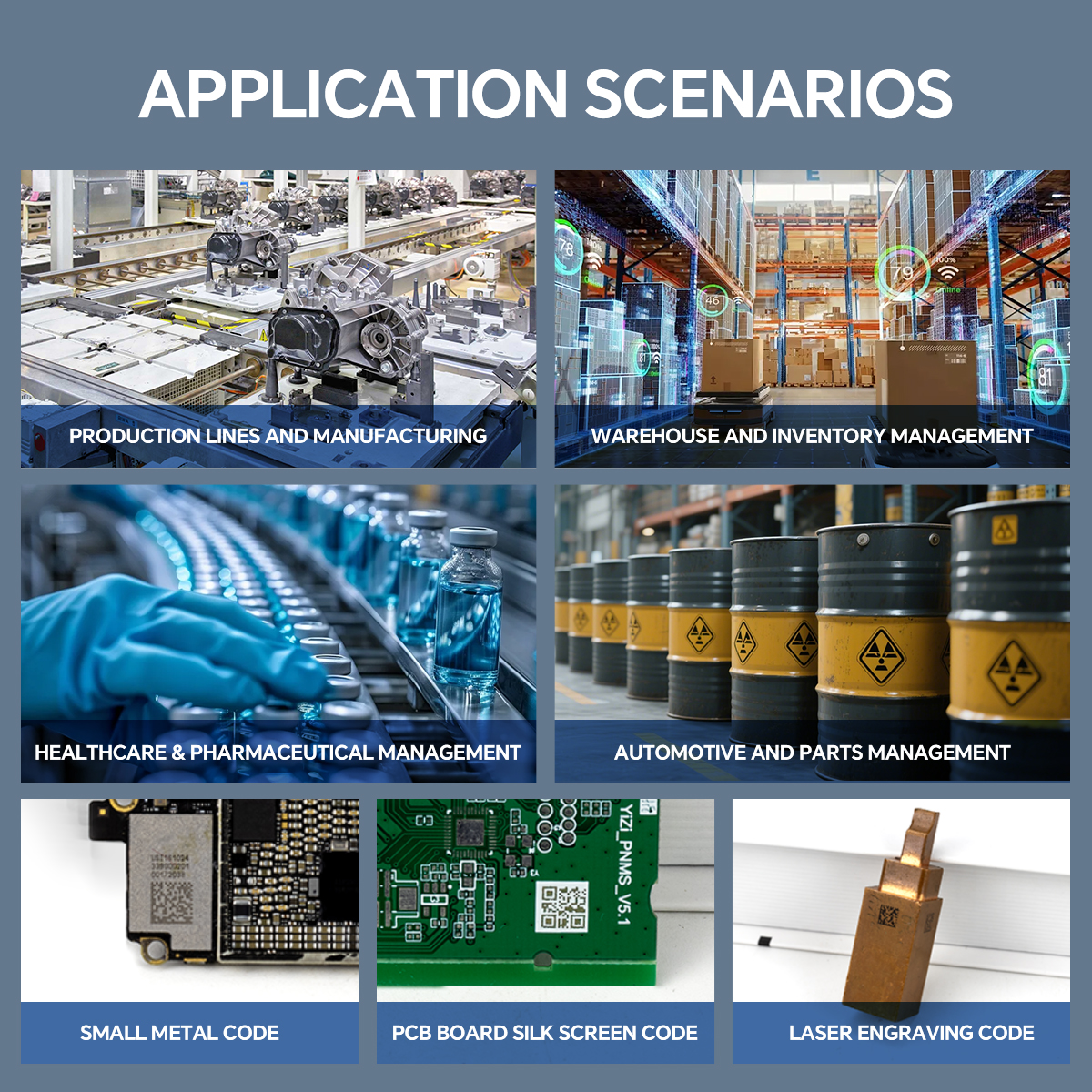

The GY-50 white-light engine is specifically designed for long-range scanning, with its superior optical performance extending reading distances significantly. When scanning DM codes (200Mil), its maximum scanning range reaches an impressive 10 meters. This feature makes it an ideal choice for applications requiring long-distance scanning, such as warehouse logistics and production line monitoring, greatly expanding its scope of use.
Efficient Deep Scanning System
Equipped with a dual-lens design, the GY-50 engine provides full-range deep scanning capability, enabling fast and accurate reading of various 1D and 2D barcodes. The dual-lens collaboration not only improves scanning efficiency but also adapts to different angles and distances. This innovative design doubles work efficiency, making it particularly suitable for high-intensity applications such as assembly lines and smart warehouses.
Rugged Industrial-Grade Protection

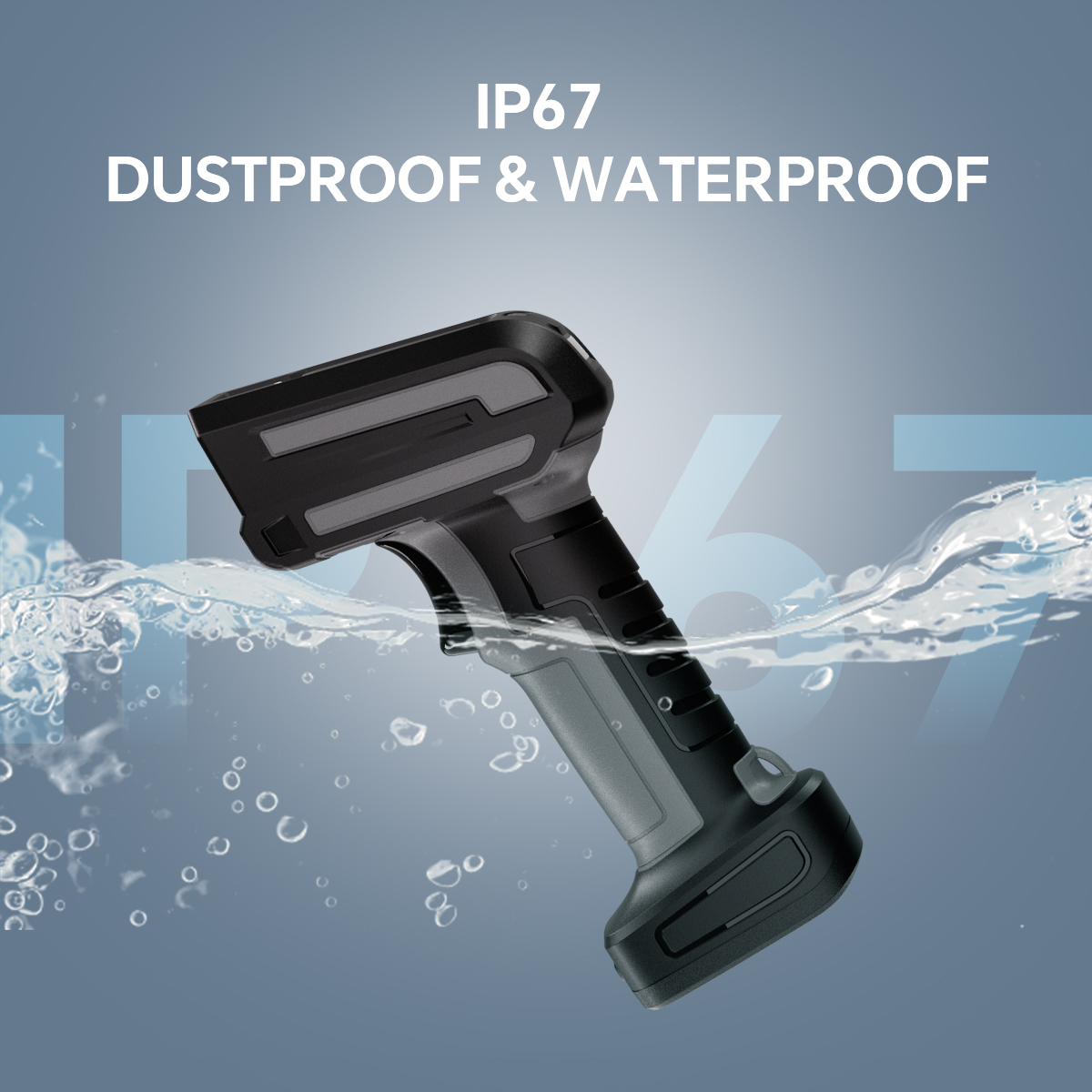

The GY-50U series features industrial-grade protection with an IP67 rating. Its sealed structure effectively prevents dust ingress and liquid splashes, ensuring reliable operation in harsh industrial environments. Whether in humid, dusty, or chemically corrosive conditions, it guarantees long-term stable performance, delivering a dependable barcode recognition solution for industrial automation.
GY-50U data sheet
1 | Optical performance | |
1.1 | Resolution： | 2pcs 1280 pixels (H)x 1080 pixels (V) |
1.2 | Light： | Red light (mid focus), white light (far focus) |
1.3 | Focus： | Laser dot focus |
1.4 | Scanning distance： | 100cm ~ 1000 cm @DM -200 mil 100 %,PCS 90% |
1.5 | View： | Medium range: Horizontal 28.0° (V), Vertical 22.0° (H) Long range: Horizontal 11.5° (V), Vertical 9.0° (H) |
1.6 | Scanning angle： | Tilt: 360°, left and right: ±60°, up and down: ±60° |
1.7 | Code support： | 1D：UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Code 32 , Code11 , Codabar ,Plessey , MSI , Interleaved 2 of 5 IATA 2 of 5 , Matrix 2 of 5 , Straight 2 of 5 , Pharmacode , GS1 DataBar 14 , GS1 DataBar Expanded , GS1 DataBar Limited , Composite Code A , Composite Code B，Composite Code C 2D：Data Matrix , QR Code , Micro QR , PDF417, Micro PDF417 , Aztec , MaxiCode , hanxin code，Dotcode |
1.8 | Read range (typical)： | Code 39 (5mil)5cm~32cm EAN/UPC (13mil) 5.5cm~190cm EAN/UPC (15.6mil) 7cm~210cm Code 128 (40mil) 38cm~400cm QR (20mil) 5.5cm~140cm DM (200mil) 100cm~1000cm Barcode reading performance may be affected by barcode quality or environmental factors. |
1.9 | Minimum resolution | 0.127(5mil)@Code 39, PCS=90% |
1.2.0 | Printing contrast: | More than 20%（UPC/EAN 100%，PCS 90%) |
2 | Electrical characteristics | |
2.1 | Working voltage | 5V±5% |
2.2 | Standby currency： | 110mA（max） |
2.3 | Working currency: | 260 mA ±5%（typical）, 380 mA ±5%（max） |
3 | Working characteristics | |
3.1 | Interface support: | USB |
3.2 | Transmission mode: | USB HID（USB COM） |
3.3 | Prompt mode: | Buzzer, vibration |
3.4 | Scanning mode: | Key scan, continuous scan, self-sensing scan, command trigger (etc.) |
4 | Physical parameters | |
4.1 | Size（mm）： | 198*74*105 |
4.2 | Weight： | 364g |
4.3 | Cable： | length：1.8m、thickness：5mm、With magnetic ring + shield, black |
4.4 | Color | Soft glue: black Hard glue: gray |
4.5 | Shell material | Soft plastic: TPU Hard plastic: ABS |
5 | Safety regulations | |
5.1 | Working vibration： | 10~ 150HZ，0.5G，3 Axial, 1min/oct, 1 time/axial |
5.2 | Durable vibration： | 10~ 150HZ，2G ，3 Axial, 1min/oct, 20 times/axial |
5.3 | drop： | Withstands a 6-meter drop onto concrete |
5.4 | IP rate： | IP67 |
5.5 | Certificate： | CE ROHS FCC and so on |
