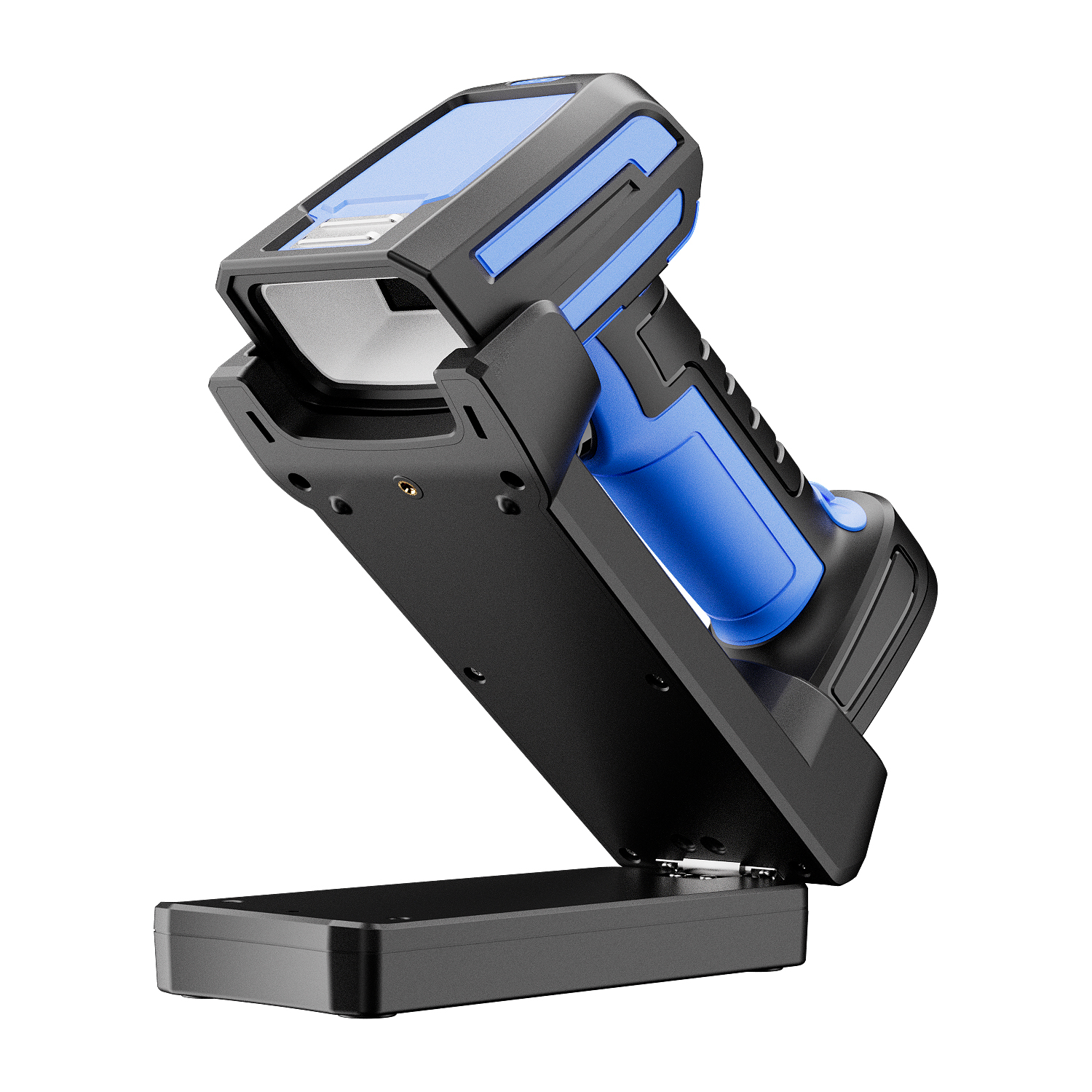

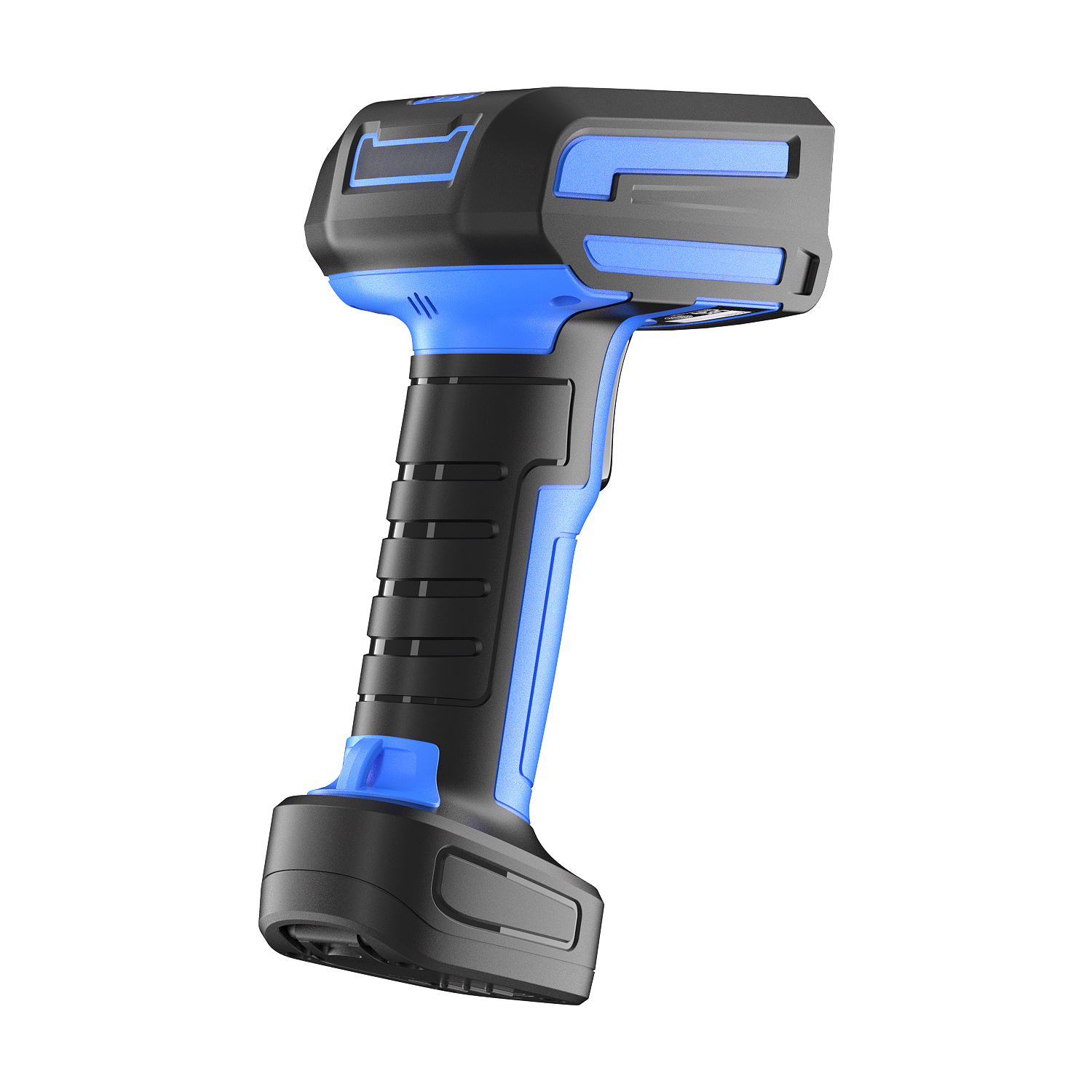

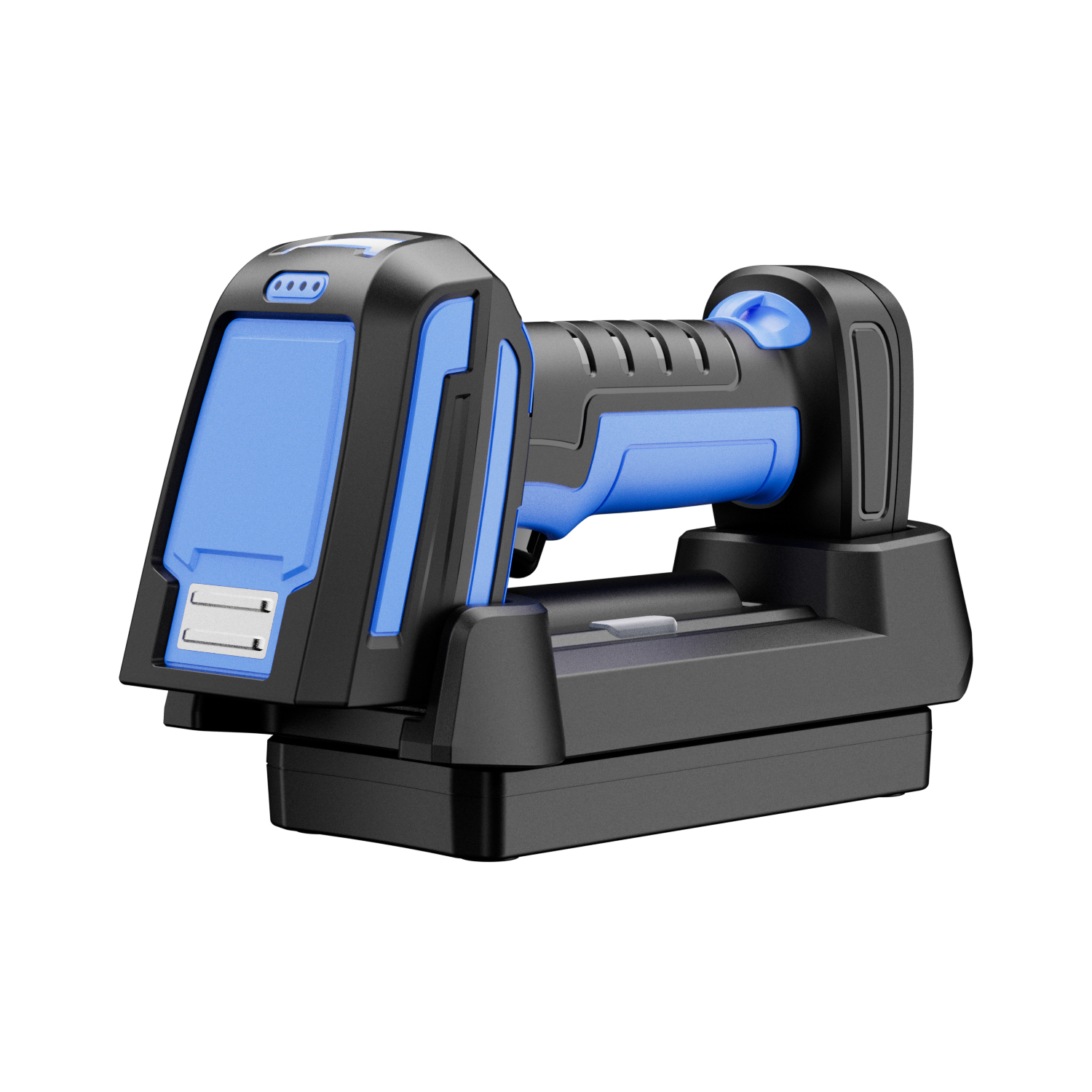

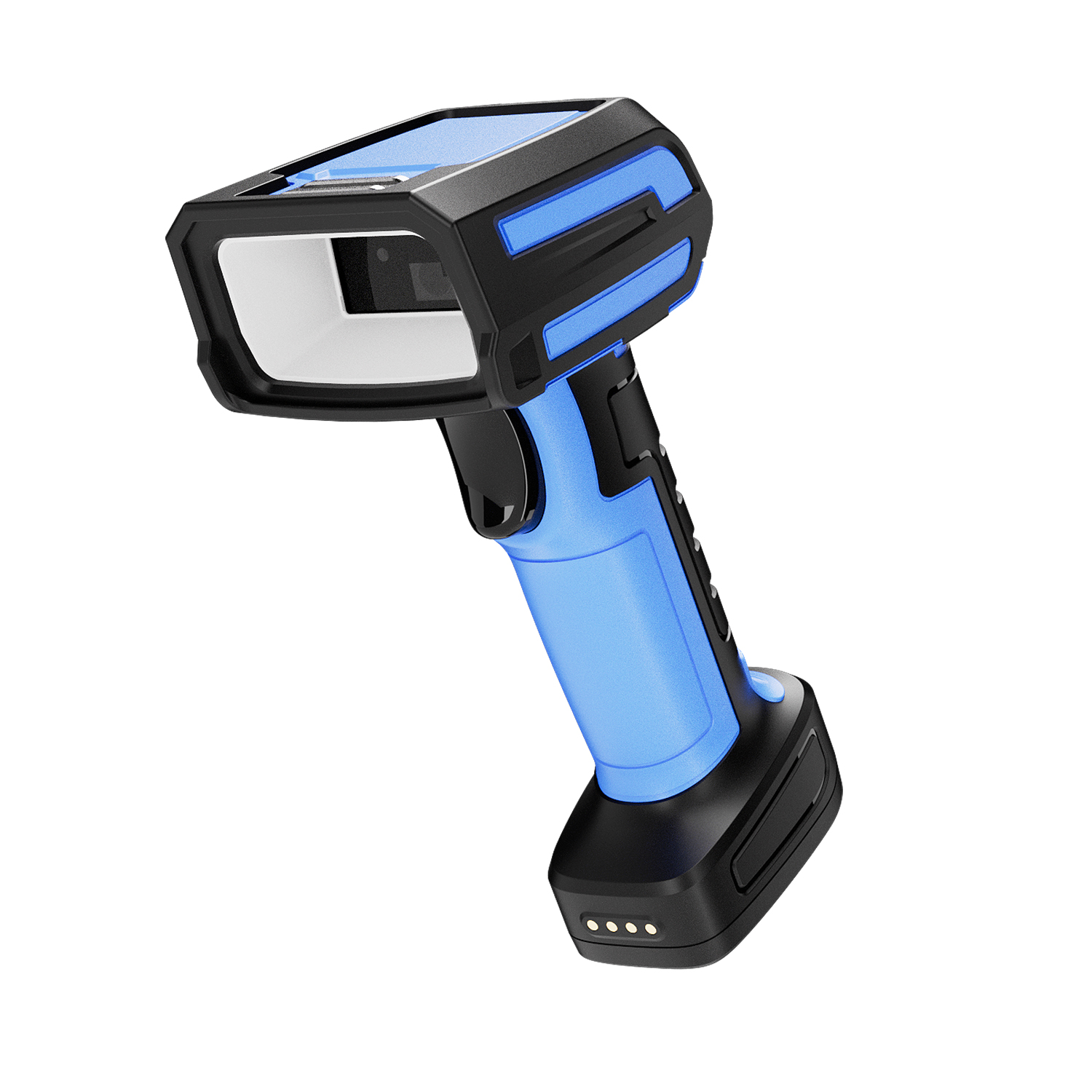

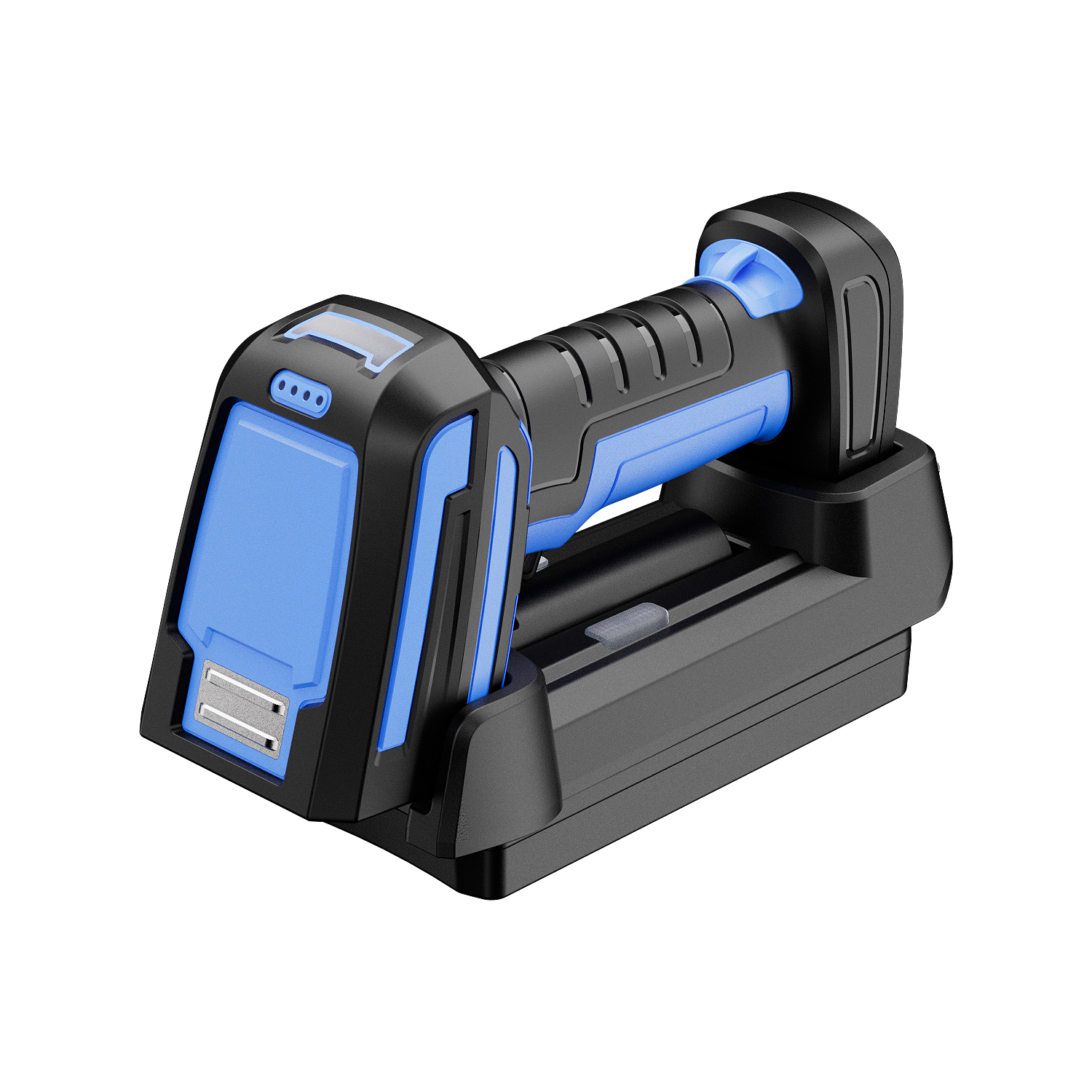

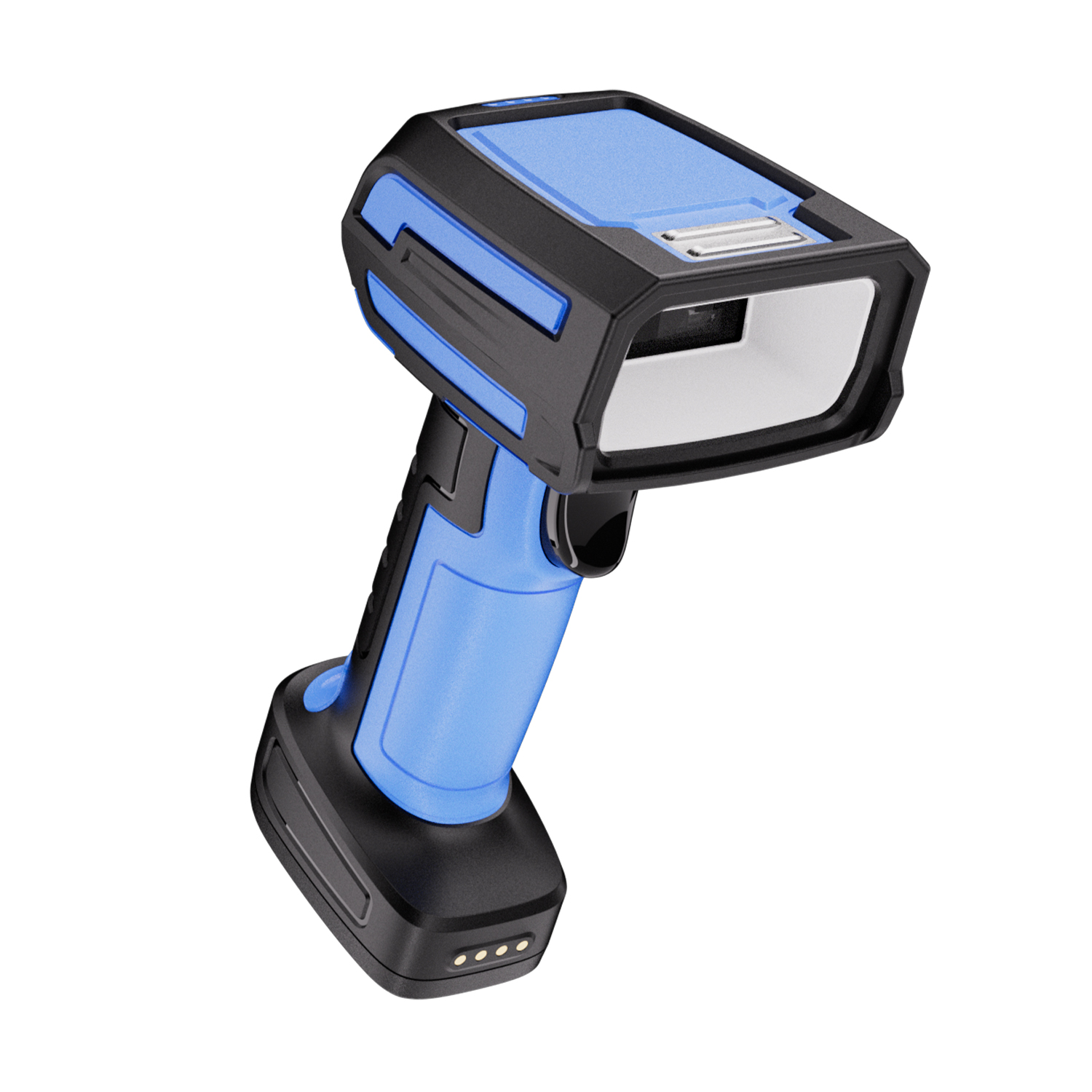

The GY-80U is a high-performance handheld 2D barcode scanner developed by NETUM specifically for demanding industrial environments. Equipped with a 1280*1080 high-resolution megapixel CMOS sensor, this device delivers exceptional barcode recognition capabilities, enabling fast and accurate scanning of various 1D/2D barcodes—including those with low contrast, damage, or deformation—to meet diverse scanning needs in industrial settings.

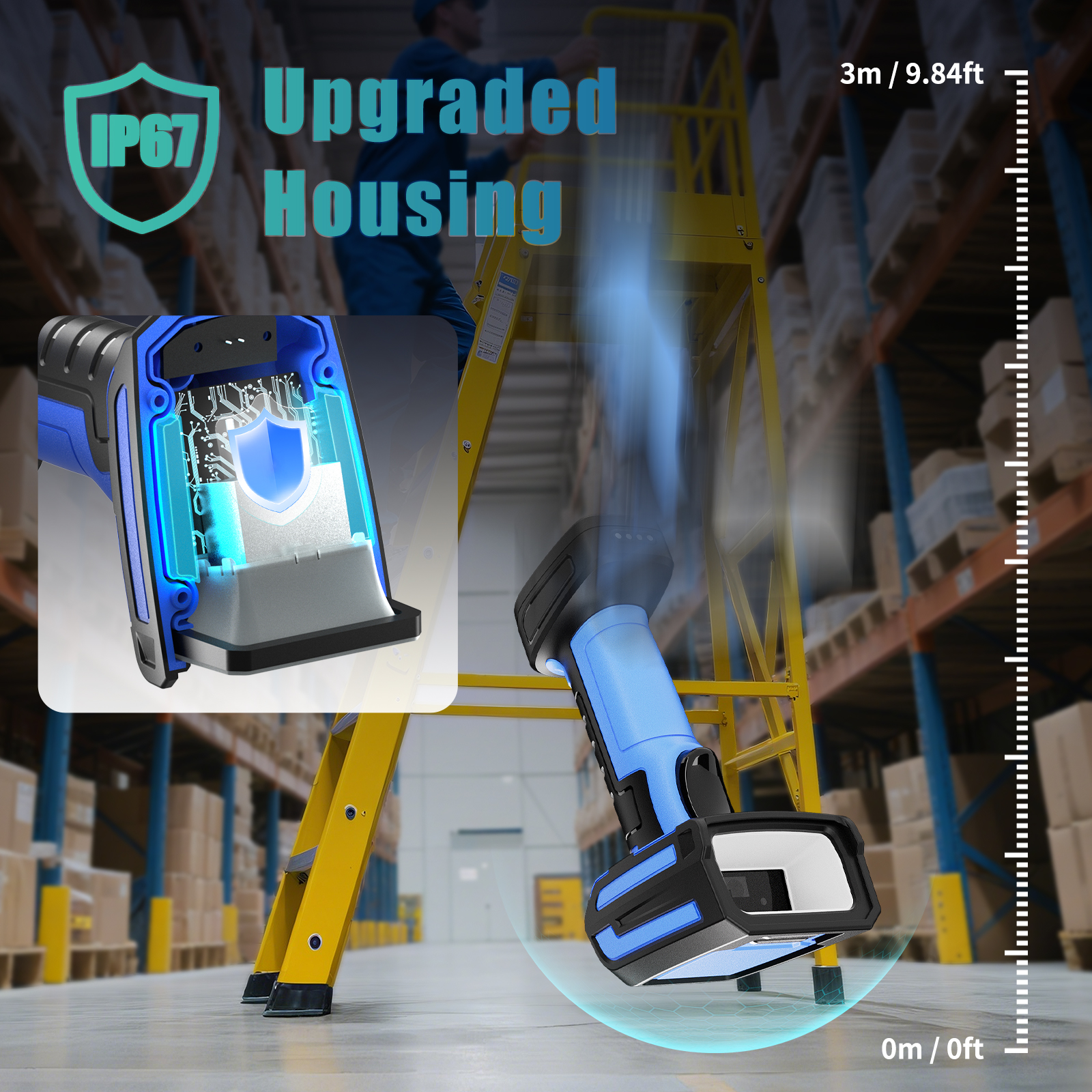

Certified with an IP67 protection rating, the scanner features a dual-material housing combining soft TPU and rigid ABS through two-color injection molding. Its internal components are specially reinforced to effectively withstand moisture, dust, and other harsh environmental conditions, while also resisting accidental drops and impacts. This ensures long-term stable operation even in extreme working conditions.
The GY-80U is powered by a professional-grade decoding engine and equipped with a high-brightness LED lighting system and a highly sensitive optical module, boasting a theoretical lifespan of up to 100,000 hours—significantly reducing maintenance costs. The device's design prioritizes the needs of industrial users, offering outstanding durability and reliability, making it an ideal choice for industries such as warehousing and logistics, manufacturing, and retail management.
With superior scanning performance, a rugged design, and an extended service life, the GY-80U provides enterprises with an efficient and stable barcode recognition solution, helping to enhance operational efficiency and intelligent management capabilities.
GY-80U Specification
1 | Optical Performance | ||
1.1 | Resolution: | 1280 × 1024 | |
1.2 | Illumination: | White LED | |
1.3 | Focus Assist: | Red LED | |
1.4 | Frame Rate: | Up to 50 fps | |
1.5 | Motion Tolerance: | 6m/s [19.7 ft/ s] | |
1.6 | Field of View (FOV) | 40°(H), Vertical: 34°(V) | |
1.7 | Scanning Angles: | Tilt: 360°, Skew: ±60°, Pitch: ±60° | |

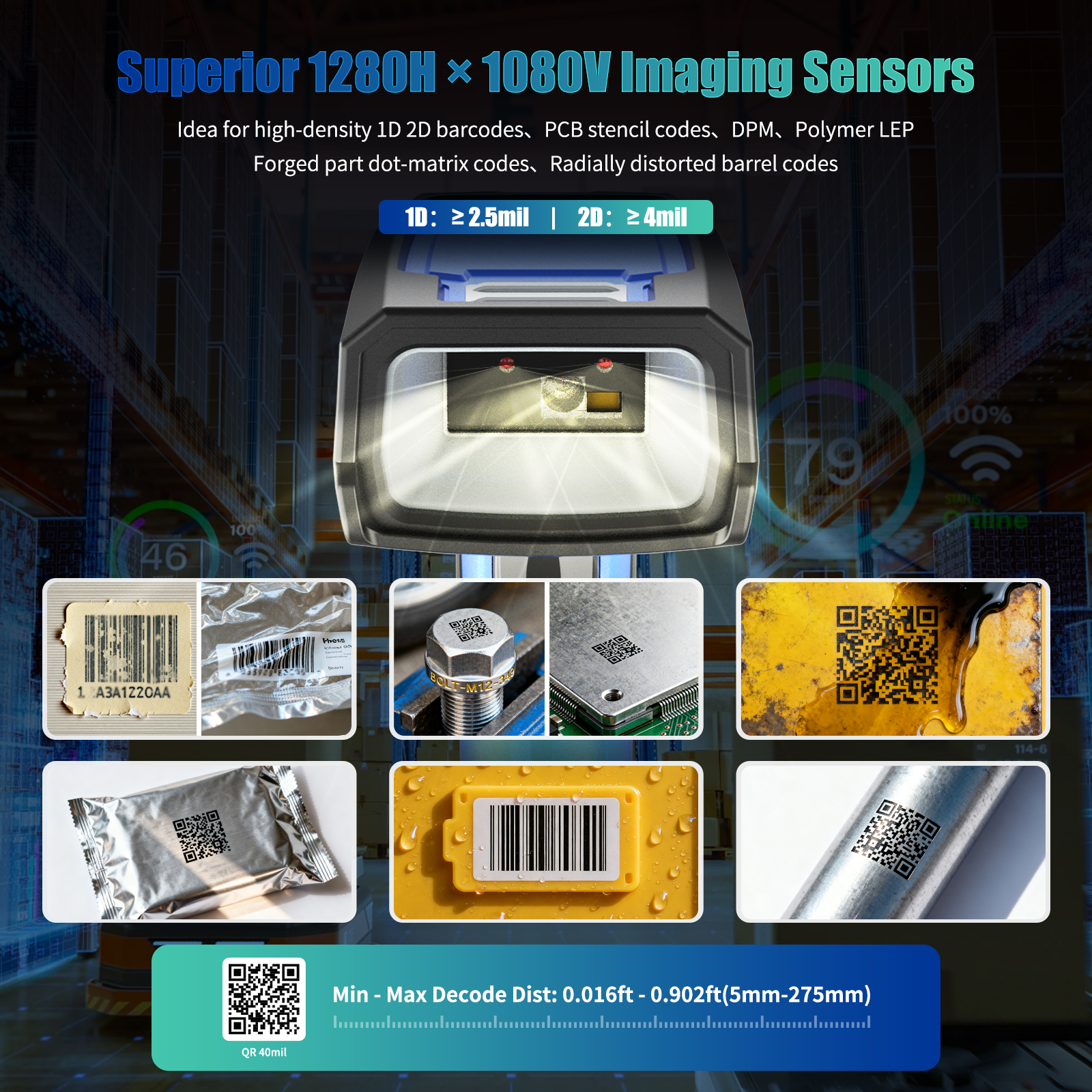

1.8 | Supported Symbologies: | 1D: Code 39, Code 93, Code 128, Codabar, EAN-8, EAN-13, ITF-25, ITF-14, UPC-A, UPC-E, etc. 2D: Data Matrix, QR Code, PDF417, etc. DPM Codes: PCB cut-out codes, reflective metal laser-etched codes, dot peen on cast surfaces, engraved codes on oily surfaces, resin laser-etched codes, cylindrical surface laser codes, etc. | |
1.9 | Read Range (Typical): | Code 39（3 mil）：45 ~ 80 mm Code 39（5 mil）：35 ~ 100 mm Data Matrix（5 mil）：45 ~ 75 mm Data Matrix（10 mil）：45 ~ 220 mm EAN13（13 mil）：60 ~ 400 mm | |
1.2.0 | Decoding Precision: | 1D:≥3 mil 2D:≥4 mil | |
1.2.1 | Print Contrast: | ≥20%(UPC/EAN 100% , PCS 90%) | |
2 | Wireless Parameters | ||
2.1 | Wireless method: | 2.4G wireless + Bluetooth (supports protocols 2.0, 3.0, 4.0, 4.2) | |
2.2 | 2.4 GHz | 300 m line of sight (with AP for long-distance transmission) | |
Bluetooth: | 20 m line of sight | ||
2.3 | Battery Capacity | 3200 mAh (standard with two batteries) | |
2.4 | Charging Time: | Approximately 5 hours | |
2.5 | Standby Activation: | Enters standby after 3 minutes of inactivity | |
2.6 | Charging Input: | 5V 1~2A | |
3 | Electrical Characteristics | ||
3.1 | Operating Voltage: | 5V±5% | |
3.2 | Standby Current: | 0.6μA | |
3.3 | Operating Current: | 360 mA ±5% (maximum) | |
4 | Operational Features | ||

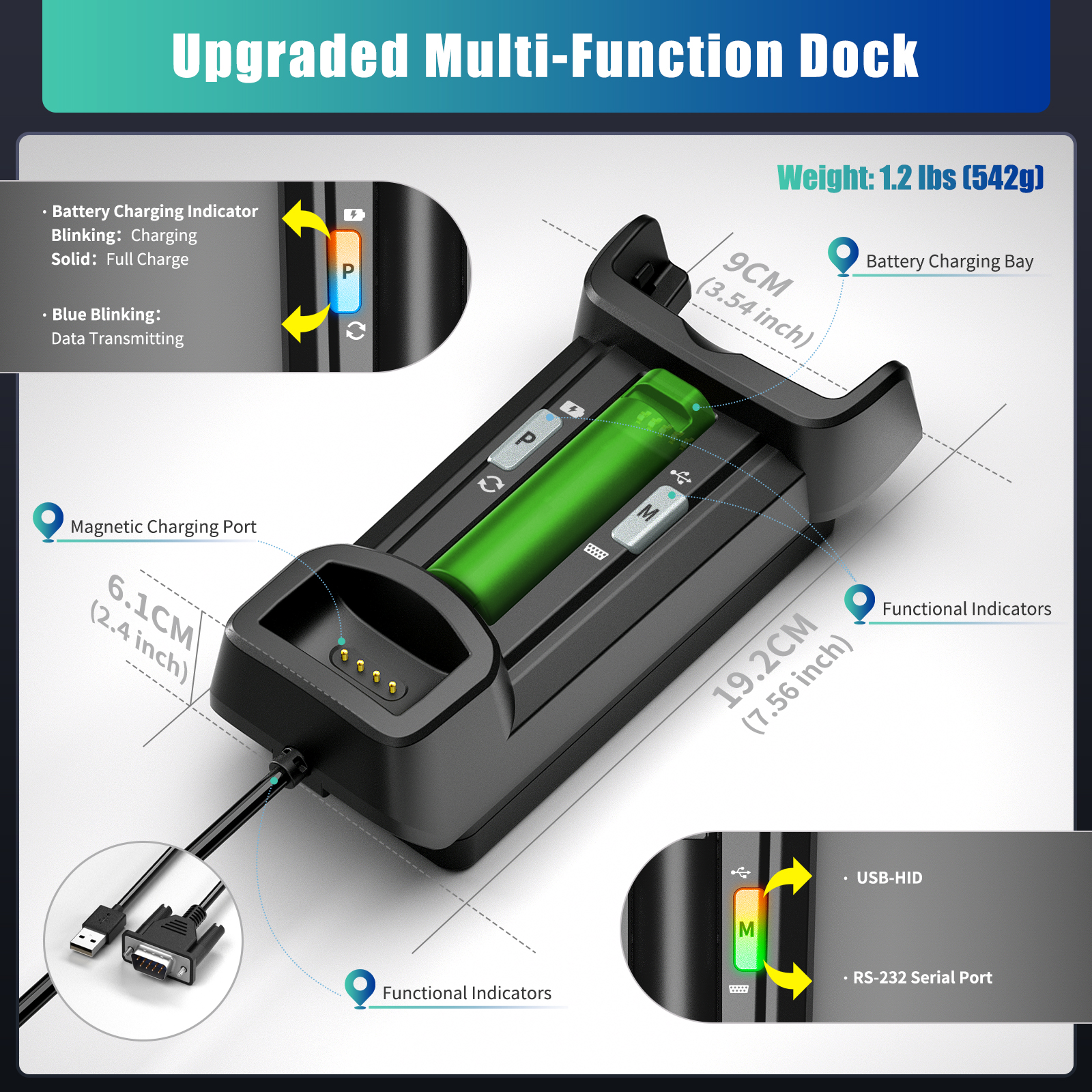

4.1 | Interfaces: | Standard USB interface, RS232 serial port | |
4.2 | Communication Modes: | USB HID (USB COM), RS232 serial port, Bluetooth (HID, SPP, BLE) | |
4.3 | Notification Modes | Buzzer, Vibration | |
4.4 | Scanning Modes | Trigger scan*, continuous scan, auto-sensing scan, command-triggered scan, etc. | |

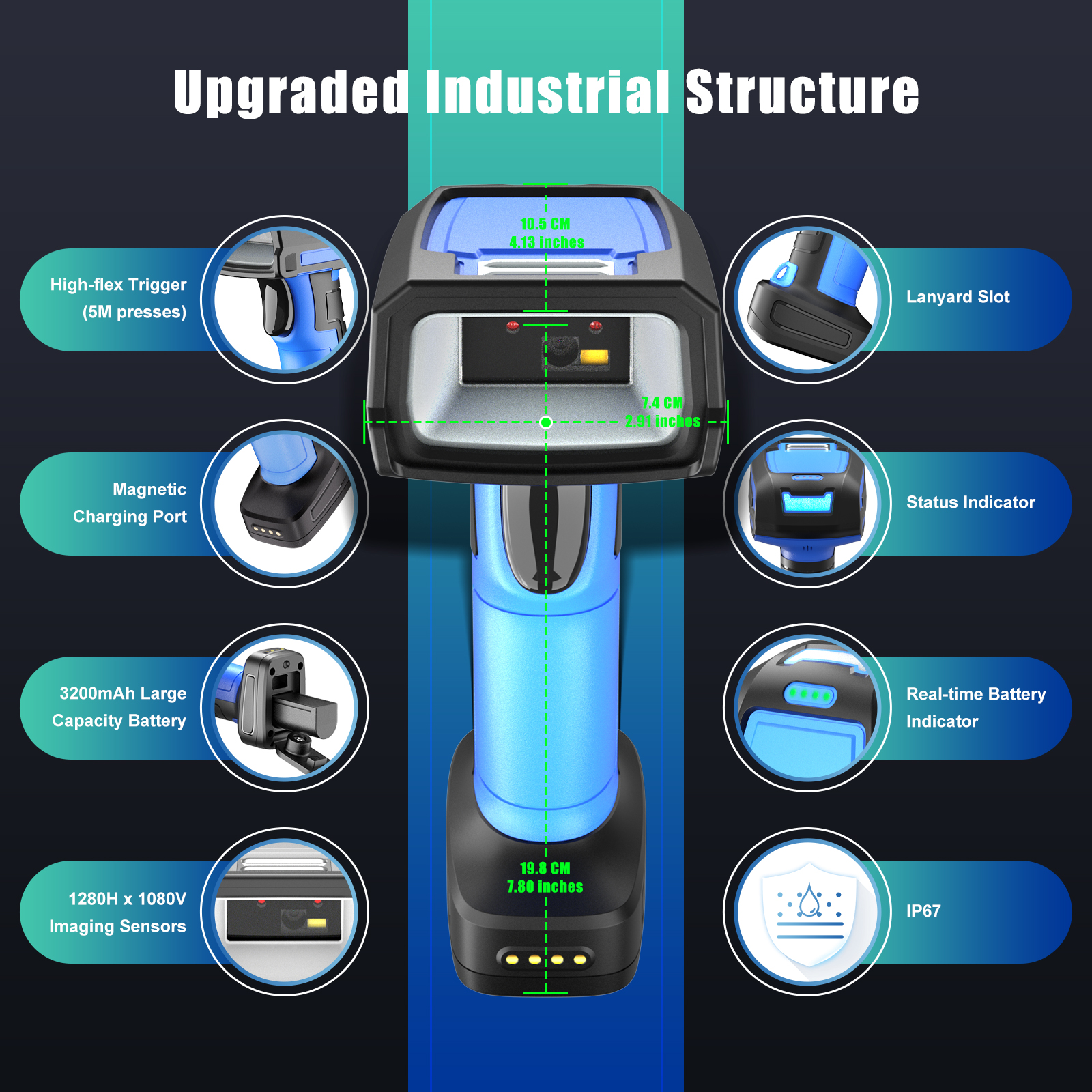

5 | Physical Parameters | ||
5.1 | Dimensions (L × W × H): | 198*74*105 | |
5.2 | Weight: Scanner: | ≈346g, Base: ≈492g, Battery: ≈58g | |
5.3 | Cable: | Length: 2m, Diameter: 5mm | |
5.4 | Color: | Soft Rubber: Black Hard Plastic: Gray | |
5.5 | Housing Material: | Soft Rubber: TPU Hard Plastic: ABS | |
6 | Safety and Regulatory Compliance | |
6.1 | Operational Vibration: | 10–150 Hz, 0.5G, 3 axes, 1 min/oct, 1 cycle/axis |
6.2 | Endurance Vibration: | 10–150 Hz, 2G, 3 axes, 1 min/oct, 20 cycles/axis |
6.3 | Drop Resistance: | Withstands 3-meter drops onto concrete |
6.4 | IP Rating: | IP67 |
6.5 | Certifications: | CE, ROHS, FCC, etc. |
