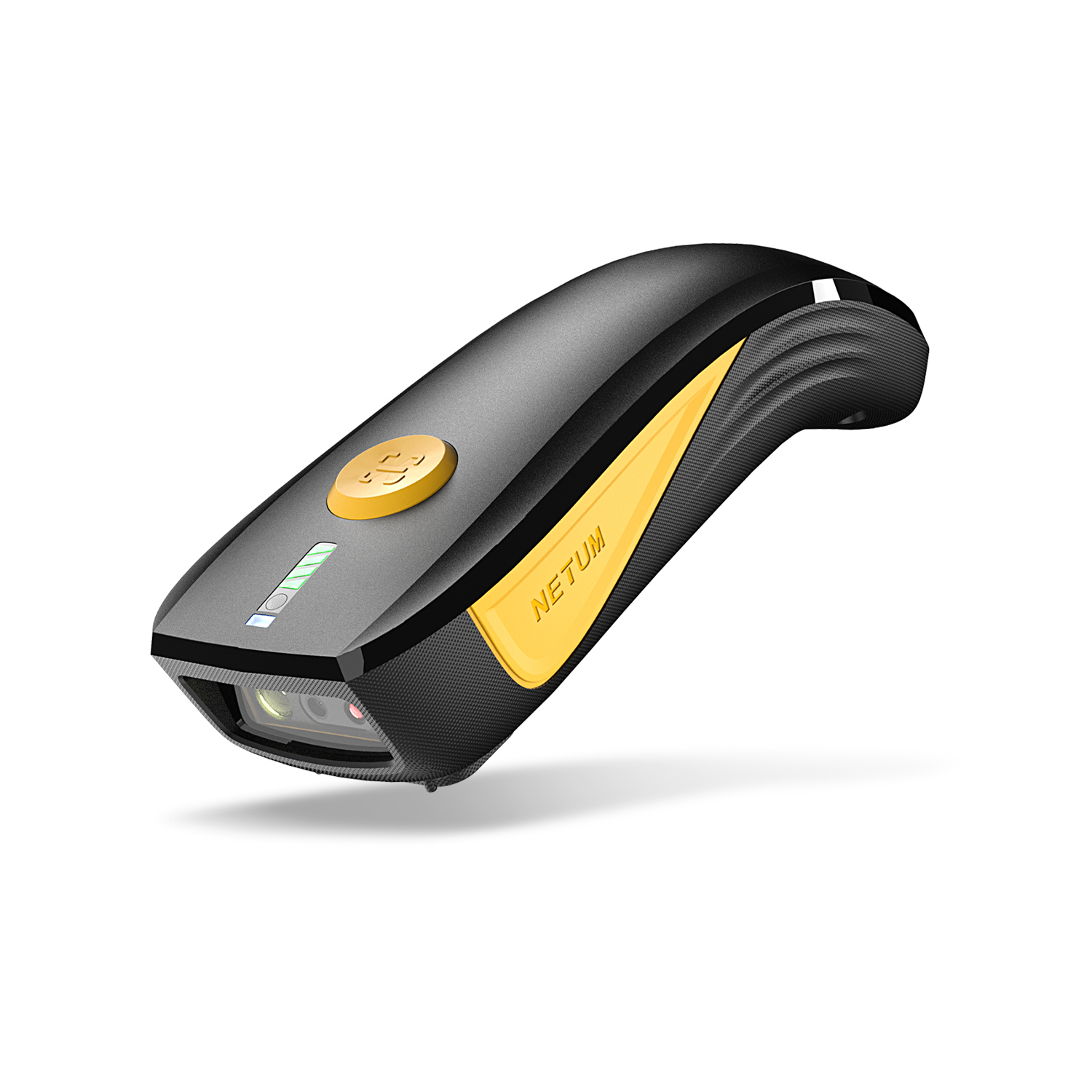

The CS7501 is a high-performance, portable wireless 2D barcode scanner developed by NETUM. It features a high-resolution 1280×800 CMOS sensor, ensuring fast and accurate decoding of both 1D and 2D barcodes. With its compact, palm-sized design and ergonomic contours, it is particularly suitable for mobile operations in retail checkout, logistics sorting, and warehouse inventory management, helping to boost efficiency and reduce physical strain.
This scanner incorporates an innovative dual-layer protective structure: an outer shell made of flexible TPU and an inner frame of high-strength ABS plastic. This combination ensures impact resistance while providing a comfortable grip. The wave-shaped handle fits naturally in the palm, and the anti-slip texture minimizes hand fatigue even during extended use. Additionally, the silicone cushion at the base enhances grip stability and absorbs pressure during operation.
In terms of durability, the CS7501 excels with rugged construction. Key areas are reinforced with military-grade shockproof materials, and the device has undergone rigorous 1.5-meter drop tests while meeting IP54 protection standards. It can withstand common bumps and falls in warehouse and logistics environments. The specially treated surface coating resists corrosion from alcohol and disinfectants, making it suitable for demanding industries like healthcare and food processing, thereby extending its lifespan.
As a smart data capture device, the CS7501 supports Bluetooth 5.0 wireless transmission with a range of up to 100 meters and is compatible with various POS and warehouse management systems. Its high-capacity battery allows for 12 hours of continuous operation, while the smart sleep mode extends standby time to 30 days. Whether for fast-paced retail checkouts or high-volume scanning in logistics, this durable, comfortable, and high-efficiency scanner delivers reliable performance.
1.2 | Illumination: | White LED | |||
1.3 | Aiming Light: | Red LED | |||
1.4 | Motion Tolerance: | 2.5M/S | |||
1.5 | Field of View (FOV): | Horizontal: 42°, Vertical: 28° | |||
1.6 | Scanning Angle: | Roll: 360°, Pitch: ±55°, Skew: ±55° | |||
1.7 | Supported Barcode Types: | 2D QR/Mrico QR, Data Matrix, PDF417, Maxicode,Aztec,HanXin
1D EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar， Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey GS1 Databar,Code 11,Industrial 25, Standard 25，Plessey Matrix 2 of 5 | |||
1.8 | Typical Reading Ranges: |
|
Code 39 | 5mil / 10 characters | 45mm – 165mm |
QR Code | 20mil / 16 characters | 25mm – 330mm |
Data Matrix | 10mil / 20 characters | 40mm – 150mm |
PDF417 | 6.67mil / 7 characters | 25mm – 180mm |
1.9 | Decode Accuracy: | 1D:≥3 mil 2D:≥5 mil |
1.2.0 | Print Contrast Ratio: | ≥25%(UPC/EAN 100% , PCS 90%) |
2 | Wireless Parameters | |
2.1 | Transmission Modes: | Wired, 2.4G Wireless, Bluetooth (Supports 2.0, 3.0, 4.0, 4.2) |
2.2 | 2.4G | Up to 65 meters (line of sight with AP)） |
Bluetooth: | Up to 20 meters (line of sight) | |
2.3 | Battery Capacity: | 2000mAh |
2.4 | Charging Time: | Approx. 5 hours |
2.5 | Standby Mode: | Enters standby after 3 minutes |
2.6 | Charging Input: | 5V 1~2A |
3 | Electrical Specifications | |
3.1 | Operating Voltage: | 5V±5% |
3.2 | Standby Current: | 0.6μA |
3.3 | Operating Current: | 170mA ±5% (typical), 260mA ±5% (maximum) |
4 | Functional Features | |
4.1 | Supported Interfaces: | Standard USB |
4.2 | Transmission Types: | 2.4G、USB HID（USB COM）、蓝牙（HID、SPP、BLE） |
4.3 | Alert Methods: | Buzzer, Vibration |
4.4 | Scan Modes: | Trigger scan*, Continuous scan, Auto-sensing, Command control |
5 | Physical Parameters | |
5.1 | Dimensions (L × W × H): | 198*74*105 |
5.2 | Weight: | ≈127g |

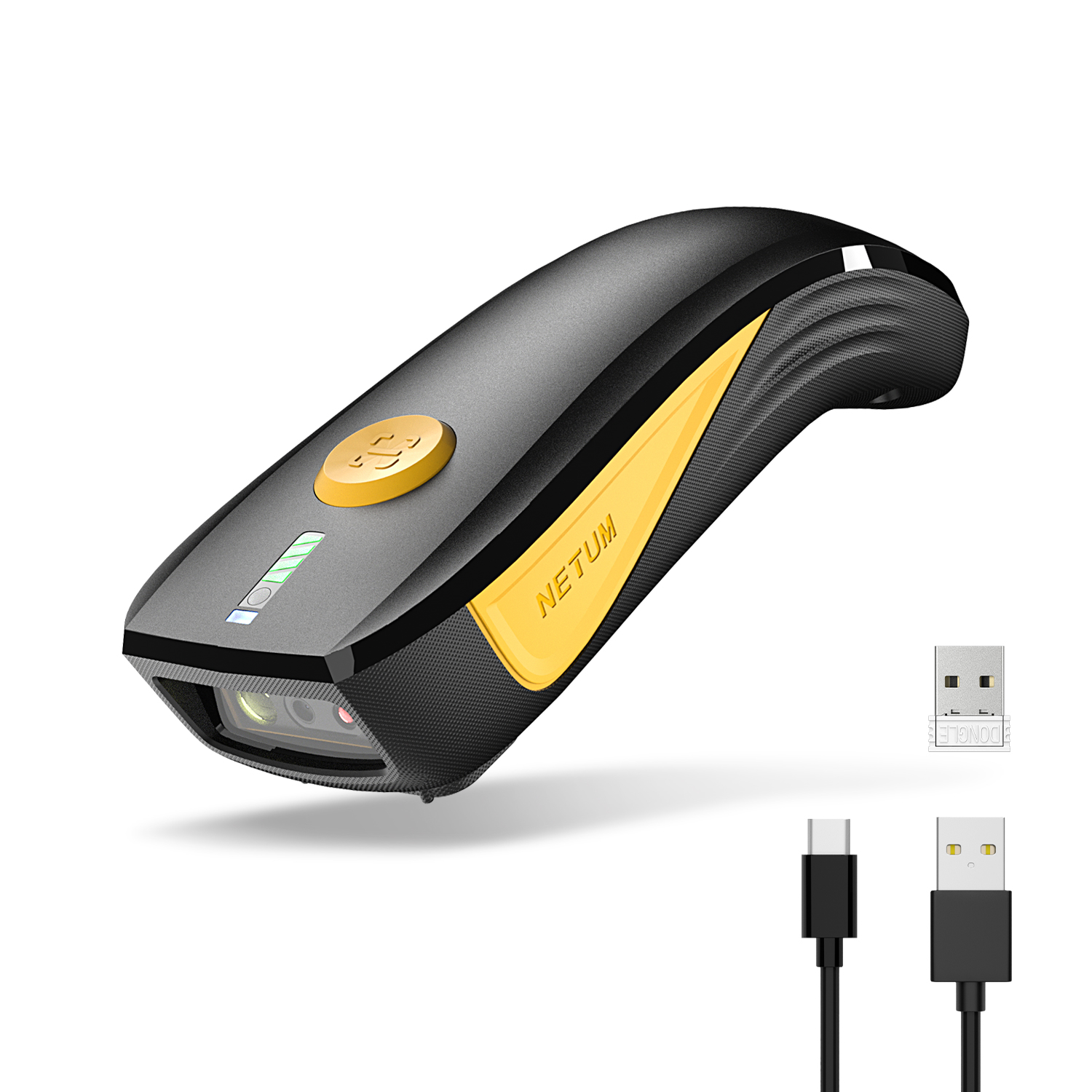

5.3 | Cable: | Type-C, 1.2m length |
5.4 | Color Options: | Black, Yellow |
5.5 | Housing Materials: | Soft Shell: TPU |
6 | Safety & Compliance | |
6.1 | Drop Resistance: | Withstands drops from 2 meters onto concrete |
6.5 | Certifications: | CE, RoHS, FCC |
