Product Features:
➤The C990 imager Barcode Scanner is equiped with advanced CMOS sensor, which can easily capture 1D/ 2D（QR/ PDF417/ Data Matrix,etc） bar codes from paper and screen, such as computer monitor, smartphone or tablet, effectively compensate for the problem that laser scanner can not identify screen code.

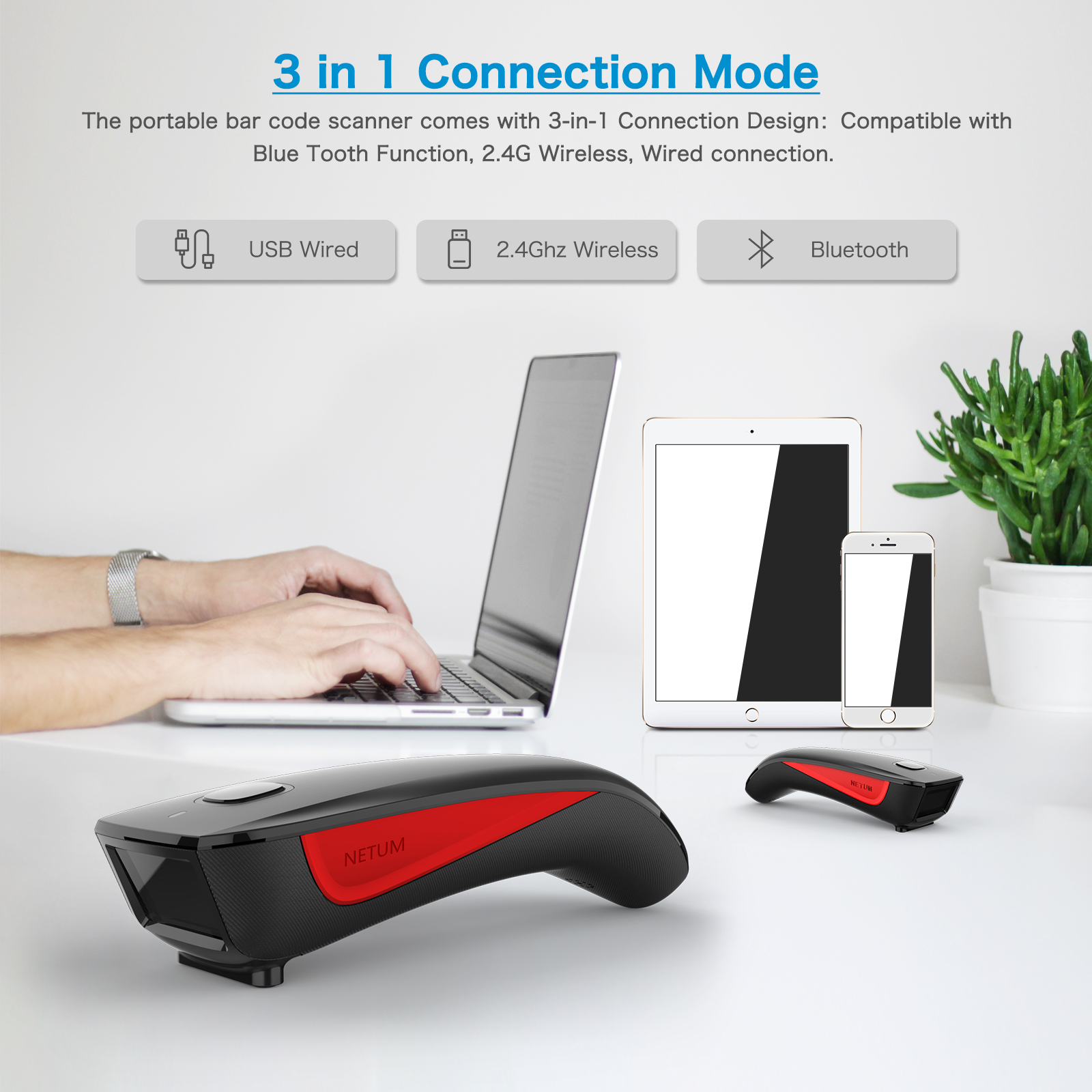

➤3-in-1 Mini Barcode Scanner - Support Bluetooth Connection, 2.4G Wireless and USB Wired.
Bluetooth Connection: Connect the scanner to your device via Bluetooth technology; 2.4GHz
Wireless Connection:Connect the scanner to your device via the USB adapter; Wired Connection:
Connect the scanner to your device via the USB cable. In wired mode, users can scan barcodes
while charging.

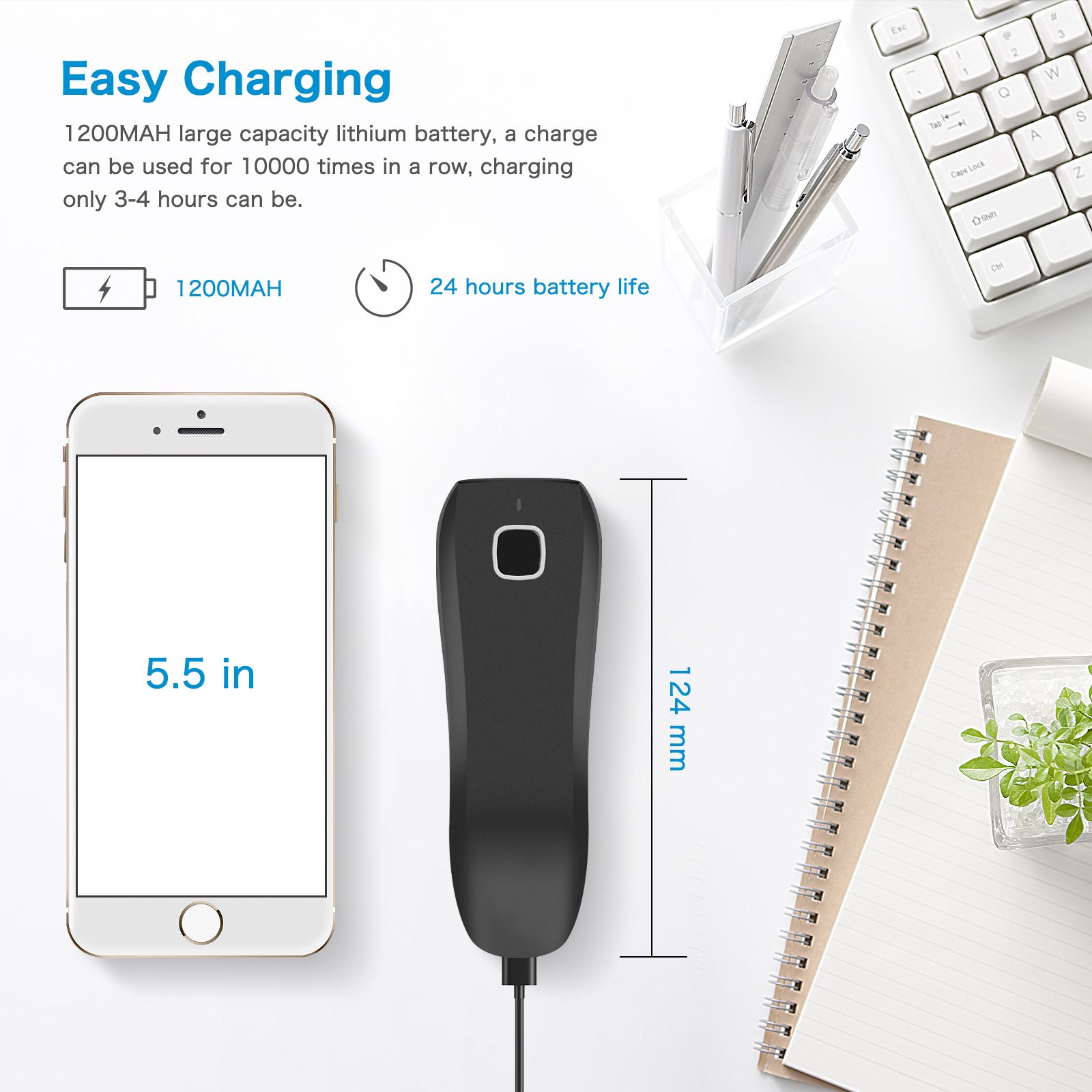

➤Manual Scan & Auto-sensing Scan & Continuous Scan. 1200mAh battery ensures 20 hours of continuous handsfree scanning, no pressing the button for efficiency.
➤Two upload mode :Instant upload mode / Storage mode. Internal offline storage supports up to 100,000 barcodes in offline storage mode. Scan and store barcode when far away from the receiver, and then batch upload the data to your device when you need it.
l C990 Wireless 2D Scanner
1 | Performance | |
1.1.1 | Resolution: | VGA 1MP（1280*800） |
1.1.2 | Illumination: | 5600K White LED |
1.1.3 | Focus: | Red Color LED Aimer |
1.1.4 | Reading Accuracy: | 1D≥4mil 2D≥5mil |
1.1.5 | Scan Angle: | Skew: ±60, Pitch: ±60°, Roll: 360° |
1.1.6 | Field of View: | 40° (H) x 30° (V) |
1.1.7 | Symbologies: | 2D QR Code, Micro QR,Data Matrix, PDF417,Micro PDF417,Aztec, Maxicode
1D UPC-A,UPC-E,EAN-8.EAN-13,Code 128,Code 39,Code 93,Code 32,Code 11,Codabar,Plessey,MSI Plessey,Interleaved 2 of 5,IATA 2 of 5,Matrix 2 of 5,Straight 2 of 5,Pharmacode,GS1 DataBar 14,GS1 DataBar Expanded, GS1 DataBar Limited,Composite Code-A,Composite Code-B, ,Composite Code-C |
1.1.8 | Typical Depth of Field: | Code 39 -5 mil: 30 mm - 80 mm UPCA -13 mil (100 %): 50 mm - 210 mm |
1.1.9 | Contrast: | ≥20% |
1.2.1 | Scanning Method: | Button Trigger Scanning, Continuous Scanning, Auto-Sense Scanning |
2 | Wireless | |
2.1 | Transfer Method: | Wireless 2.4G + Bluetooth (supports protocols 2.0, 3.0, 4.0, 4.2) + Wired transmission |

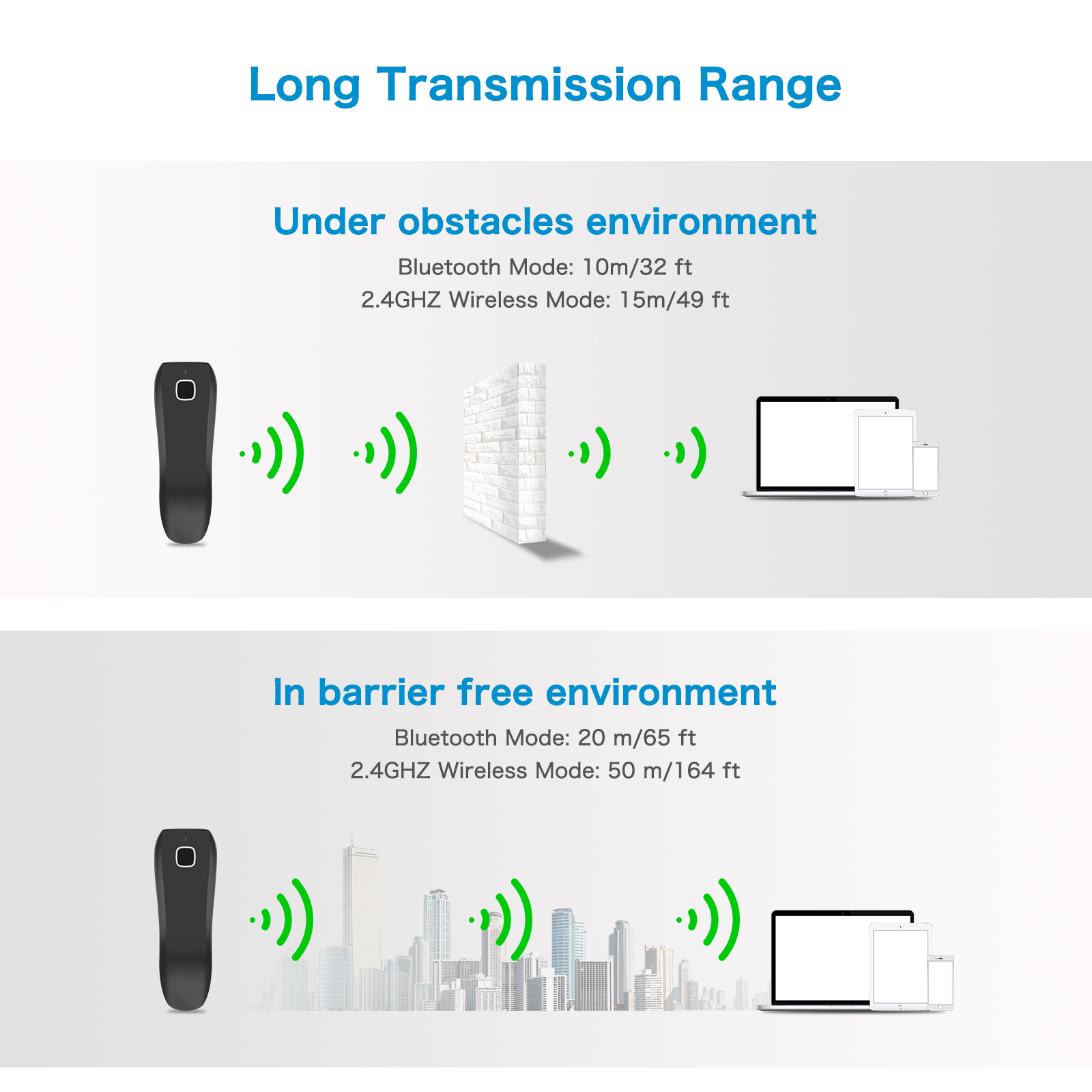

2.2 | 2.4G Communication Distance: | 65m Visual Distance |
Bluetooth Communication Distance: | 20m Visual Distance | |
2.3 | Battery Capacity: | 1200mAh |
2.4 | Charging Time: | 3-4 Hours |
2.5 | Standby Time: | Enter Standby in 3 minutes |
2.6 | Charging Input: | 5V 2A |
3 | Electrical | |
3.1 | Operating Voltage: | DC 5V±5％ |
3.2 | Working Current: | 240mA |
3.3 | Stand-by Current:： | 0.6μA |
4 | Physical | |
Dimensions:

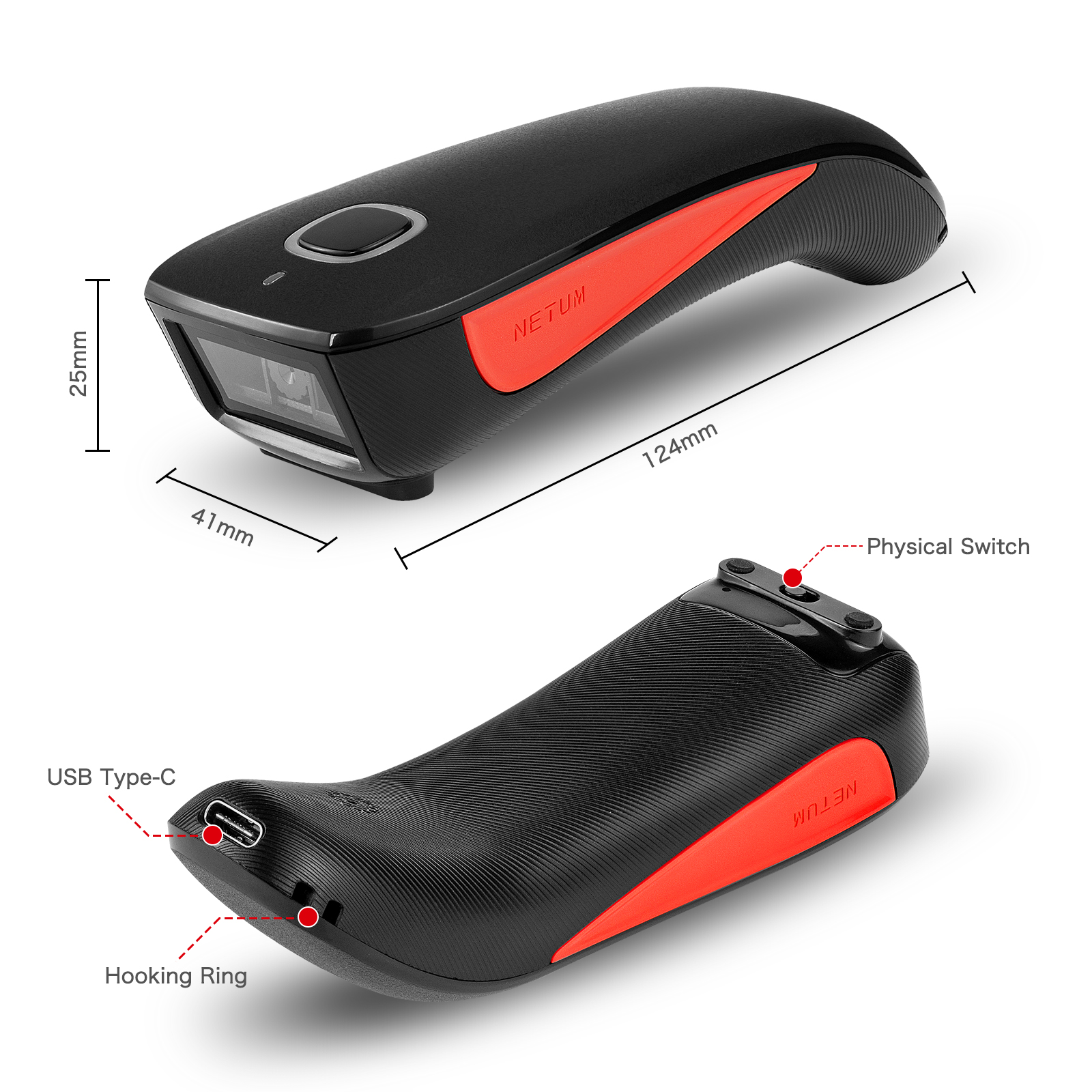

| Length*Width*Height (mm): 125*25*41mm | |
4.2 | Weight: | ≈72g |
4.3 | Data Cable Length: | 1.2m |
4.4 | Interface: | USB |
4.4 | Color: | Black+ Red |
4.5 | Material: | ABS |
4.6 | Notification: | Buzzer, LED Indicator, Vibration |
5 | Environmental | |
5.1 | Operating Temperature | -10°C-50°C |
5.2 | Storage Temperature: | -20°C-70°C |
5.3 | Storage Humidity: | 5%-95% (No condensation) |
5.4 | Ambient Lighting: | 0~100000 LUX |
6 | Certificates & Protection | |
6.1 | Drop Resistance: | 1 Meter High Free fall (Optional C Series Protective Cover) |
6.2 | Certifications: | CE ROHS FCC etc. |
