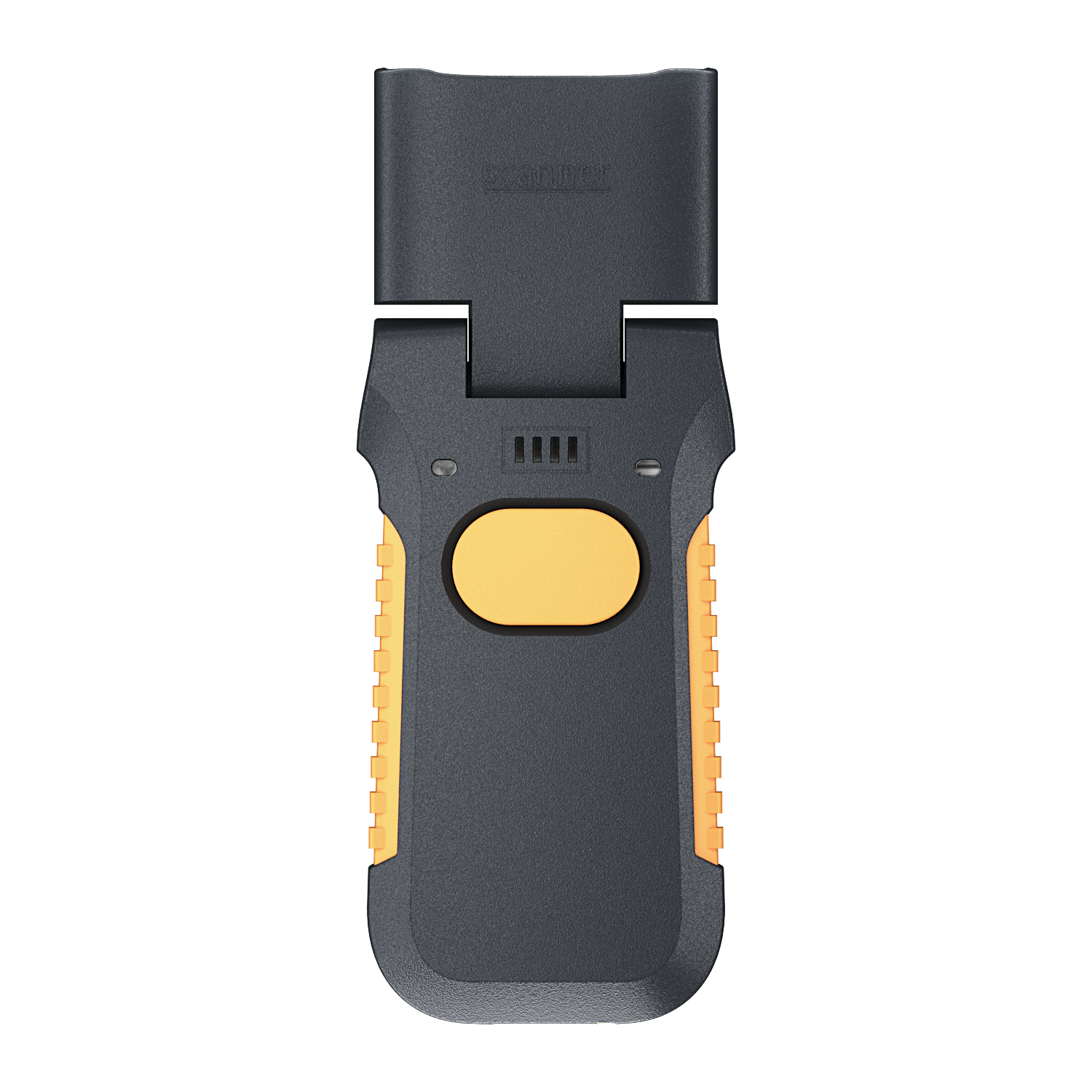

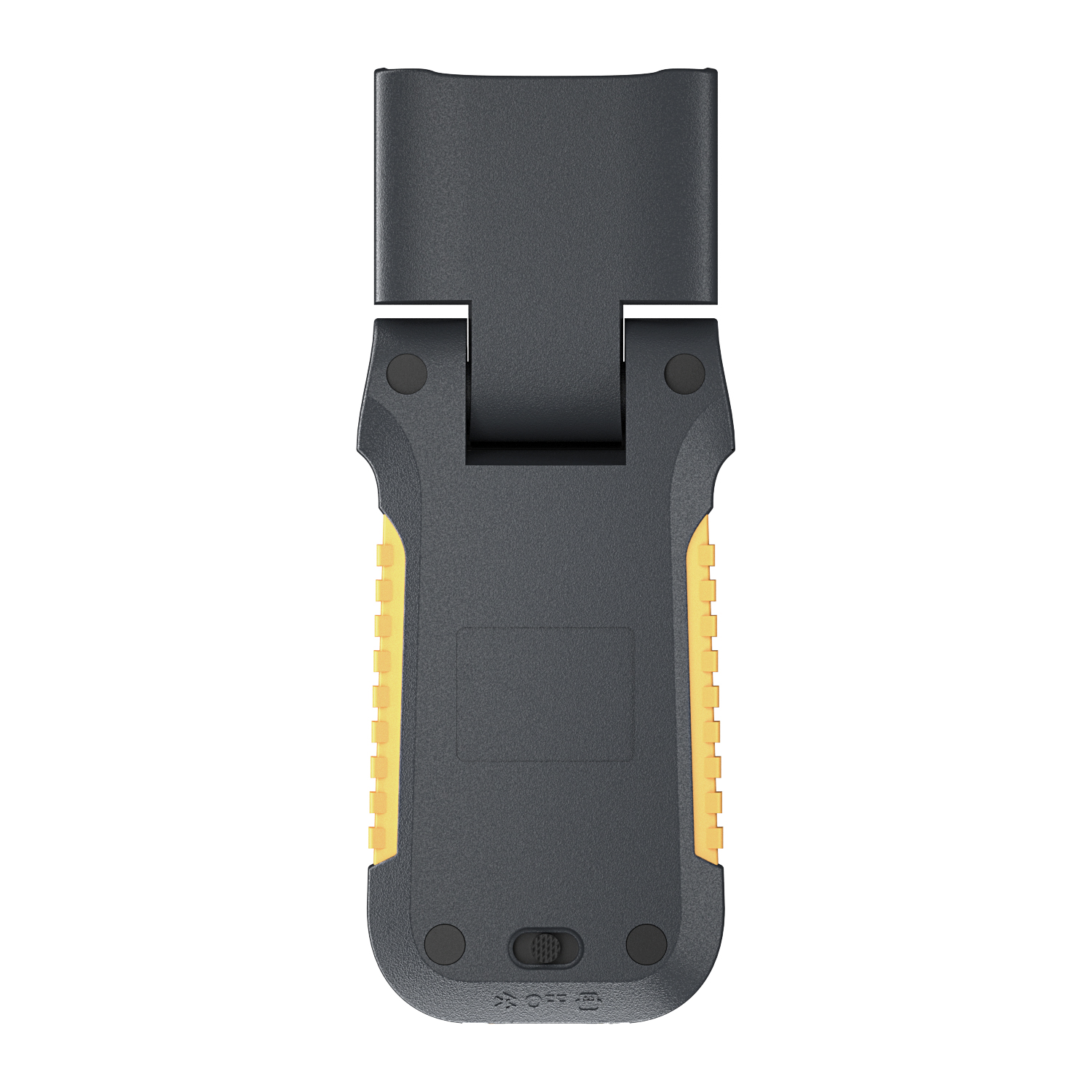

The X-6800 is a compact, high-performance mini scanner designed to meet the rigorous demands of modern industrial environments. Built with a dual-color molded soft and hard rubber process, this device is engineered for resilience, offering a rugged, scratch-resistant exterior that thrives in warehouses, factories, and logistics hubs. Its rotatable scanner head and triple-mode connectivity provide the flexibility needed to streamline workflows across diverse applications.

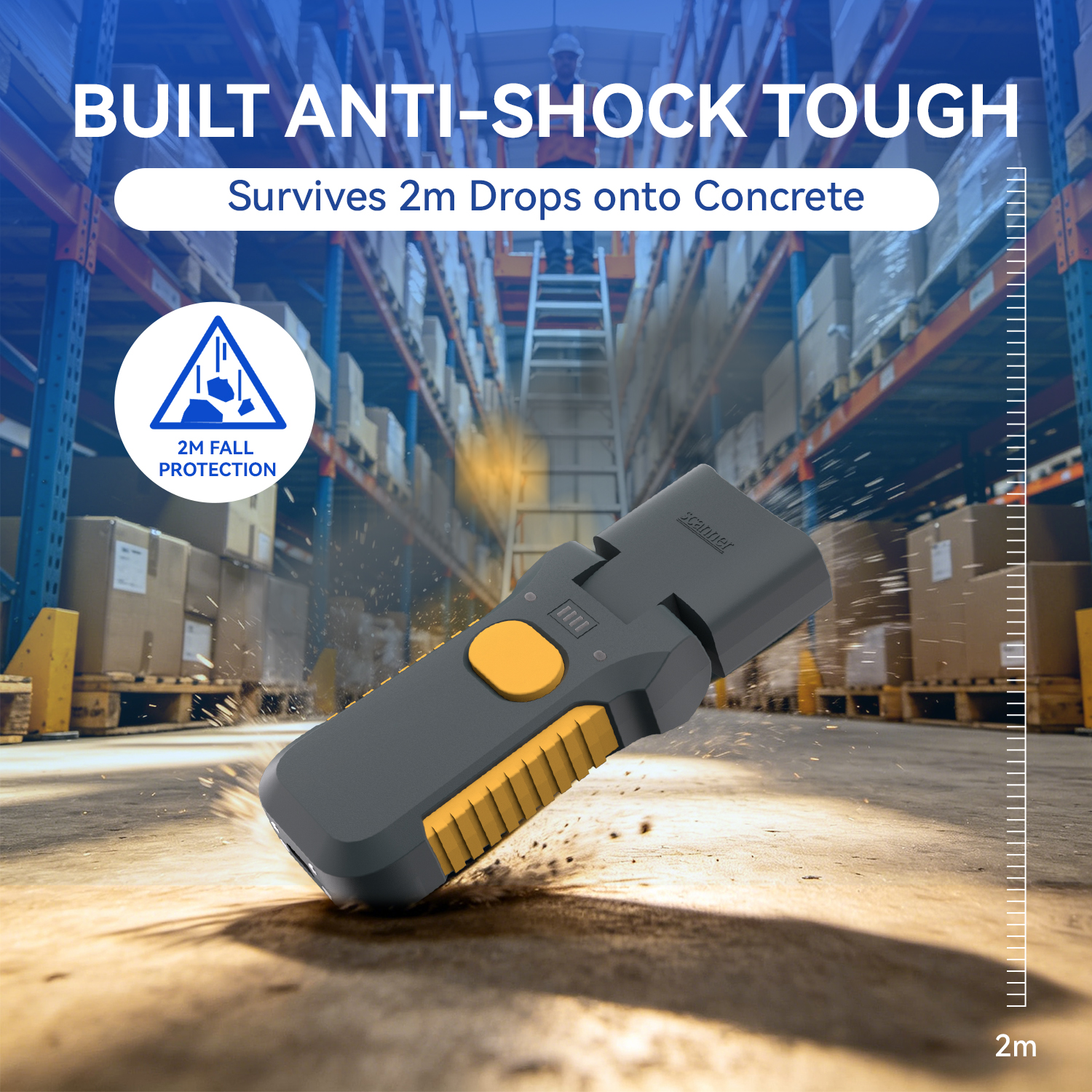

Industrial Durability: Featuring a TPU soft rubber shell, the device is drop-resistant up to 2 meters on concrete, ensuring long-term reliability in harsh working conditions.

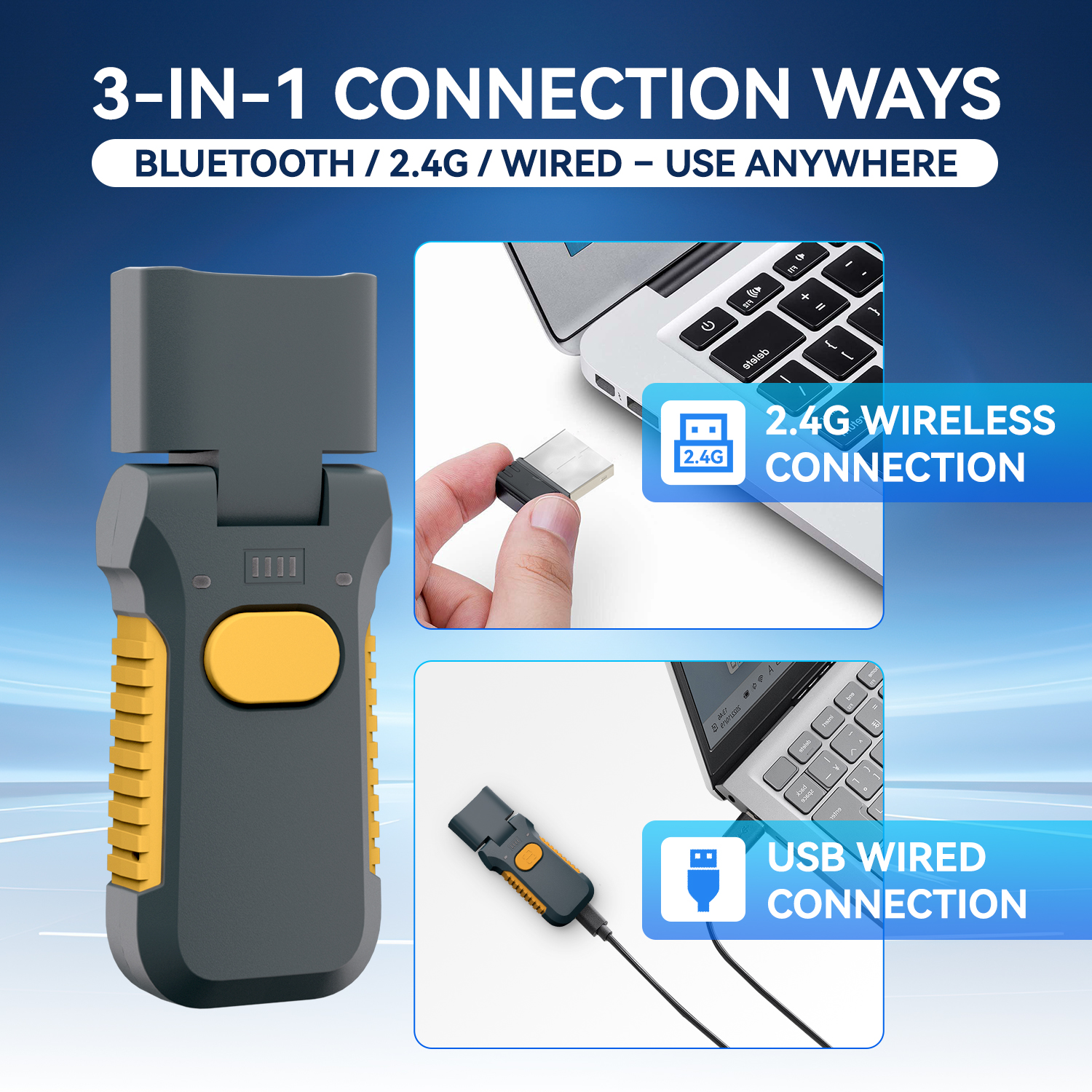

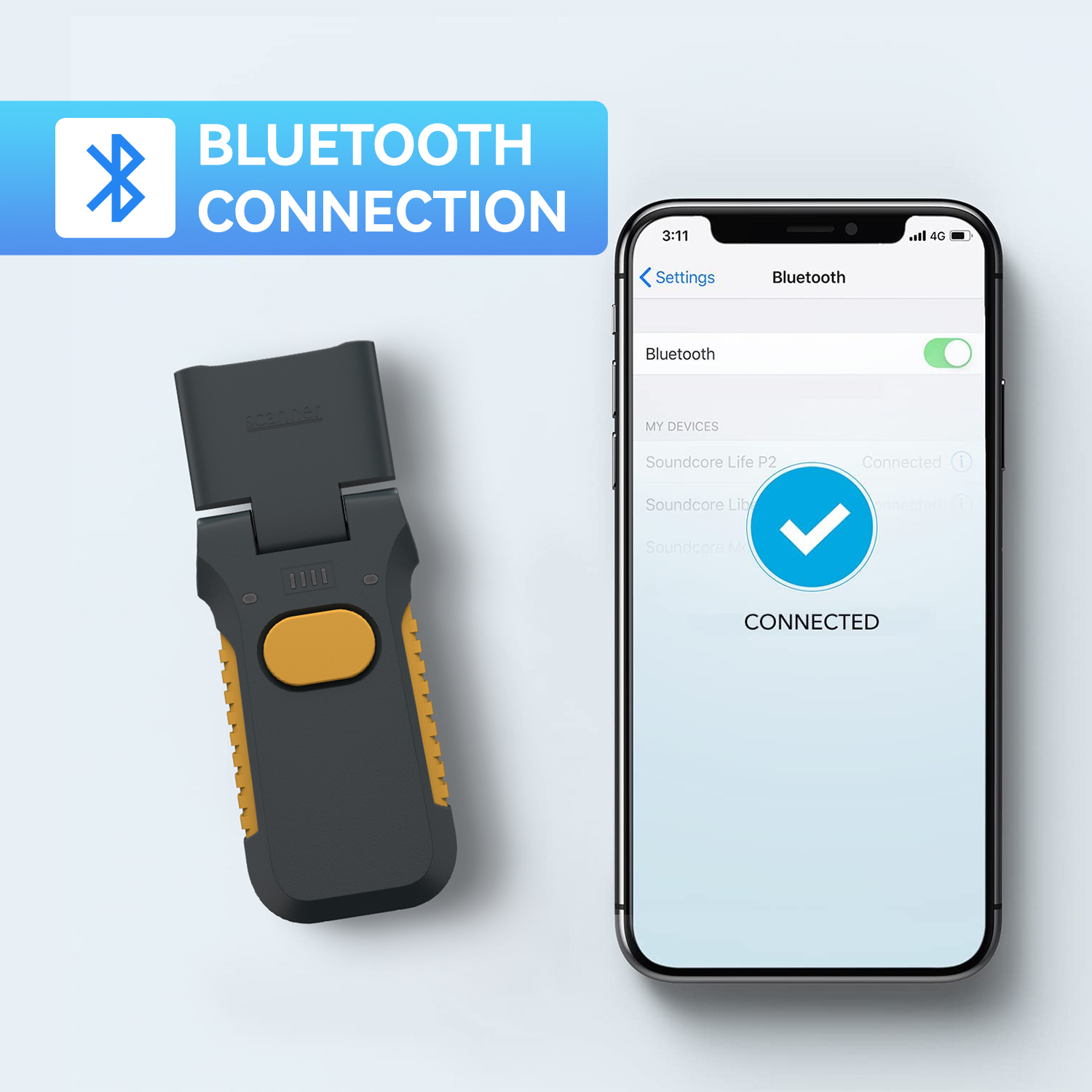

Triple-Mode Connectivity: Supports Wireless 2.4G (65m range), Bluetooth (20m range), and Wired USB connections for seamless integration with POS systems and management software.

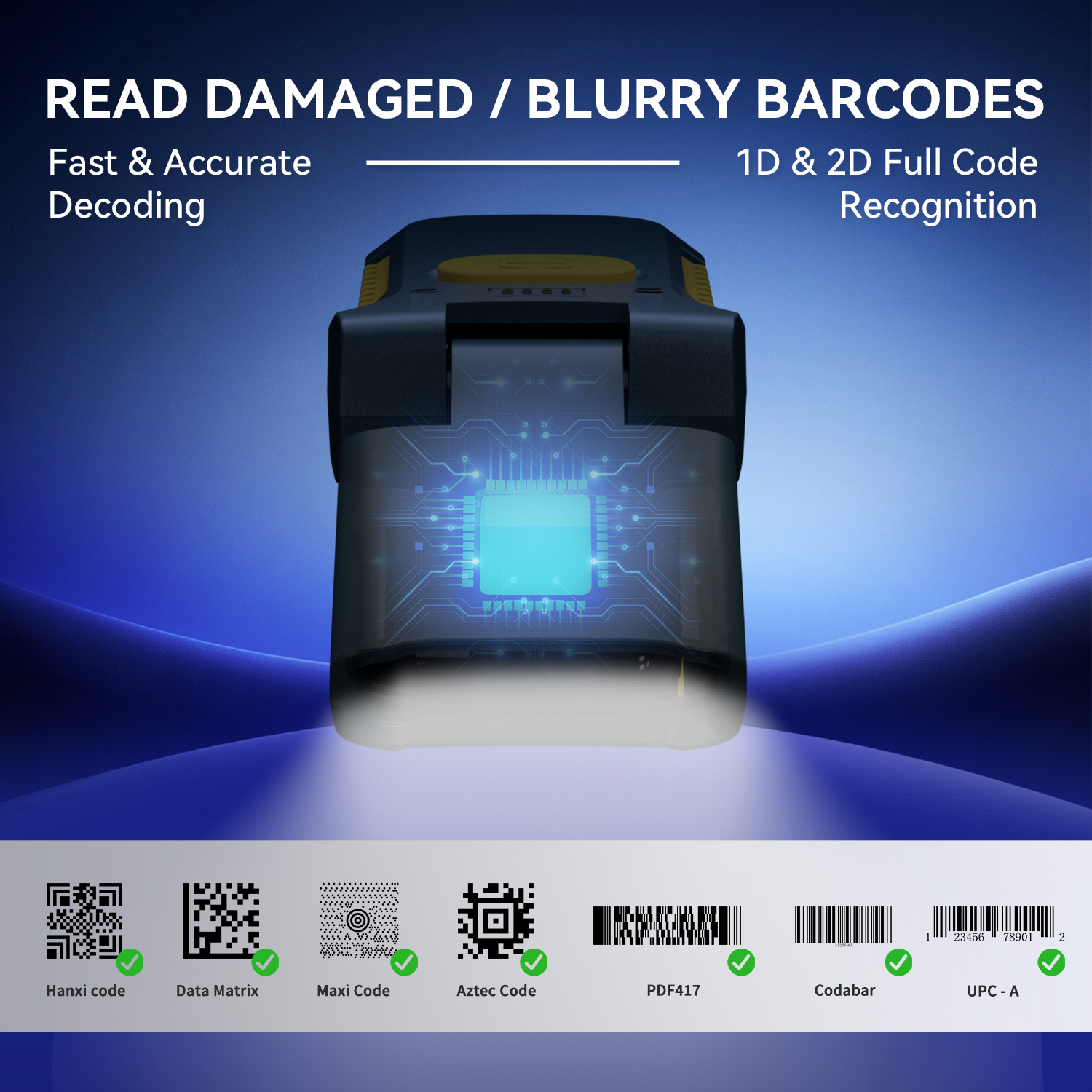

Precision Scanning: Equipped with a 640x480 CMOS sensor that accurately reads 1D and 2D codes, including soiled, distorted, or low-contrast printed barcodes.

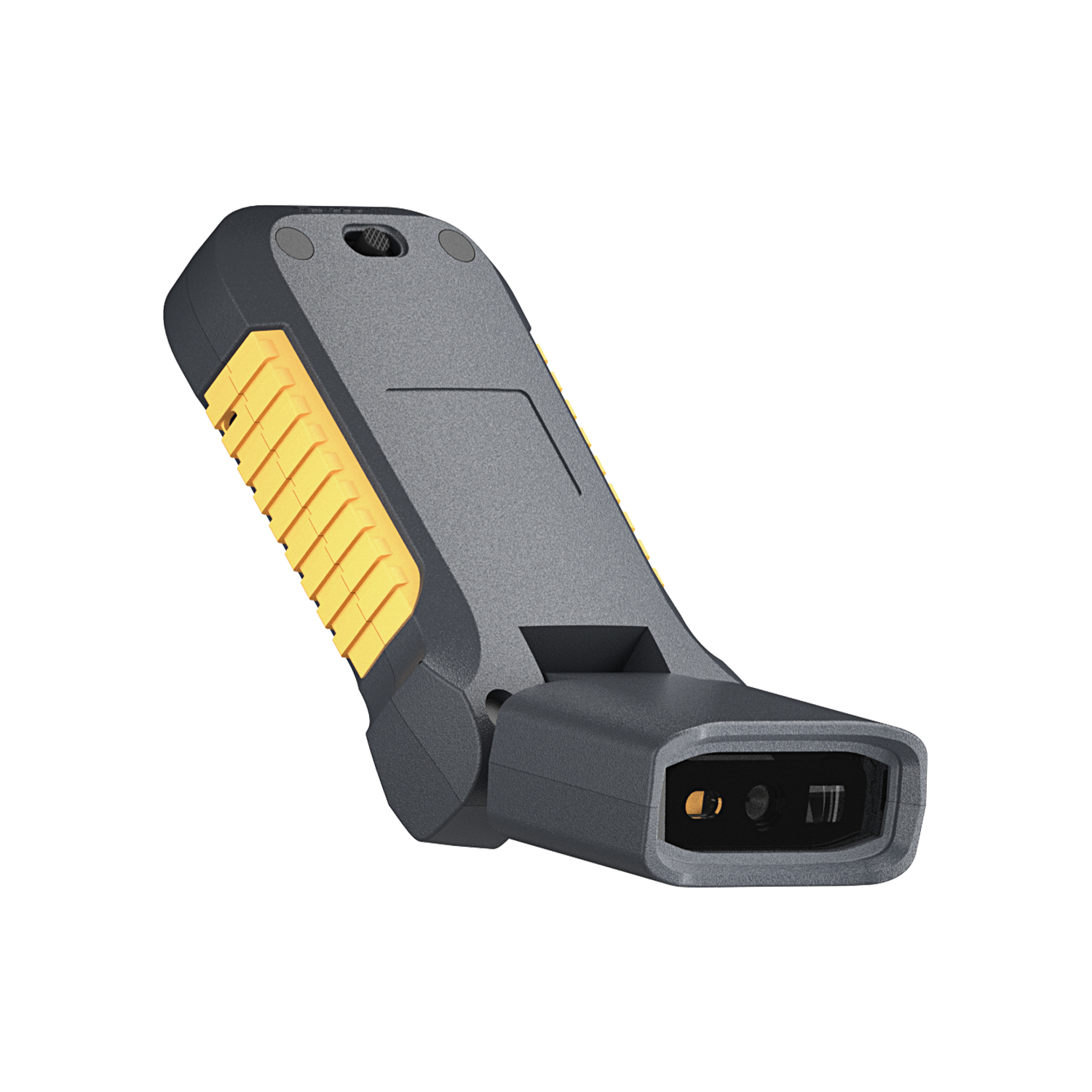

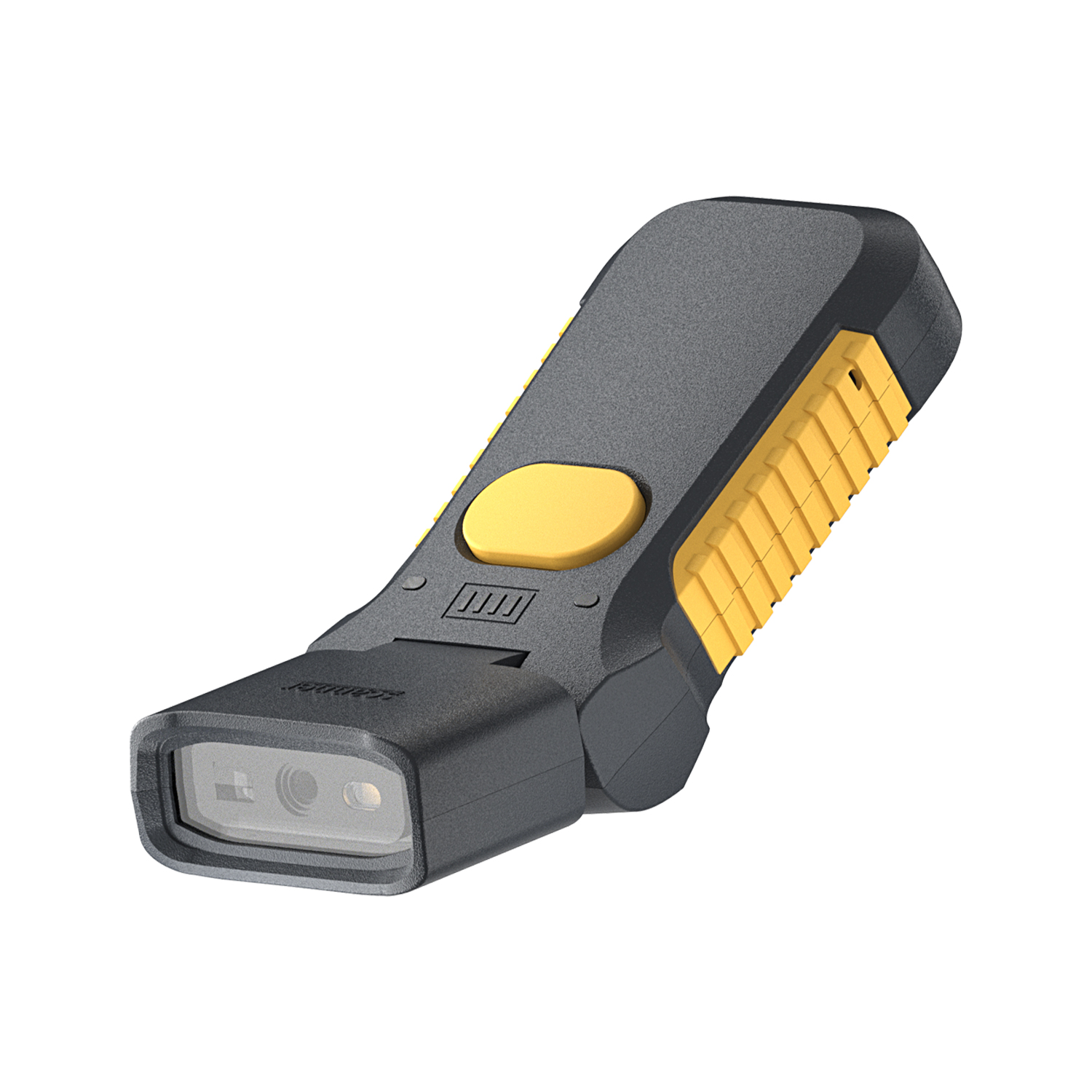

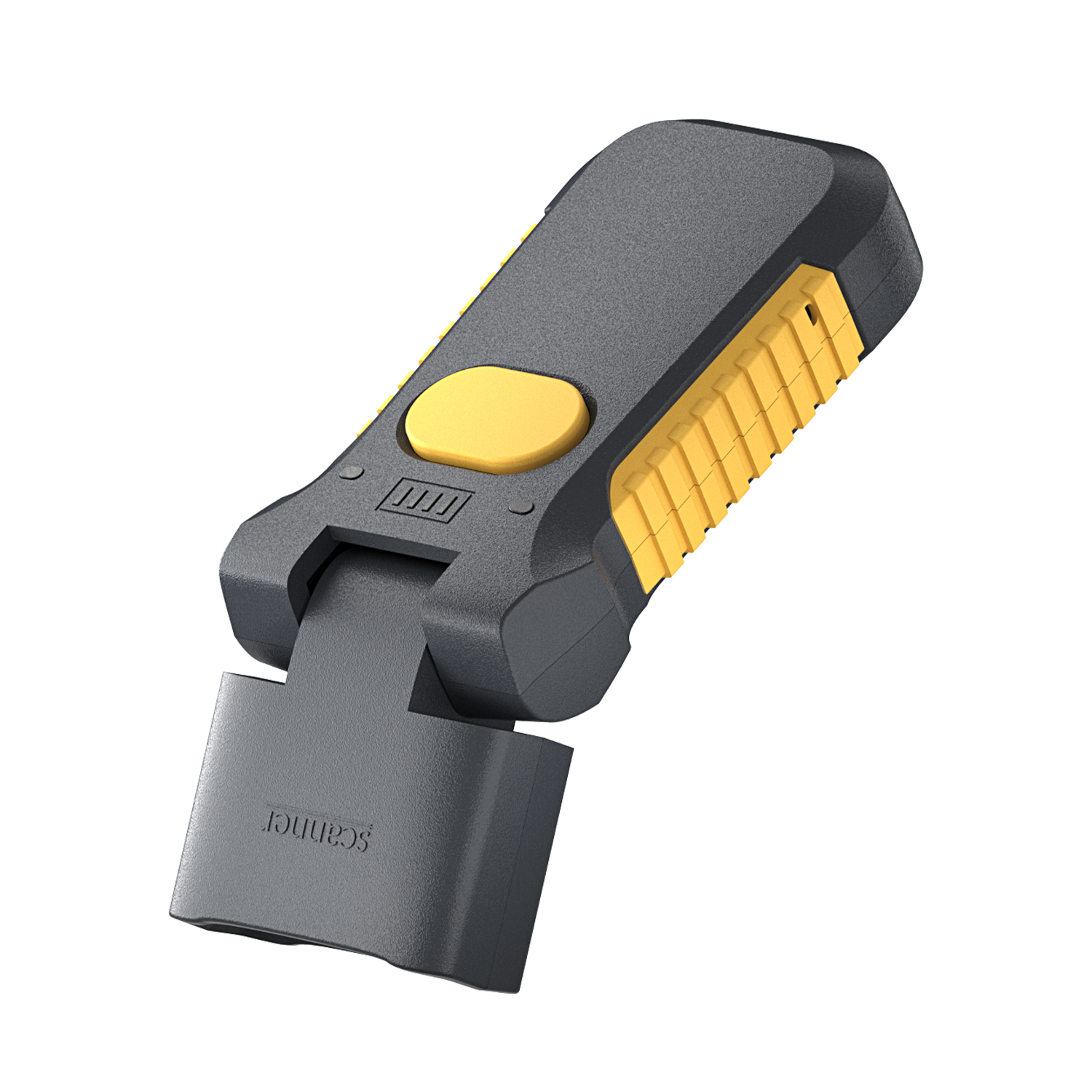

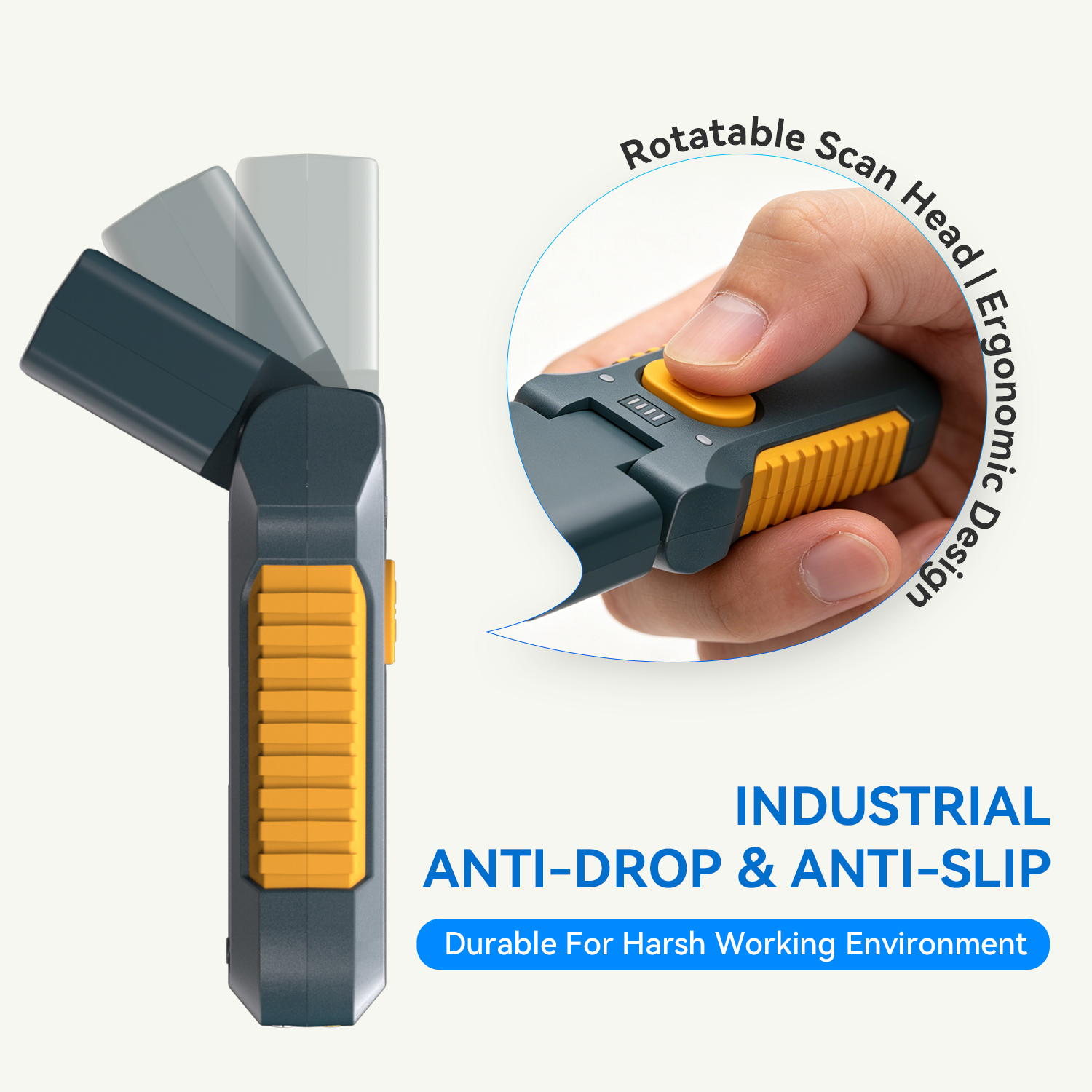

Human-Centric Design: The rotatable scanner head allows for multi-angle alignment without moving the item, while soft-touch, anti-slip buttons reduce hand fatigue during high-frequency shifts.

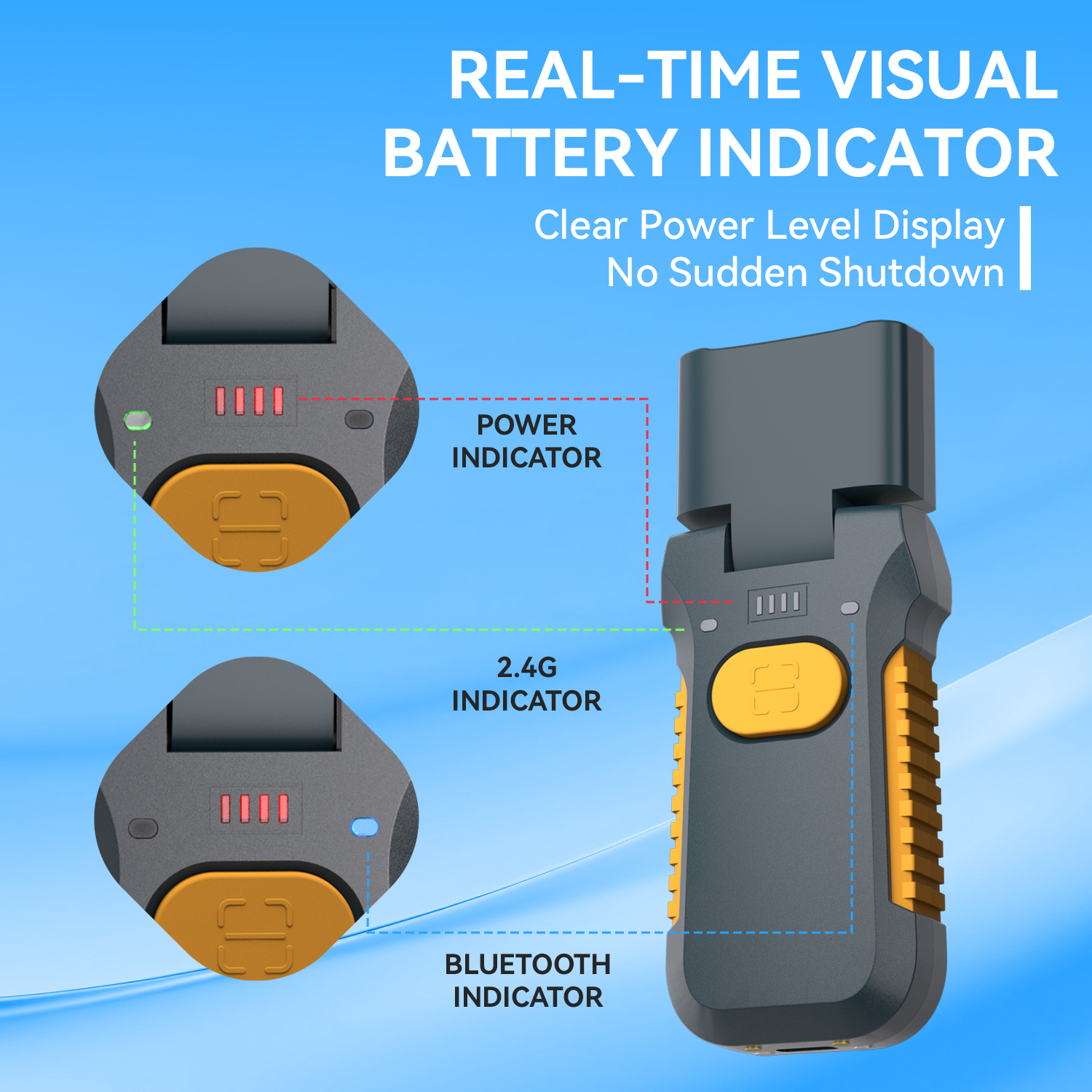

Visualized Power Management: Built-in LED indicators provide real-time battery status, allowing teams to plan charging and avoid unexpected downtime.
X-6800 Specifications
1 | Scanning performance | ||
1.1 | Sensor: | CMOS(Global Shutter) | |
1.1.2 | Resolution: | 640×480 | |
1.1.3 | Illumination: | White LED | |
1.1.4 | Focus: | Red LED | |
1.1.5 | Reading Accuracy: | 1D≥4mil 2D≥5mil | |
1.1.6 | Scanning Angle： | Rotation angle 360°, elevation angle ±55°, deflection angle ±55° | |
1.1.7 | Field of View： | D:48° H:40° V:30° | |
1.1.8 | Supported Code Types： | 2D QR Code, Data Matrix, PDF417,Aztec, Maxicode，Hanxin Code 1D EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar，Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey, GS1 Databar,GS1 Composite Code,Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5 | |
1.1.9 | Scanning Depth of Field： | EAN-13 50mm-220mm (13mil) Code 39 40mm-100mm (5mil 10 bytes) QR Code 25mm-240mm (20mil 16 bytes) Data Marix 50mm-100mm (10mil 20 bytes) PDF 417 30mm-140mm (6.67mil 7 bytes) | |
1.2 | Contrast： | ≥20% | |
1.2.1 | Scanning method： | Trigger scan, continuous scan, self-sensing scan... | |
2 | Wireless parameters | ||
2.1 | Transmission method: | Wired, 2.4G wireless, Bluetooth (supports protocols 2.0, 3.0, 4.0, 4.2) | |
2.2 | 2.4G communication distance: | 65m visible viewing distance | |
Bluetooth communication distance: | 20m visible viewing distance | ||
2.3 | Battery capacity: | 1000mAh battery | |
2.4 | Charging time: | Approx. 4 hours of use | |
2.5 | Standby time: | Battery lifespan (3 minutes to enter standby) | |
2.6 | Charging input: | 5V 1~2A | |
3 | Electrical characteristics | ||
3.1 | Operating voltage: | 5V±5% | |
3.2 | Standby current: | 0.6μA | |
3.3 | Operating current: | 170 mA ±5% (typical), 260 mA ±5% (maximum) | |
4 | Working characteristics | ||
4.1 | Supported Interfaces: | Standard USB interface | |
4.2 | Transmission Method: | 2.4G, USB HID (USB COM), Bluetooth (HID, SPP, BLE) | |
4.3 | Prompt Method: | Buzzer, Vibration | |
4.4 | Scanning Method: | Trigger scan*, Continuous scan, Self-sensing scan, Command trigger (etc.) | |
5 | Physical parameters | ||

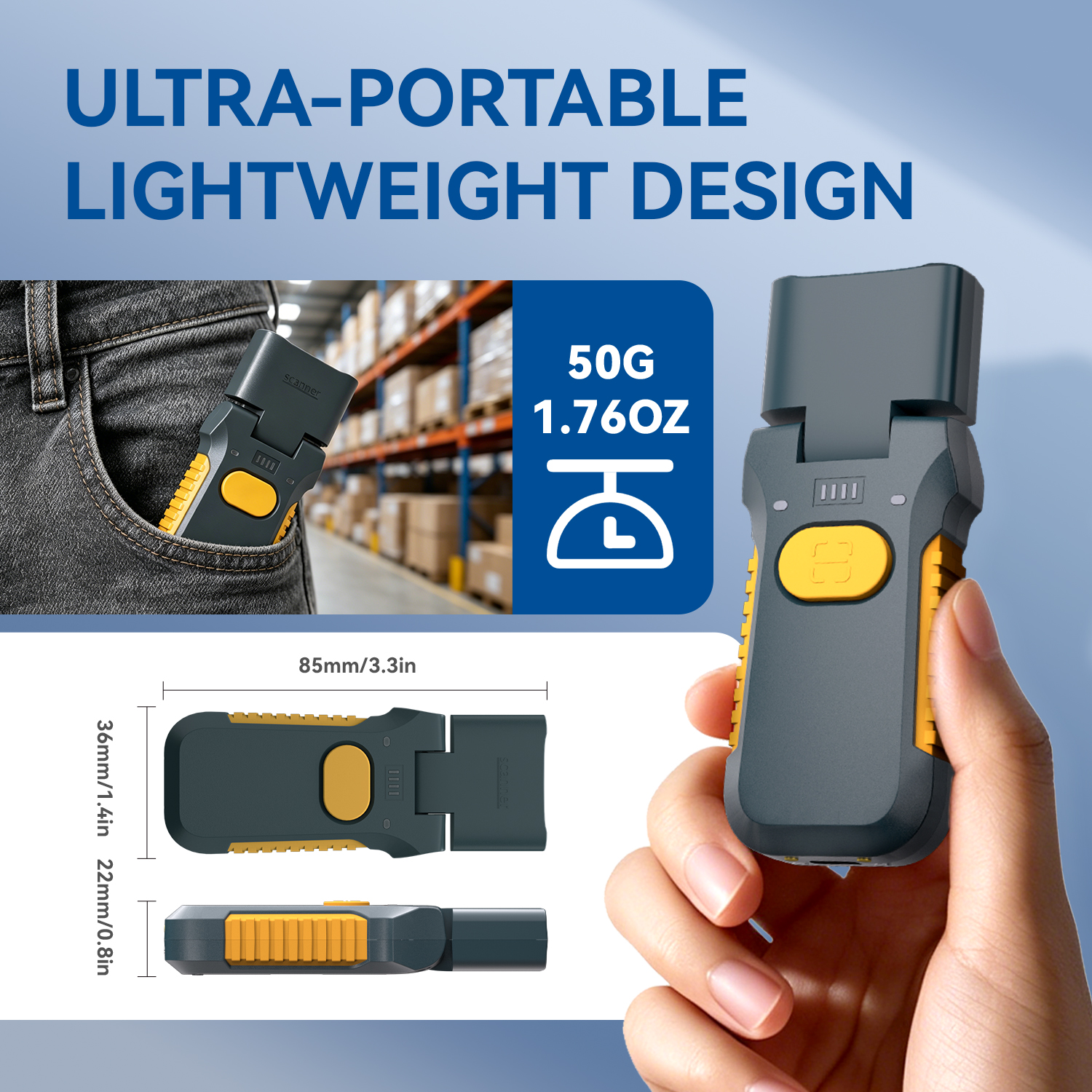

5.1 | Dimensions (L* W * H) (mm): | Scanner: 190*43*22 | |
5.3 | Cable: | Type-C cable length: 1.2m | |
5.4 | Color: | Gray, Yellow | |
5.5 | Shell： | Soft rubber: TPU | |
