Product Features:
➤Prominent Decoding Ability (1D/2D) - This Wireless Barcode Scanner is equiped with advanced
CMOS sensor, which can easily capture 1D/ 2D（QR/ PDF417/ Data Matrix,etc） bar codes from
paper and screen, such as computer monitor, smartphone or tablet.

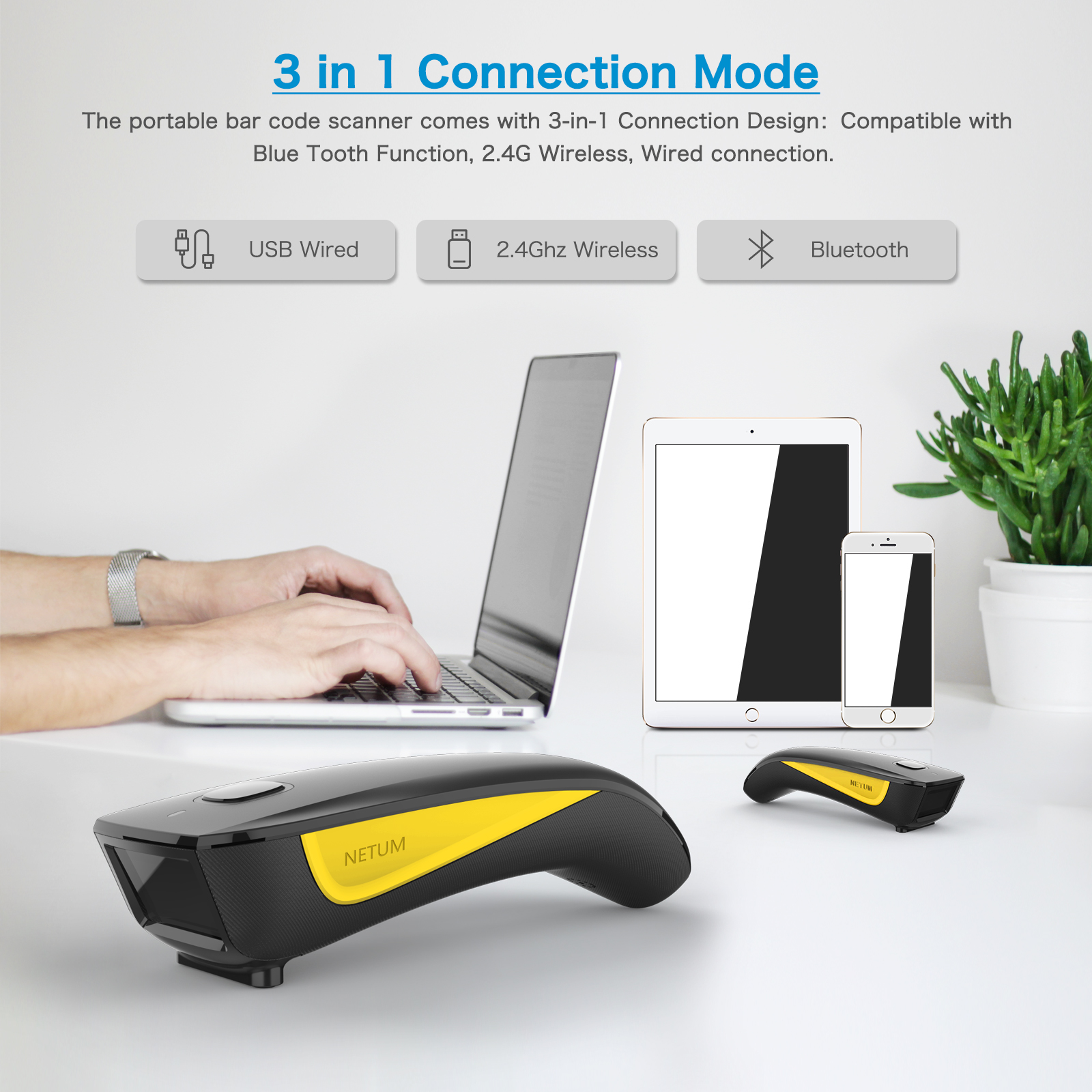

➤3-in-1 Mini Barcode Scanner - Support Bluetooth Connection, 2.4G Wireless and USB Wired.
Bluetooth Connection: Connect the scanner to your device via Bluetooth technology; 2.4GHz
Wireless Connection:Connect the scanner to your device via the USB adapter; Wired Connection:
Connect the scanner to your device via the USB cable. In wired mode, users can scan barcodes
while charging.
➤Two working mode - Instant upload mode / storage mode. Internal offline storage supports up
to 100,000 barcodes in offline storage mode. Scan and store barcode when far away from the receiver
,and then update the data to your device when you come back entering the wireless transmission range.
➤3 Trigger Modes - Manual Scan & Auto-sensing Scan & Continuous Scan. 1200mAh battery ensures
20 hours of continuous handsfree scanning, no pressing the button for efficiency.
➤Compatible Operating System - Easily connected with your laptop, PC, mobile phone, tablet, iphone,
ipad, POS. Work with Windows XP/7/8/10, Linux, Mac OS, Android OS, iOS.
l C750 2D Wireless + Bluetooth Barcode Scanner
|
1 |
Scan performance |
|
|
1.1 |
Sensor: |
CMOS(Global Shutter) |
|
1.1.2 |
Resolution: |
640×480 |
|
1.1.3 |
Illumination: |
white LED light |
|
1.1.4 |
Focus: |
Red LED |
|
1.1.5 |
Reading accuracy: |
1D≥4mil 2D≥5mil |
|
1.1.6 |
Scan angle: |
Rotation angle 360°, elevation angle ± 55°, declination angle ± 55° |
|
1.1.7 |
Field of view: |
D:48° H:40° V:30° |
|
1.1.8 |
Support code system: |
2D QR Code, Data Matrix, PDF417,Aztec, Maxicode，Chinese Sensible Code 1D EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar，Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey, GS1 Databar,GS1 Composite Code,Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5 |
|
1.1.9 |
Scan depth of field: |
EAN-13 50mm-220mm (13mil) Code39 40mm-100mm （5mil 10 bytes） QR Code 25mm-240mm (20mil 16 bytes) Data Marix 50mm-100mm （10mil 20 bytes） PDF 417 30mm-140mm (6.67mil 7 bytes) |
|
1.2 |
Contrast: |
≥20% |
|
1.2.1 |
Scanning method: |
Button trigger scanning, Continuous scanning, Auto-sense scanning, |
|
2 |
Wireless parameters |
|
|
2.1 |
Transfer method: |
Wireless 2.4G + Bluetooth (supports protocols 2.0, 3.0, 4.0, 4.2) + wired transmission |
|
2.2 |

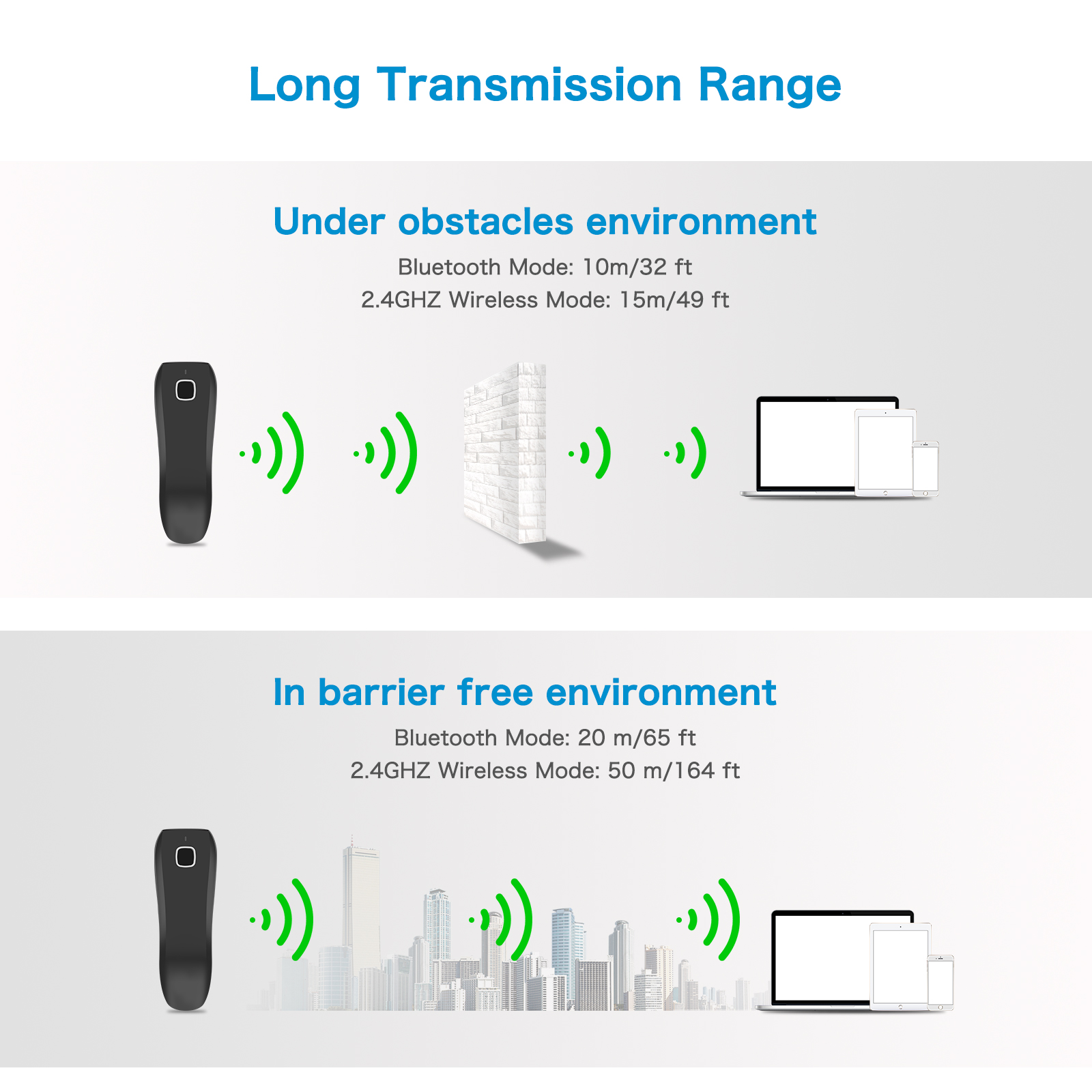

2.4G communication distance: |
65m visual distance |
|
Bluetooth communication distance: |
20m visual distance |
|
|
2.3 |

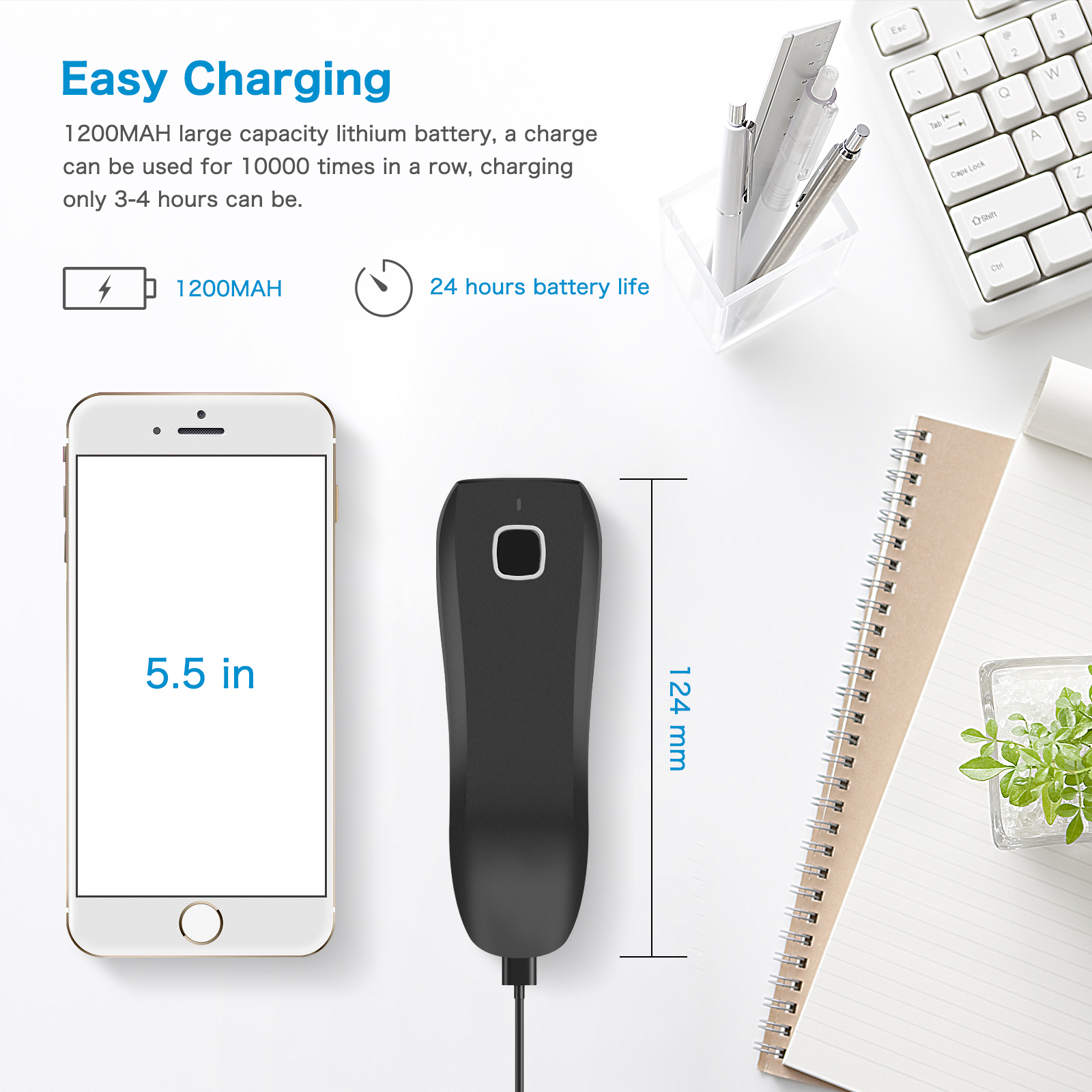

Battery capacity: |
1200mAh |
|
2.4 |
Charging time: |
3-4 hours |
|
2.5 |
Standby time: |
Enter standby in 3 minutes |
|
2.6 |
Charging input: |
5V 2A |
|
3 |
Electrical parameters |
|
|
3.1 |
Operating Voltage: |
DC 5V±5％ |
|
3.2 |
Working current: |
125mA |
|
3.3 |
Stand-by current:： |
0.6μA |
|
4 |
Physical properties |
|
|
4.1 |

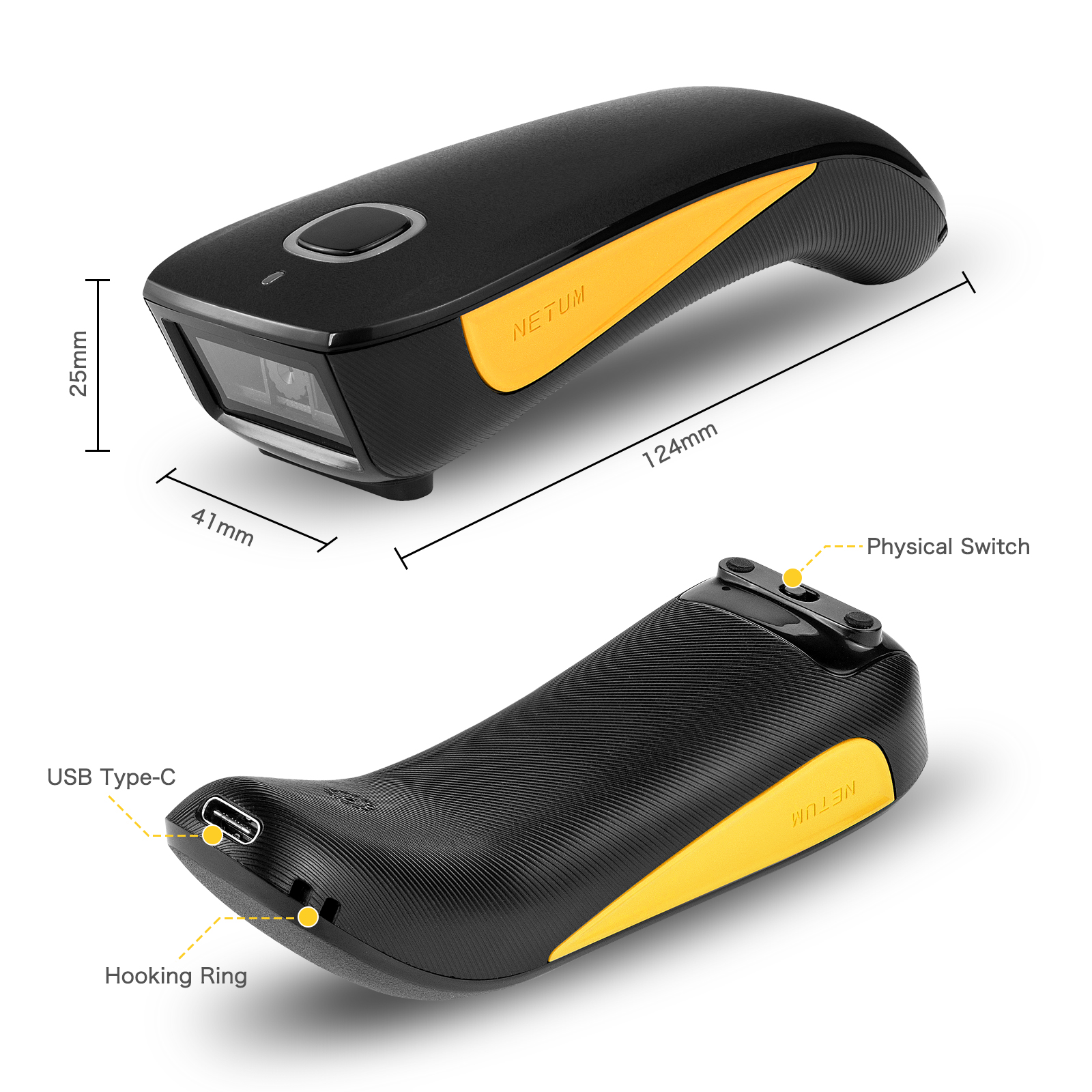

Dimensions |
length*width*height (mm)::125*25*41mm |
|
4.2 |
Weight: |
≈72g |
|
4.3 |
Data cable length: |
1.2m |
|
4.4 |
Support interface: |
USB |
|
4.4 |
Color: |
Black+ Yellow |
|
4.5 |
Material: |
ABS |
|
4.6 |
Prompt method: |
Buzzer, LED indicator, vibration |
|
5 |
Operating environment |
|
|
5.1 |
Usage environment: |
-10°C-50°C |
|
5.2 |
Storage temperature: |
-20°C-70°C |
|
5.3 |
Storage humidity: |
5%-95% (no condensation) |
|
5.4 |
Ambient lighting: |
0~100000 LUX |
|
6 |
Safety regulations |
|
|
6.1 |
Earthquake resistance: |
1 meter high free fall (optional C series protective cover) |
|
6.2 |
Related certifications: |
CE ROHS FCC, etc |
