Fetures
The Z3S mini barcode scanner stands out for its portability, low cost, and plug-and-play functionality, making it the optimal choice for lightweight scanning needs—especially suited for small and medium-sized businesses and mobile workers. However, for harsh environments or complex barcodes, industrial-grade devices remain necessary to fill the gap.
Mini and portable

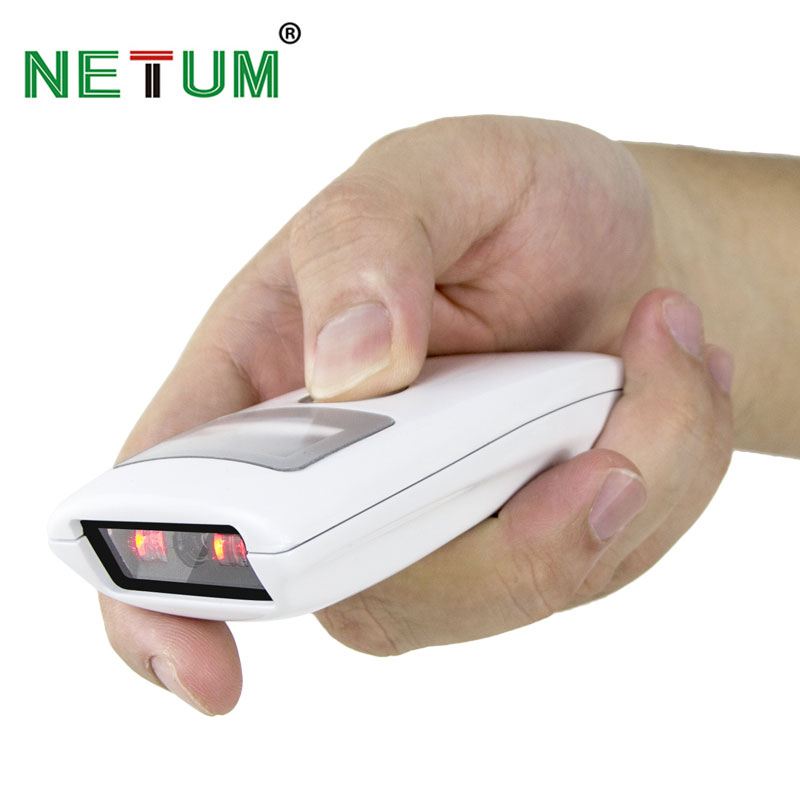

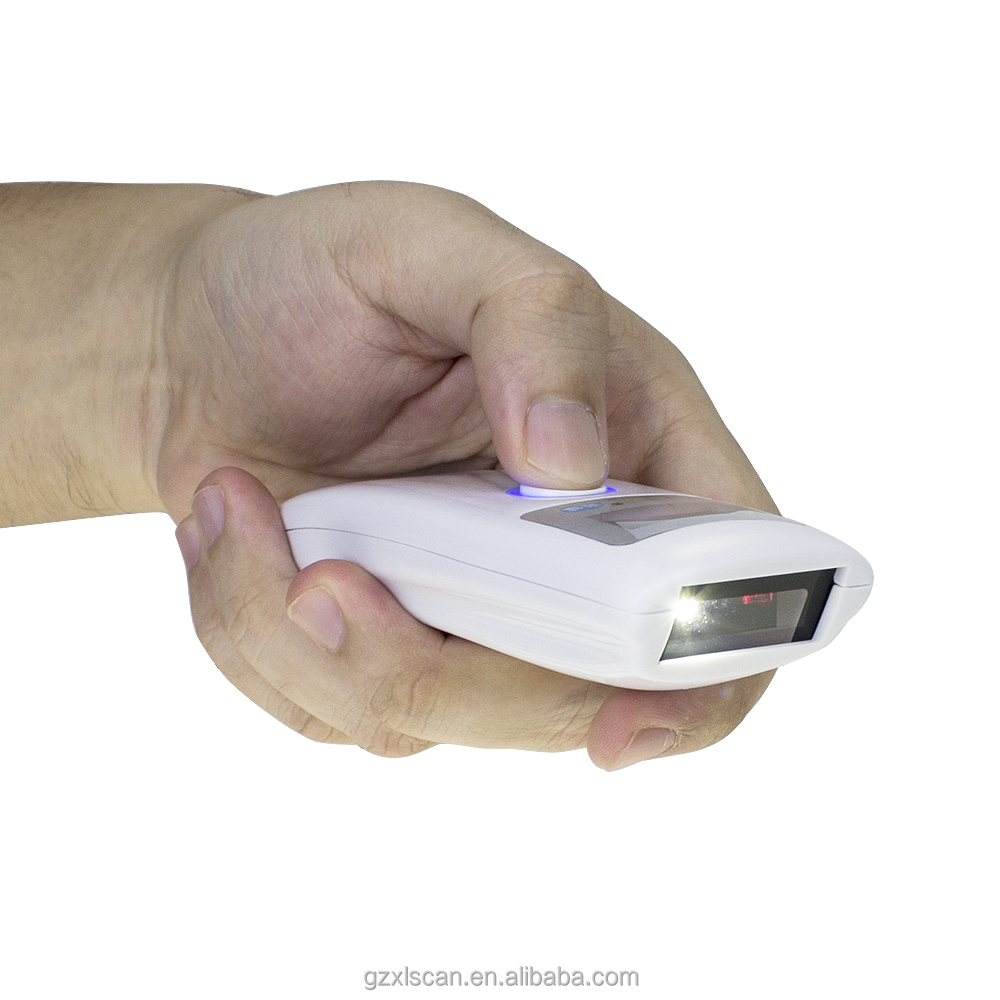

Z3S Mini Barcode Scanner Weighs only 70g, fits easily into a pocket for on-the-go use. Ideal for retail, logistics, warehousing, healthcare, and more.

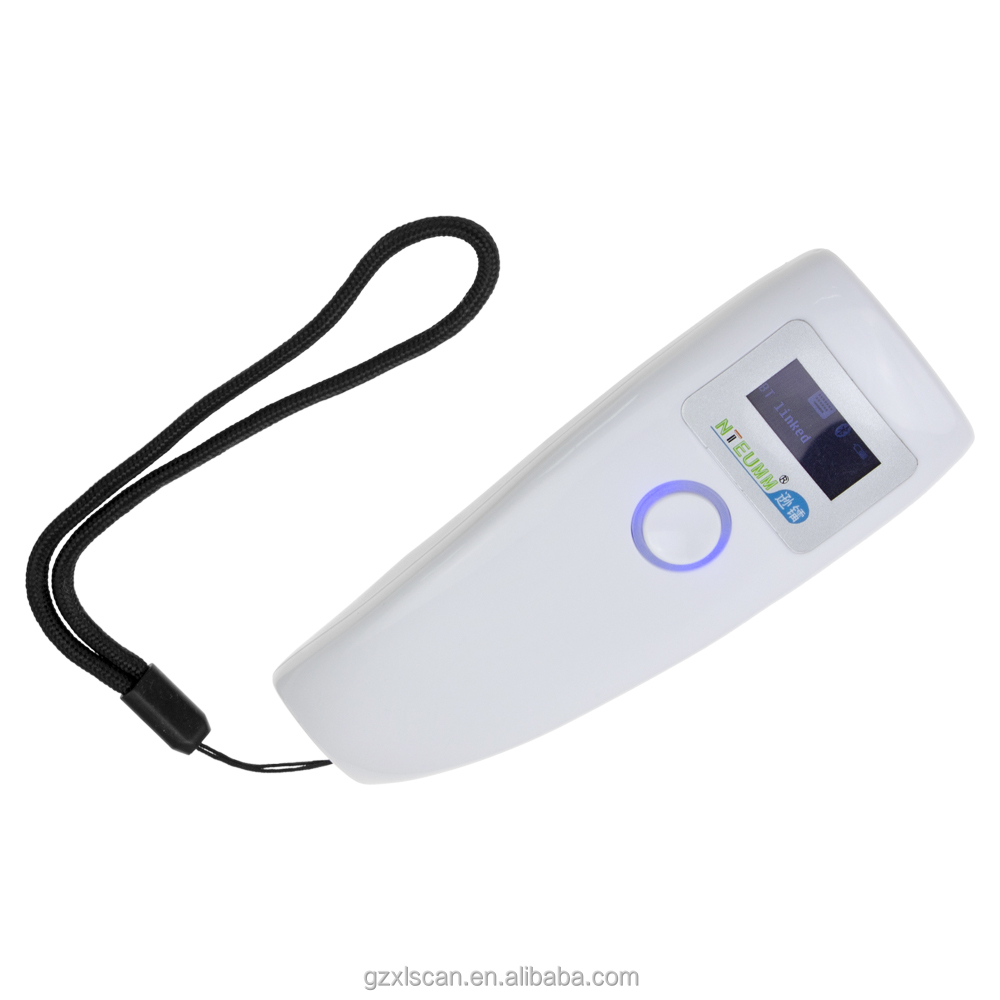

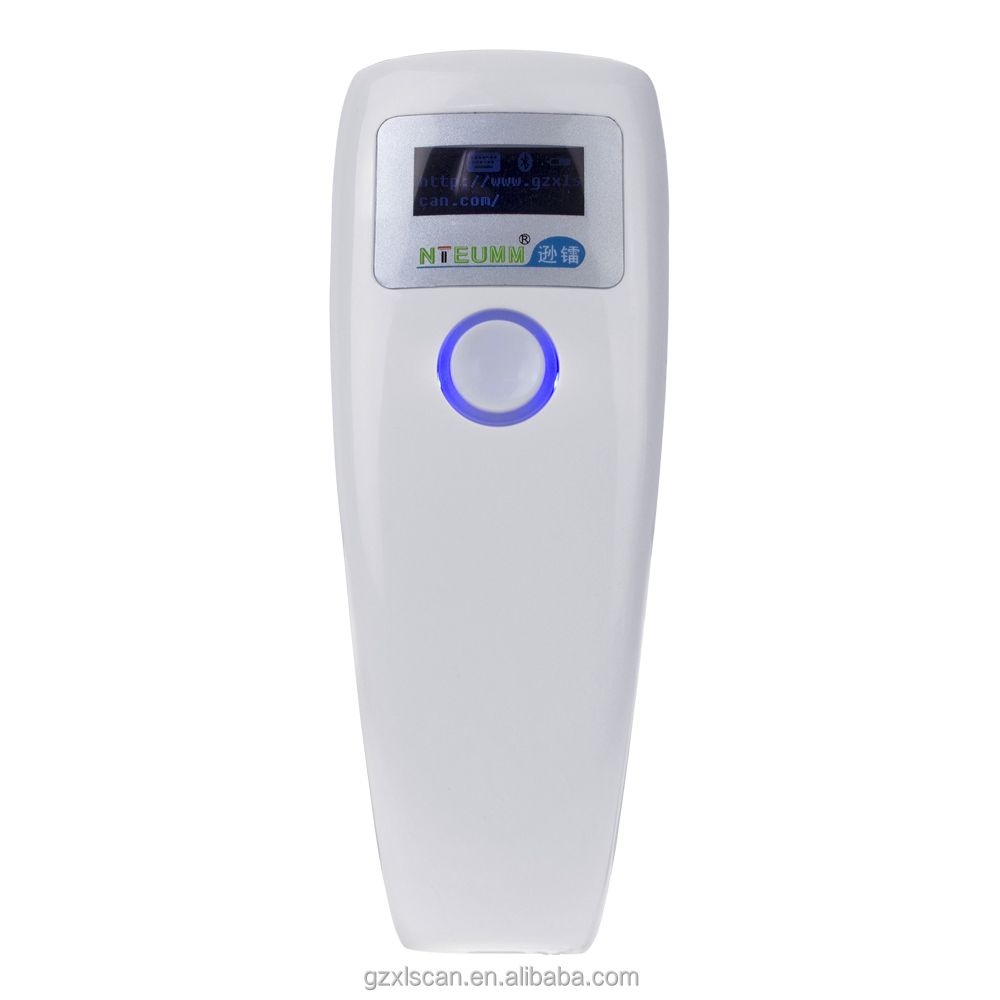

Key Display Functions
Transmission Mode: Shows active connection (USB/Bluetooth/RS232) to prevent misoperation.
Connection Status: Visual icons indicate pairing status (e.g., Bluetooth signal strength).
Battery Level: Digital percentage + graphical bar, with low-battery flashing alerts.
Scanned Data: Displays the last successfully decoded barcode (configurable display duration/history view).
Status Alerts: Error codes (e.g., "Lens blocked", "Decode failed") and working modes (continuous/single-trigger).
Details Description

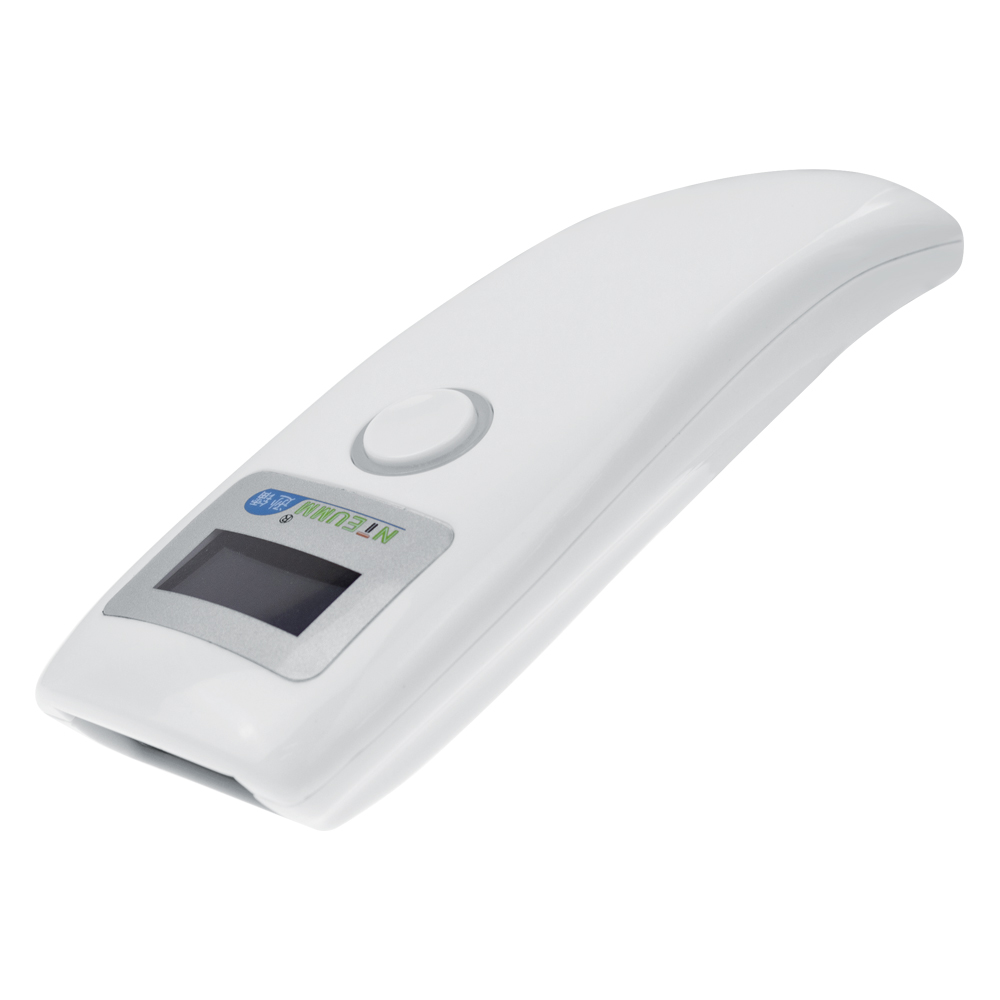

NT-Z3S 1D CCD Pocket Potable Bluetooth Barcode Scanner
1 | Scanning Performance | |
1.1 | Light Source: | Visible red light, 632nm wavelength |
1.1.2 | Optical System: | Linear CCD Sensor |
1.1.3 | Processor: | ARM32-bit |
1.1.4 | Sensor Resolution: | 1500 |
1.1.5 | Decode Resolution:： | ≥5mil/0.127mm@PCS90% |
1.1.6 | Decoding Speed: | Up to 200 scans per second |
1.1.7 | Trigger Modes: | Button trigger, Continuous illumination, Auto-sensing, Command control |
1.1.8 | Scan Angle | Test Conditions：CODE39,10mil/0.25mm,PCS90% Pitch: ±60° Roll: ±30° Skew: ±60° |
1.1.9 | Supported Barcode Types | EAN-8, EAN-13, Codabar, CODE11，CODE 39, CODE 93, CODE128, China Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E, ISBN/ISSN, ISBT , Interleaved 2 of 5， Matrix 2 of 5，Industrial 2 of 5 , MSI，Plessey, ITF14. |
1.2 | Depth of Field (DOF): | Code 39 8bytes (5mil) 70mm~180mm Code 39 10bytes (20mil) 120mm~300mm Code 39 5bytes (40mil) 160mm~450mm UPC/EAN 13 12bytes (13.0mil) 45mm~270mm |
2 | Wireless Parameters | |
2.1 | Transmission Modes: | 2.4G Wireless + Bluetooth (Supports Bluetooth 2.0 / 3.0 / 4.0 / 4.2) + Wired USB |
2.2 | 2.4G: | Up to 65 meters (line of sight) |
Bluetooth: | Up to 20 meters (line of sight) | |
2.3 | Battery Capacity: | 1200mAh |
2.4 | Charging Time: | 3 – 4 hours |
2.5 | Standby Mode: | Enters standby after 3 minutes of inactivity |
2.6 | Charging Input:： | 5V 2A |
2.7 | TFT Display: | Shows transmission mode, connection status, battery level, scan data, and status alerts |
3 | Electrical Specifications | |
3.1 | Operating Voltage: | DC 5V±5% |
3.2 | Operating Current: | 130mA |
3.3 | Standby Current: | 0.6μA |
4 | Physical Characteristics | |
4.1 | Dimensions (L × W × H) | 130*45*25（mm） |
4.2 | Weight: | ≈72g |
4.3 | Color: | White |
4.4 | Cable Length: | 1.2m |
4.5 | Material: | ABS |
4.6 | Notification Modes: | Buzzer, LED Indicator, Vibration, TFT Screen |
4.7 | Supported Interface: | USB |
5 | Environmental Specifications | |
5.1 | Operating Temperature: | -20℃ to 50℃ |
5.2 | Storage Temperature: | -40℃ to 70℃ |
5.3 | Humidity: | 5% to 95%（non-condensing） |
5.4 | Ambient Light Immunity: | 100,000Lux Max |
5.5 | Thermal Cycling Test: | High Temp: 60°C (30 minutes) Low Temp: -20°C (30 minutes) |
5.6 | Transportation Vibration Test: | 10H@125RPM |
6 | Compliance & Safety | |
6.1 | Drop Resistance: | 1 meter free fall |
6.2 | Certifications: | CE, RoHS, FCC |
