NT-1203L Netum Industrial Bluetooth Long Distance Reading Barcode Scanner, IP67 Waterproof, 2600mAh Wireless 1D 2D Bar Code Scanner with Charging Holder for Warehouse
➤〖IP67 Waterproof & 7M Drop Proof〗Netum industrial barcode scanner has excellent shockproof function and rugged design, which can withstand the impact of 22ft/7m falling to the concrete floor. It can be rinsed with tap water and even soaked in water for up to 30 minutes. External TPU protective case is 3 times as thick as similar products.
➤〖Wireless Charging & Large-Capacity Battery〗Just put the scanner on the stand and let the wireless charging stand take care of the rest. 2600 mAh large-capacity battery can work 11-12 hours consecutively under intensive use, which is 3 times longer than other regular barcode scanners. It works with Windows, Mac OS, IOS, Andorid and almost all common software. You can use this scanner in various settings like supermarkets, shopping malls, postal industry, logistics and medical institutions.
➤〖Auto Scanning & Storage Mode〗Our bluteooth barcode scanner have manual scan & auto-sensing scan & continuous scan. Two working mode: Instant upload mode / storage mode. Storage mode: Scan and store barcodes, then update the data to your device when you come back entering the wireless transmission range. Internal offline storage supports up to 100,000 barcodes in offline storage mode.

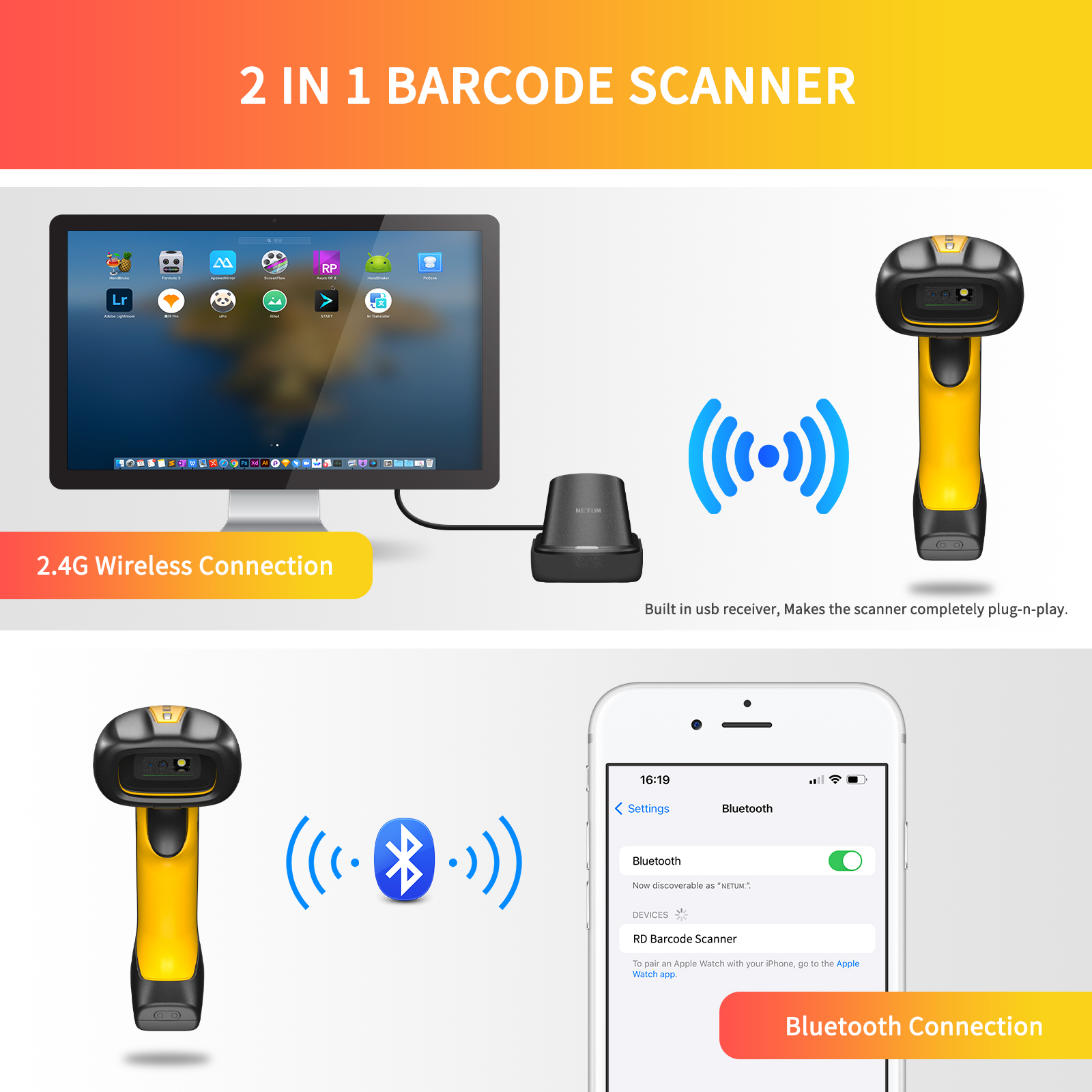

➤〖Wireless Long Transmission Distance〗The barcode reader works with 2.4G wireless and Bluetooth transmission. The cradle has a built in 2.4G receiver that makes the scanner completely plug-n-play, or connect the scanner to your device via bluetooth, Support HID / SPP / BLE mode. The transmission distance can be up to 300m/984ft in barrier free environment using 2.4G USB dongle base, or up to 35m/115ft using Bluetooth. It makes this model an ideal choice for large warehouses.
➤〖High Resolution Scan Engine〗Netum bluetooth barcode scanner adopts the High Resolution Scan Engine. Superior recognition ability that can read many types of barcodes，such as 2D PDF 417, Micro PDF 417, Data Matrix, QR Code, Micro QR, Aztec, MaxiCode, Direct Part Mark and 1D UPCA / UPC E, EAN8 / EAN 13, Code 128, Code 39, Code 93, Code 32, Code 11, Composite Code -A, etc. It can be read quickly and accurately, even if the label may be partially damaged, dirty, or poorly printed.
Feature:
1.Industrial-grade anti-drop, dust-proof, waterproof, suitable for various complex environments.
2.With high-definition scanning lens, strong recognition ability.
3.It is well suited for application in supermarkets, pharmacies, retail stores, and book shops, etc.
4.Support Windows XP, Win7, Win8, Win10 operating system Android and IOS devices.
5.Support a rich symbol system, including hidden characters, adding custom prefix/suffix characters, etc.
6.Support multi-languages,including English,Spanish,German,Japanese French,Italian,etc.
1 | Optical property | |
1.1 | Imaging Sensor | CMOS |
1.2 | Resolution | 2688 x 1520 |
1.3 |
Illumination | Aiming Green Laser 520 nm Illumination 2 Warm-White LED |
1.4 | Precision | 1D ≥3 mil |
2D ≥5 mil | ||
1.5 | Print Contrast | ≥30% |
2.1 | Operating Characteristic | |
2.1.1 | Operating Environment | -30°C-60°C |
2.1.2 | Storage Environment | -30°C-70°C |
2.1.3 | Operating Humidity | 95% RH, 122°F/50°C (No Condensation） |
2.1.4 | Ambient Illumination | Max 107,639 lux |
2.2 | Electrical Specification | |
2.2.1 | Working Voltage | (3.3V~4.2V) ±5% |
2.2.2 | Maximum Current | 480 mA |
2.2.3 | Battery Capacity | 2600 MAH |
2.2.4 | Charging Time | 4-6 hours |
2.3 | Transmission Performance | |
2.3.1 | Transmission Mode | 2.4G Wireless |
Bluetooth | ||
2.3.2 | Transmission Distance | 2.4G Mode In Open Visual Distance≦100 Meters |
Bluetooth Mode In Open Visual Distance≦10 Meters | ||
3 | Decoding Capability | |
3.1 | Field Angle | 35° V x 46° H (Nominal) |
3.2 | Scan Angle | Tilt ±60°, Deflection ±60°, Rotation 360° |
3.2 |
Depth of Field | 3 mil Code 39 Near Distance: 2.7 in./6.9 cm Far Distance: 16.2 in./41.1 cm 5 mil Code 39 Near Distance: 2.5 in./6.4 cm Far Distance: 26.6 in./67.6 cm 5 mil PDF417 Near Distance: 2.8 in./7.1 cm Far Distance: 19.6 in./49.8 cm 6.7 mil PDF417 Near Distance: 2.6 in./6.6 cm Far Distance: 25.6 in./65.0 cm . 10 mil DataMatrix Near Distance: 2.2 in./5.6 cm Far Distance: 27.1 in./68.8 cm 100% UPC (13 mil) Near Distance: 2.5 in./6.4 cm Far Distance: 71 in./180 cm 15 mil Code 128 Near Distance: 7.2 in./18.2 cm2 Far Distance: 72 in./182.9 cm |
3.3 |
Decoding | 2D PDF417、QR Code (QR1/2, Micro)、Data Matrix (ECC200, ECC000, 050, 080, 100, 140)、Chinese Sensible Code, etc.. |
1D Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4 Matrix 2 of 5, Industrial 25, Standard 25, Code39, Codabar Code 93, Code 11 etc.. | ||
4 | Others | |
4.1 |
Prompting Mode: | 1. Buzzer 2. LED Indicator Light 3. Vibration |
4.2 |
Scan Mode (Hand-held) | 1. Trigger Mode 2. Continuous Mode 3. Auto Sense Mode 4. Others |
4.3 | Charging Interface | USB(B)/USB(A), RS-232 (Optional) |
5 | Physical Property | |
5.1 | Measure | L*W*H (mm): 100*70*170mm (Cradle: 165*110*85mm) |
5.2 | Cable | 1.2m |
5.3 | Color | Yellow + Black |
6 | Safety Code | |
6.1 | IP Rating | IP67 |
6.2 | Shock Resistance | 7 Meters High Free Fall |
6.3 | Certificates | CE, FCC, ROHS etc... |
